    Charger ISDT K4 DC 600Wx2 AC 400W Dual-Channel Smart

    Charger ISDT K4 DC 600Wx2 AC 400W Dual-Channel Smart

    Brand: ISDT

    €230,00
    €230,00 €230,00
    -0% View Product
    In stock
    We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion

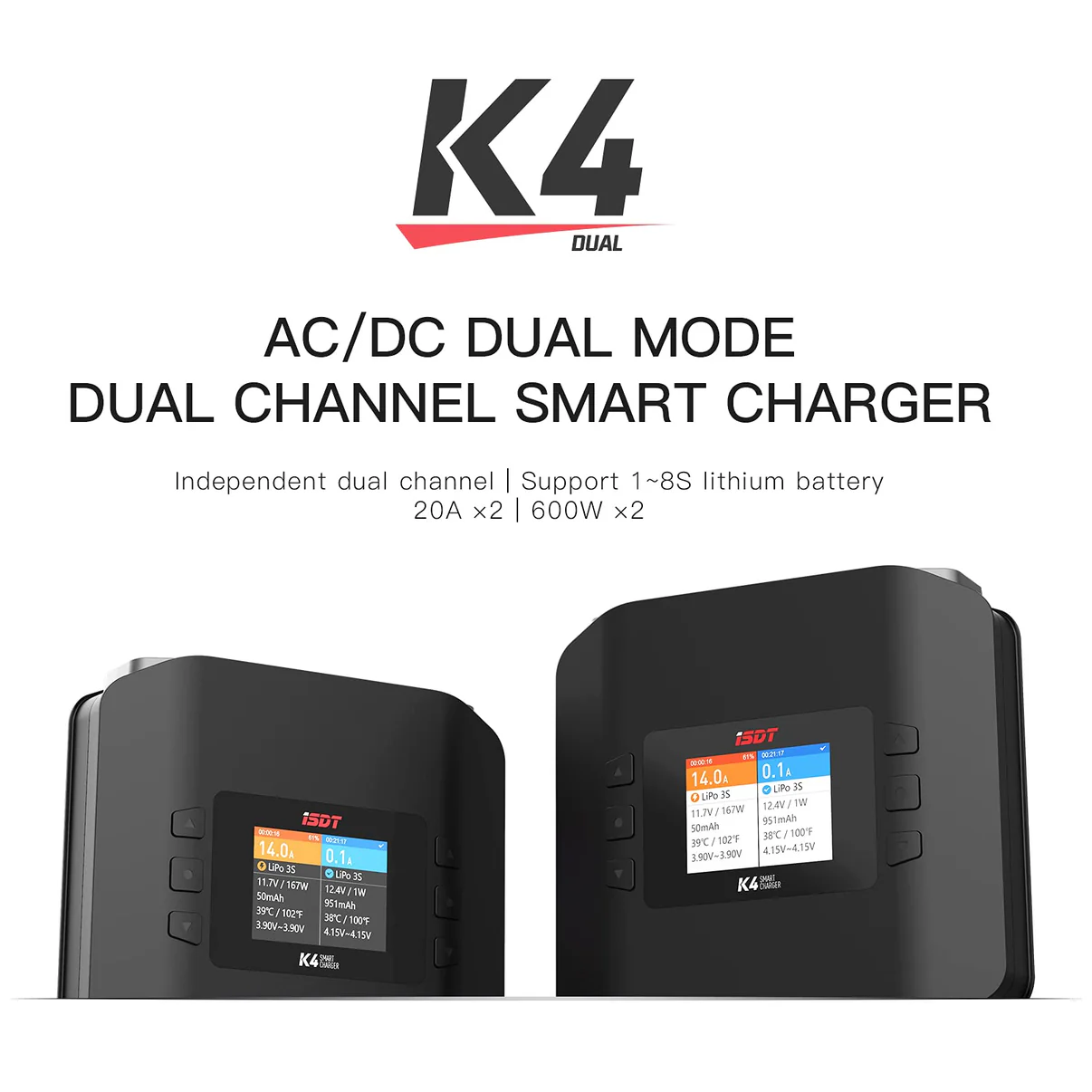

    ISDT K4 charger:

    The ISDT K4 charger is a versatile, high-performance charging solution designed for a wide range of battery types and applications. Here is a detailed overview of its features and specifications:

    Key Features

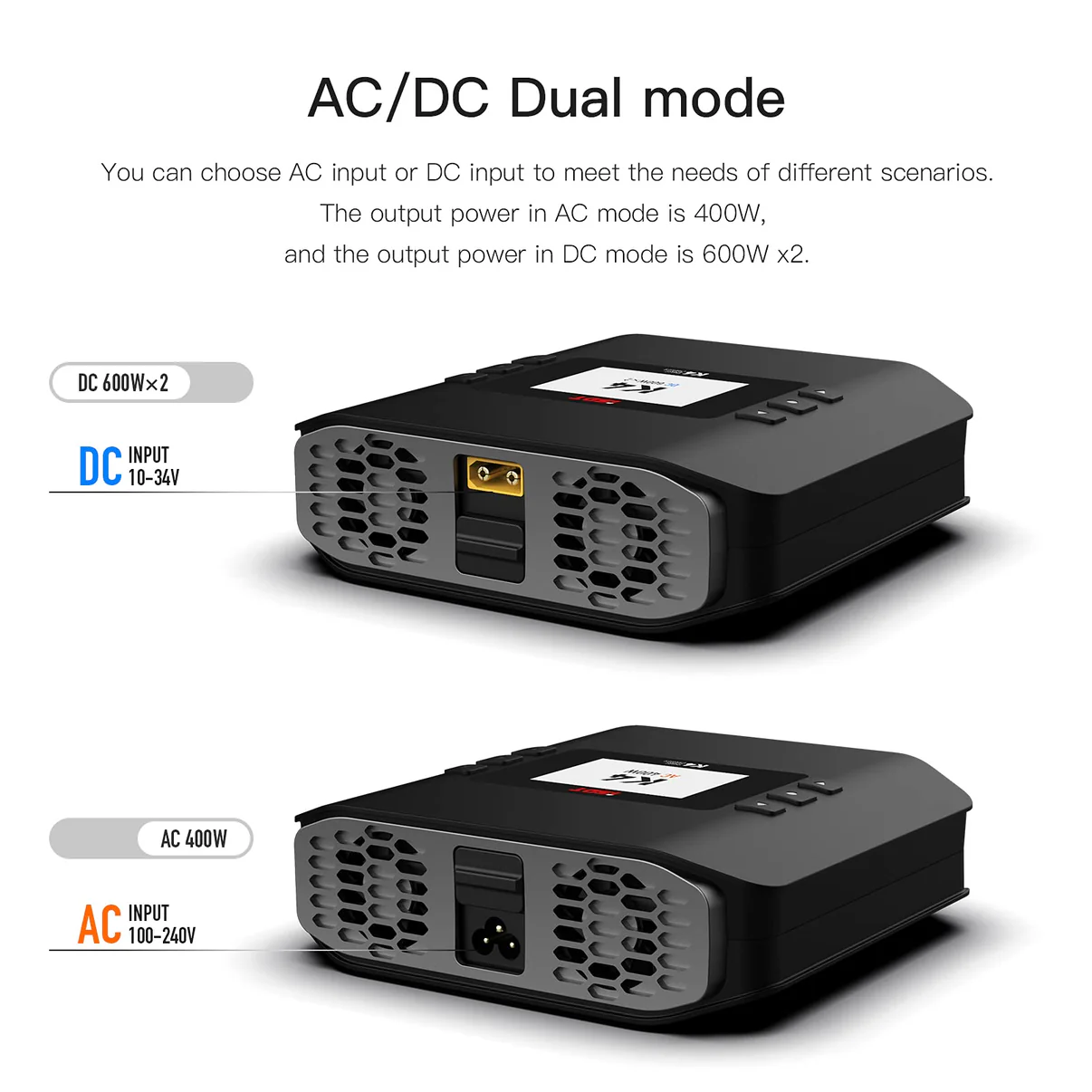

    Dual input modes:

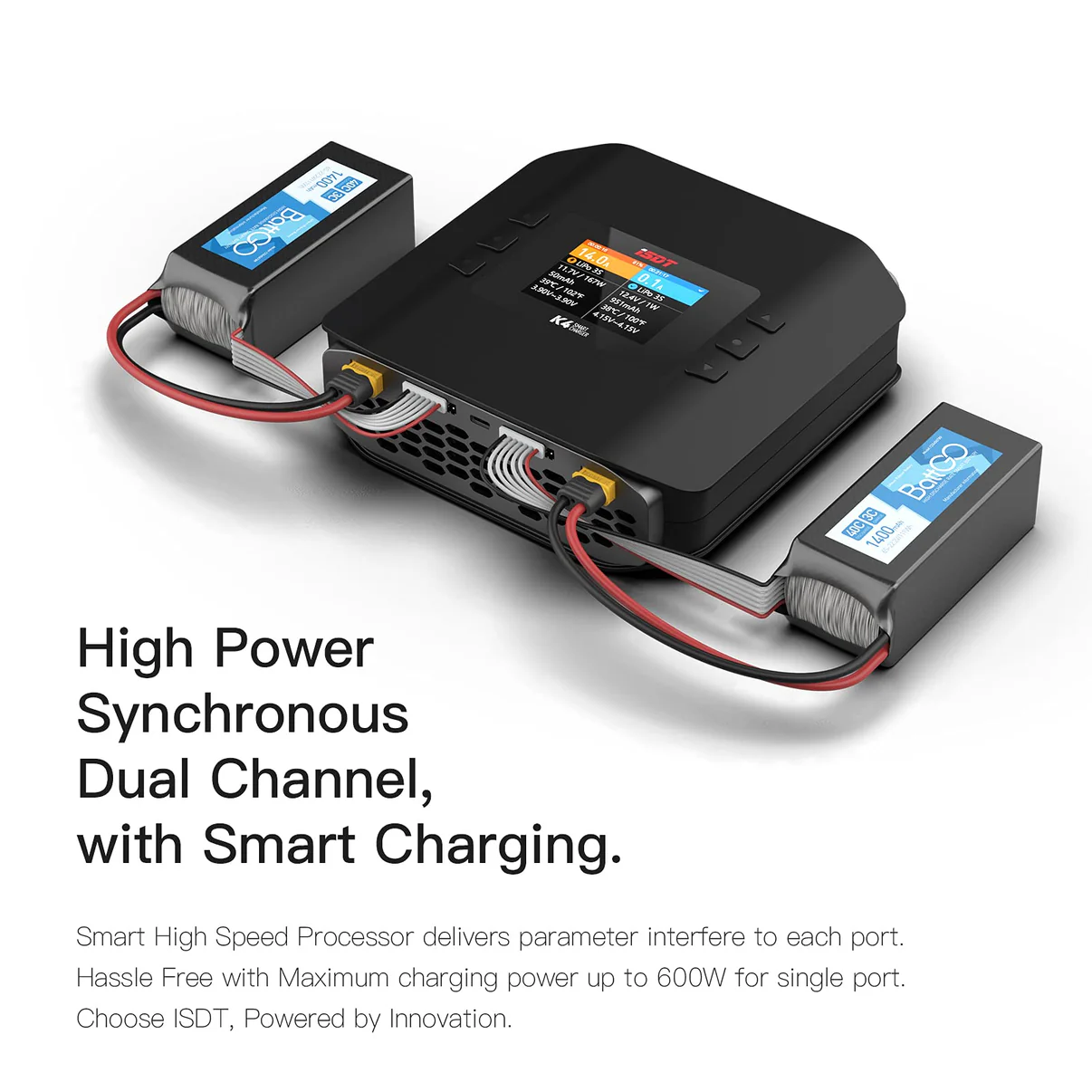

    • Supports AC (400W) and DC (600W) charging with independent dual channels, enabling efficient charging of multiple batteries at the same time.
    • Maximum input current 60A and charging current 30A per channel.

    Smart display:

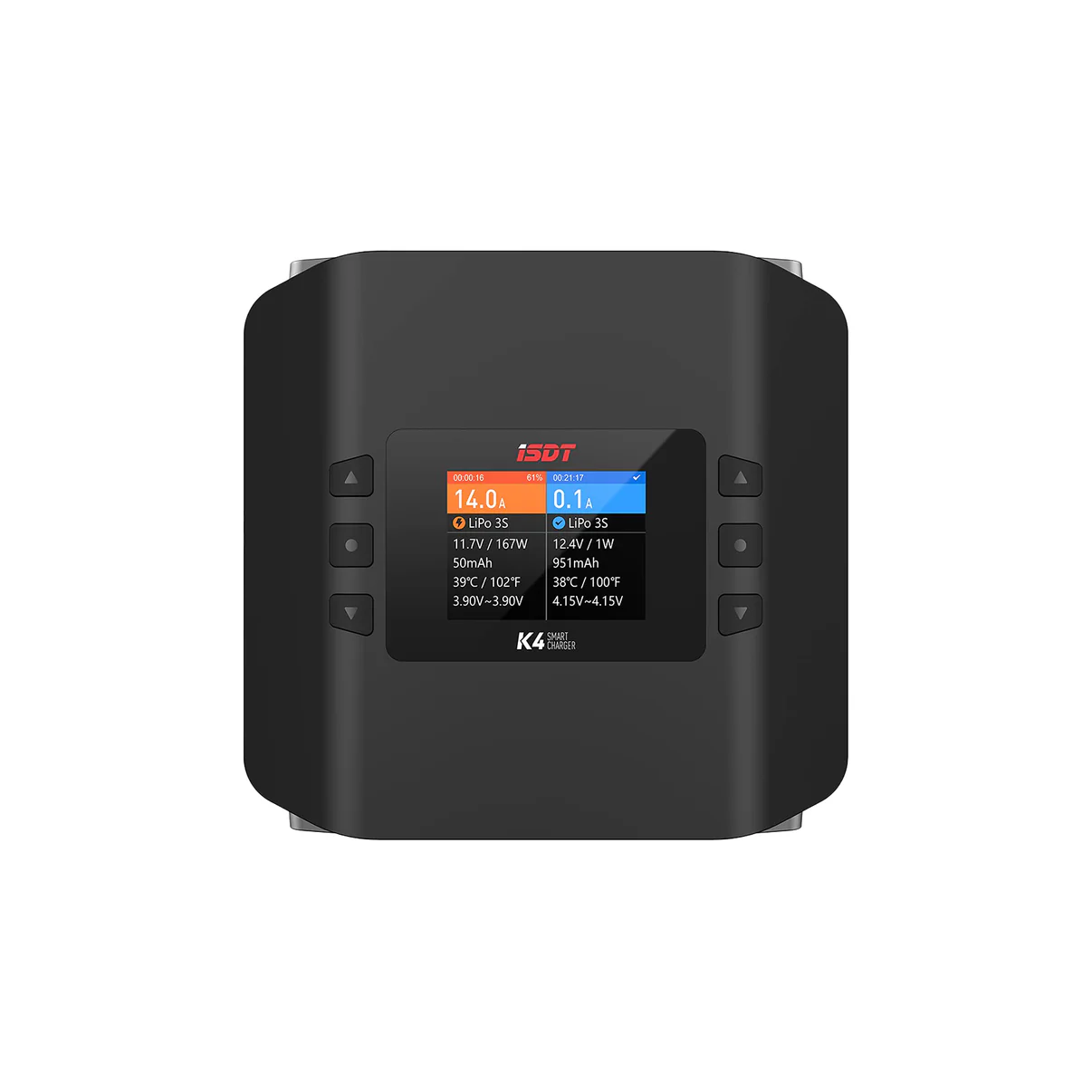

    • It has a color LCD touch panel that displays current charging information including voltage, current, charging time, battery type, internal resistance and charged capacity.
    • User-friendly interface allows easy setup and manual control.

    Multifunctionality:

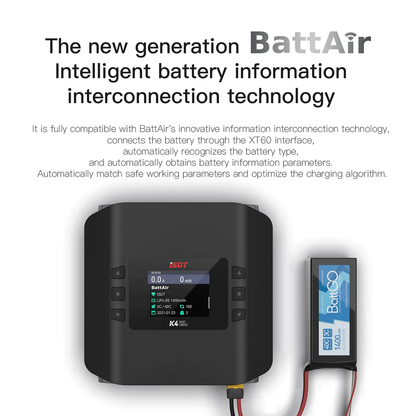

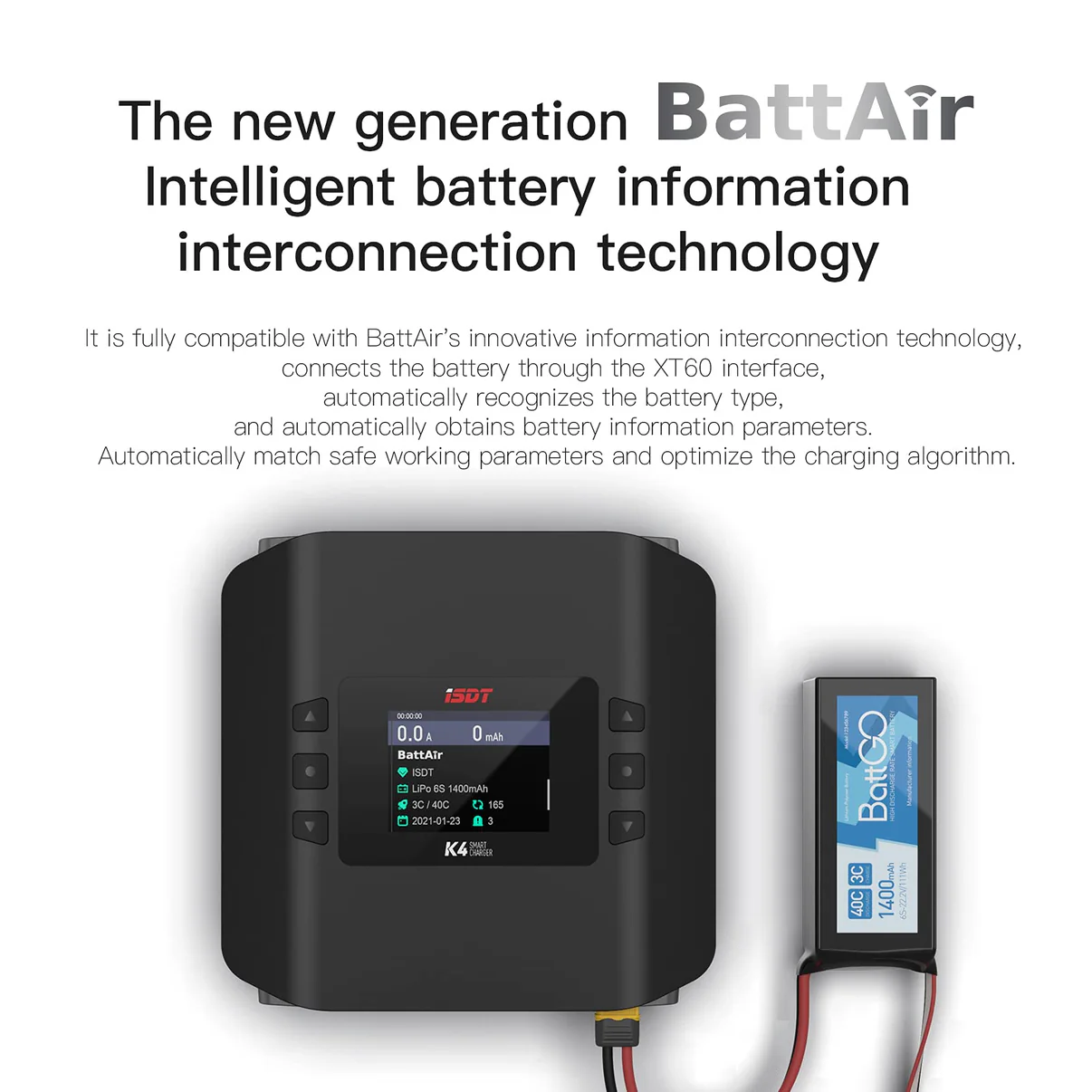

    • Supports BattAir Bluetooth connection for mobile control via ISD Link app.
    • Features include Li-ion and LiPo balancing, fast charging, data storage, cycle charging and discharging.
    • Automatically stops charging when the battery is fully charged, for safety.

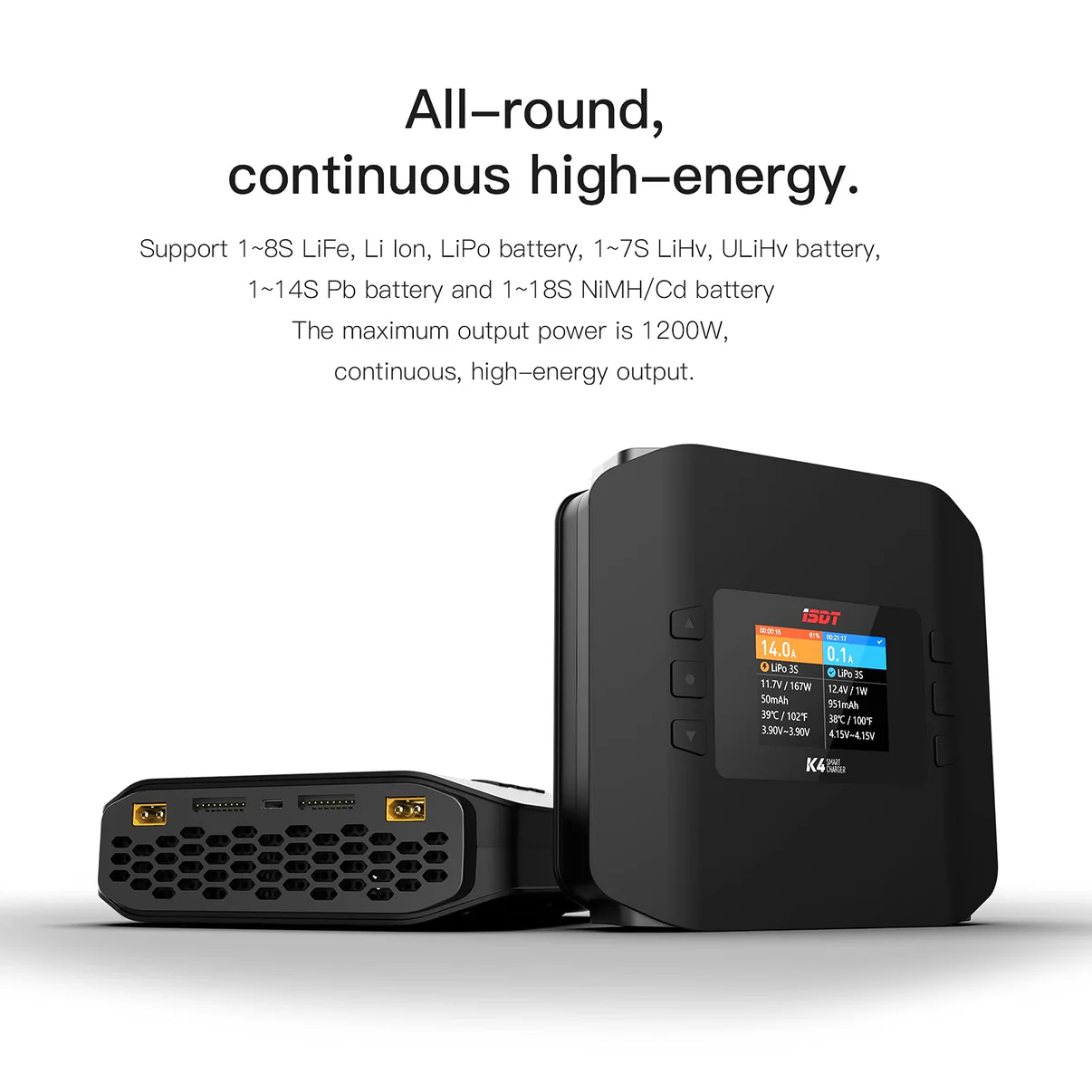

    Wide battery compatibility:

    • Compatible with a variety of battery types, including:
      • LiFe, LiIon, LiPo (1-8S)
      • LiHv, ULiHv (1-7S)
      • Tide acid (Pb, 1-14S)
      • NiMH/NiCd (1-18S)
    • Automatic battery type recognition function with intelligent charging algorithm.

    Robust design:

    • Made with aluminum alloy that ensures durability and attractive appearance.
    • Advanced cooling air channel increases heat dissipation and ensures optimal performance during operation.

    Security features:

    • Includes alarms for abnormal voltage and incorrect cell count settings, ensuring safe operation.
    • Automatic adjustment of charging parameters and automatic safety shutdown to extend battery life.

    Technical specifications

    • Input voltage: AC 100-240V / DC 10-30V
    • Output voltage: DC 1-30V
    • Maximum input current: DC 35A
    • Charging current: 0.2-20A per channel
    • Discharge current: 0.2-3A per channel
    • Balance current: 1.5A per cell (max)
    • Maximum discharge power: 30W per channel
    • Maximum charging power:
      • AC: 400W
      • DC: 600W per channel
    • Parallel charging power/current: 800W / 35A
    • Parallel discharge power/current: 30W / 3A
    • Working temperature: 0-40°C
    • Storage temperature: -20 to 60°C
    • Dimensions: 142 x 135 x 64 mm
    • Weight: About 700g

    Package contains

    • 1x ISDT K4 charger
