    Charger ISDT K2AIR AC 200W DC 500W Dual-Channel Smart

    Charger ISDT K2AIR AC 200W DC 500W Dual-Channel Smart

    Brand: ISDT

    €129,00
    €129,00 €129,00
    -0% View Product
    In stock
    We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion

    ISDT K2 Air Smart charger:

    The ISDT K2 Air Smart charger is a compact and advanced charging solution designed for hobbyists and professionals using various types of batteries. Here is a comprehensive overview of its features and specifications:

    Key Features

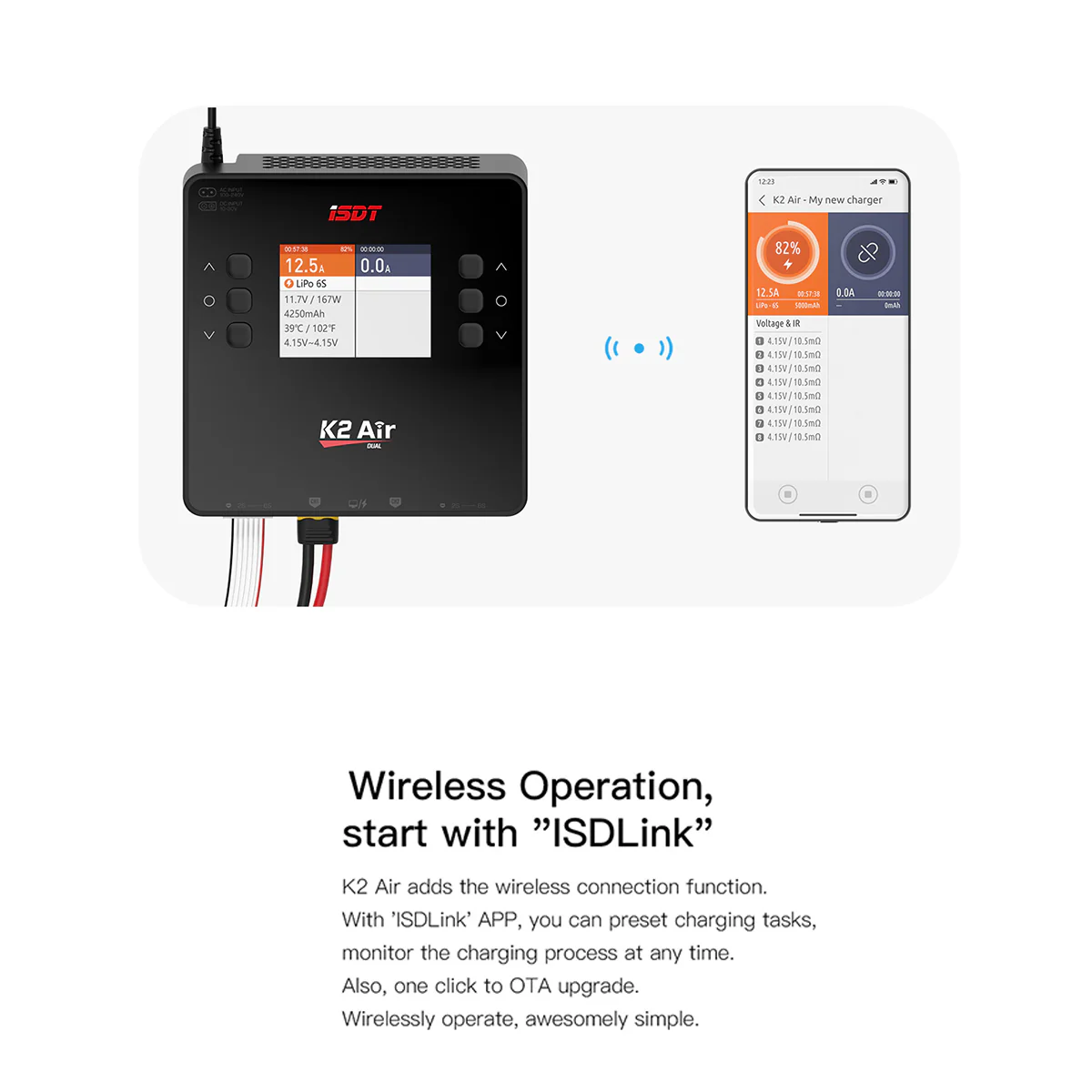

    Bluetooth connection:

    • Supports Bluetooth connection for remote control via ISD Link app, allowing users to conveniently adjust charging parameters from their smartphone.

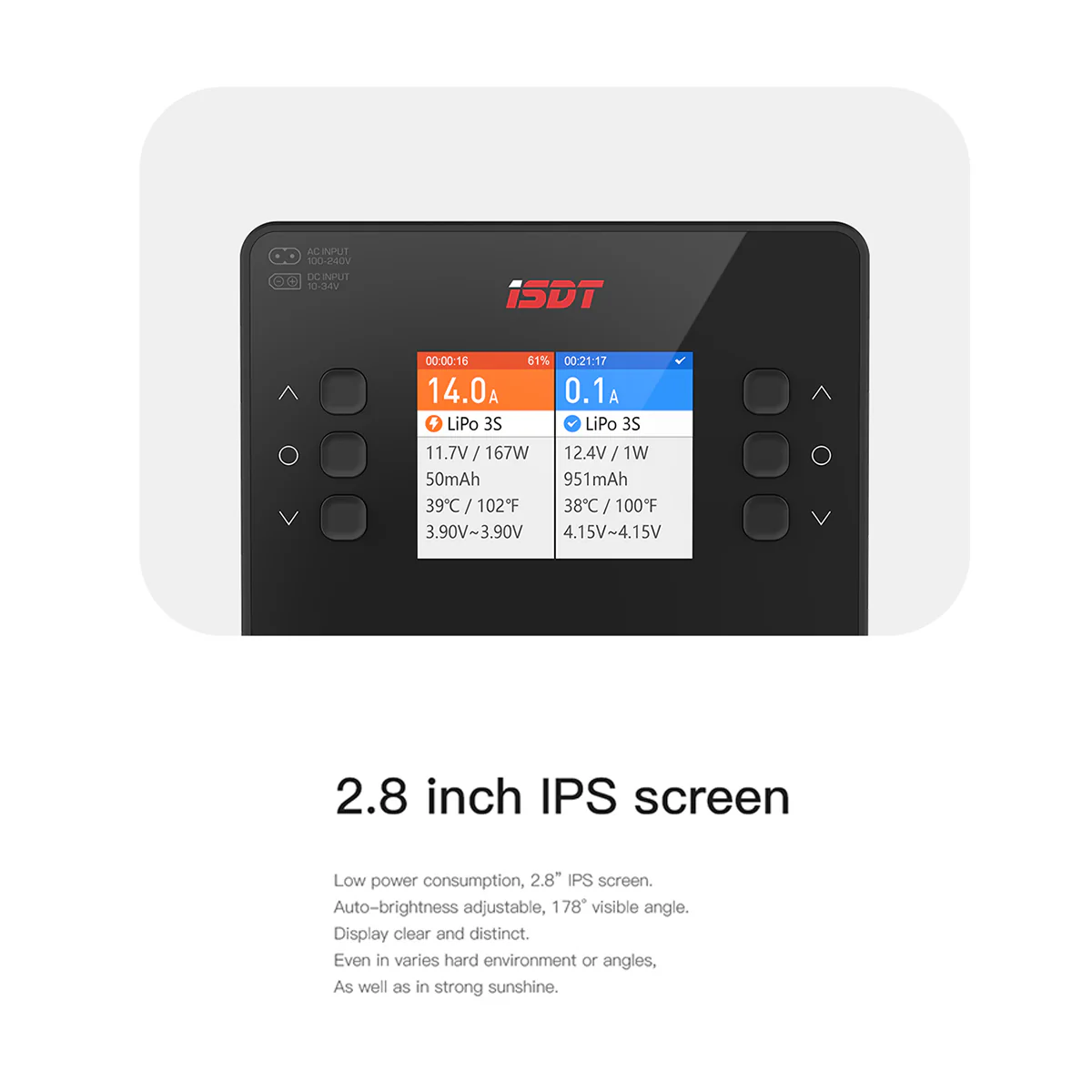

    Smart display:

    • The color LCD display provides up-to-date information about the charging process, displaying voltage, current, charging time, mode, battery type, internal resistance and charged capacity.
    • The large screen enhances the user experience with easy operation and manual settings.

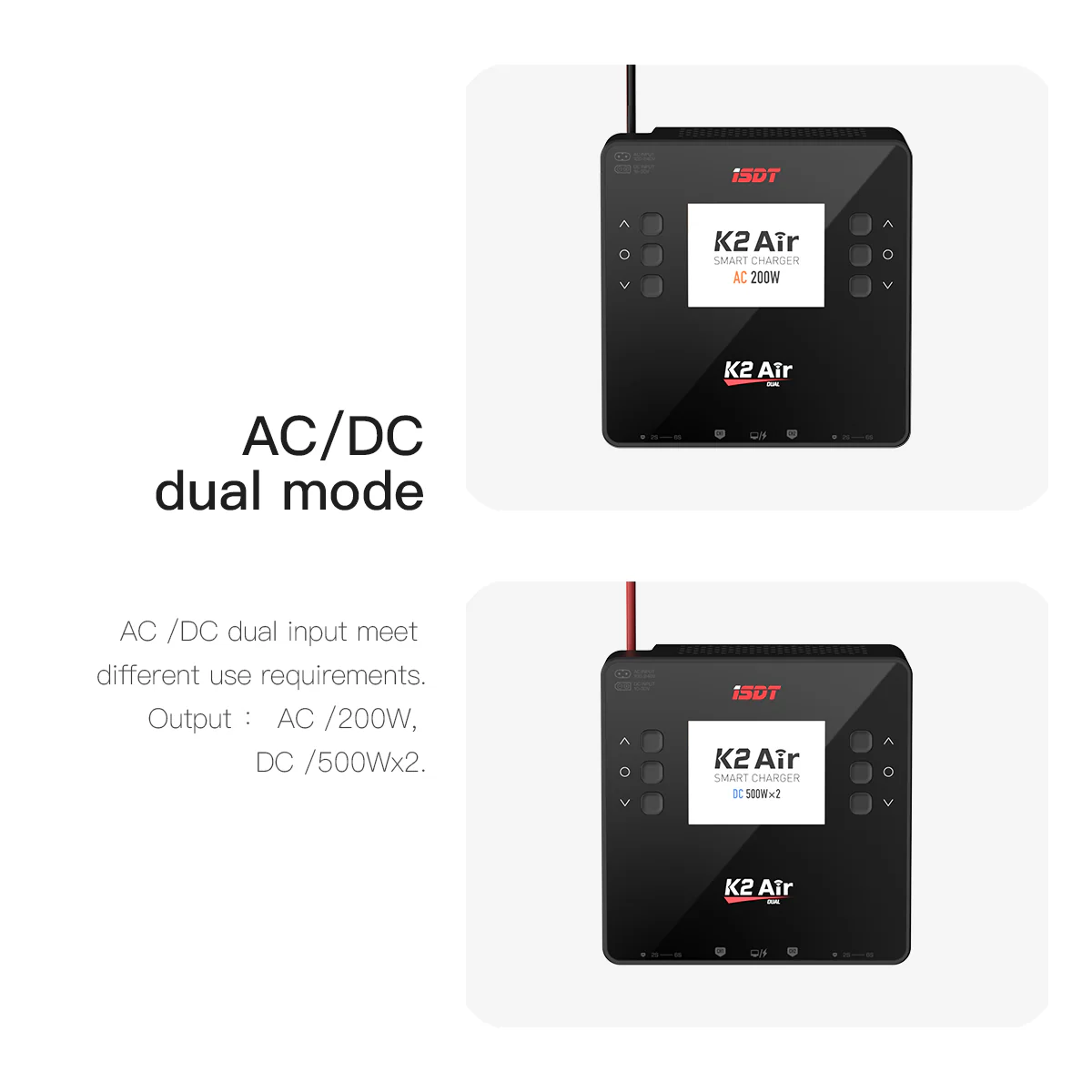

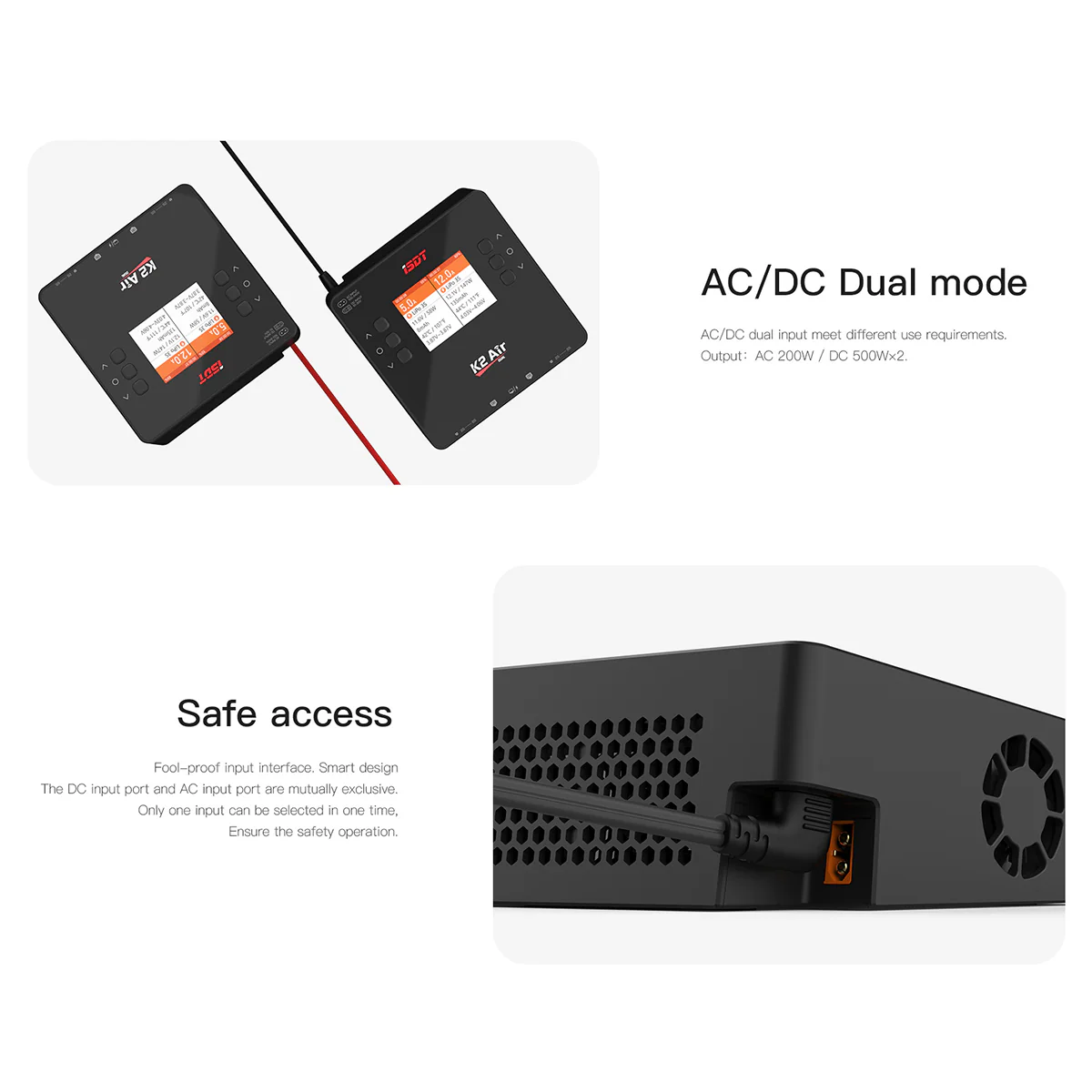

    Dual input modes:

    • Offers AC (200W) and DC (500W) inputs with independent dual channels that support 20A charging currents per channel.
    • The maximum input current is 40A, which ensures efficient charging.

    Multifunctionality:

    • Includes features such as Li-ion and LiPo equalization, fast charging, data storage, cycle charging and discharging.
    • Automatically stops charging when batteries are fully charged, increasing safety.

    Battery compatibility:

    • Compatible with a wide range of battery types:
      • LiFe, LiIon, LiPo (1-6S)
      • LiHv (1-6S)
      • Tide acid (Pb, 1-12S)
      • NiMH/NiCd (1-16S)
    • Automatic battery type recognition function and intelligent charging algorithms for efficient charging and discharging.

    Robust design:

    • Aluminum alloy construction ensures durability and elegant appearance.
    • Advanced cooling air channel for highly efficient heat dissipation ensures optimal performance during long use.

    Security features:

    • It is equipped with alarms for abnormal voltage and incorrect setting of the number of cells, which provides a safer charging environment.
    • Includes automatic adjustment of charging parameters and an automatic shutdown mechanism for increased safety.

    Technical specifications

    • Input voltage: AC 100-240V / DC 10-30V
    • Output voltage: DC 1-30V
    • Maximum input current: DC 35A
    • Charging current: 0.2-20A per channel
    • Discharge current: 0.2-1.5A per channel
    • Balance current: 1.5A per cell (max)
    • Maximum discharge power: 15W per channel
    • Maximum charging power:
      • AC: 200W
      • DC: 500W per channel
    • Parallel charging power/current: 800W / 35A
    • Parallel discharge power/current: 30W / 3A
    • Working temperature: 0-40°C
    • Storage temperature: -20 to 60°C
    • Dimensions: 142 x 135 x 64 mm
    • Weight: About 700g

    Package contains

    • 1x ISDT K2 Air charger
