Charger ISDT B80 3000W Smart For 22S/16S Lithium Battery Pack
Charger ISDT B80 3000W Smart For 22S/16S Lithium Battery Pack
Brand: ISDT
Regular price
€645,00
Regular price
€645,00
Sale price
€645,00
Unit price
/
per
In stock
Limited stock available. Order soon!
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion
B80 charger:
This charger appears to be a high performance and versatile solution for charging large batteries. Here is a summary of its key features:
Key Features
Strong performance:

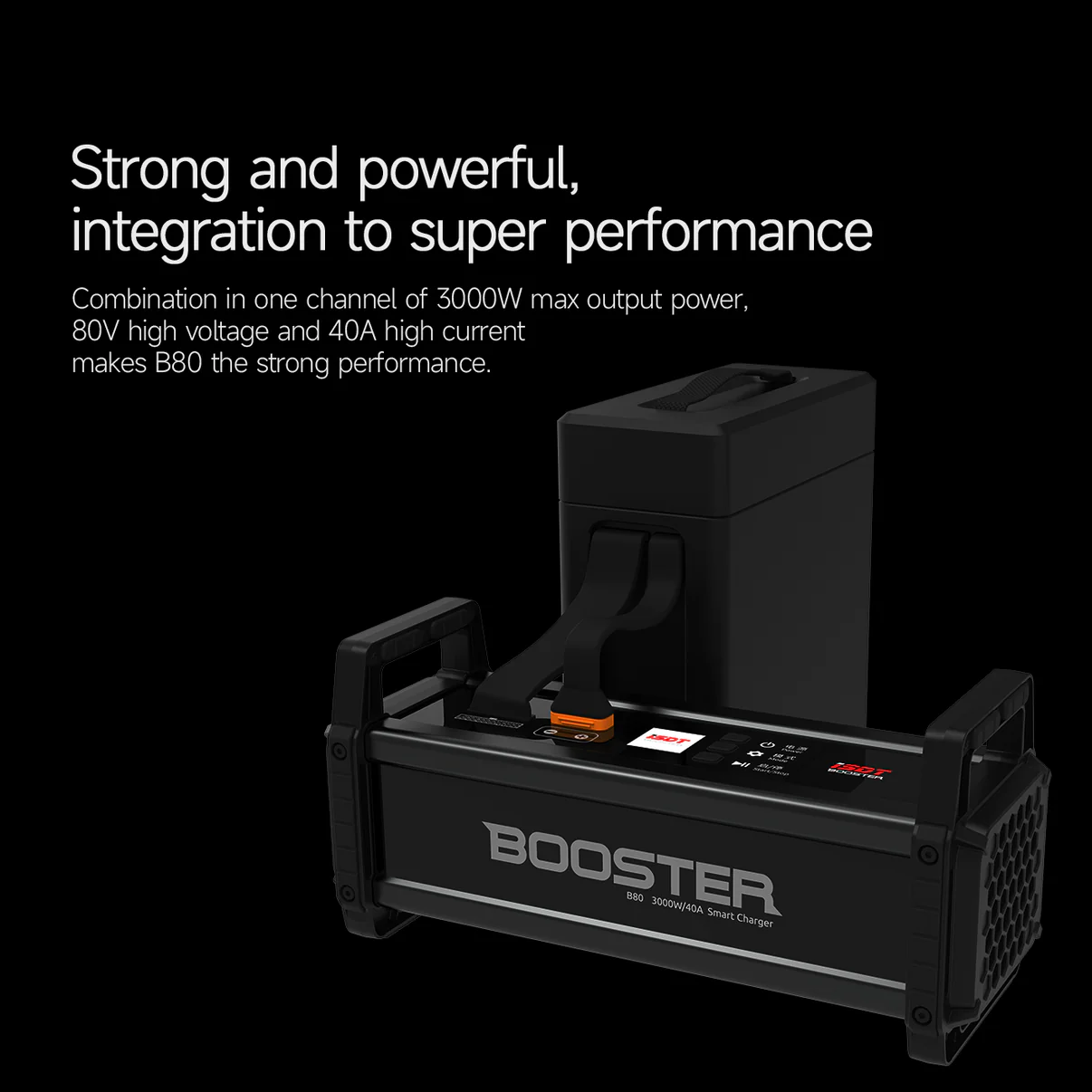

- It provides a maximum power of 3000W with a voltage of up to 80V and a current of 40A, which enables robust charging of large battery packs.
Extensive battery support:

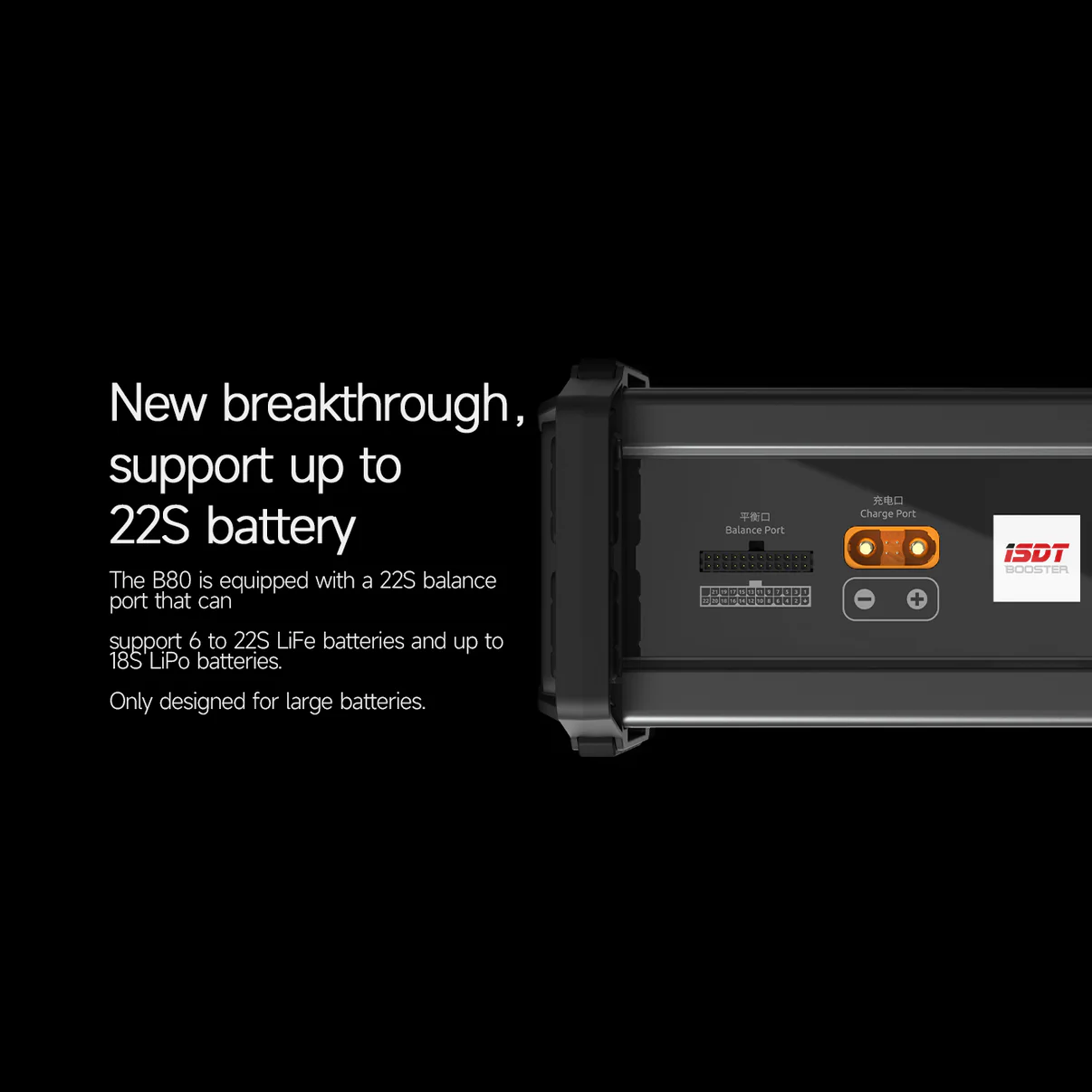

- Equipped with a 22S buffer port, it supports LiFe (8-22S) and LiPo (6-18S) batteries, making it ideal for handling high voltage and high capacity battery systems.
Wireless connectivity:

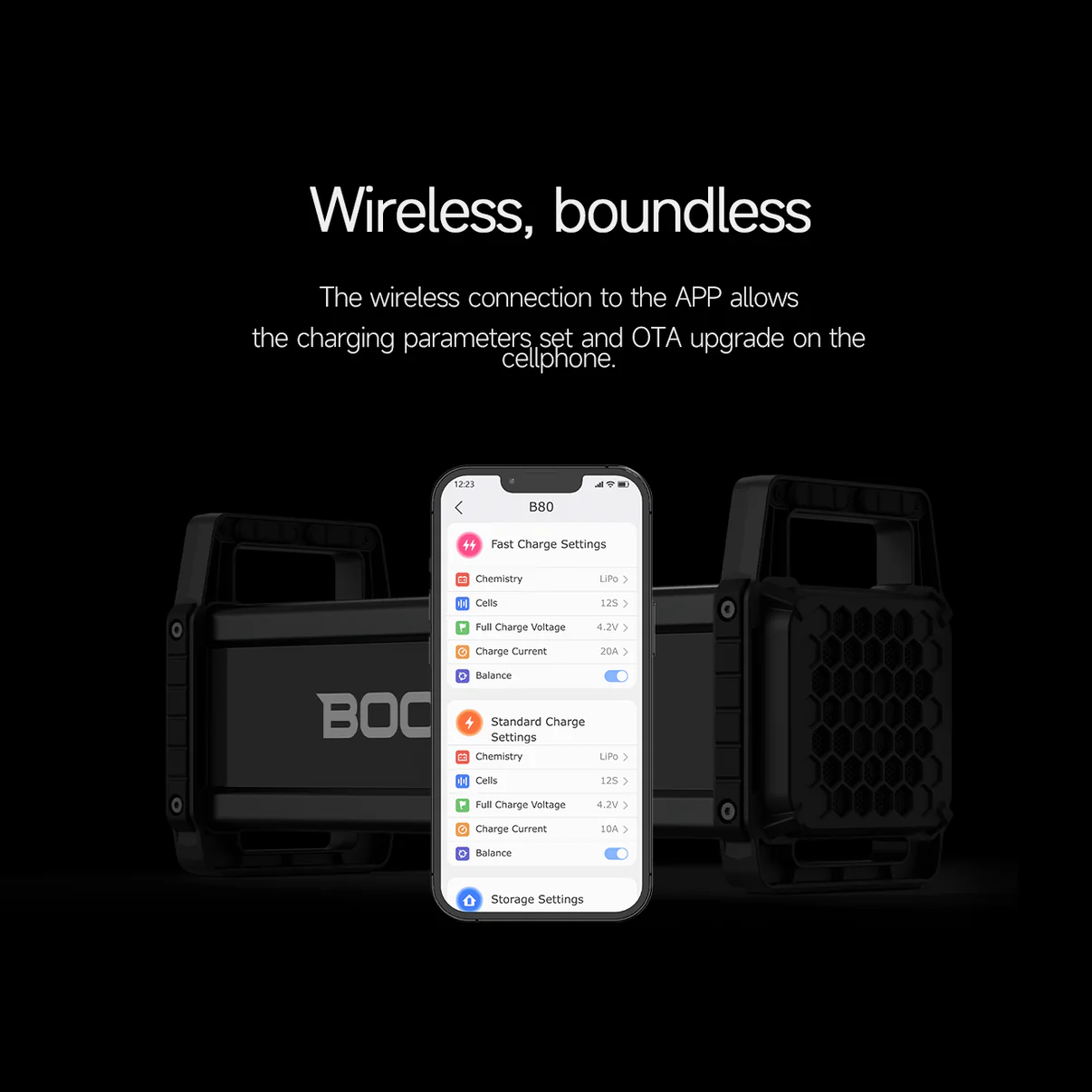

- Offers wireless connection to an app that allows users to set charging parameters and perform OTA (over-the-air) firmware updates via smartphone, increasing convenience and usability.
Durable and heat-resistant design:

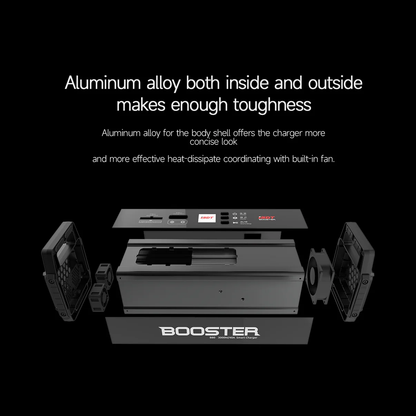

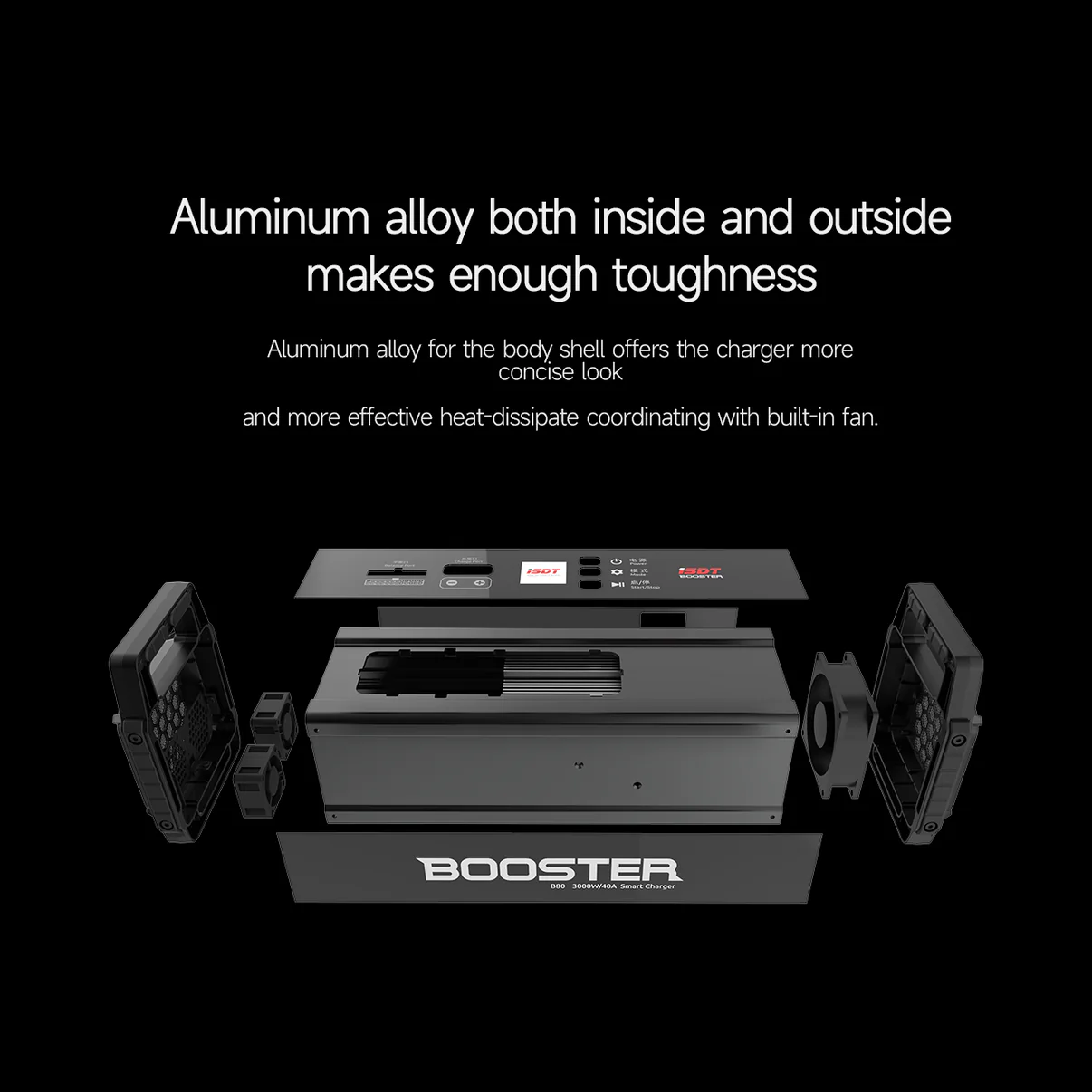

- Made of aluminum alloy for internal components and outer shell, which ensures durability and efficient heat dissipation. It is supplemented with a built-in fan for cooling during high-performance operation.
Technical specifications
- Input voltage: AC 100-240V
- Output voltage: DC 20-80V
- Maximum input current: 16A (AC)
-
Maximum charging power:
- 3000W at 220V AC
- 1500W at 110V AC
- 1400W at 100V AC
- Maximum discharge power: 200W
-
Supported batteries:
- LiFe: 8-22S
- LiPo: 6-18S
- LiHv: 6-18S
- ULiHv: 6-18S
- Charging current: 1.0-40.0A
- Discharge current: 0.5-5.0A
- Balance current: 2A per cell
- Alarms: Includes alarms for abnormal voltage and incorrectly set number of cells.
- Working temperature: 0-40°C
- Storage temperature: -20-60°C
- Dimensions: 356 x 136.8 x 164.1 mm
- Weight: About 3973g
Package contains
- 1x B80 charger
