    Code: 5514

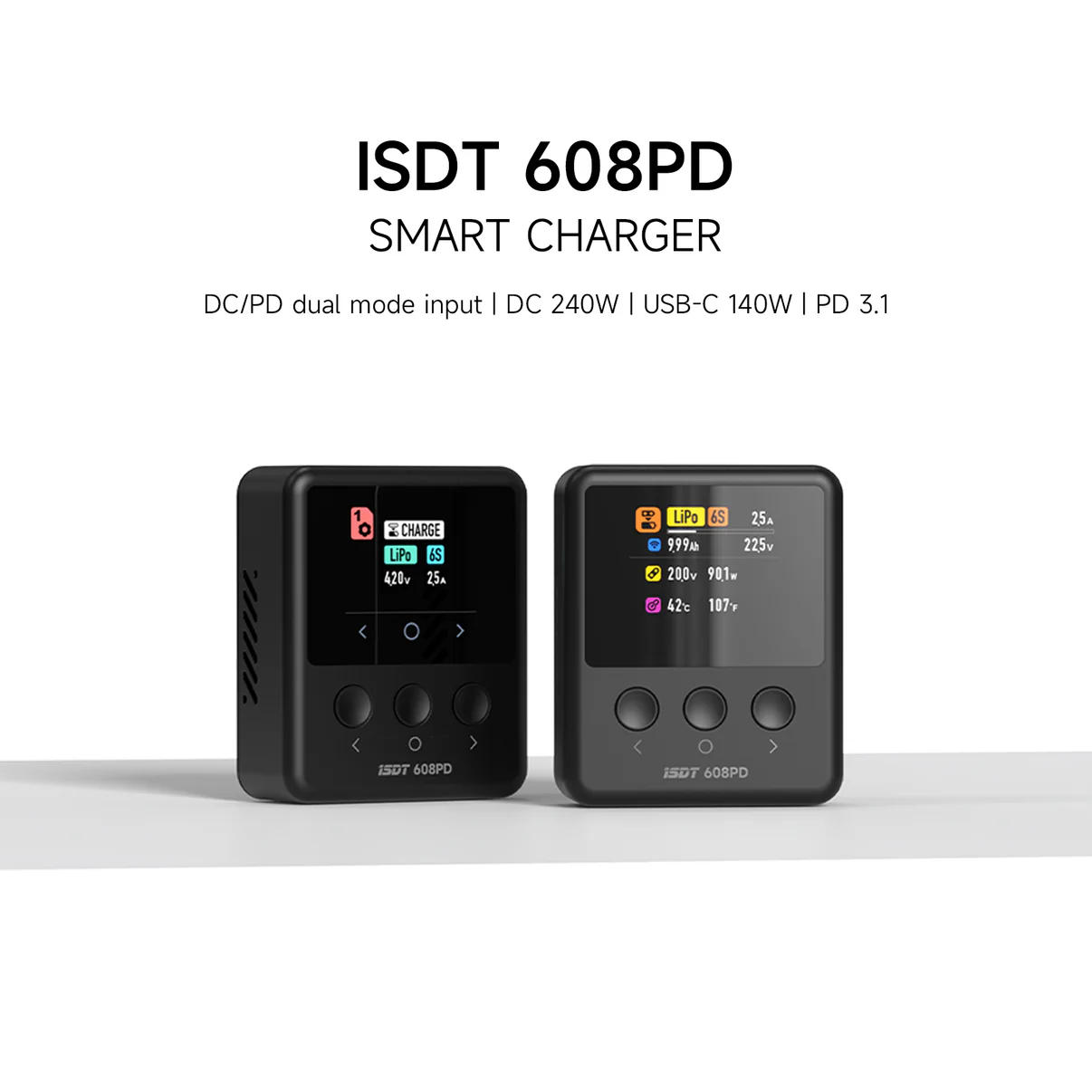

    Charger ISDT 608PD Compact 240W Smart With USB-C

    Charger ISDT 608PD Compact 240W Smart With USB-C

    Brand: ISDT

    €39,92
    €39,92 €39,92
    -0% View Product
    Taxes included.
    In stock
    We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion

    Next-Gen Pocket Charger: Features and Specifications

    High performance

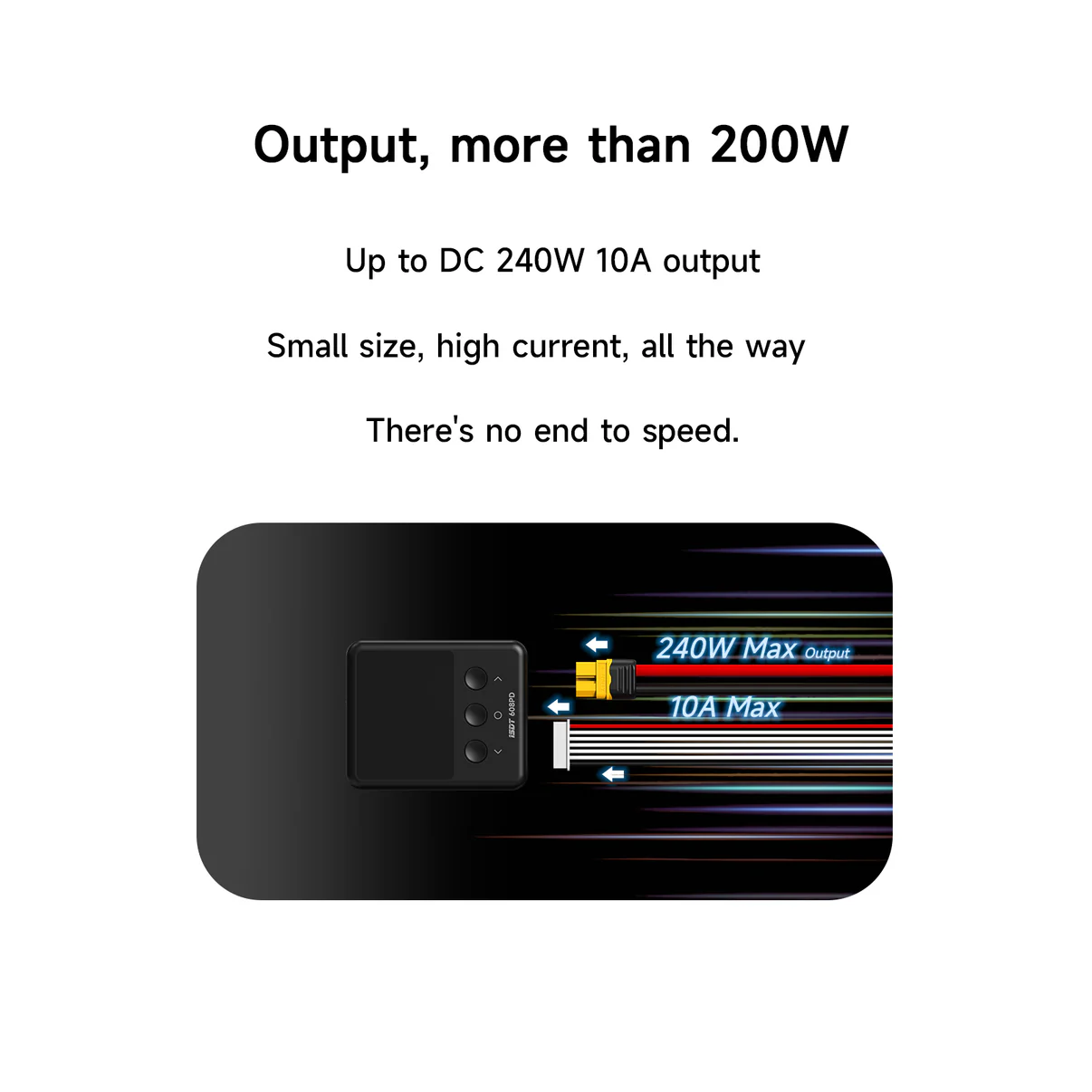

    • DC 240W maximum power: 10A output to meet demanding charging needs.

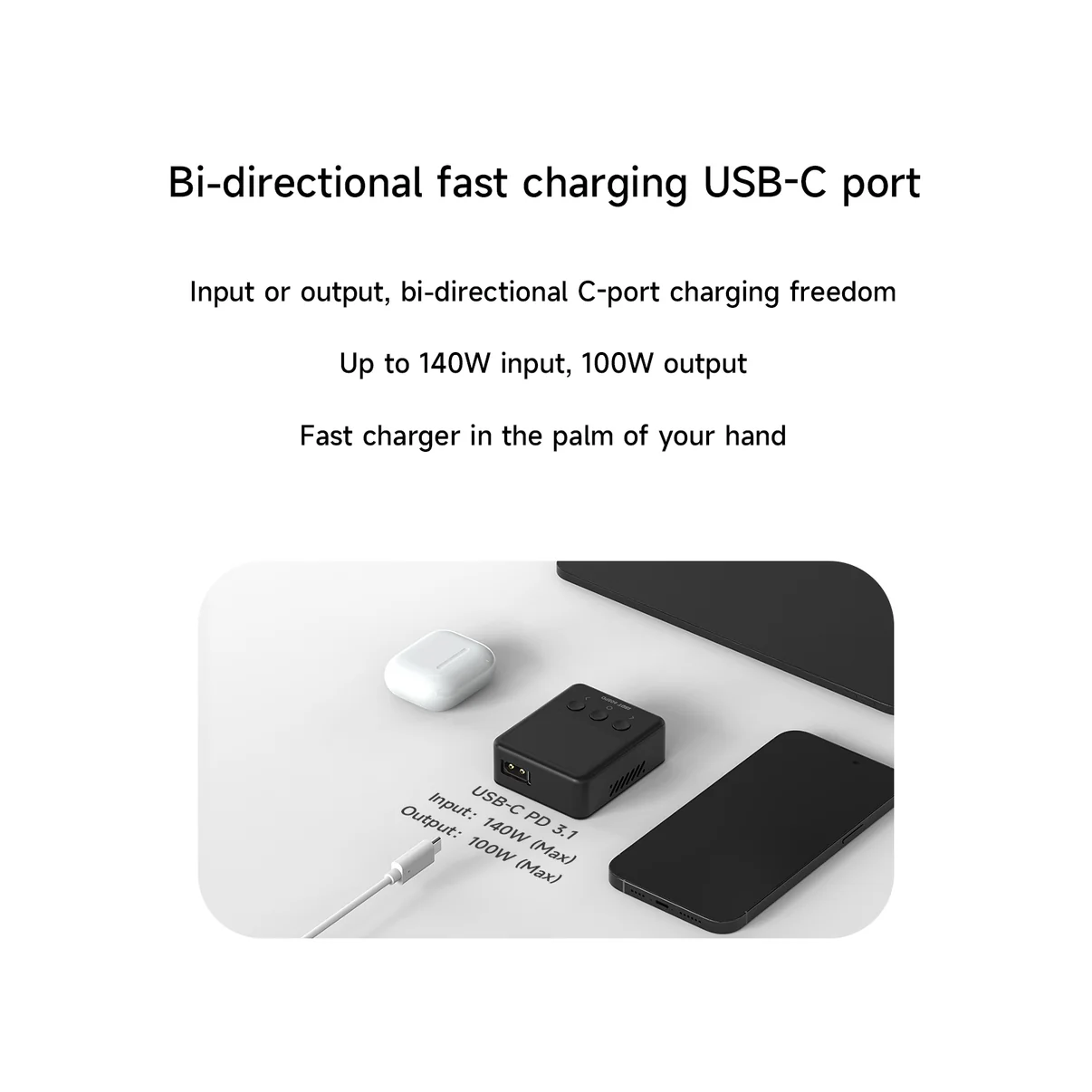

    • USB-C Power Delivery: 140W/5A output, ideal for charging high capacity LiPo batteries.

    Smart battery management

    • Smart App Integration: Connect through the app for real-time battery health monitoring and parameter tracking.
    • One click: Easy access to charging and battery status data.

    Display and interface

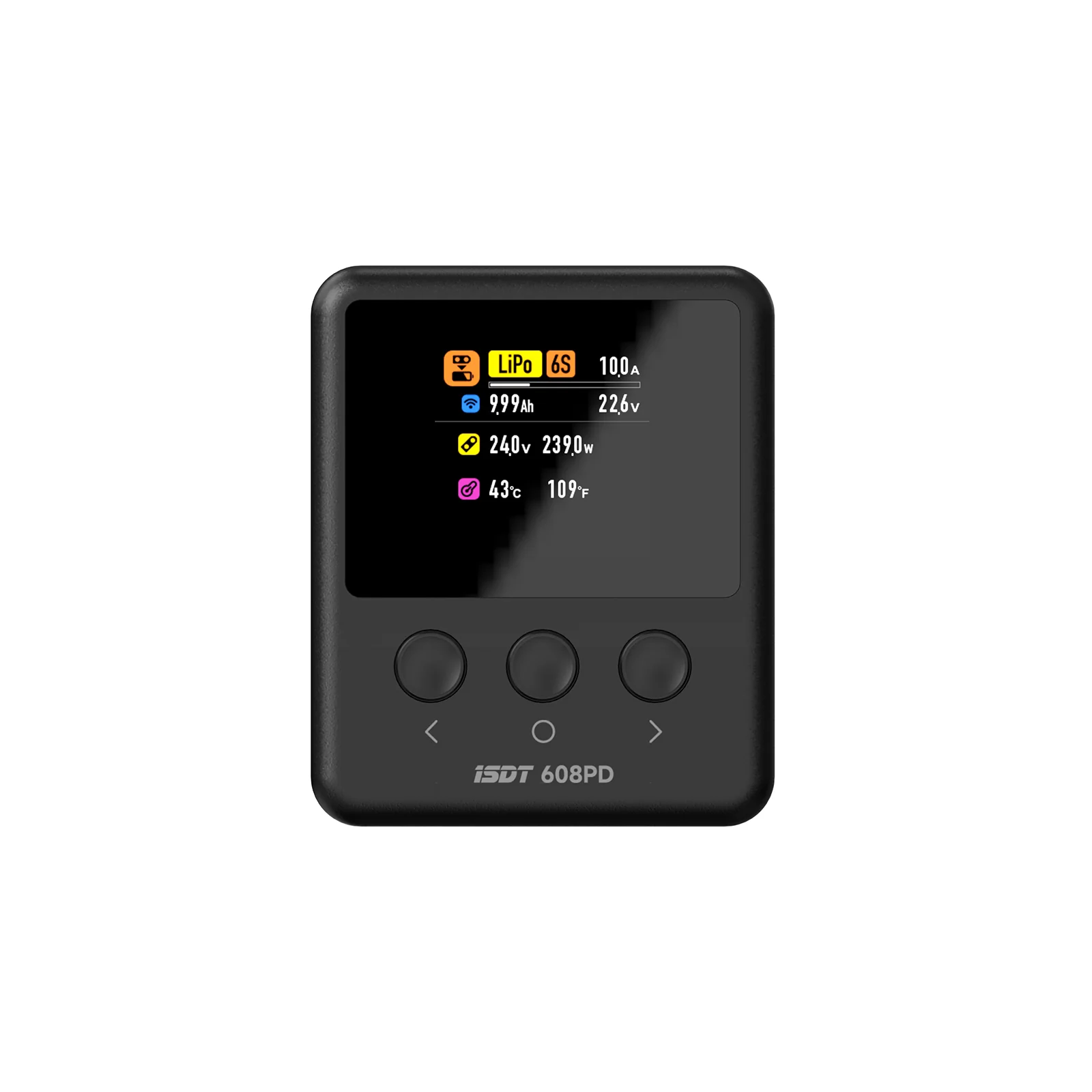

    • IPS screen: 1.5-inch display with low power consumption.
    • Automatic brightness adjustment: Clear visibility even in direct sunlight with a wide viewing angle (178°).

    Advanced cooling system

    • Efficient cooling design: Features a flow air channel and a high-quality fan for optimal heat dissipation.
    • High-tech materials: Aluminum finned heatsinks and silicone thermal pads for better thermal performance.

    Universal charging capabilities

    • Universal compatibility: Support for various battery types, including:
      • LiFe, LiPo, LiHv (4.35V-4.50V), 1-6S
      • Pb (1-12S), NiMH (1-16S)

    Key parameters

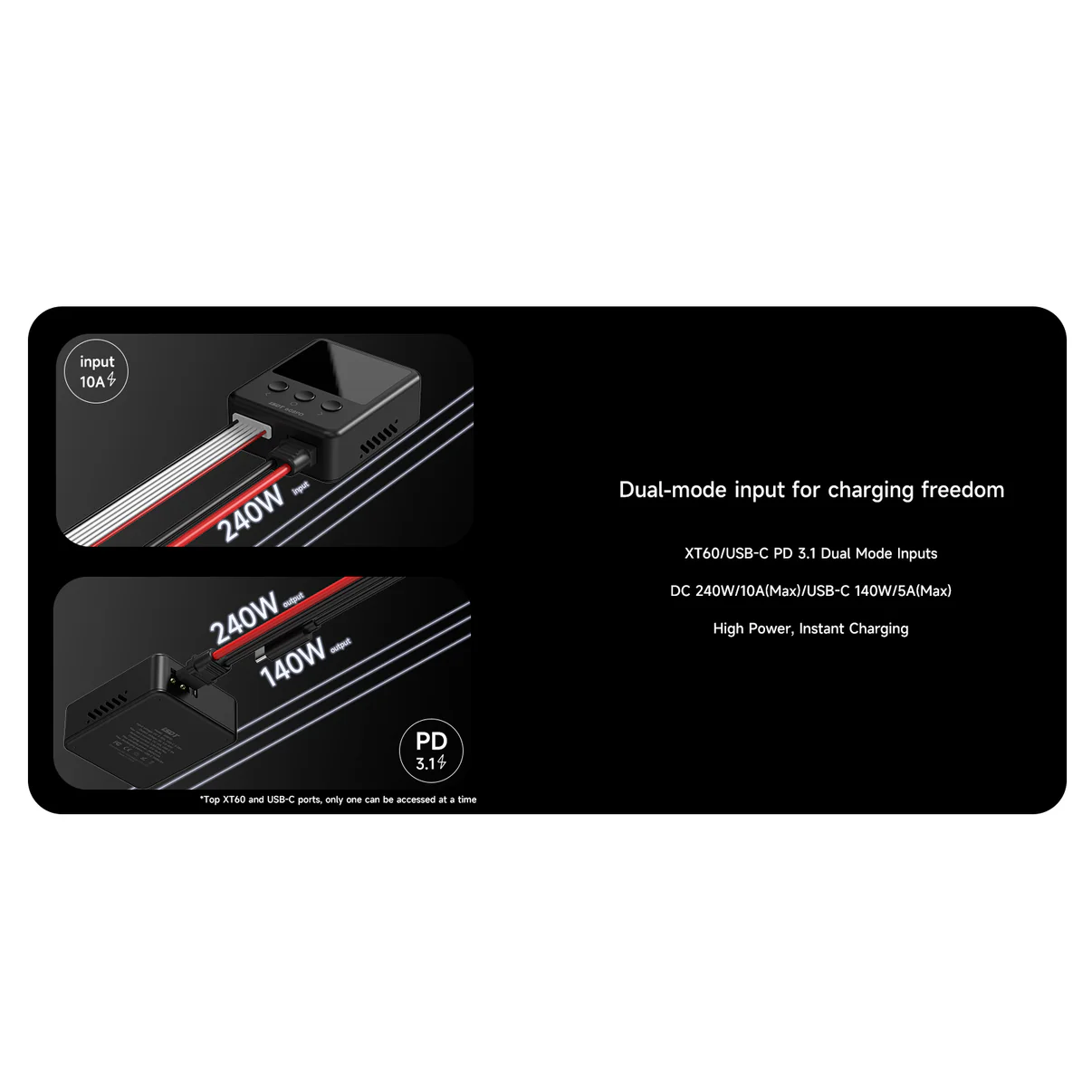

    • Input current: DC 10A, USB-C 5A
    • Input voltage range: DC 5-30V, USB-C 5-28V
    • Output voltage range: DC 3.0V to 30V
    • Charging current: 0.5A to 10.0A
    • Maximum charging power: 240W (DC), 140W (USB-C)
    • Maximum discharge power: 100W (USB-C)
    • Balance current: Up to 0.8A per cell
    • Operating temperature: 0°C to 40°C; Storage temperature: -20°C to 60°C
    • Alarms: Abnormal voltage and setting errors
    • Dimensions: 72.5 x 60 x 26.6 mm
    • Weight: 85g (±10%)
