Charger Discharger SkyRC B6AC v2 (50W)

1 7

Code: SKU:SK-100008-11

Charger Discharger SkyRC B6AC v2 (50W)

Name: Charger Discharger SkyRC B6AC v2 (50W)
Brand: My Store
SKU: SK-100008-11
Price: 58.56 EUR
Availability: InStock

Brand: SkyRC

€58,56

~~€58,56~~ €58,56

-0% View Product

Taxes included.

In stock

Quantity

Detailed information

View full details

Description
Related Files
Discussion

SKYRC B6AC V2 is an advanced charger that builds on the features of the well-known iMAX B6AC. It offers improved accuracy, stability and other features, making it a versatile choice for a variety of battery types. Below are the detailed specifications and features:

Key Features:

Microprocessor control: Ensures accurate charge and discharge control.
Customizable terminal voltage: Users can set the desired terminal voltage.
PC connectivity: Enables PC control and firmware updates.
Battery management function: Can be used as lithium battery meter and battery internal resistance meter.

Security Features:

Automatic limitation of charging current
Capacity Limits
Temperature threshold
Restriction of processing time

Specifications:

AC input voltage: 100-240V
DC input voltage: DC 11-18V
Performance of the circuit:
- Maximum charging: 50W
- Maximum discharge: 5W
Charging current range: 0.1 - 6.0A
Discharge current range: 0.1 - 2.0A
Supported battery cells:
- LiPo/LiFe/LiIon: 1-6 cells (S)
- NiMH/NiCd: 1-15 cells (S)
- Lead accumulators (Pb): 2-20V
Net weight: 632g

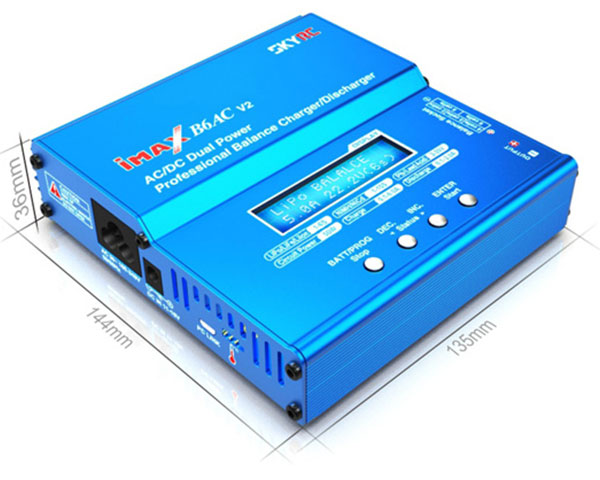

Dimensions:
- Length: 144mm
- Width: 135mm
- Height: 36mm
