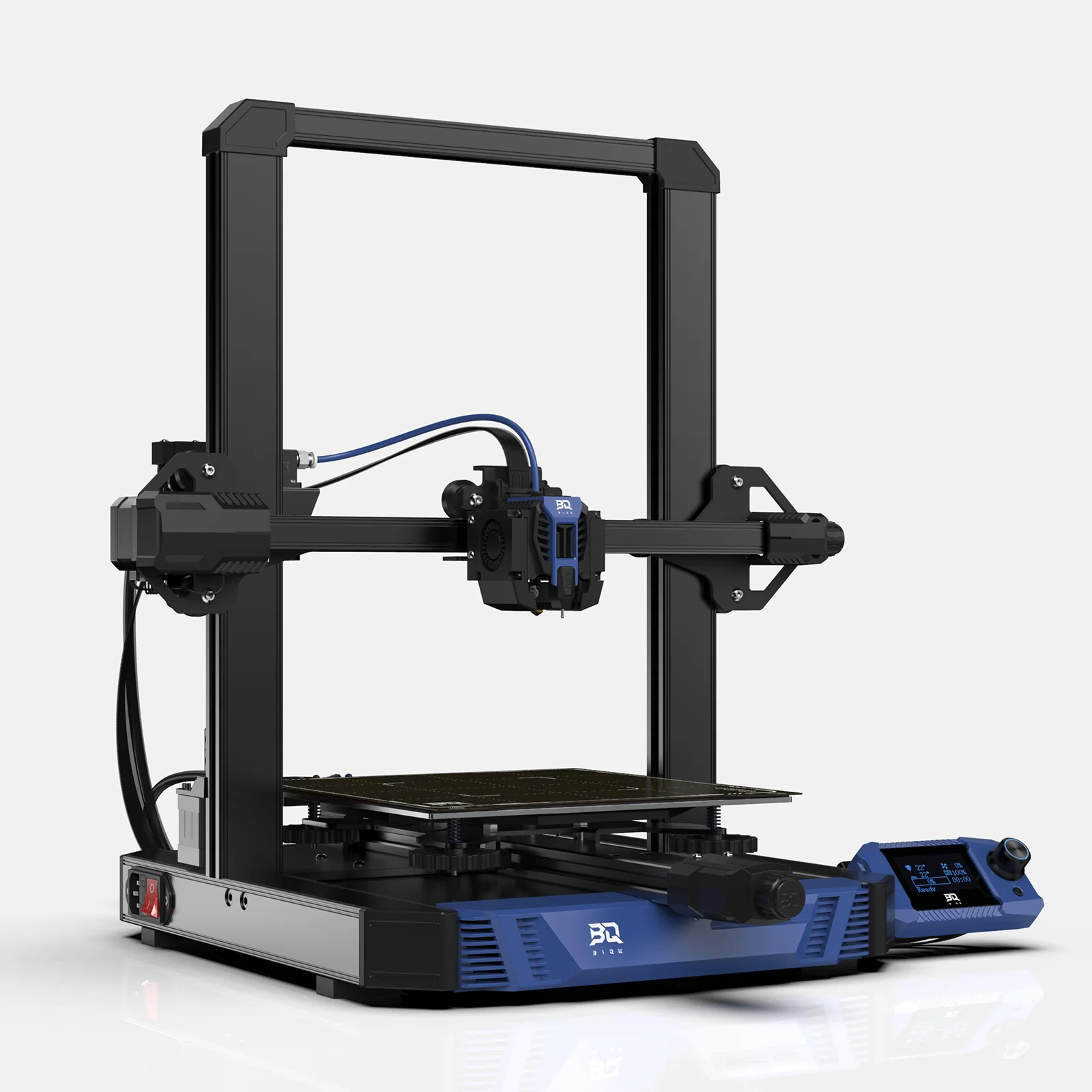

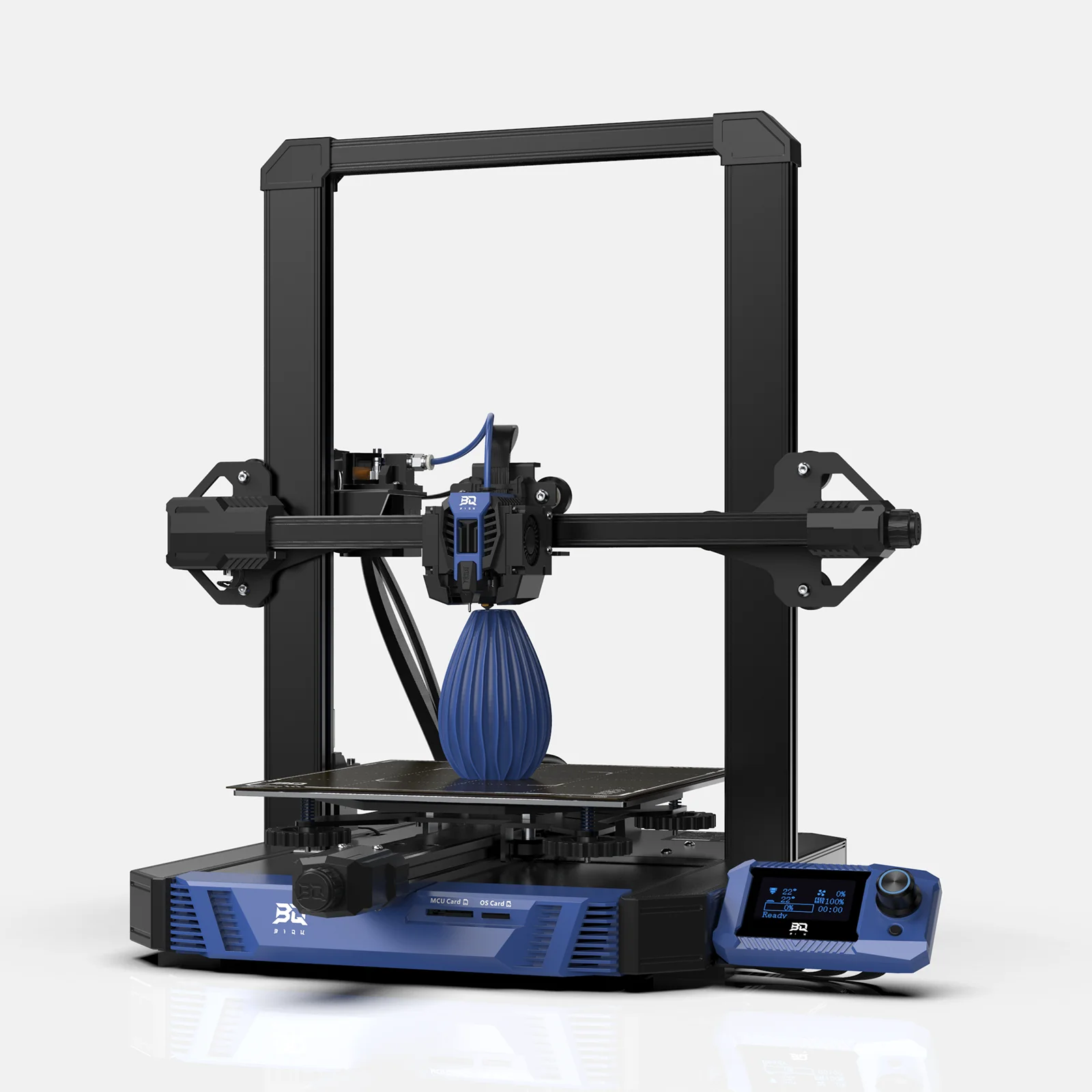

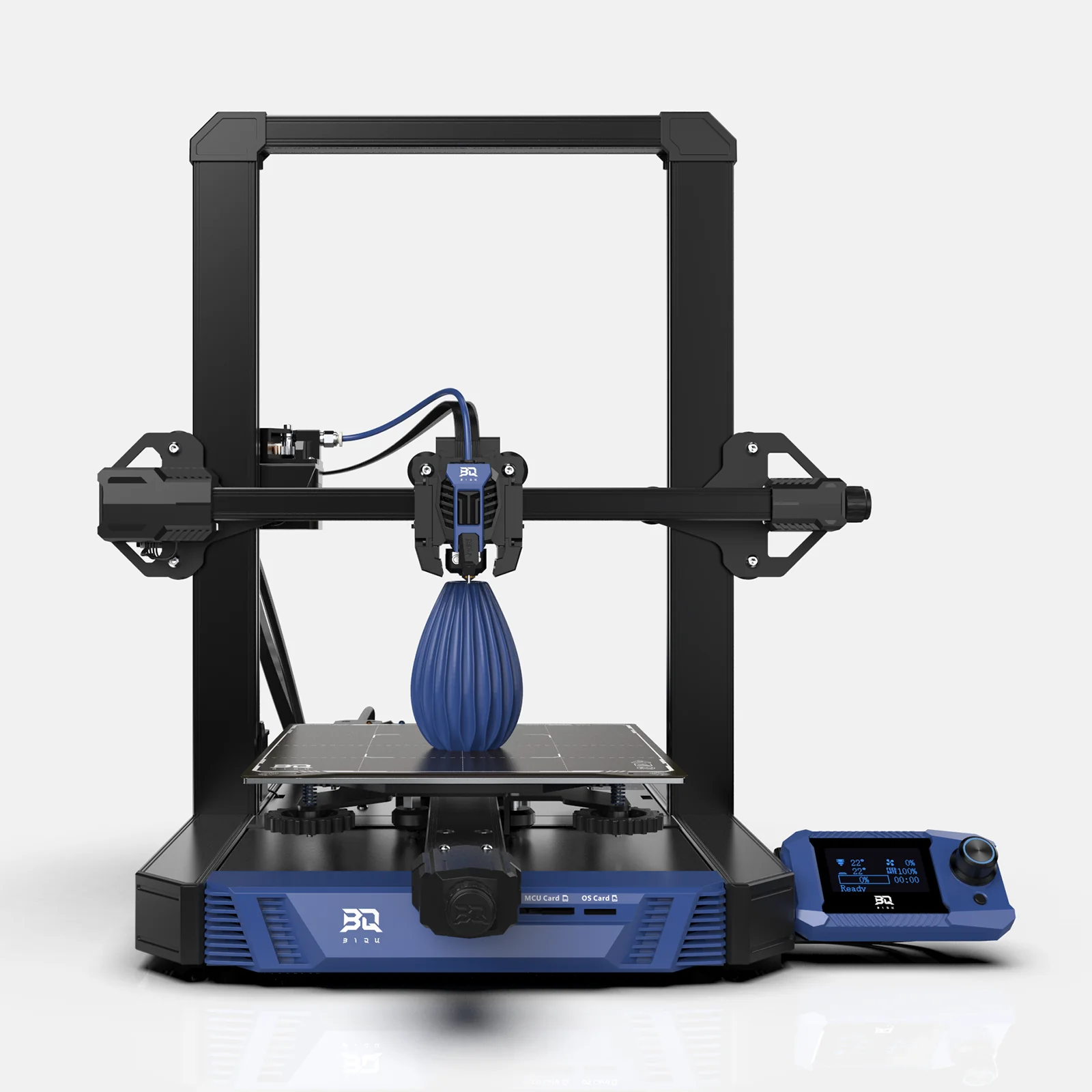

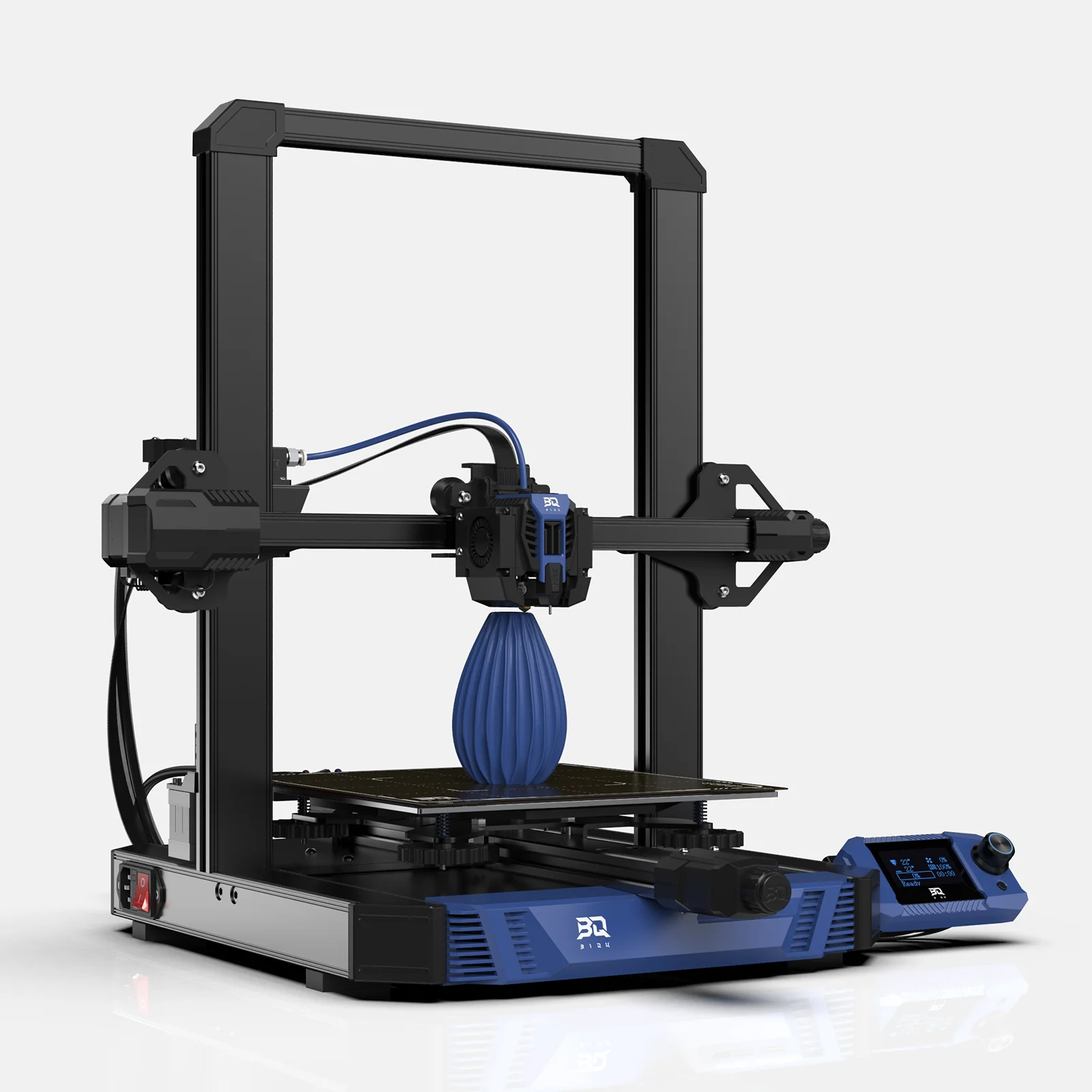

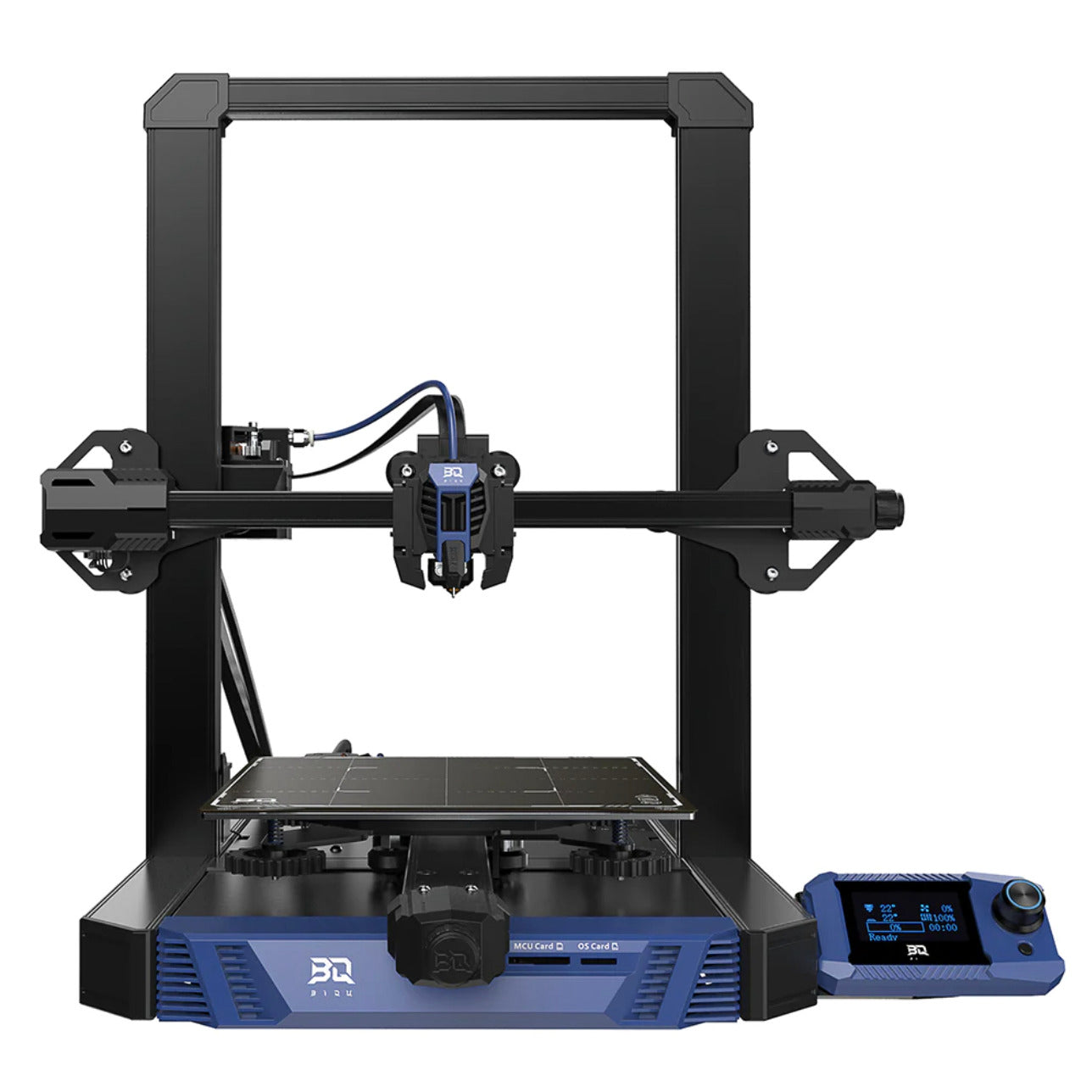

BIQU Hurakan DIY 3D printer
Presentation productu Hurakan 3D printer Hassle-free Klipper printer Official cooperation Remote printing Adjustable heating pad Automatic alignment Detection material violation Upgradable Two-tone colors and Mecha style The two-tone design makes it unique and recognizable. Solid lines combine mecha elements to create a solid and cool hi-tech look. Ventilation Grille Ventilation Grilles designed on the base and printhead create a unique look while improving heat dissipation efficiency and reducing weight.
BTT Manta M4P+CB1 The latest main control board and motherboard, Manta M4P and CB1, allows Huracan to run Klipper and also supports Marlin.
Klipper is ready Klipper, a giant leap in 3D printer firmware, has been pre-installed on the Hurakan. So you don't have to deal with complicated installation, but you can enjoy speed, accuracy and convenience.
Enjoy wireless printing The built-in WiFi module makes it easier for users to pause printing, check the printing progress and adjust the nozzle temperature on different terminal platforms (the control device and the printer must be connected to the same WiFi network).
BIQU MicroProbe Independently developed automatic leveling sensor, miniature, 6g super light, can be used more than 10 million times, adds almost no weight to the extrudéru, but offers high leveling accuracy.
Quiet 3D printing Thanks to the TMC2209, an ultra-quiet motor driver IC, printing noise can be significantly reduced.
Select the part you want to heat Switchby areai using the hotplate to set the power of the hotplate, which is more energy-saving and environmentally friendly.
●100W - for middle part pads (red light on)
●240 W - for the whole pad (both blue and red light are on) Fiber Sensor Thanks to the Fiber Sensor, the printer automatically pauses printing when the filaments run out or break, saving time and filaments.
Light up your prints Beautifully designed, fully customizable RGB light shines.
Your prints in the dark give you full color control of 16.8 million via web interface or screen.
Quick start Thanks to the modular design, assembly of the printer is quick and fun.
01 – Dual USB USB flash disk can be used for printing without internet connection, USB plug and play camera can be connected for wireless monitoring.
02 - Optional power supply Suitable for different voltages 100-120V / 200-240V.
03 – RJ45 port Offers the possibility of a more reliable wired network connection.
Note: This is a gigabit Ethernet port. Currently the CB1 installed on the Huracan only supports 100M Ethernet.
If you want to use gigabit ethernel, you can replace CB1 with CM4. 04 – SPI interface Designed to connect the ADXL 345 accelerometer to realize Klipper resonance compensation for higher printing accuracy.

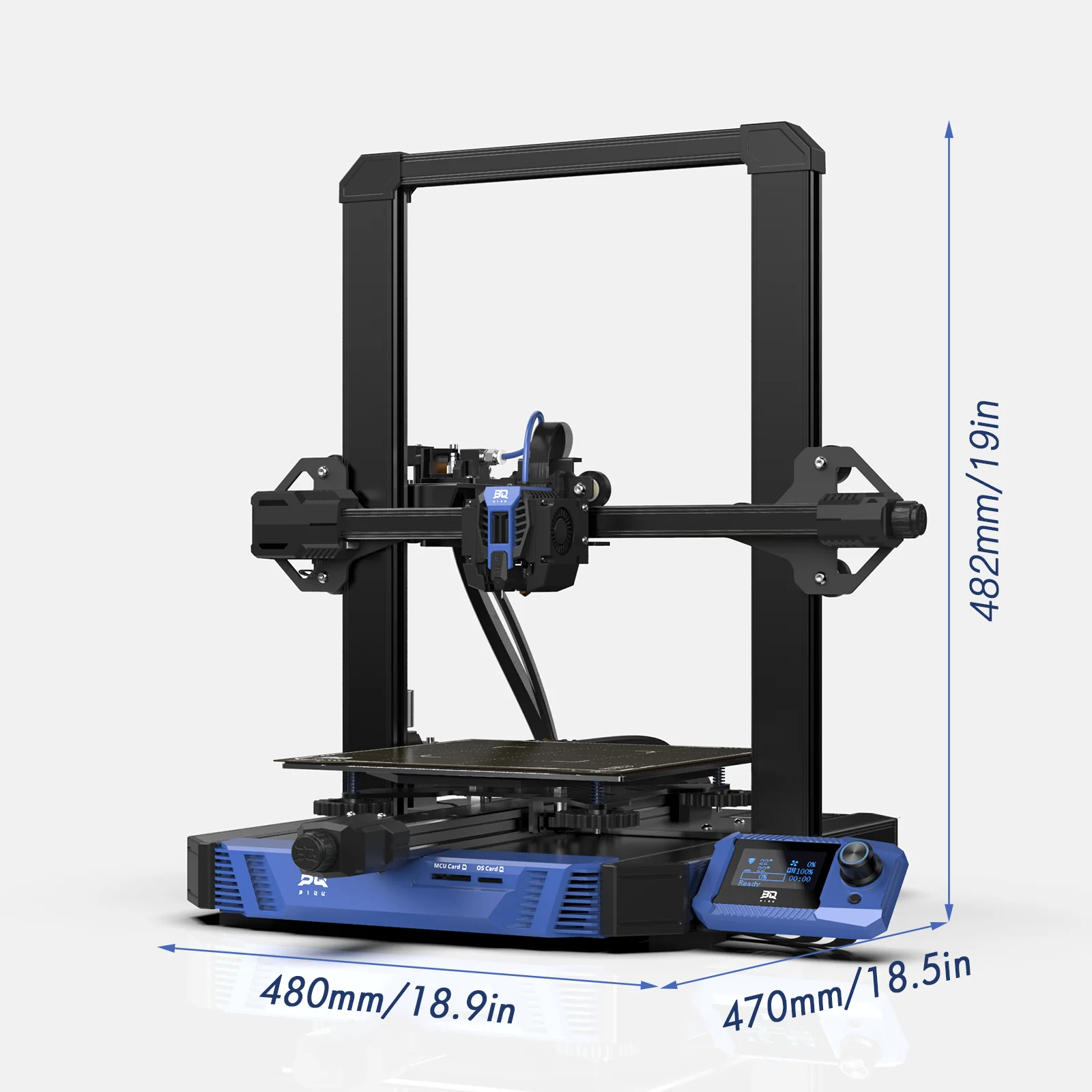

Dimensions and Specifications 3D Printer Name BIQU Hurakan 3D Printer Dimensions 480x470x482mm
Print Head 1pc Nozzle Diameter Standard 0.4mm Firmware Clipper Software Compatibilityu for cutting Cura / Repetier-Host / Simplification 3D ...
Output voltage 145 Heated pad power 100 W/240 W
Maximum nozzle temperature 260°C
Recommended print speed 60mm/s Fiber PLA/ABS/PETG... (Any material with a printing temperature below 260°C including flexible filament with quietly95A.) Assemblybundle assembly 220x220x270mm Layer thickness 0.1mm-0.3mm
Print Accuracy ±0.05mm File Format G-Code Printing Method USB / LAN Drive Control Rated Power 280W Maximum temperature of heated pad 100°C
Default speed limit (firmware) 180 mm/s Detection throwing threads Standard features Rated voltage 100-120V/200-240V50/60 Hz Package Contents
Note: Above are schematic drawings of products, accessories, userinterfaces, etc., ponly for information. Please refer to the actual product as product updates may cause the actual product to be slightly different from the diagram.
