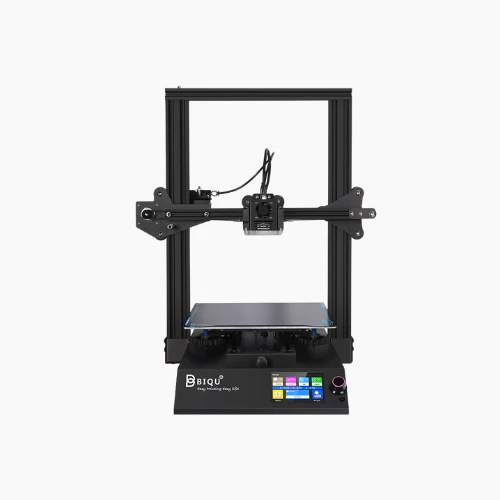

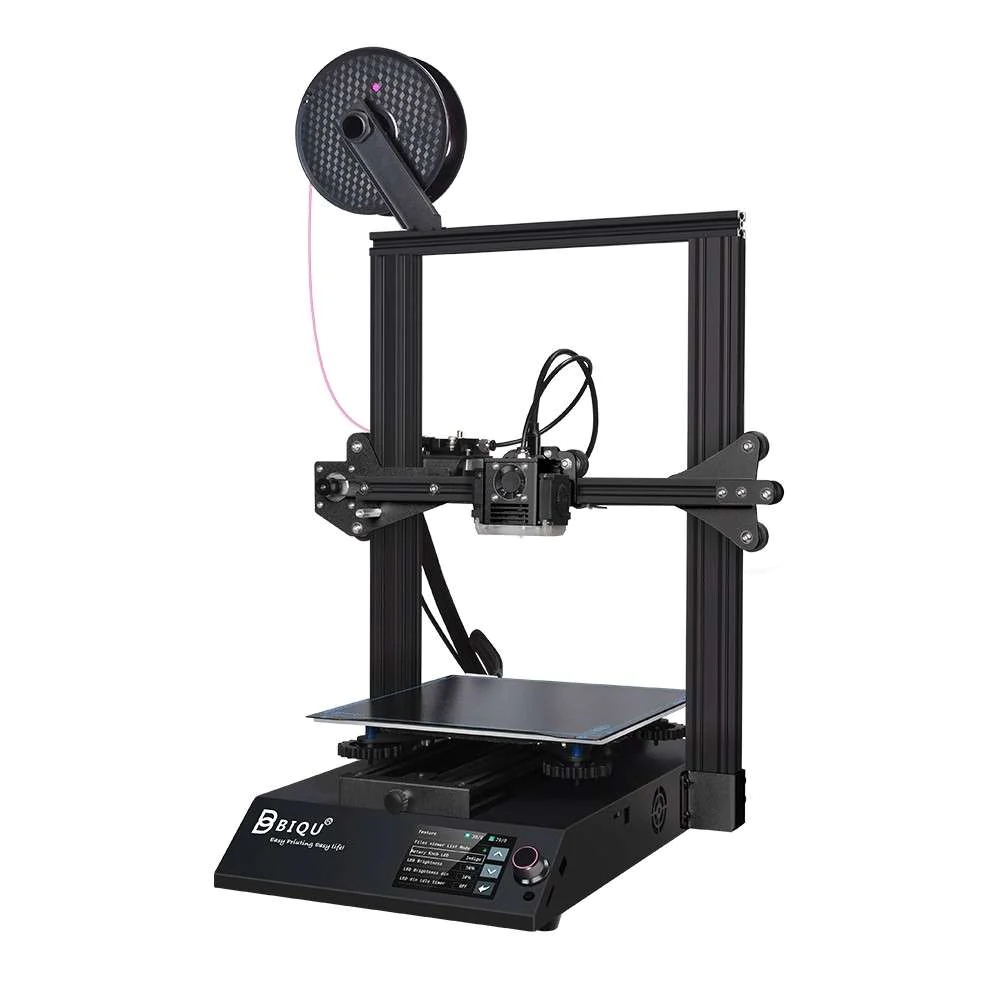

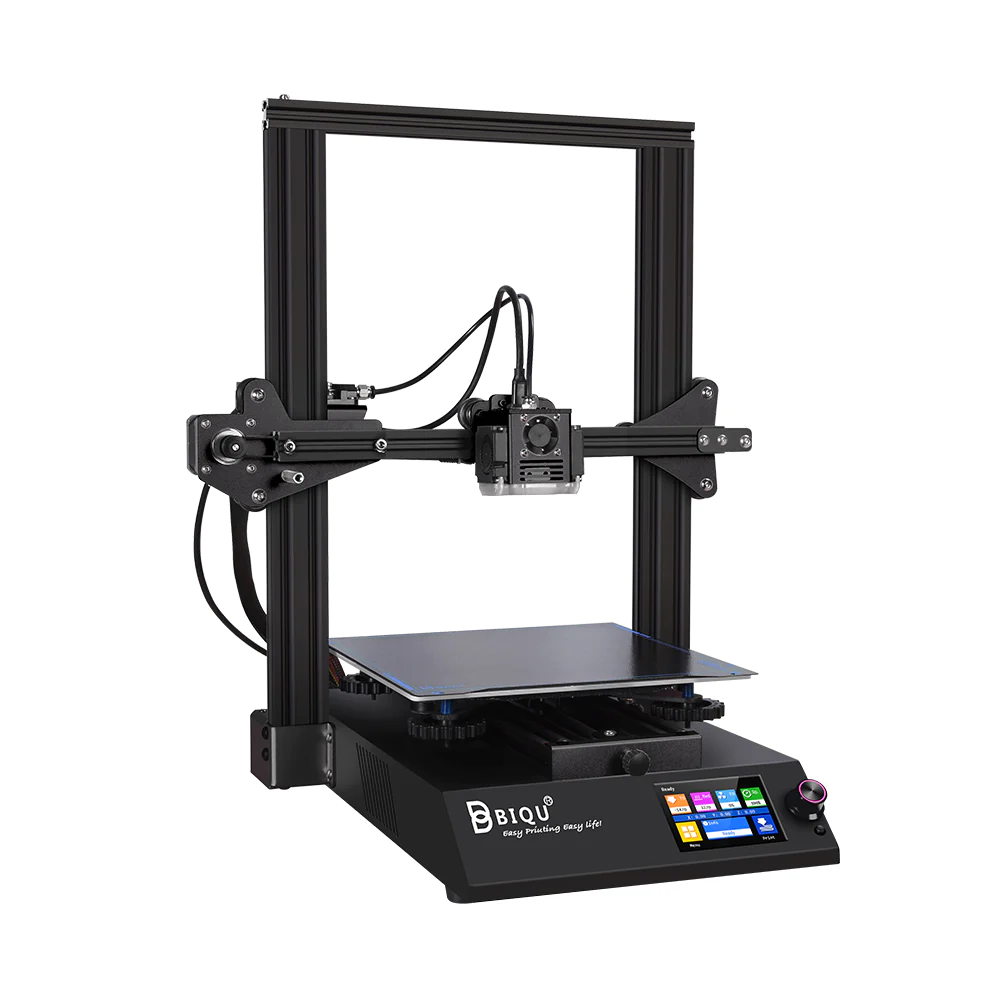

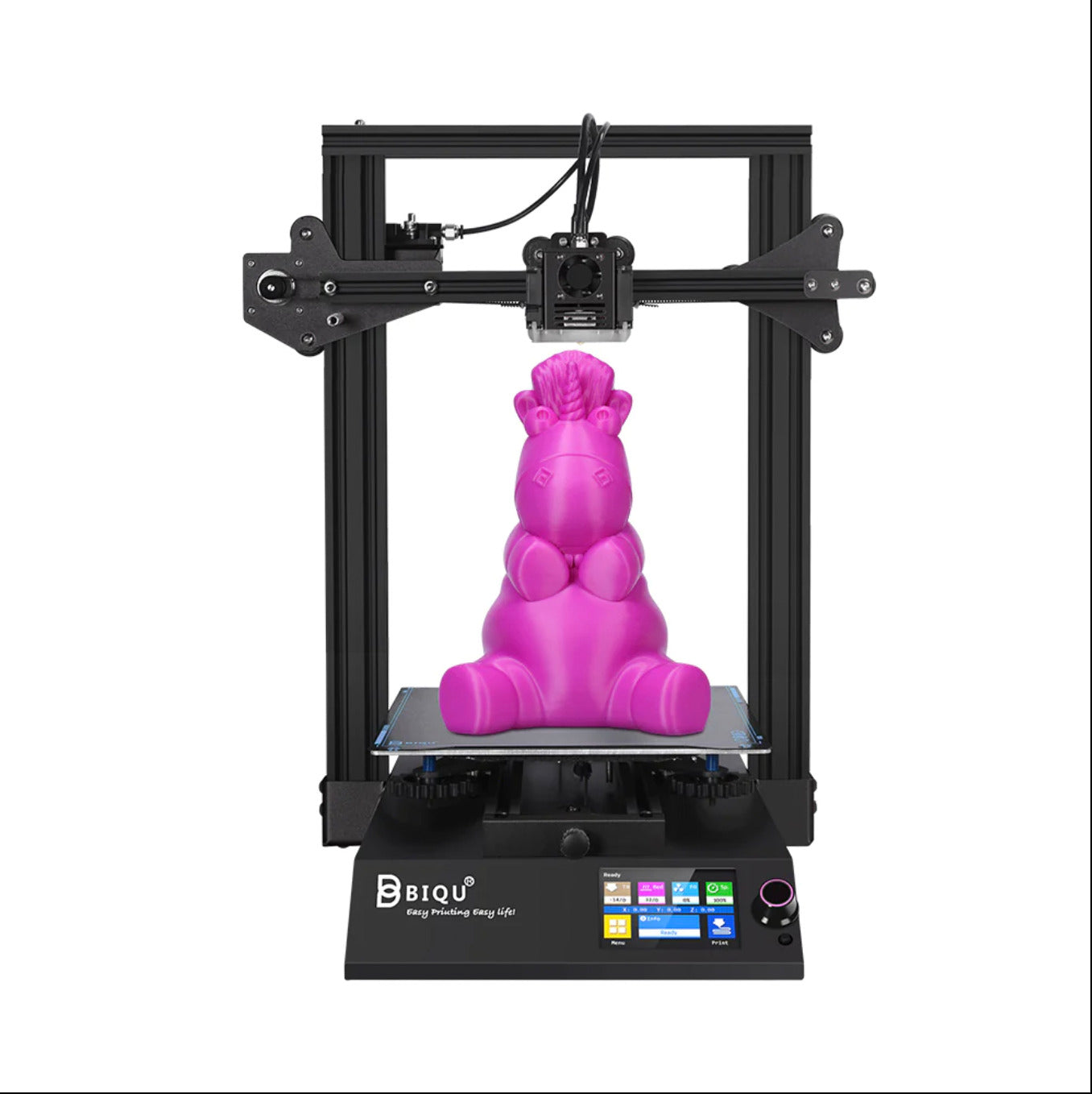

BIQU B1 3D Printer TFT35 B1 V3.0 Dual Operating System FDM 3D Printer
● Basic DIY printer.
● Easy-to-use touch screen.
● BTT Mute Baseplate
● Multicolor RGB lights to choose from.
● Train throwing detection moduleen.
BTT SKR V1.4 32bit Silent Motherboard
1. ARM Cortex-M3 CPU
2. DIY interface (I2C, SPI, WIFI Dual axis z)
3. Motor drive interface (X, Y, Z, E0, E1)
4. Thermistor Interface BTT B1 TFT35 V3.0
Dual operating system
1. Dual operating system
2. Real-time data tracking during printing
3. Multi-selection print mode
4. G code 5. Mode preview effect
BIQU SSS (Super Spring Steel)
1. The model is easy to stick on and easy to remove
2. Msoft magnetic nbinder BIQU SSS plus enables stable printing.
3. Both sides can be used.
Fiber sensor If fibers have been detected, the printer will automatically pause printing, which will help detect printing problems and save time. Multicolor RGB lights RGB light is part of hotend and you can choose from four colors. Even you can see the printing status at night.
Additional details and notes
1. Type C cable can only be replaced with BIQU type C cable, other cables are not suitable.
2. BL Touch holder is included (BL Touch is not).
3. Two more interfaces for Smart Fiber Sensor and BL Touch. Dimensions and Specifications Product Name BIQU B1 3D Printer Print Size 235 * 235 * 270mm Pressing Technology FDM (Fused Deposition Modeling) Print accuracy ±0.05 mm Fiber PLA, ABS, PETG Slice format STL, OBJ, AMF Connection method Via data cable, TF card, USB Maximum print speed 100mm/s Alignment Manual Work mode Offline or online Motor Accuracy ±0.1 Language English, French, Spanish, Italian etc Source Power 24V Screen BTT B1 TFT35 V3.0 Control Panel BTT SKR V1.4
