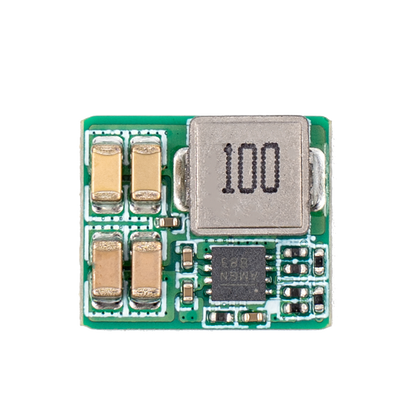

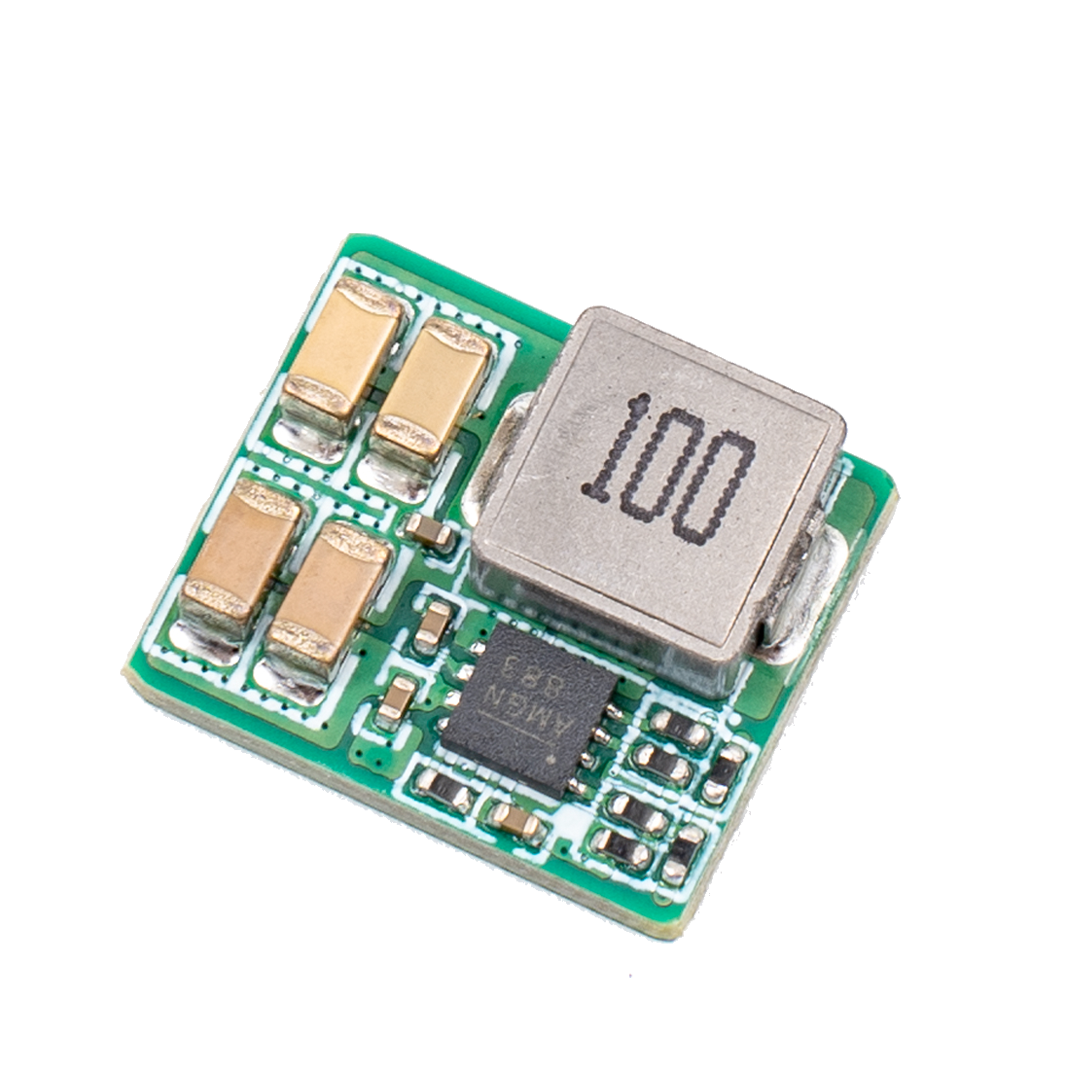

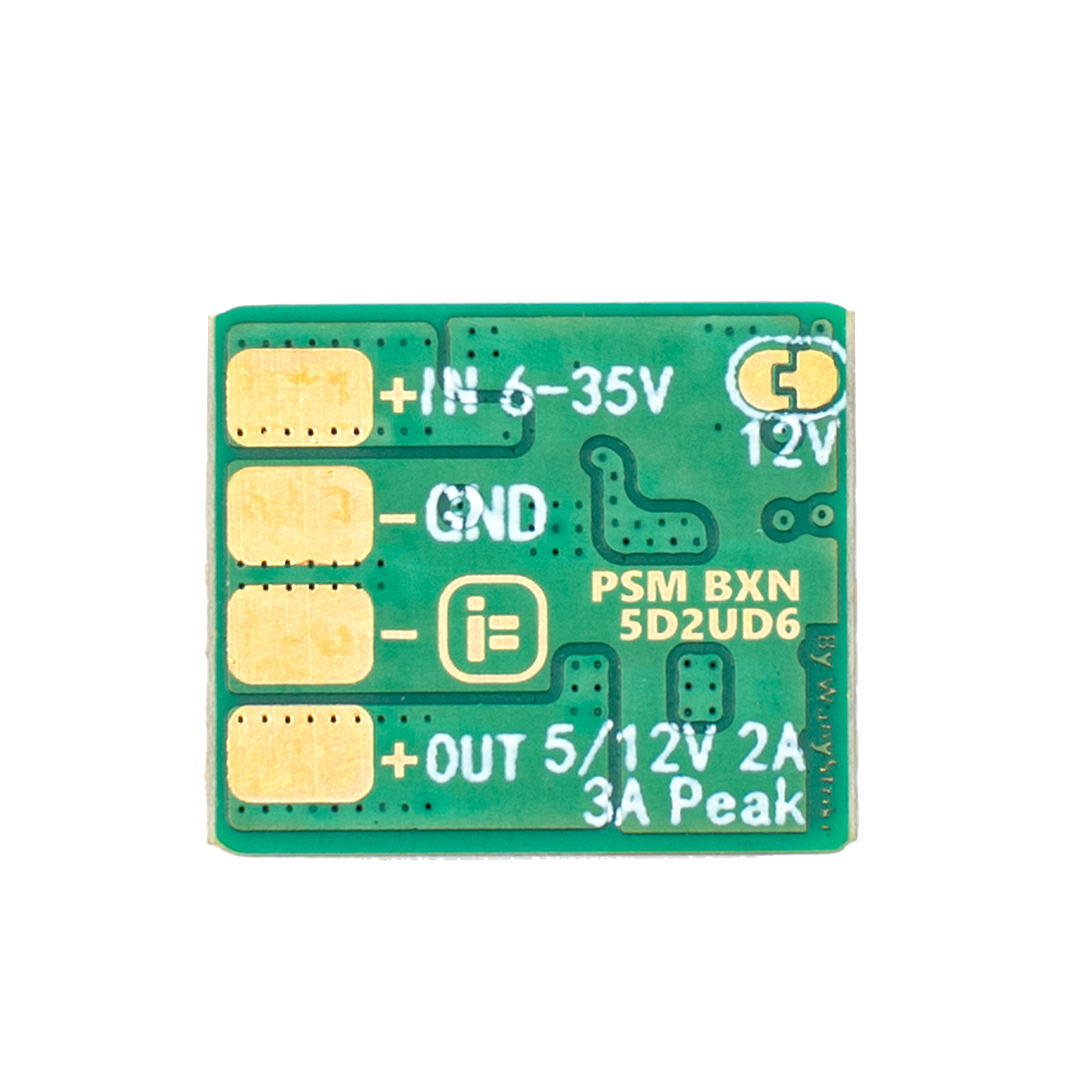

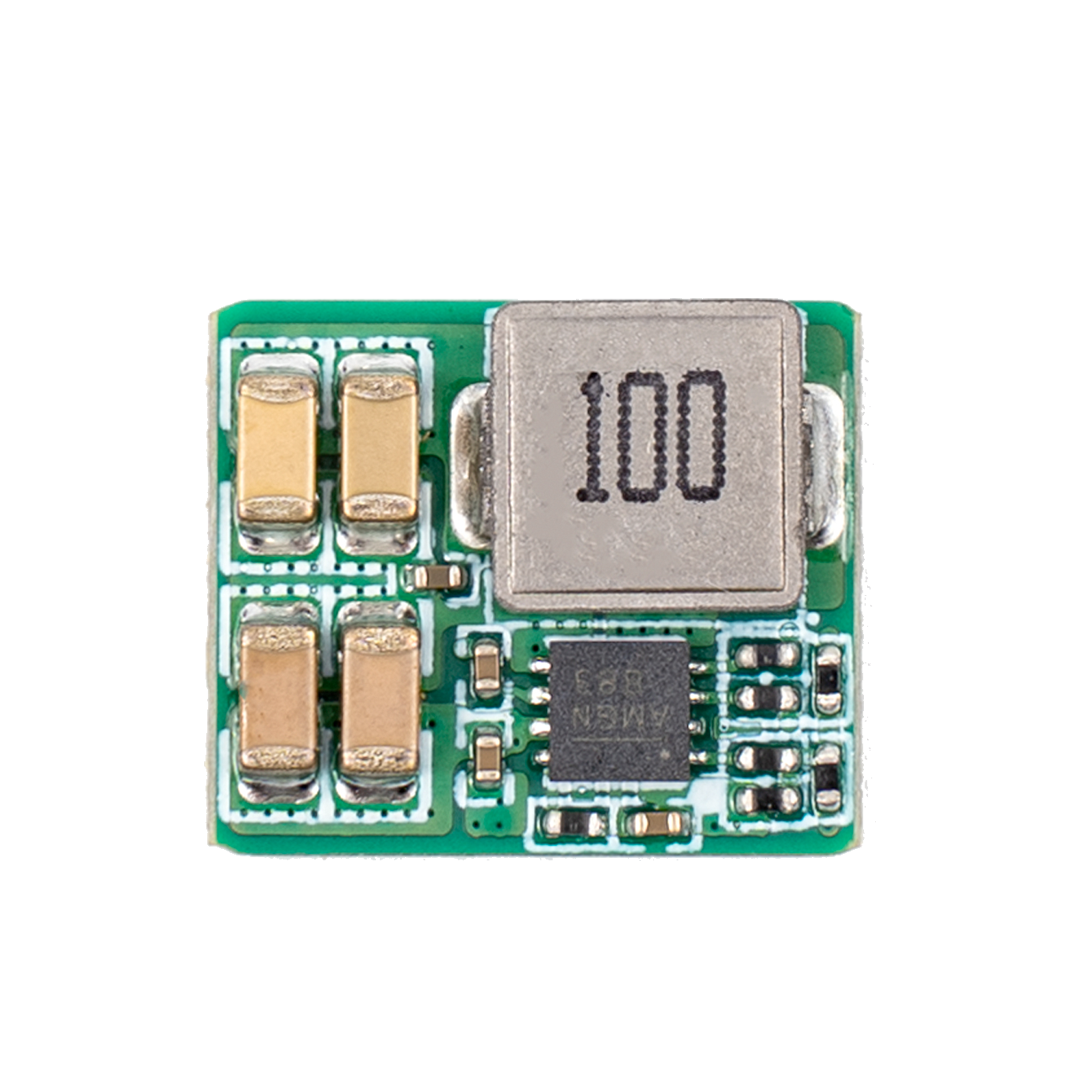

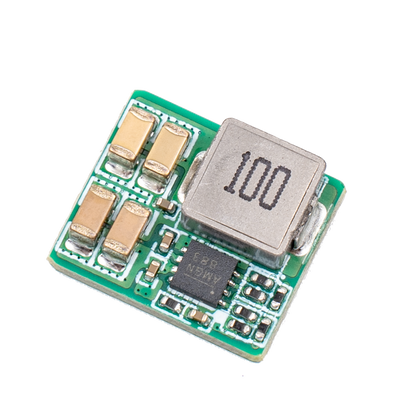

BLITZ BEC module The BLITZ BEC features step-down switch mode, highly efficient synchronous rectification, and the ability to step down input voltages of up to 35V to a low stable output voltage, making it ideal for step-down applications. It offers a compact solution for achieving an output current of 2A/3A at a wide input supply voltage (6 to 35V). Function: - Reduction switching mode - Highly efficient synchronous - Wide range of input voltage 6V to 35V - Voltage output can be 5V or 12V adjustable. (default 5V) Specifications: Input voltage: 6-35V Output voltage/current: 5V or 12V. Average 2A / Peak 3A Conversion efficiency: the average efficiency of 12V output is higher than 92% and the average efficiency of 5V output is higher than 88%. Size: 12*14*4.5mm Pin spacing: 2.55mm Weight: 1.8g Packing List: 1 x BLITZ PSM BXN 5D2UD6 BEC 1 x connection cable
