BEC Module HGLRC 5-12V

BEC Module HGLRC 5-12V

Brand: HGLRC

Regular price €5,99
Regular price €6,12 Sale price €5,99
-2% View Product
Taxes included.
Upon request
We need to check the product availability with our supplier. Please contact us for details.
Detailed information View full details
  • Description
  • Related Files
  • Discussion

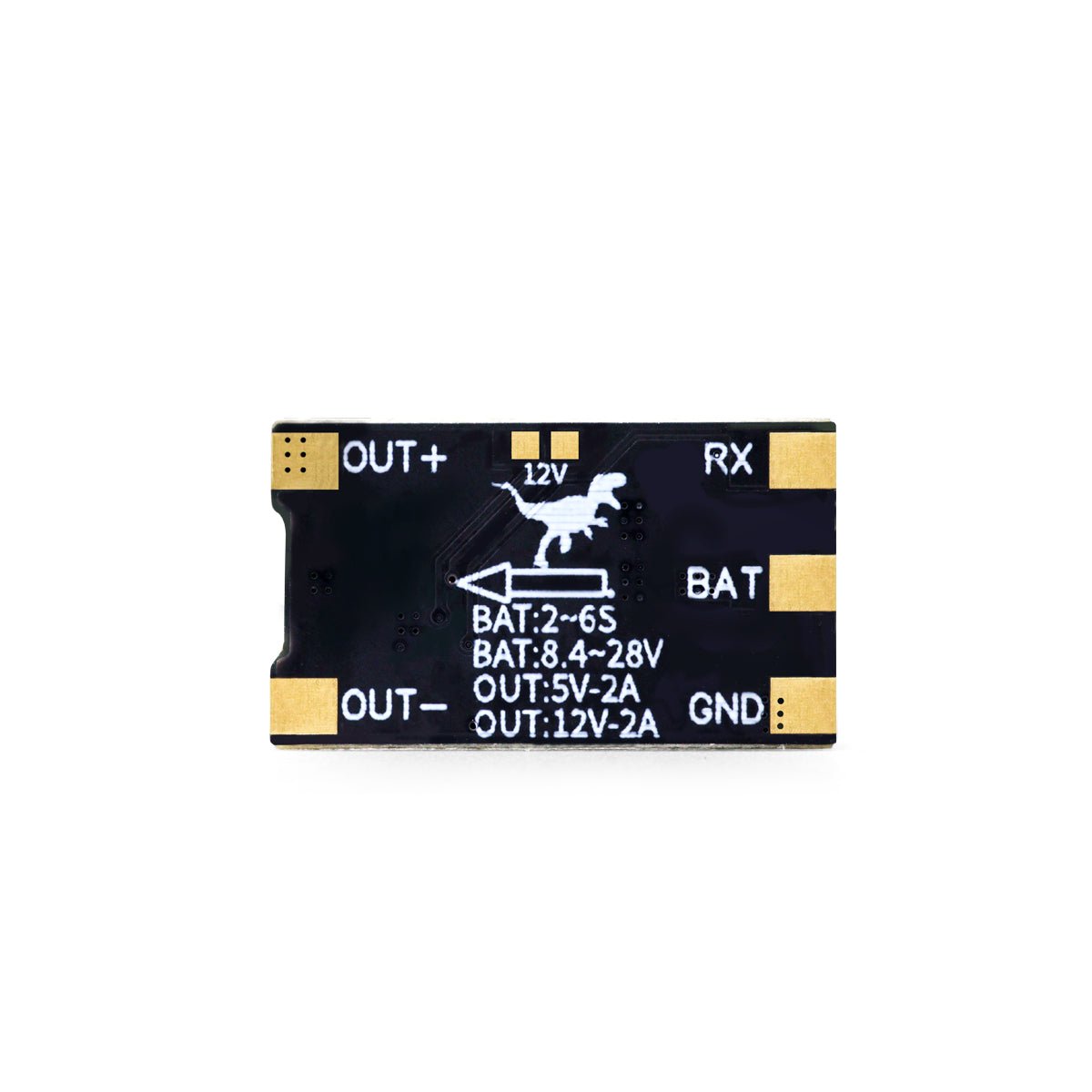

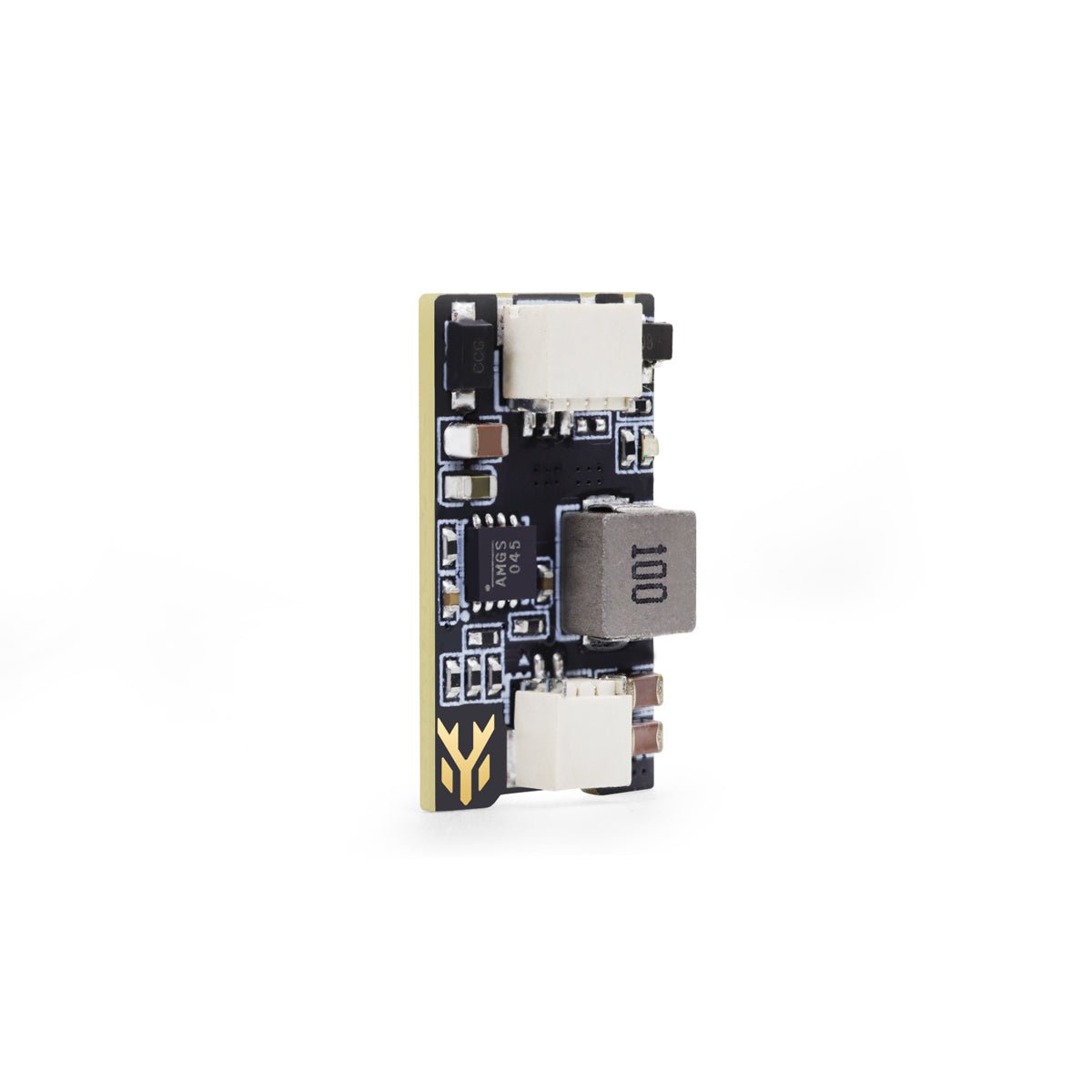

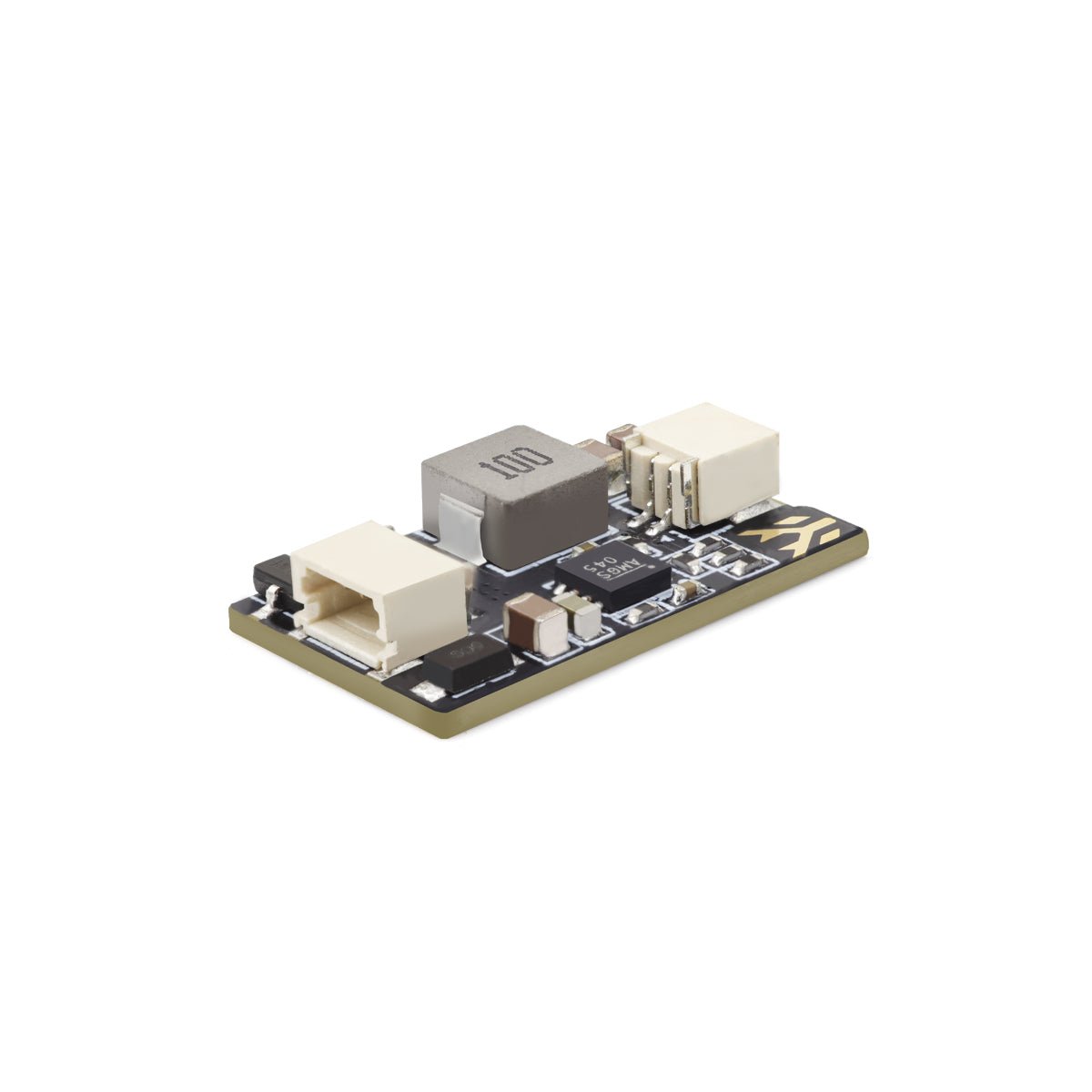

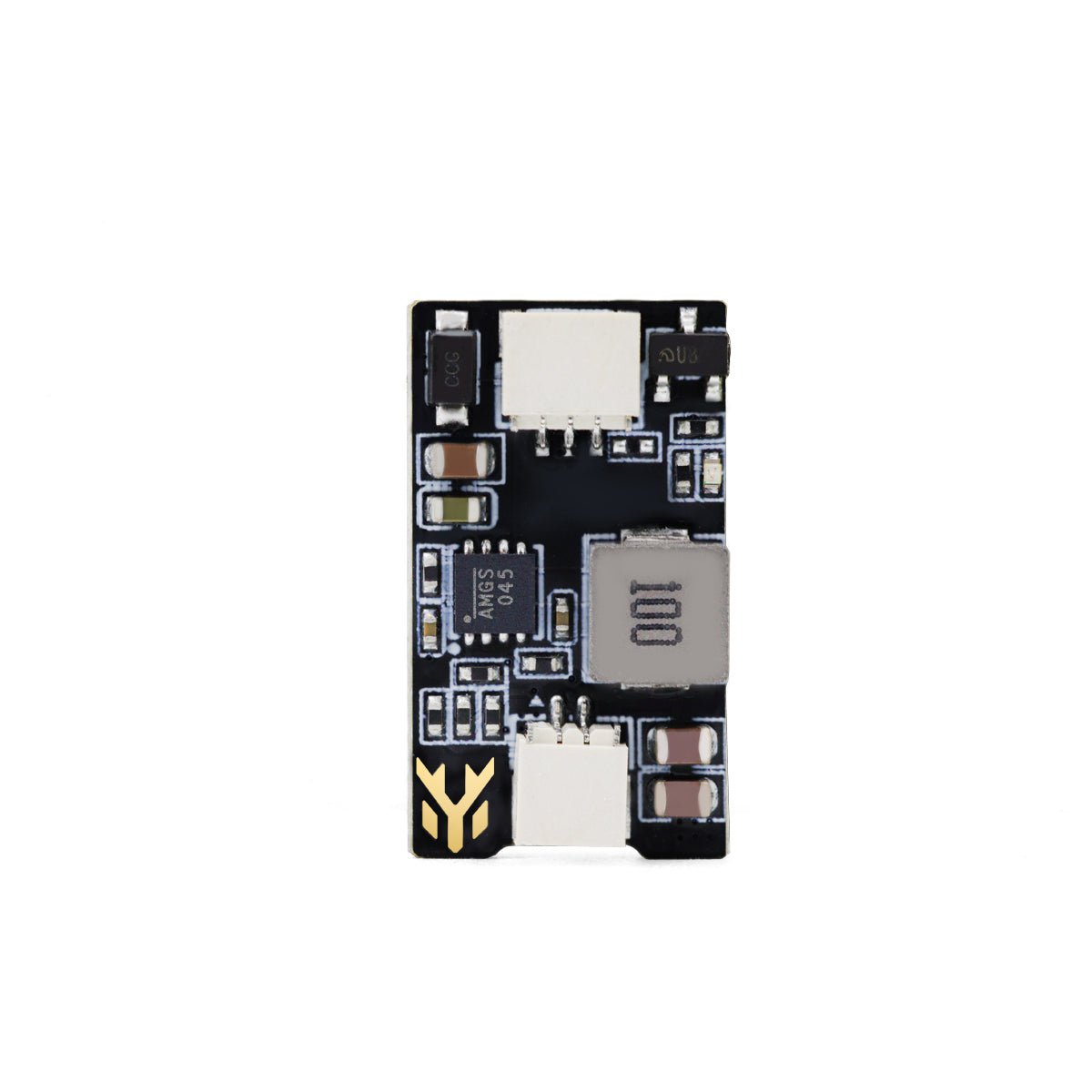

BEC HGLRC 5-12V module

The HGLRC BEC 5-12V module is a compact and reliable step-down voltage regulator designed for use in FPV drones and RC electronics. It supports a wide range of input voltage from 8.4V to 28V, so it is compatible with 3S to 6S LiPo batteries. The module offers two selectable output modes, 5V and 12V, with a stable working current of up to 2A, ensuring consistent performance. It allows for flexible connection using solder or cable clamps and supports remote control activation via a radio channel, allowing the BEC module to be conveniently turned on and off during operation.

Features:

- Supports connection using welding or cable clamps
- Wide voltage input 8.4~28V
- It has two output voltage modes of 5V and 12V
- The working current can support up to 2A and the performance is more stable
- Supports remote control channel to control BEC module on and off

Specifications:
Size: 12.1mm x 21mm
Weight: 1.3 g
Input voltage: 8.4V - 28V
Output voltage: 5V 2A / 12V 2A

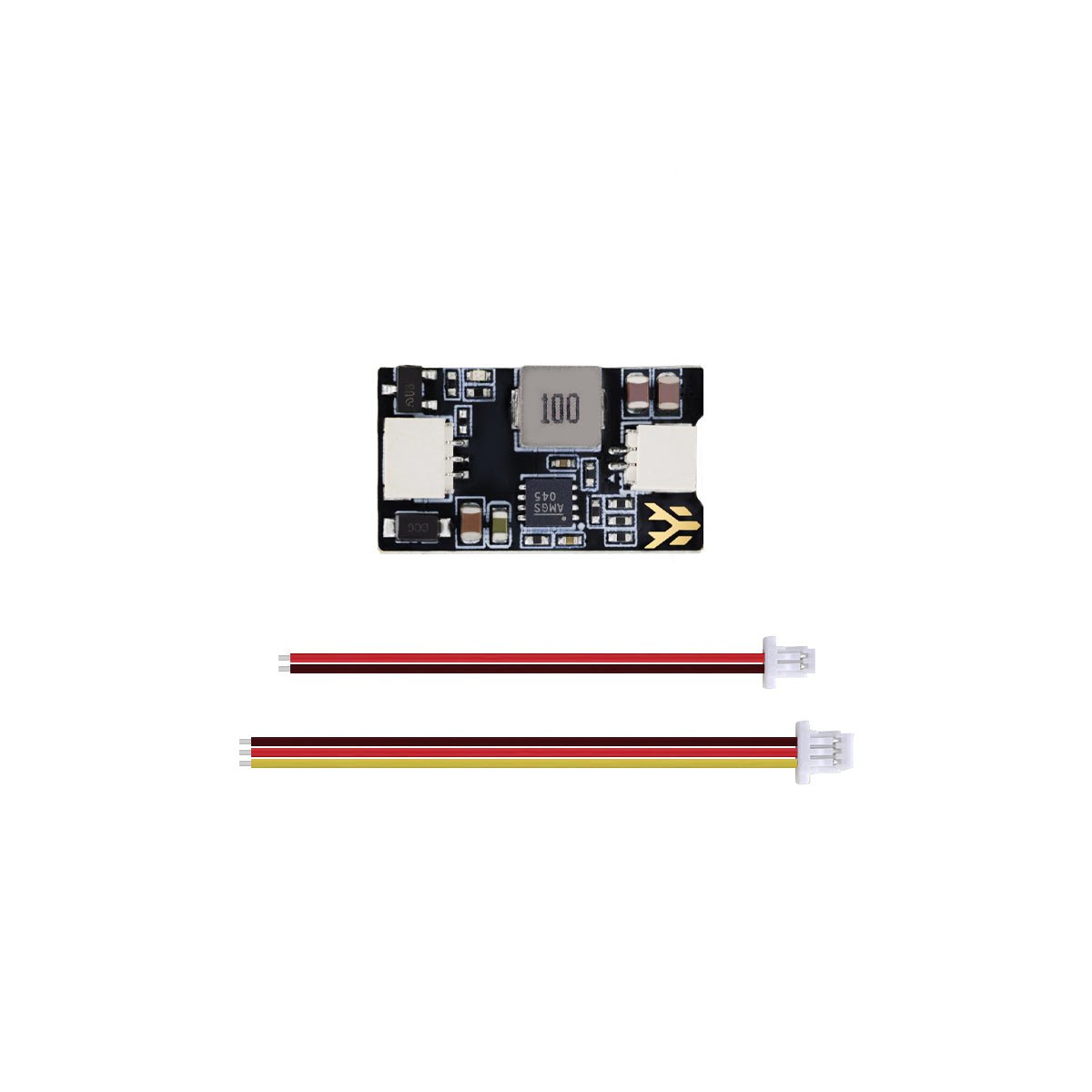

The package contains:

1 x HGLRC 5-12V bec
1 x output cable
1 x input cable
