Code: SKU:DYBH06100J

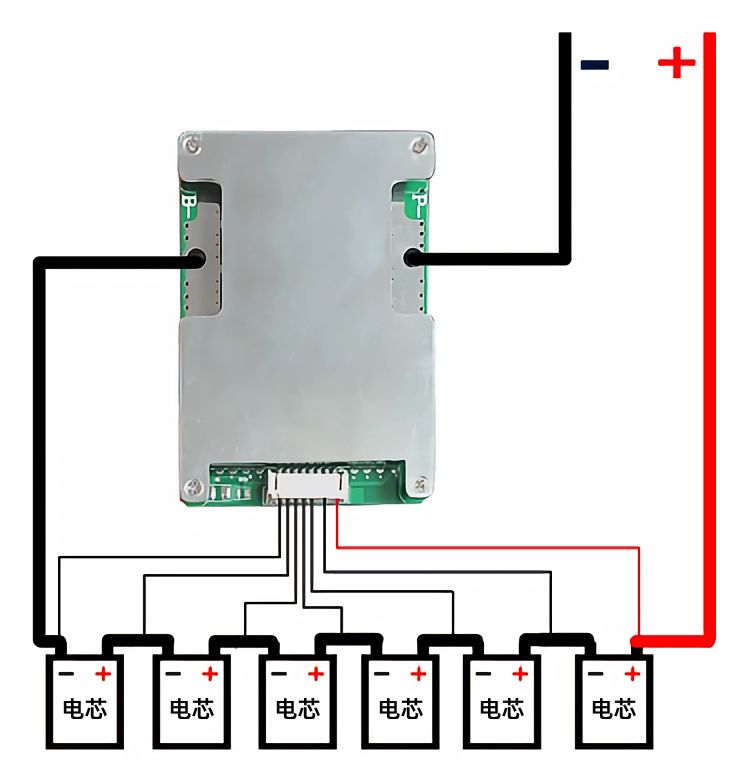

Battery protection board SEQURE for 6S 100A 8000mah
Battery protection board SEQURE for 6S 100A 8000mah
Brand: SEQURE
Couldn't load pickup availability
- Description
- Related Files
- Discussion
6S 100A
Size: 63*90*15mm
Continuous working current: up to 100A
Instantaneous working current: 300A
Charging voltage: 25.5V
Charging current: up to 30A
Overcharge protection voltage: one cell 4.25V±0.025V
Overcharge protection voltage overcharge: single cell 2.80V±0.05V
Short circuit protection: Yes
Applicable assembly: nominal 3.6/3.7V ternary lithium battery
Load power: DC 24V up to 2000 watts (actual) motor starting current less than 300AFeatures:
Integrated IC
Over-power temperature control protection
Thickened PCB copper shell
MOS-75V high voltage tube
Cable fall protection
