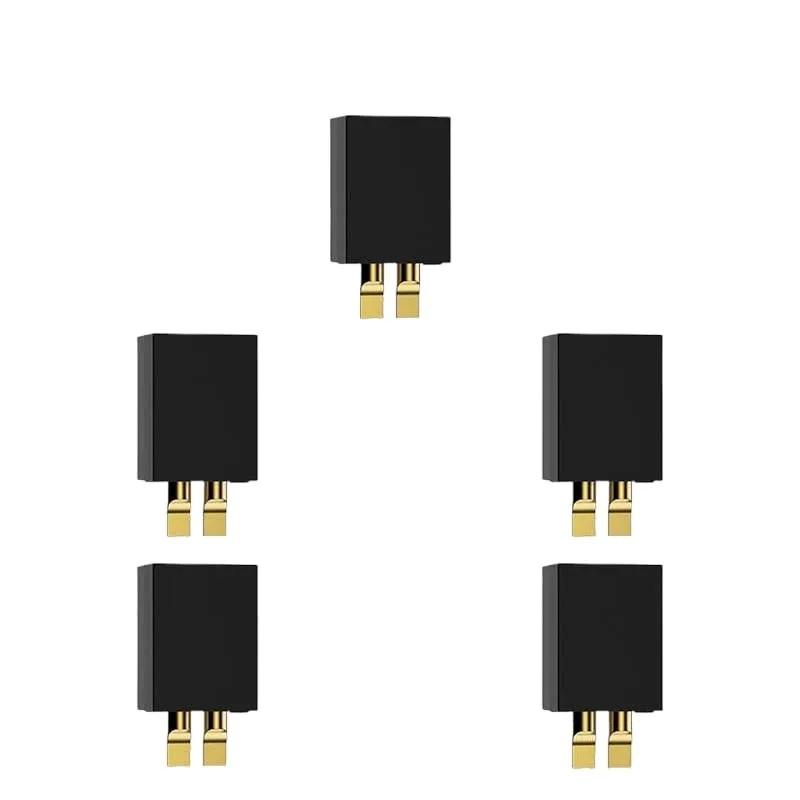

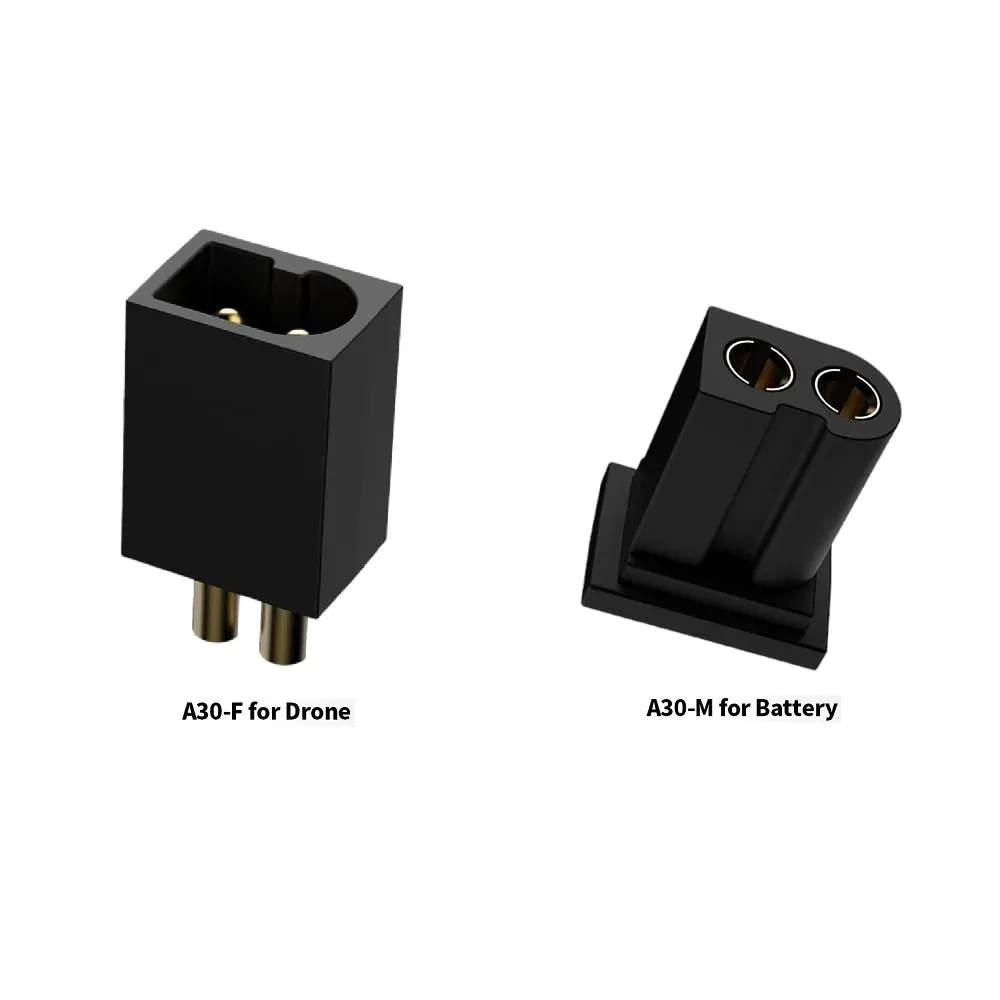

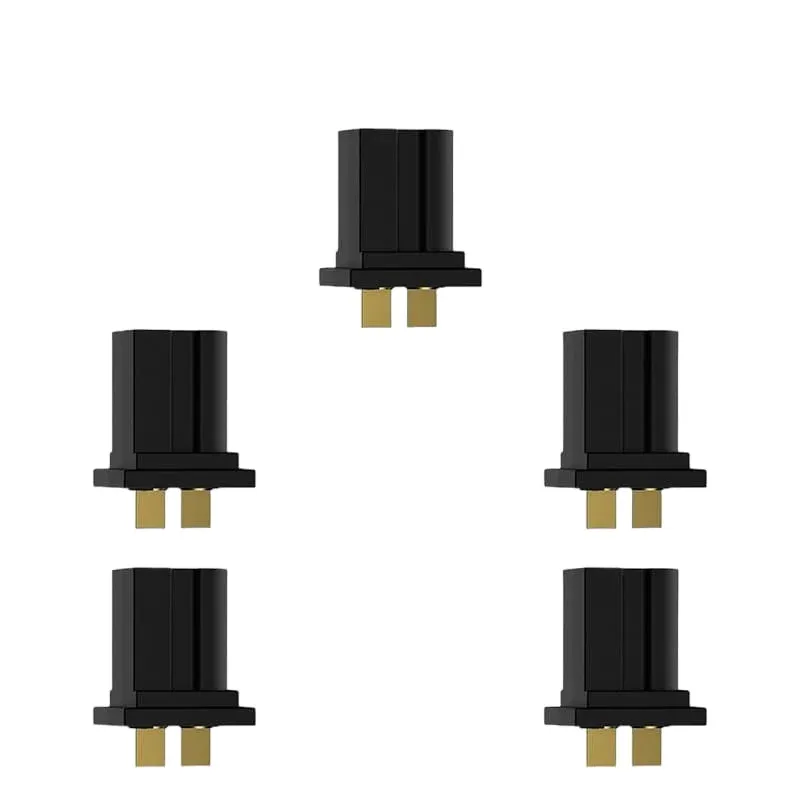

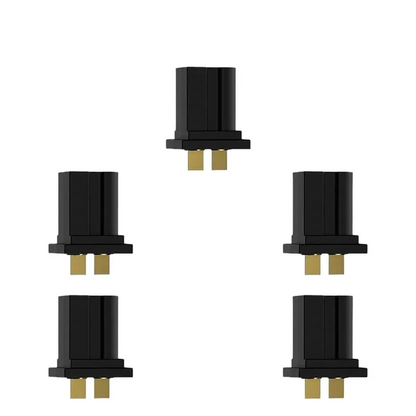

Battery connector FLYWOO A30 male-female (5 pcs) The FLYWOO A30 battery connector kit includes 5 male and 5 female high current carrying connectors, ideal for drones requiring a robust and efficient power connection. These connectors support a continuous current of up to 15A and a peak discharge of up to 30A, significantly outperforming traditional PH2.0 connectors. Thanks to gold-plated brass contacts and non-flammable PA66 insulation, they ensure long life, low contact resistance (1.6 mΩ) and safe operation in a wide temperature range from -20 °C to 120 °C. Ideal for making your own batteries, ESCs or custom power packs — the A30 connector sets a new standard for high-performance micro drones and RC electronics. Specifications: Model: A30 Standard current: 15A Peak discharge current: 30A Withstand voltage: DC 500V Contact impedance: 1.6 mΩ Connector color: Black Contact material: Gold-plated brass Insulation material: PA66 Wire Compatibility: 20# / 22# Operating temperature: -20 °C to 120 °C Inflammability class: UL94 V0 The package contains: 5 x A30 male connector 5 x A30 female connector
