Code: SKU:0608597256147
Antenna TrueRC X2-AIR 5.8 MK II pair for Walksnail X - LHCP, X2-air pair only
Antenna TrueRC X2-AIR 5.8 MK II pair for Walksnail X - LHCP, X2-air pair only
Brand: TrueRC
Regular price
€107,30
Regular price
€107,30
Sale price
€107,30
Unit price
/
per
Upon request
We need to check the product availability with our supplier. Please contact us for details.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion

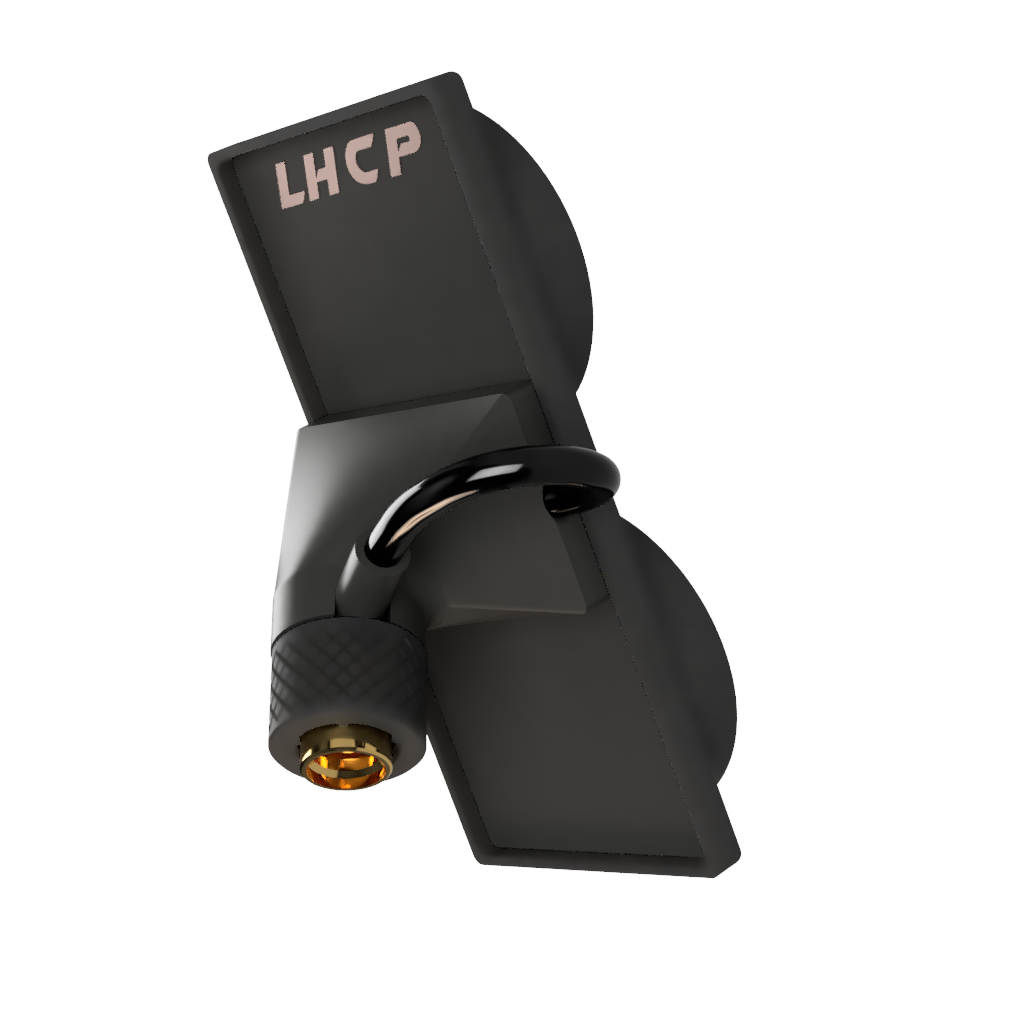

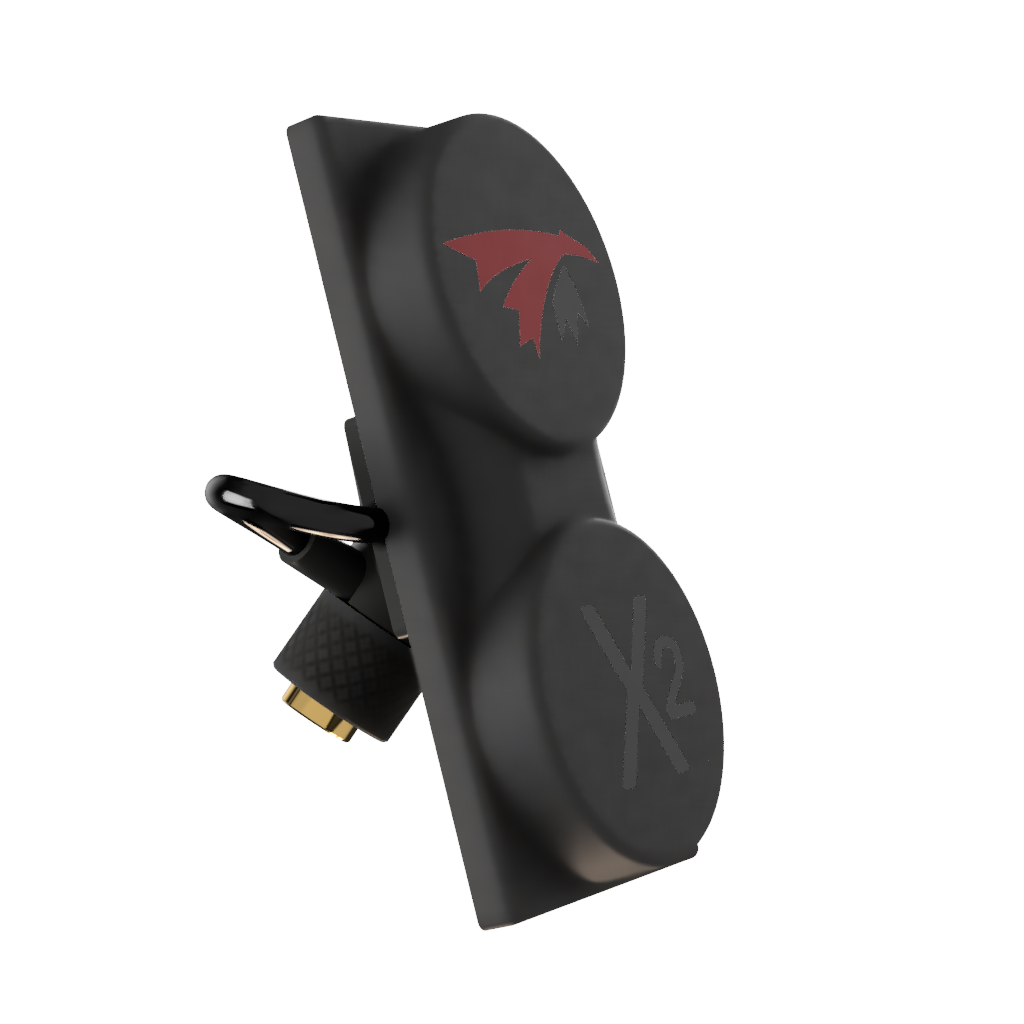

Antenna X²-AIR MK II for Walksnail Avatar HD Goggles X
The X²-AIR MK II is a high-performance, long-range FPV antenna designed specifically for the Walksnail Avatar HD Goggles X. Custom angled RP-SMA connectors make installation easy and precise — just screw it onto the top ports for a seamless connection and forward pointing. This arrangement provides an impressive 13dBic gain with a wide 150° beam, ensuring strong signal penetration and extended range. For maximum performance, we recommend pairing the X²-AIR MK II with Singularity Stubby antennas on the remaining ports to create an optimized antenna array.
Key Features
- Circular polarization: Ensures better signal penetration and stability.
- Direct fit: Customized RP-SMA connectors without the need for an adapter for Walksnail Avatar HD and Fat Shark Dominator glasses.
- Sector beam shape: Focusing on the horizon with 150° coverage.
- 13 dBic Gain: Exceptional performance for long reach and penetration.
- Wide Frequency Band: Range from 5.1 GHz to 7.0 GHz, including wide SWR and axial ratio.
- Custom Angled Connectors: Keep antennas pointing forward at an optimal angle.
Specifications
- Frequency Band: 5.1GHz-7.0GHz
- Gain: 13 dBic
- Polarization: LHCP or RHCP
- Beam Width: Horizontal 150°; Vertical 62°
- Coverage -3dB: Horizontal 75°; Vertical 34°
- Connector: Customized RP-SMA
- Dimensions: 72mm x 34mm x 34mm
Package Contents:
- Two X²-AIR MK II antennas
- Optional: Two Singularity Stubby antennas for a complete set
