Code: SKU:0608597254549
Antenna TrueRC X2-AIR 5.8 MK II pair for HDzero goggles RHCP, X2-air pair only
Antenna TrueRC X2-AIR 5.8 MK II pair for HDzero goggles RHCP, X2-air pair only
Brand: TrueRC
Regular price
€107,30
Regular price
€107,30
Sale price
€107,30
Unit price
/
per
In stock
We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion
Antenna TrueRC X2-AIR 5.8 MK II pair for HDzero goggles RHCP (X2-air pair only)
The TrueRC X2-AIR 5.8 MK II pair is a high-performance antenna system designed specifically for HDzero goggles, providing advanced signal reception for long-distance flights. The increased gain, wide beam angle and low profile design make this antenna set ideal for pilots who need excellent signal coverage in challenging conditions.
Key features:
- High gain and wide beam angle: X2-AIR MK II offers 13dBic gain and a wide beam angle of 165°, which enables excellent signal reach and penetration even in challenging environments. The sector-shaped beam optimizes horizontal coverage, making it ideal for long-distance flights.
- Circular Polarization (RHCP): Right-handed circular polarization minimizes signal degradation caused by reflections and interference, improving overall signal quality.
- Dual-element antenna: The antenna features a dual-element design that provides a 75° circularly polarized beam for improved horizontal coverage and optimized signal reception over a wider range.
- Compact and low-profile design: At only 15mm thick, these antennas are lightweight, easy to carry and durable, reducing the risk of damage during use or storage.
- Easy Installation: The antennas come with push-in brackets that attach directly to the HDzero glasses module, ensuring a secure and simple connection. Knurled SMA connectors ensure efficient RF energy transmission and prevent loosening during use.
- Wide Frequency Range: The antennas operate in a wide band from 5.1 GHz to 7.0 GHz and maintain high performance beyond the 5.8 GHz band, providing more flexibility for different flight conditions.
Specifications:
- Bandwidth: 5.1 GHz - 7.0 GHz
- Gain: 13 dBic
- Polarization: RHCP
- Horizontal beam width: 150°
- Vertical beam width: 62°
- Horizontal beam width at -3 dB: 75°
- Vertical beam width at -3 dB: 34°
- Connector: notched SMA
- Dimensions: 72mm x 34mm x 15mm
- Weight: 20 g per antenna

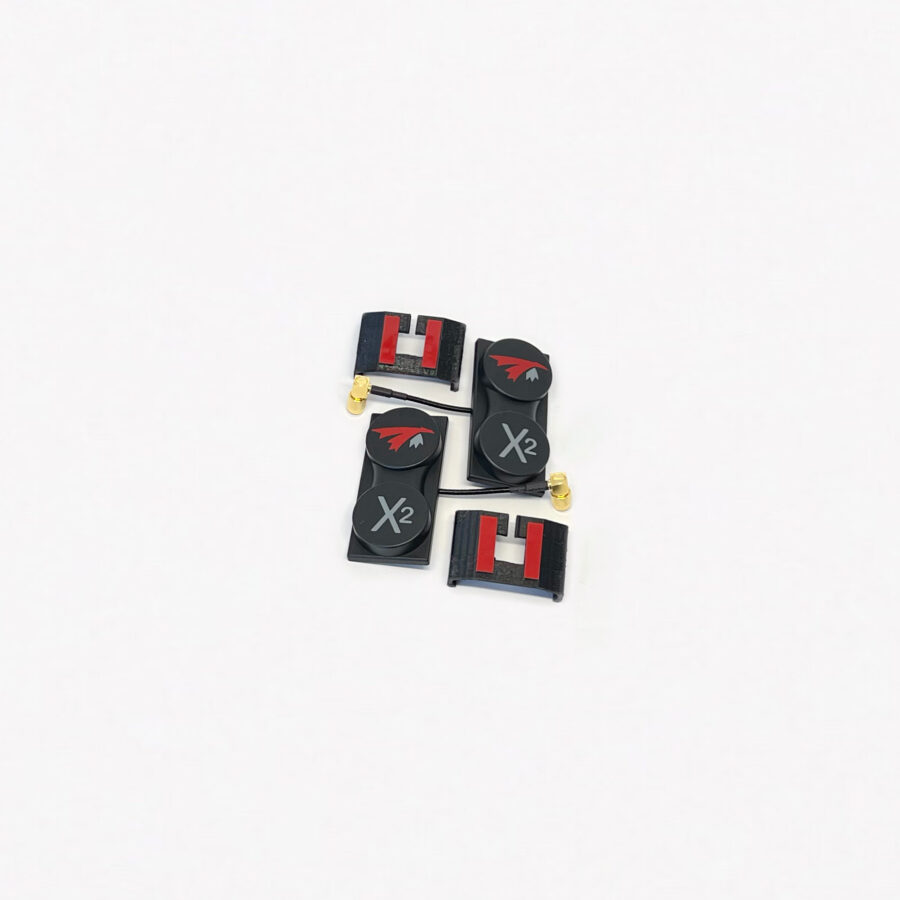

The package contains:
- 2x X2-AIR MK II antennas (one for each side)
- 2x push-in holders for installation on HDzero glasses
