Antenna TrueRC X2-AIR 5.8 MK II pair for DJI FPV (pair) LHCP
A pair of TrueRC X2-AIR 5.8 MK II antennas, designed for DJI FPV goggles, provides an improved gain of 13dBic and a wide beam width of 180° for excellent flight performance even in challenging conditions. Thanks to the thin, low-profile design of 15 mm thickness, the antennas are compact and durable, which allows them to be used continuously without the risk of damage. The two-pole arrangement ensures a circularly polarized beam with a width of 75°, optimizing horizontal coverage. Installation is quick thanks to the self-adhesive back, and special RP-SMA connectors ensure a secure connection and efficient RF power transfer.
Features:
- Circular polarization
- Sector type beam shape (widest on horizontal)
- Direct mounting on the front of the DJI using the included self-adhesive back part

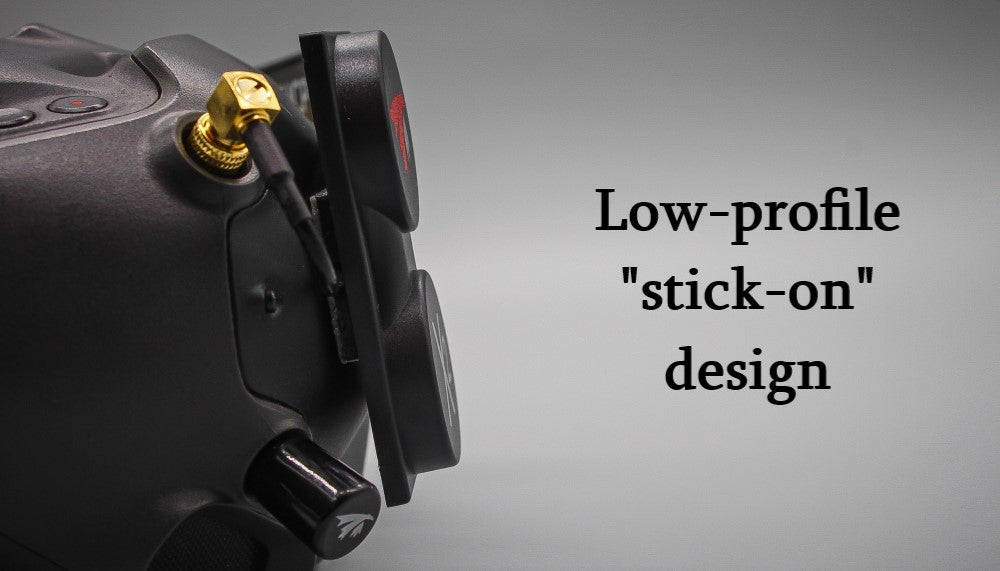

- Compact low profile design on glasses, easy to store and carry

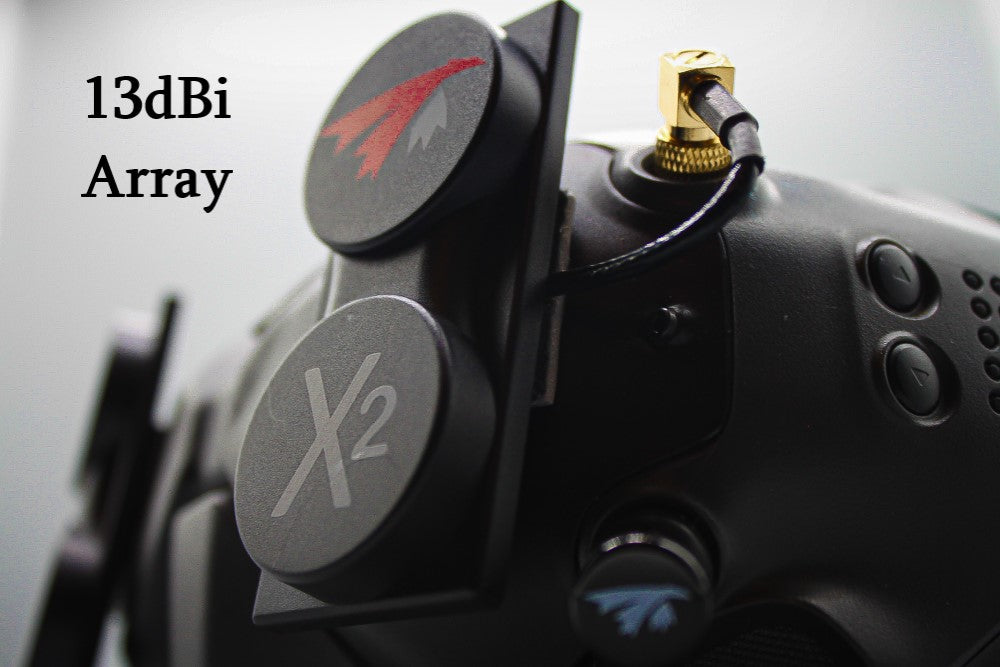

- High gain of 13 dBic for unrivaled long range and better signal penetration
- Wide band SWR and axial ratio, functional even outside the 5.8 GHz band
- Very wide beam of 150° for each antenna, combined to a beam width of 180°

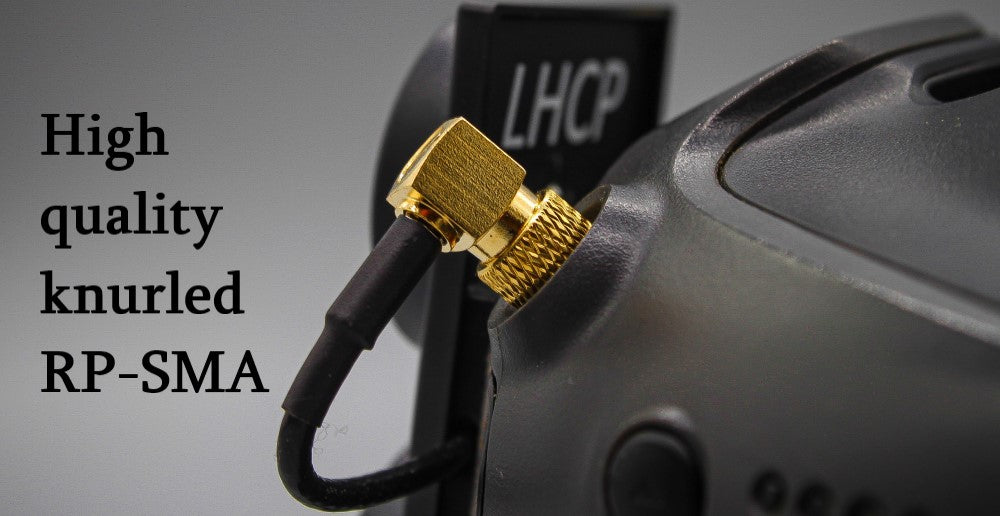

- Special knurled RP-SMA connectors
Specifications:
Bandwidth: 5.1 GHz - 7.0 GHz
Gain: 13 dBic
Polarization: LHCP
Beam width Horizontal*: 150°
Beam width Vertical*: 62°
Horizontal beam at -3 dB**: 75°
Vertical beam at -3 dB**: 34°
Connector: Special knurled RP-SMA
Dimensions: 72mm x 34mm x 15mm
Weight: 20g each
Includes self-adhesive mount for installation on DJI FPV goggles.
*Coverage of a single antenna where the reception is at least equivalent to an omnidirectional antenna.
**Coverage of a single antenna where at least 70% of the maximum range is achieved.

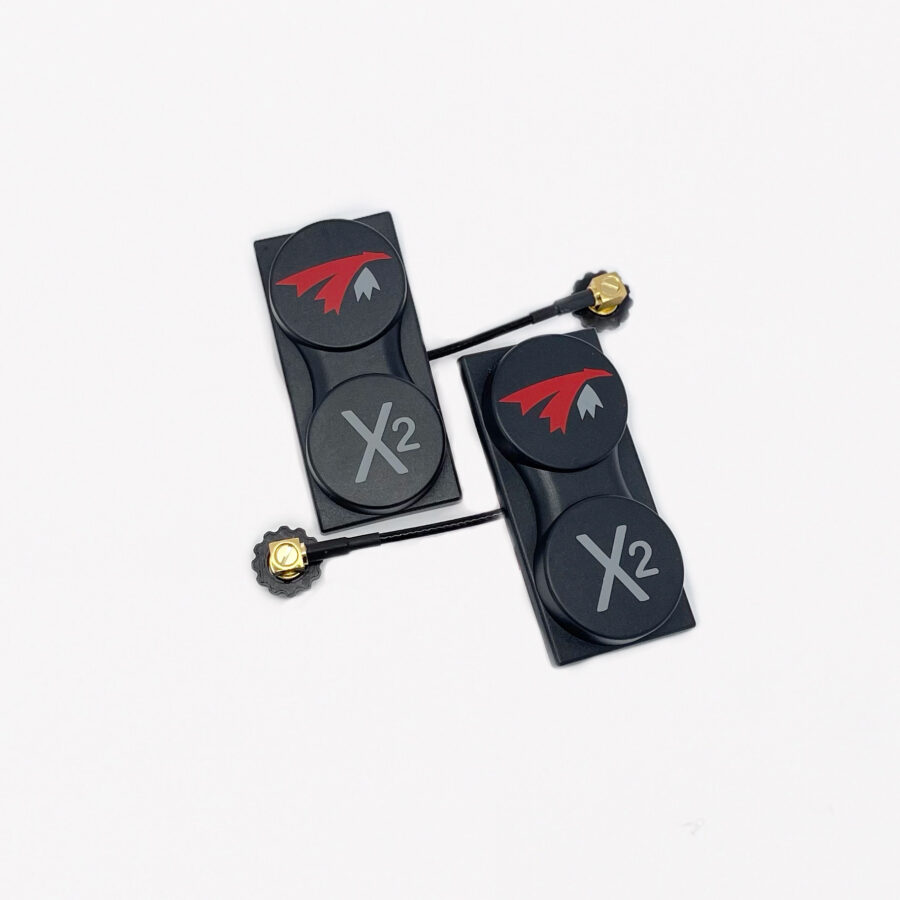

Package includes: 2x X²-air MKII antennas (one for each side).
