Antenna TrueRC X-AIR 5.8G MK II pair for HDzero VRX4 - RHCP (X-air pair only)
Designed for the HDzero VRX4 module, the X-AIR MK II antenna offers 10dBic gain and 120° beam width for an exceptional flight experience. Its slim, 15mm low-profile design ensures durability, so you can leave antennas attached without risk of damage. Installation is easy thanks to mounting brackets that slide directly onto the HDzero VRX4 module. Special knurled SMA connectors ensure secure connection and optimal RF power transmission.
Features:
- Circular polarization

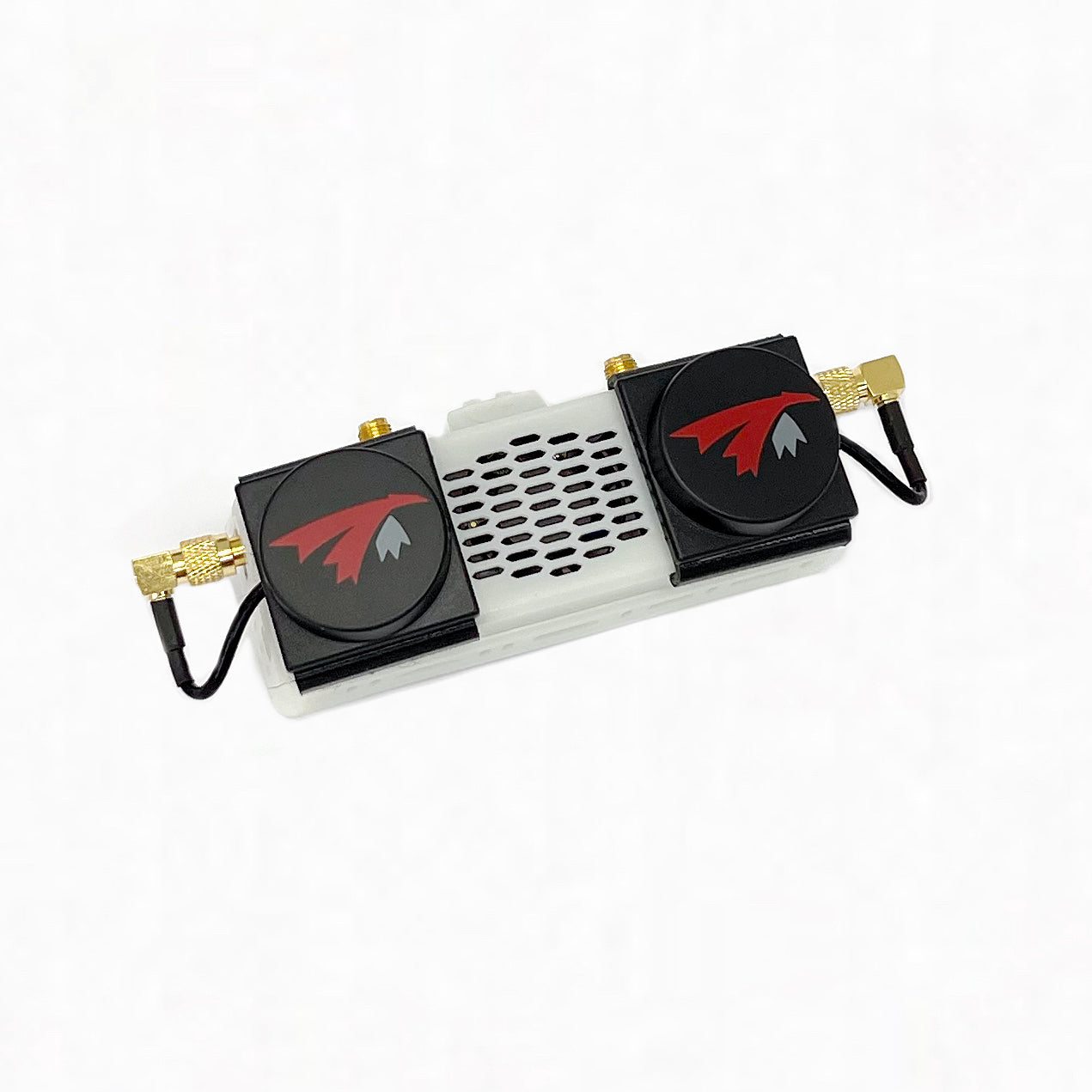

- Direct mounting on the HDzero module using the attached mounting brackets
- Compact low-profile design, easy to store and carry
- High gain of 10dBic for long range and better signal penetration
- Wide band SWR and axial ratio, functional even outside the 5.8 GHz band
- Very wide beam of 120° for each antenna, combined to a beam width of 135°
- Special knurled SMA connectors
Specifications:
Bandwidth: 5.1 GHz - 6.7 GHz
Gain: 9.5 - 10.5 dBic
Polarization: RHCP
Beam width*: 120°
Beam width at -3 dB**: 68°
Connector: SMA male
Dimensions: 32 x 32 x 15 mm
Includes mounting mounts for installation on the HDzero module.
*Coverage of a single antenna where the reception is at least equivalent to an omnidirectional antenna.
**Coverage of a single antenna where at least 70% of the maximum range is achieved.

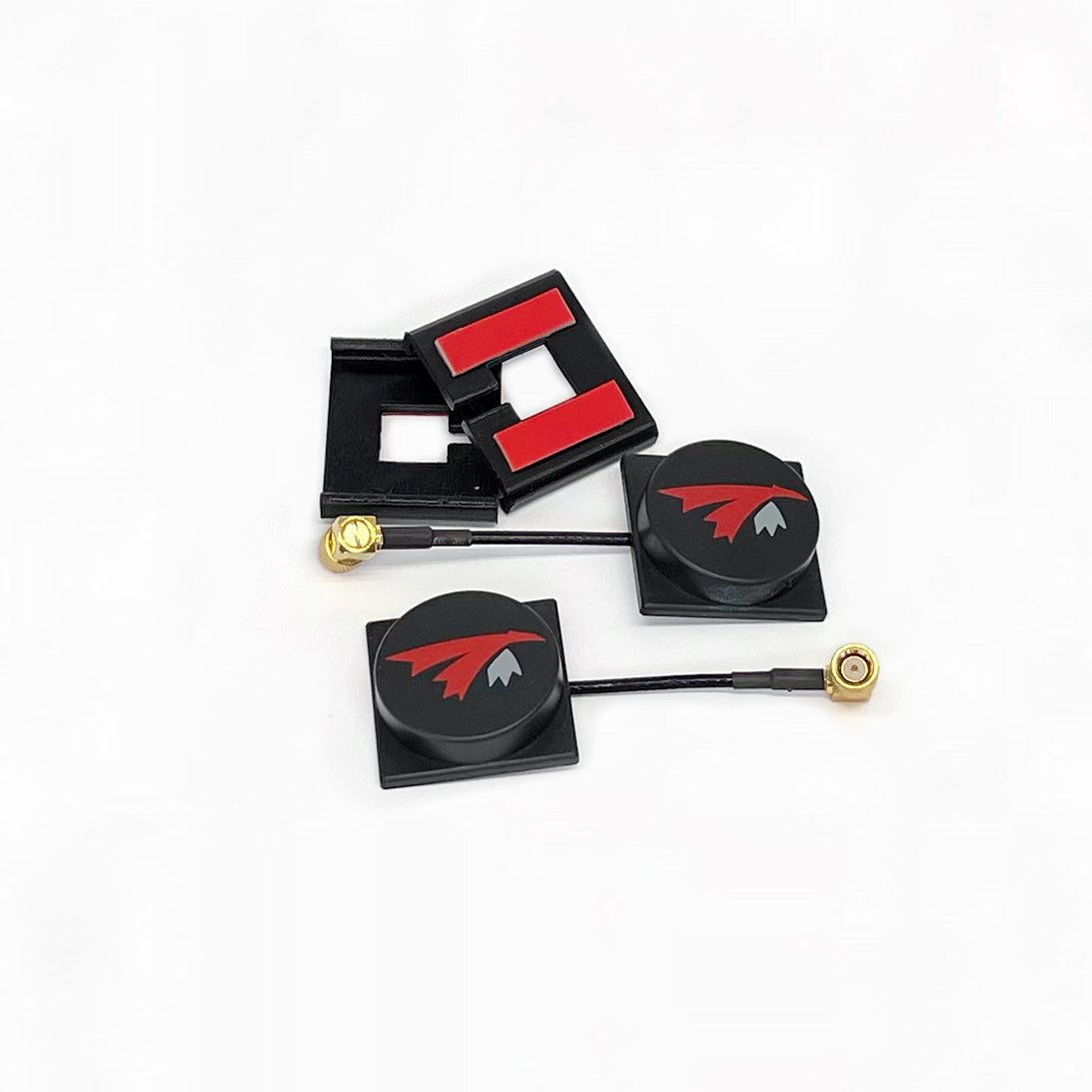

The package contains: 2x X-air MKII antennas (one for each side).
2x retractable mounting brackets.
