Code: SKU:0608597256109
Antenna TrueRC X-AIR 5.8 MK II pair for Walksnail X - LHCP
Antenna TrueRC X-AIR 5.8 MK II pair for Walksnail X - LHCP
Brand: TrueRC
Couldn't load pickup availability
- Description
- Related Files
- Discussion

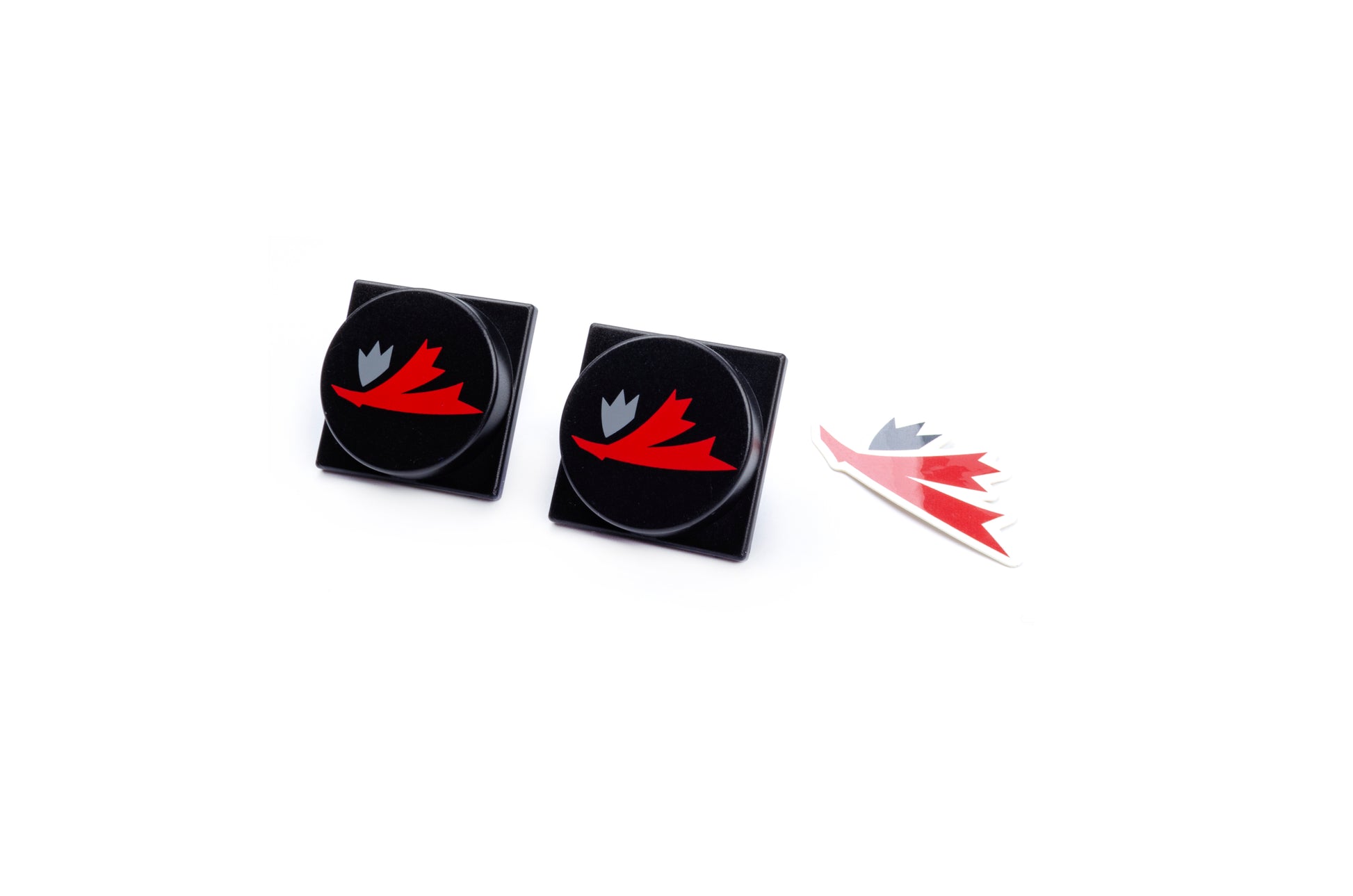

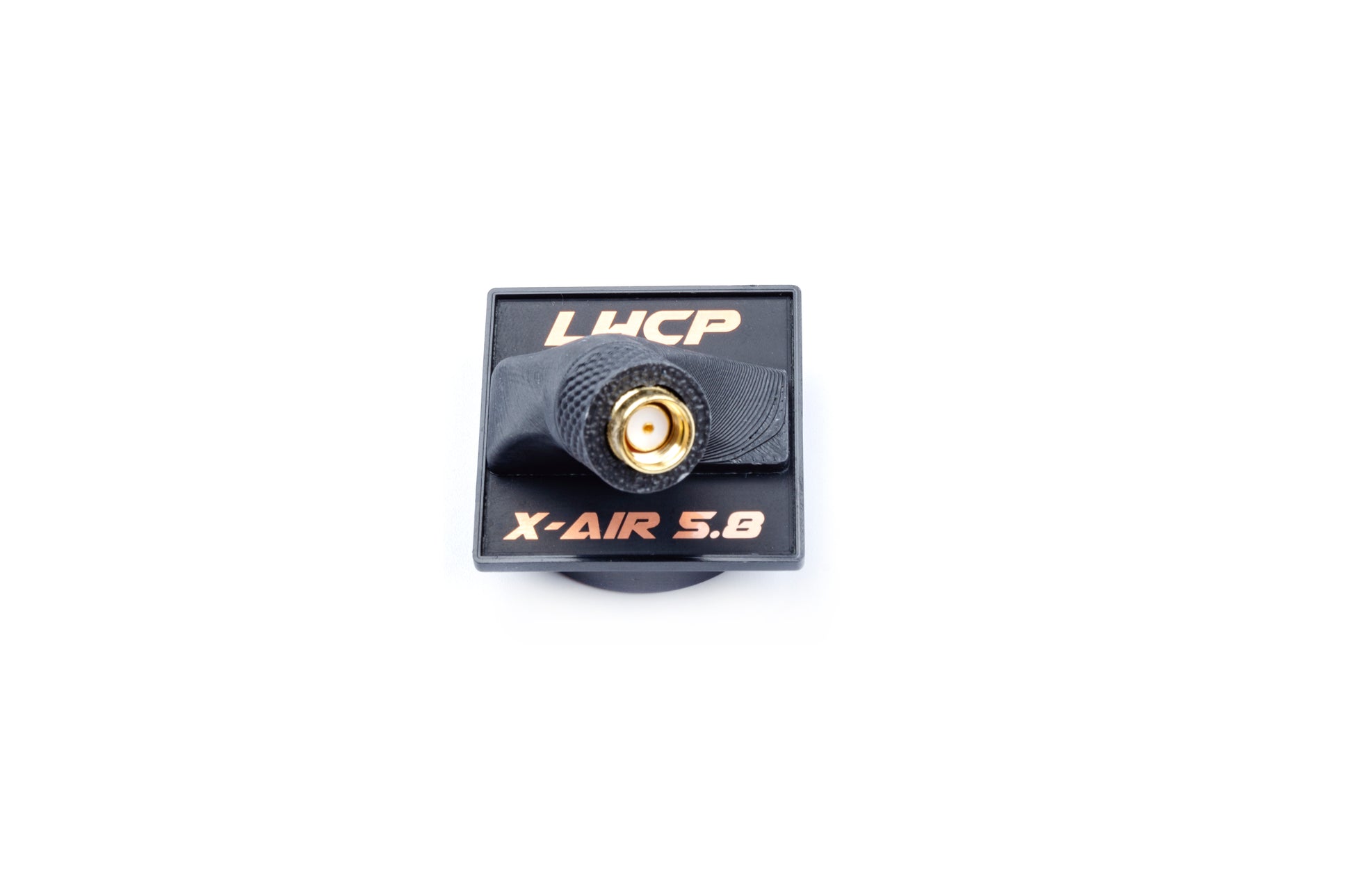

Antenna TrueRC X-AIR 5.8 MK II pair for Walksnail X - LHCP (X-air pair only)
Highly efficient X-AIR MK II antenna with straight angled RP-SMA connectors for installation on Walksnail avatar HD X glasses. Simply screw the special angled RP-SMA connectors onto the upper ports of the glasses. A gain of 10 dBic combined with a beam width of 120° ensures a great flight experience in a compact and low-profile design. The special RP-SMA connector is designed to perfectly fit the Walksnail avatar HD X glasses without an adapter and ensure that the antenna points forward with a slight upward tilt.
Features:
- Circular polarization
- Direct mounting on Walksnail avatar HD X glasses
- Compact low-profile design, easy to store and carry
- High gain of 10dBic for long range and better signal penetration
- Wide band SWR and axial ratio, functional even outside the 5.8 GHz band
- Very wide beam 120°

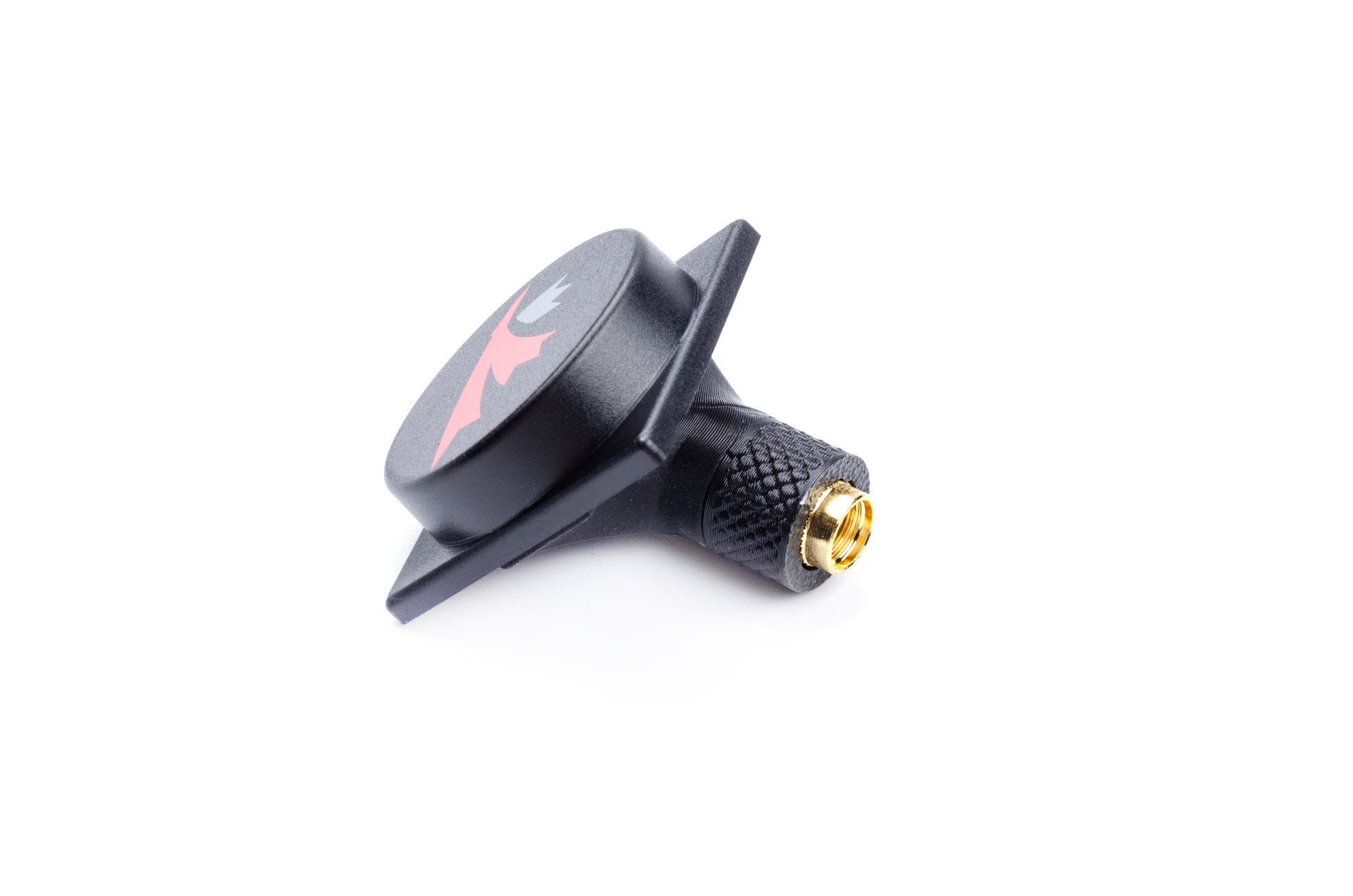

- Special RP-SMA connectors with an angle to correctly point the X-air antenna forward
Specifications:
Bandwidth: 5.1 GHz - 6.7 GHz
Gain: 9.5 - 10.5 dBic
Polarization: LHCP
Beam width*: 120°
Beam width at -3 dB**: 68°
Connector: RP-SMA male
Dimensions: 34 x 34 x 34 mm
*Single antenna coverage where reception is at least equivalent to an omnidirectional antenna.
**Coverage where at least 70% of maximum range is achieved.
Package includes: 2x X-air MKII antennas.
