    Antenna TrueRC X-AIR 5.8 MK II pair for Walksnail LHCP Combo CORE

    Antenna TrueRC X-AIR 5.8 MK II pair for Walksnail LHCP Combo CORE

    Brand: TrueRC

    €85,20
    €85,20 €85,20
    -0% View Product
    In stock
    We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion
    X-AIR 5.8 MK II pair for Walksnail LHCP Combo CORE

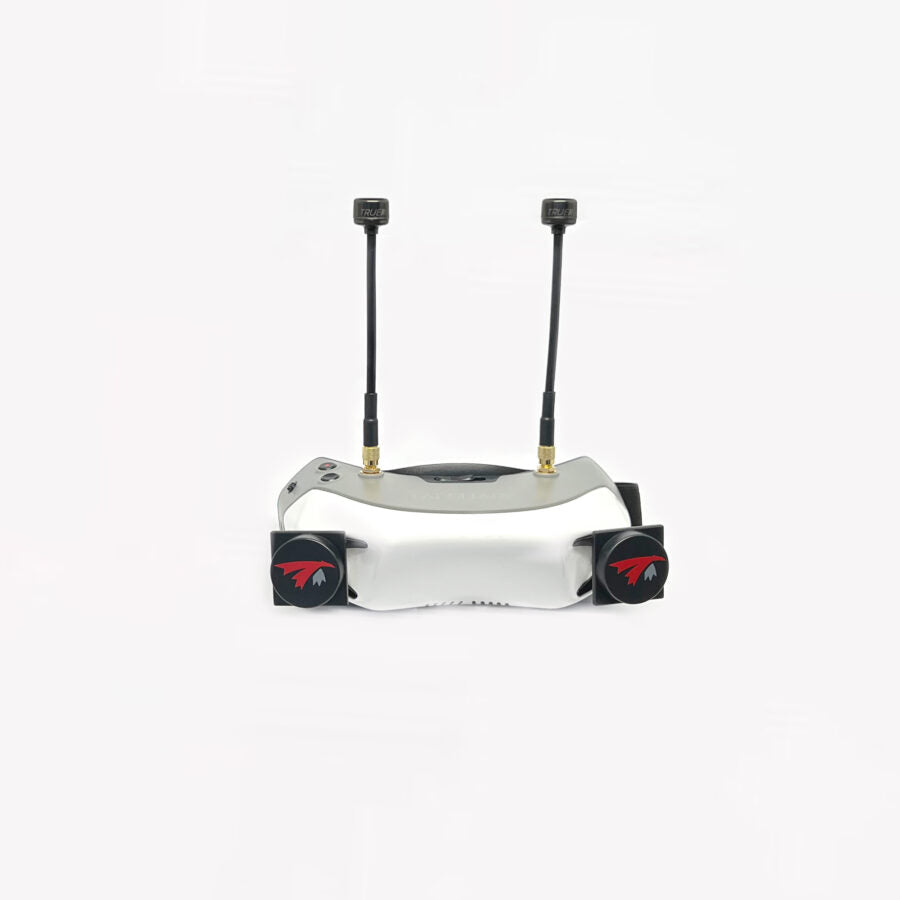

Highly efficient X-AIR MK II with direct RP-SMA connectors for installation on Walksnail avatar or Fat Shark dominator HD FPV goggles.

Function:
- Circularly polarized
- Connect directly to Walksnail avatar or Fat Shark dominator
- Compact low profile design, easy to store and transport
- High 10dBic for long reach and signal penetration
- Large bandwidth of SWR and axial ratio, works even outside the 5.8 GHz band
- Super wide 120 degree beam
- Custom knurled RP-SMA connectors

Specifications:
Bandwidth: 5.1GHz-6.7GHz
Gain: 9.5-10.5dBic
Polarization: LHCP
Beam width*: 120 degrees
Beamwidth @-3dB**: 68 degrees.
Connector: RP-SMA male
Dimension: 32 x 32 x 16 mm

*Individual antenna coverage where reception is at least equivalent to an omnidirectional antenna.
**Individual antenna coverage where at least 70% of maximum range is achieved.

Includes:
Two X-air MKII antennas
Two cores 120 mm
