Antenna TrueRC X-AIR 5.8 MK II for DJI FPV LHCP
Antenna TrueRC X-AIR 5.8 MK II for DJI FPV LHCP
Brand: TrueRC
Couldn't load pickup availability
- Description
- Related Files
- Discussion
TrueRC X-AIR 5.8 MK II antenna for DJI FPV LHCP

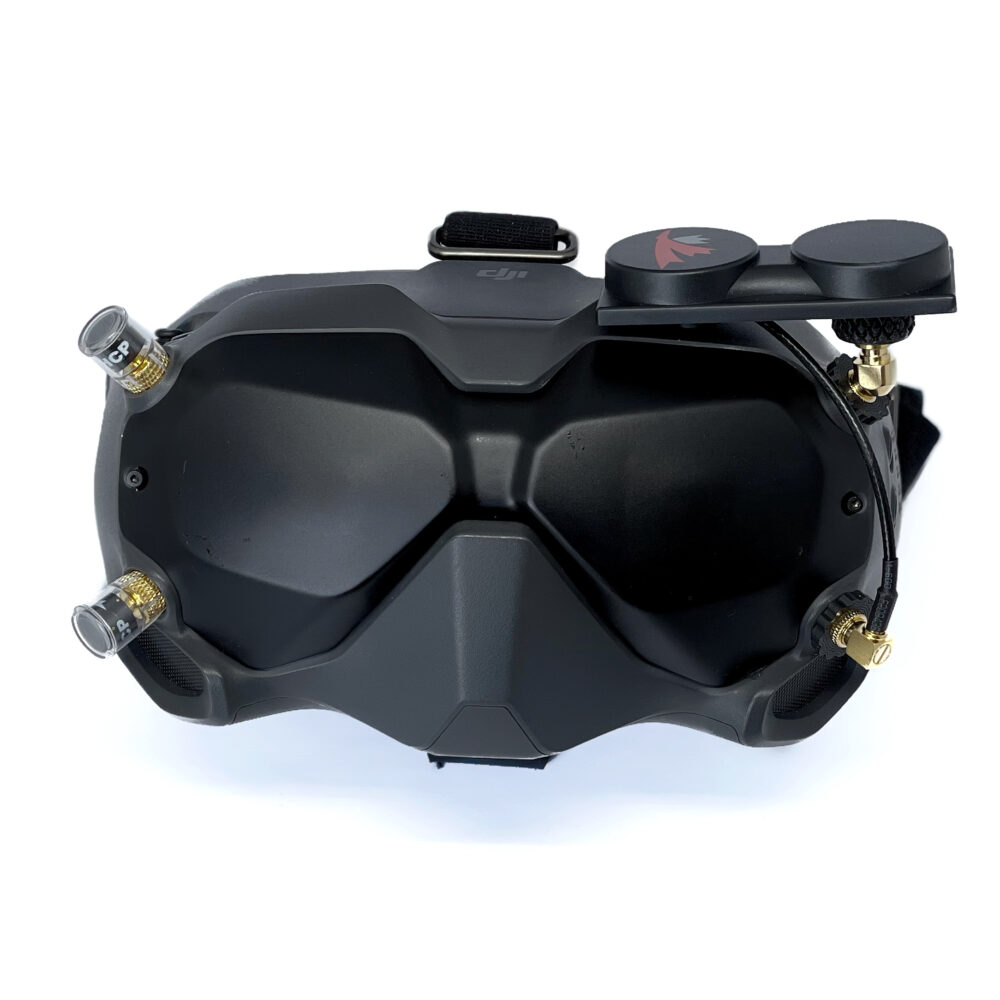

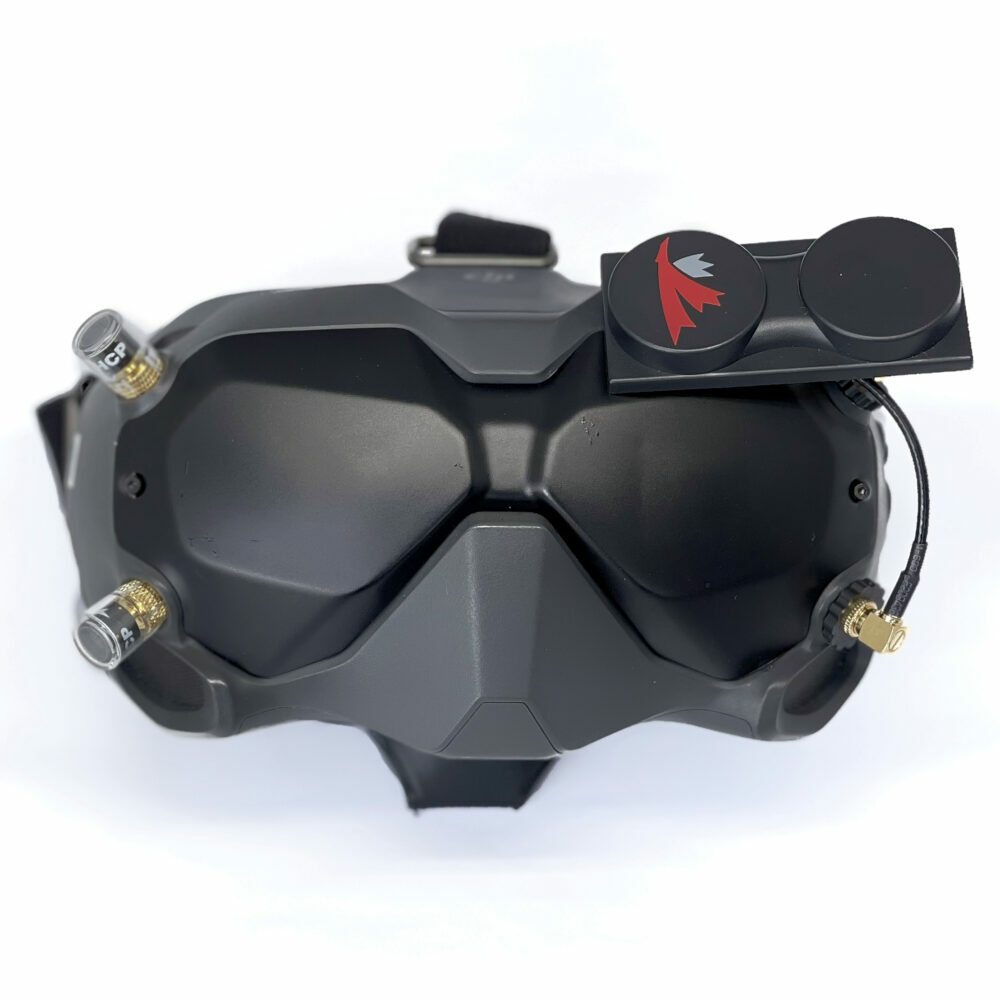

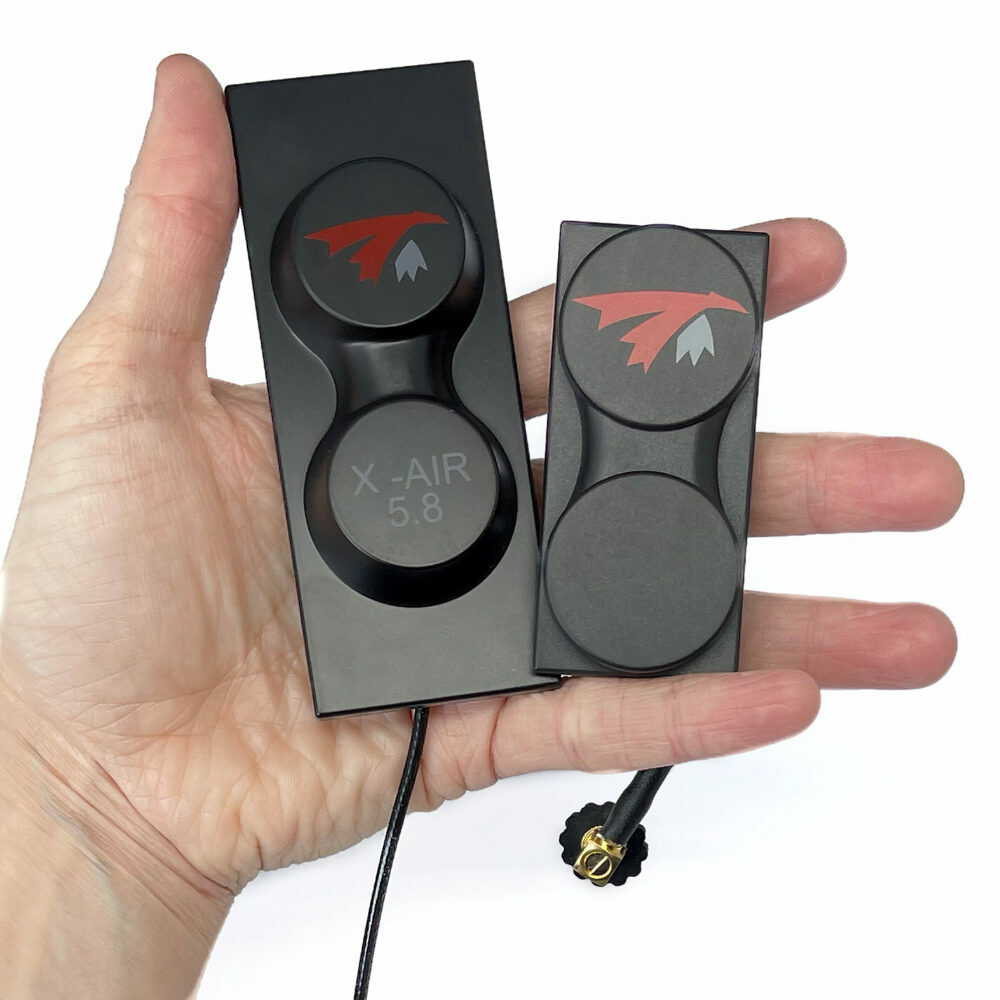

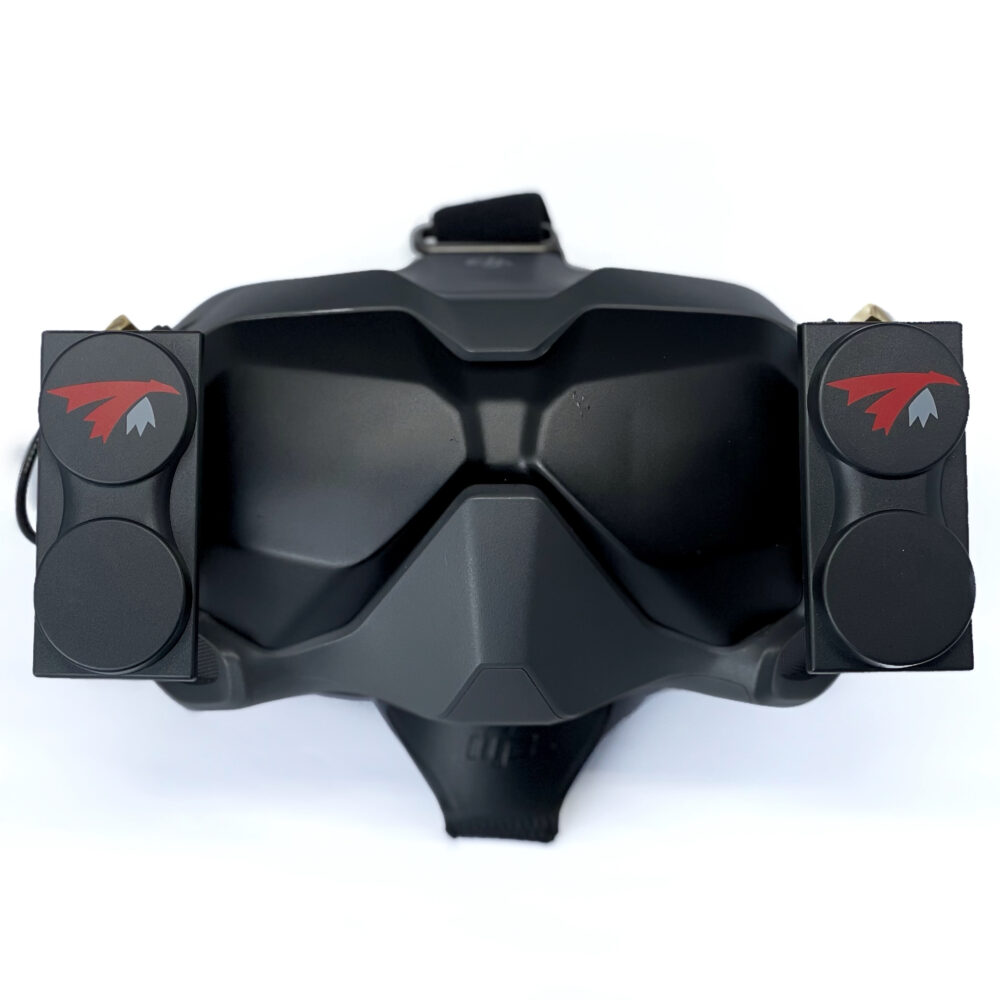

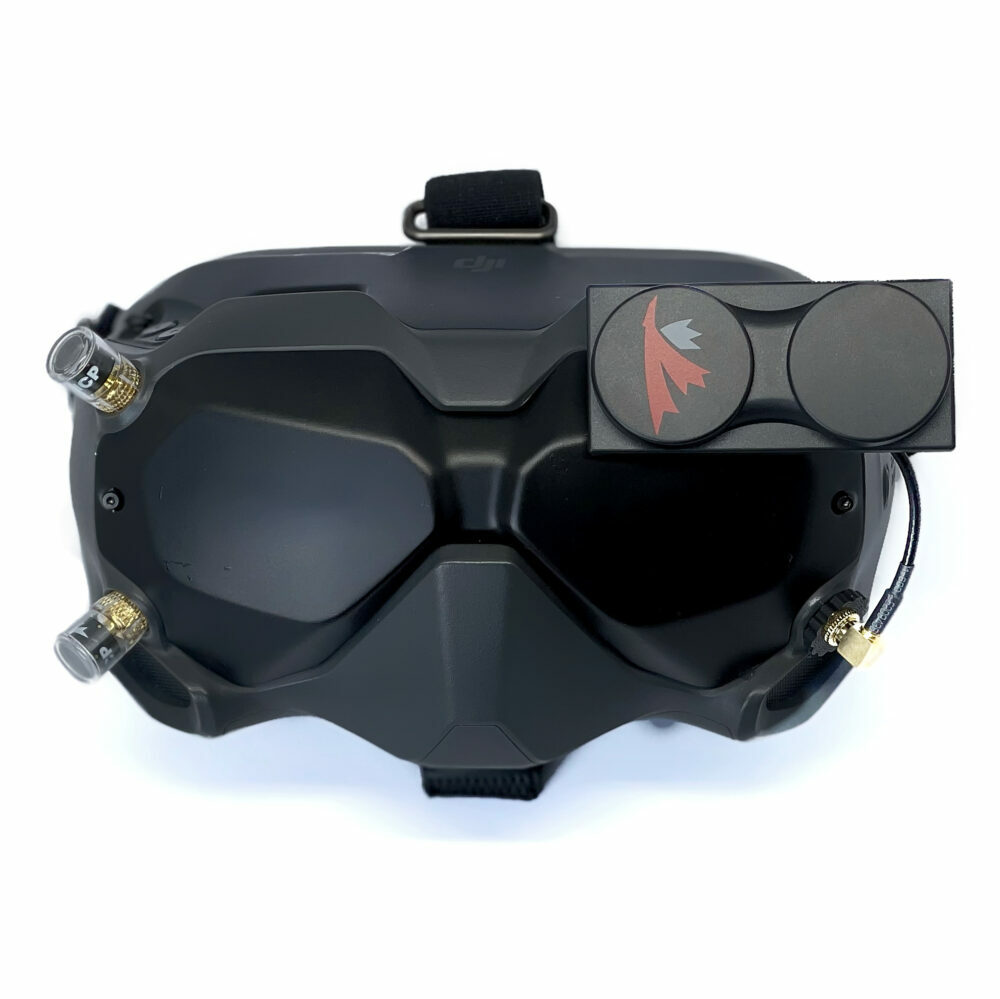

The very popular X-AIR antenna for DJI FPV is now redesigned into a more compact version. It offers the same excellent performance with smaller dimensions, which makes it easier to pack and allows for a larger tilt angle. The X-AIR MK II antenna for DJI installs on the two left or right antenna ports, both vertically and horizontally. The horizontal position allows tilting up to 80°, so even when looking down during flight, the antenna points forward.
Specifications:
Bandwidth: 5.1 GHz - 6.7 GHz
Gain: 9.5 - 10.5 dBic
Polarization: LHCP
Beam width*: 120°
Beam width at -3 dB**: 68°
Connector: SMA male
Dimensions: 32 x 72 x 16 mm

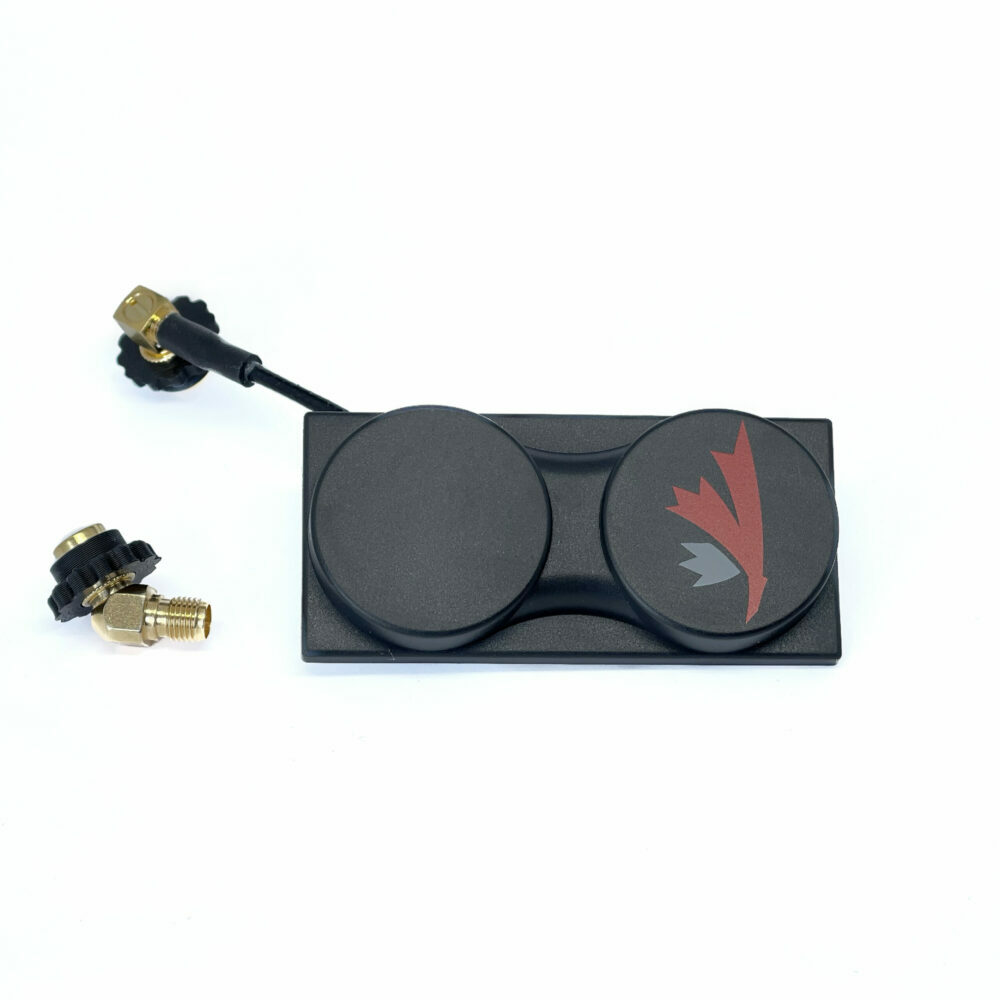

All mounting accessories included for installation on DJI FPV goggles.
*Coverage where reception is at least equivalent to an omnidirectional antenna.
**Coverage where at least 70% of maximum range is achieved.
Package includes: 1x TrueRC X-AIR 5.8 MK II Antenna for DJI FPV LHCP
