    Antenna TrueRC X-Air 2.4 MK II (LHCP)

    Antenna TrueRC X-Air 2.4 MK II (LHCP)

    Brand: TrueRC

    €63,10
    €63,10 €63,10
    -0% View Product
    Upon request
    We need to check the product availability with our supplier. Please contact us for details.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion

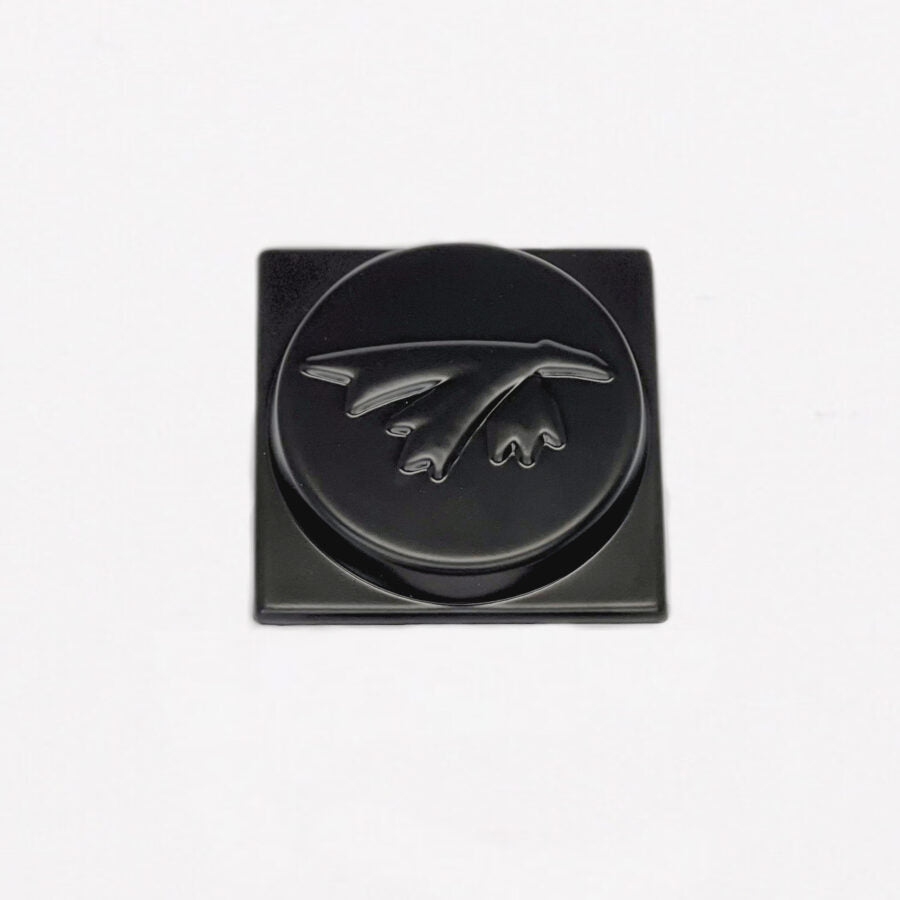

    X-Air 2.4 MK II (LHCP, SMA male)

X-AIR 2.4 Mk. II is our latest redesign of the X-AIR 2.4 antenna. With aerospace grade PCB material and the latest in computer aided engineering, there is no compromise in beam width or gain and now size! Almost 1/4 the footprint of the original, the same wide coverage and high axial ratio make it perfect for remote businesses without having to adjust the antenna.

Specifications:
Bandwidth: 2.3GHz-2.6GHz
Gain: 9.5-10dBic
Polarization: LHCP
Beam width*: 120 degrees
Beamwidth @-3dB**: 68 degrees.
Connector: SMA male
Dimension: 82 x 82 x 24 mm

*Coverage where income is at least equivalent to omni.
**Coverage where at least 70% of the maximum range is achieved.
