Code: SKU:0608597251227

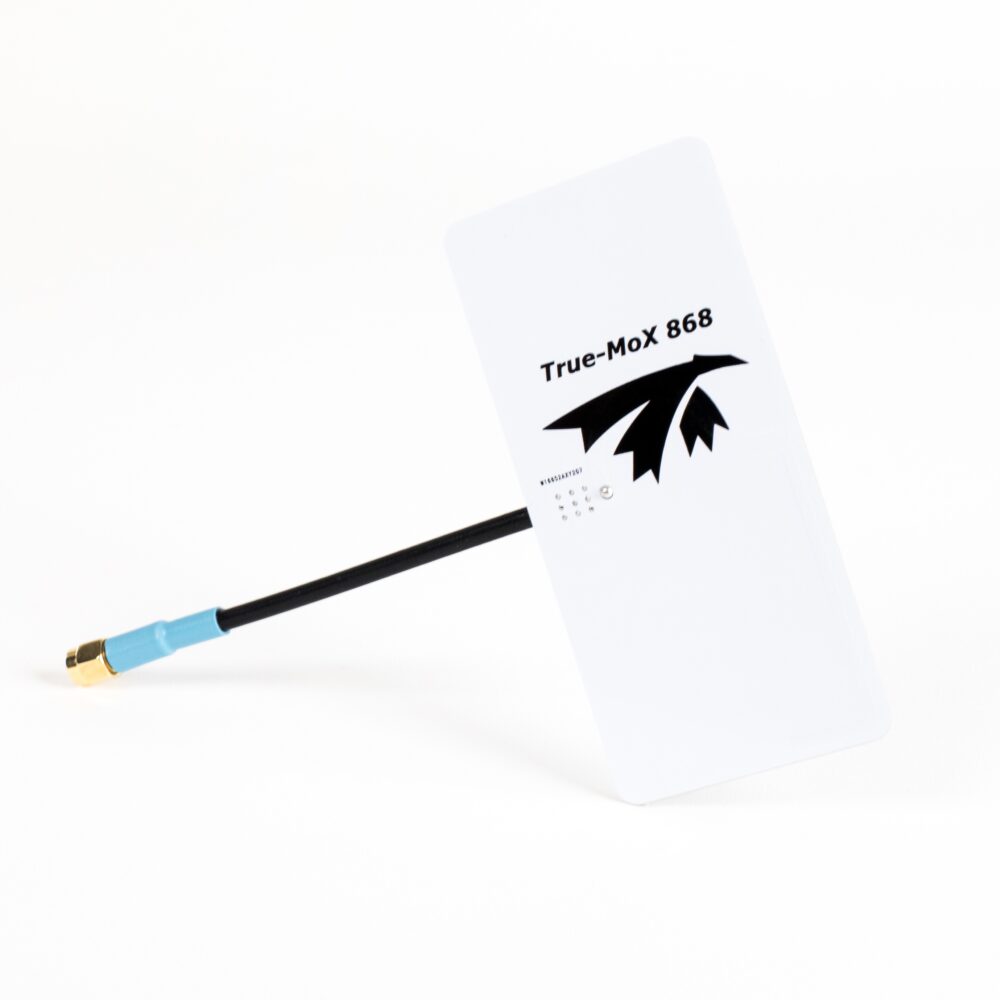

Antenna TrueRC True-MoX 868 RP-SMA
Antenna TrueRC True-MoX 868 RP-SMA
Brand: TrueRC
Regular price
€15,77
Regular price
€15,77
Sale price
€15,77
Unit price
/
per
Upon request
We need to check the product availability with our supplier. Please contact us for details.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion
True-MoX 868 RP-SMA True-MoX 868 is our revision of Moxon using the latest 3D electromagnetic simulation tools and RF rated PCB material. Interactions with the radio or the pilot's body are kept to almost zero thanks to our patented design. Great for FRsky R9M. Note that this is not a patch, do not point the flat part towards the target. Point the long edge of the white panel toward the intended flight area. If the long edge is vertical, vertical polarization will result Specifications: Frequency: 850-890MHz Gain: 5.4dBi Beam width*: 156deg Beamwidth @-3dB**: 133deg Connector: RP-SMA Dimensions: 109mm x 165mm Compatible: FRsky R9M *Coverage where income is at least equivalent to omni. **Coverage where at least 70% of the maximum range is achieved.
