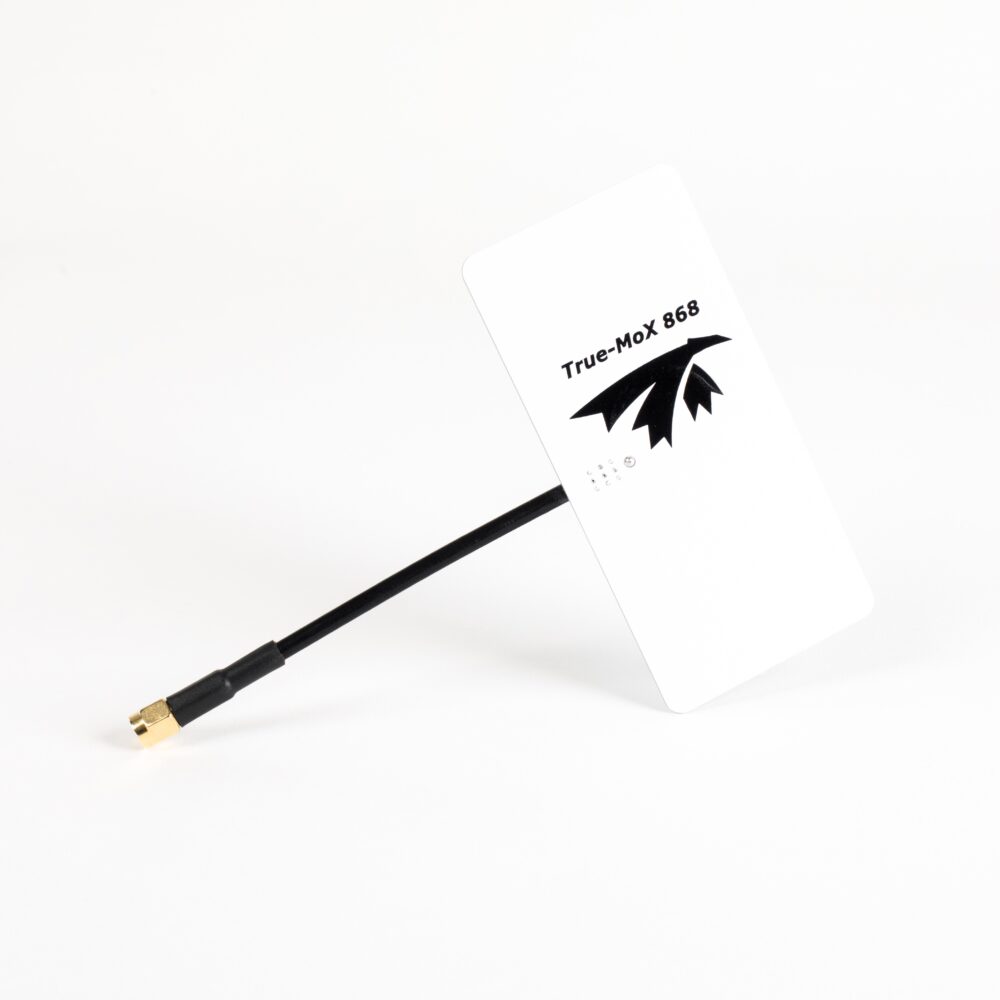

    Antenna TrueRC True-MoX 868

    Antenna TrueRC True-MoX 868

    Brand: TrueRC

    €15,77
    €15,77 €15,77
    -0% View Product
    In stock
    Limited stock available. Order soon!
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion
    True-MoX 868

True-MoX 868 is our revision of Moxon using the latest 3D electromagnetic simulation tools and RF rated PCB material. Interactions with the radio or the pilot's body are kept to almost zero thanks to our patented design. Great for TBS Crossfire or FRsky R9M. Note that this is not a patch, do not point the flat part towards the target. Point the long edge of the white panel toward the intended flight area. A vertical long edge creates vertical polarization.

Specifications:
Frequency: 850-890MHz
Gain: 5.4dBi
Beam width*: 156deg
Beamwidth @-3dB**: 133deg
Connector: SMA
Dimensions: 109mm x 165mm
Compatible: TBS Crossfire, FRsky R9M

*Coverage where income is at least equivalent to omni.
**Coverage where at least 70% of the maximum range is achieved.
