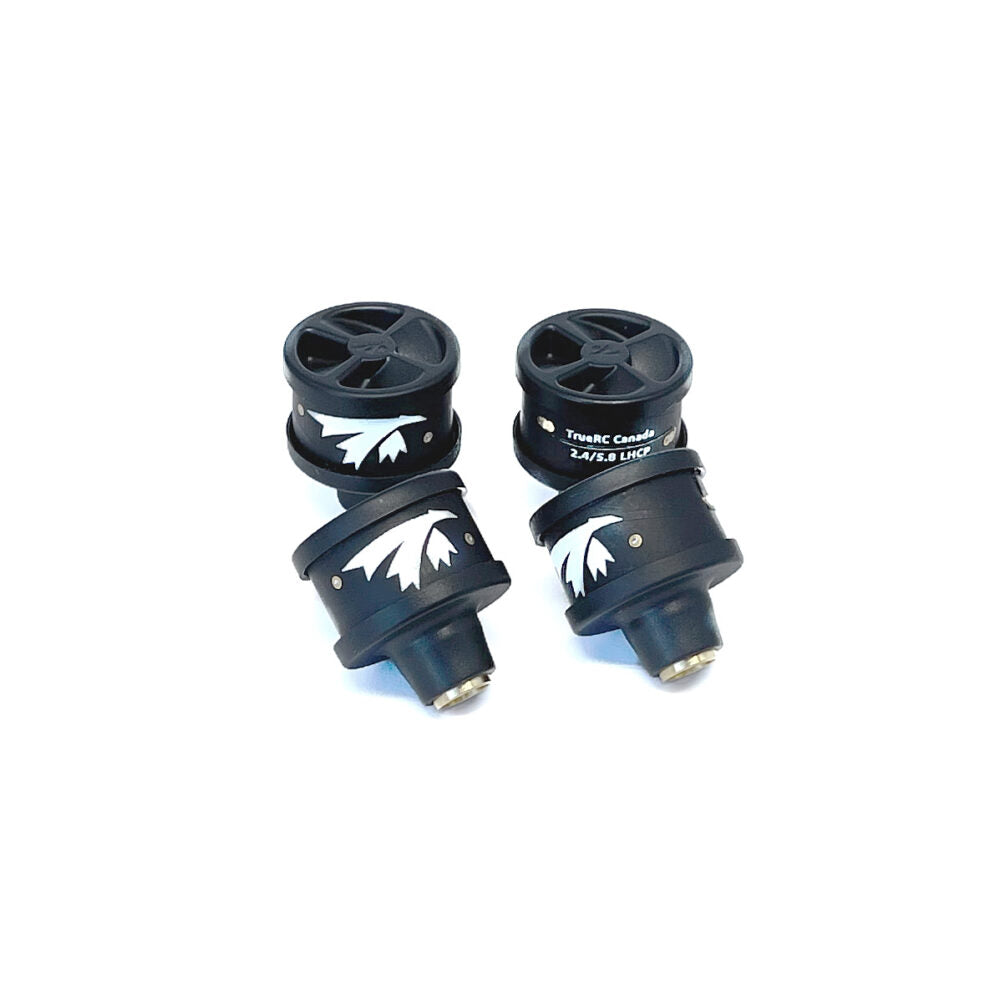

    STUBBY Duality (4-Pack, RHCP)

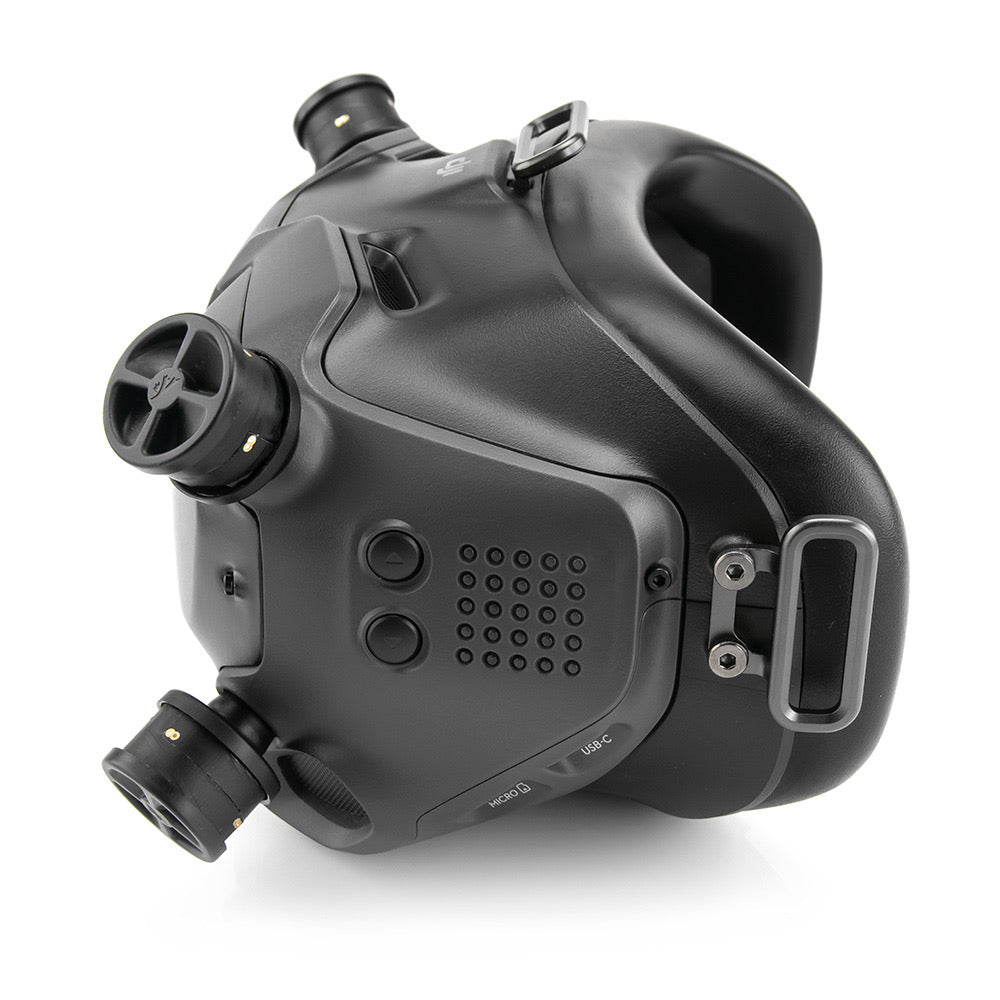

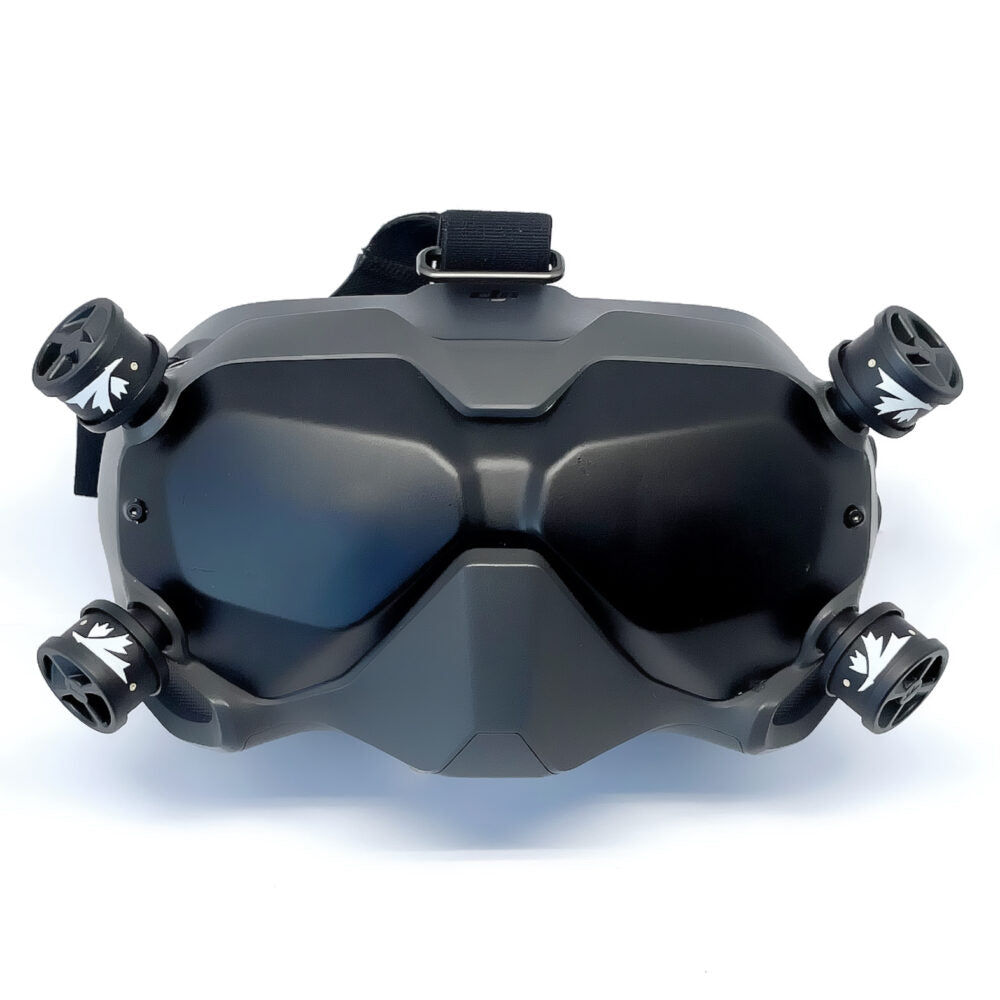

Duality is a dual-band CP omni covering the 2.4 and 5.8 GHz bands in a single compact package. The drop-in fits DJI FPV V2 goggles so you can keep them on thanks to a much lower profile than standard linear antennas. Each unit is manually tuned on a professional analyzer.

Specifications:
Gain: 1.7dBic @ 2.4GHz, 2.8dBic @ 5.8GHz
Polarization: RHCP
Cross-Polar Rejection: -15 to -30 dB, (2.2%)
Bandwidth: 2.39GHz-2.52GHz & 5.6GHz-6.1GHz
Radiation efficiency: 99%
SWR: <=1.5:1
Weight: 5.25g
Dimensions: diameter 23.3 mm X height 22.0 mm
Connector: RP-SMA

The package includes:
4x STUBBY Duality
