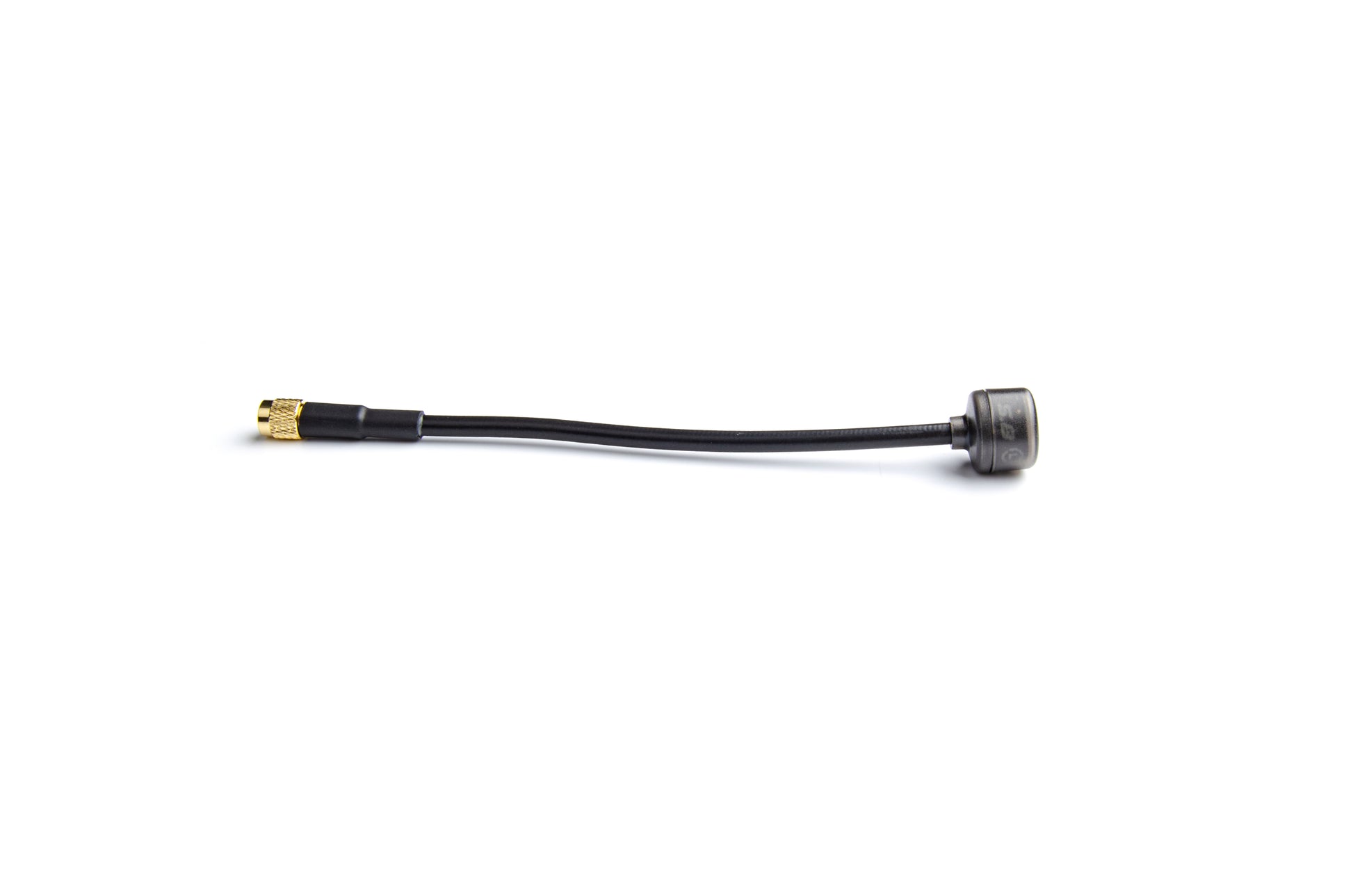

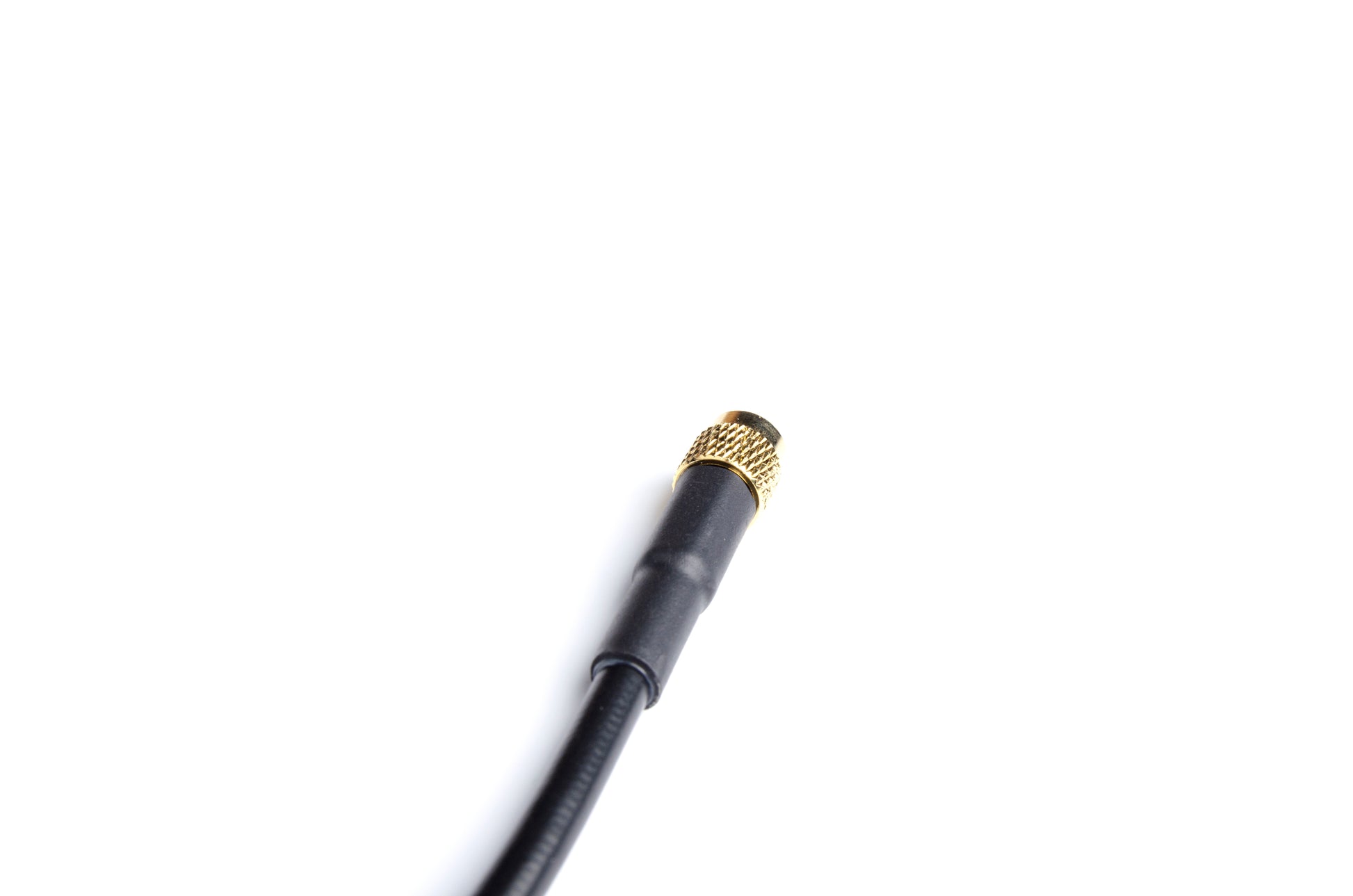

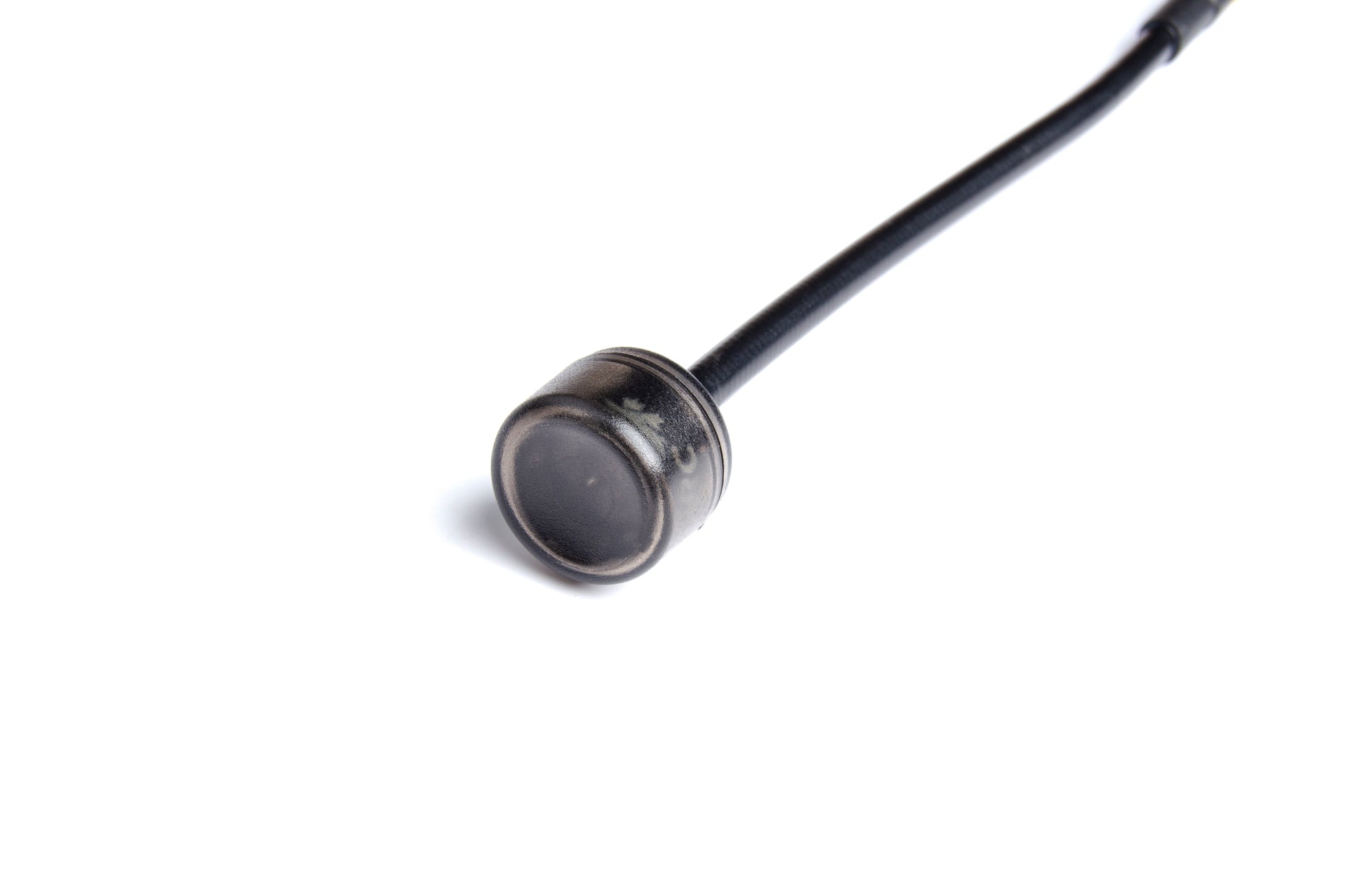

CORE SMA 160 mm (LHCP, GRAY) The CORE 5.8 is an omnidirectional antenna that starts with a refined RF design that provides excellent consistency across units and different cable configurations. The CORE 5.8 has a very durable outer shell that protects the antenna from the inevitable falls. It is available in three different colors, with different polarizations, connectors and cables. Function: - Durable polycarbonate, injection molded, ultrasonically welded housing - Clear indication of polarization direction - Smooth radiation pattern with equal gain in all directions - Excellent axial ratio and efficiency - Option of a flexible coaxial cable to absorb shocks - Exclusive serrated True-SMA for easy tightening Specifications: Model: CORE 5.8 Color: Grey Connector and cable: SMA 160 mm Gain: 1.9dBic Polarization: LHCP Cross-Polar Rejection: -10 to -20dB Bandwidth: 5.5GHz-6.1GHz Radiation efficiency: 98% SWR: <=1.2:1 Weight: Varies by connector/cable option Dimensions (head): diameter 16.9 mm x height 13.1 mm.
