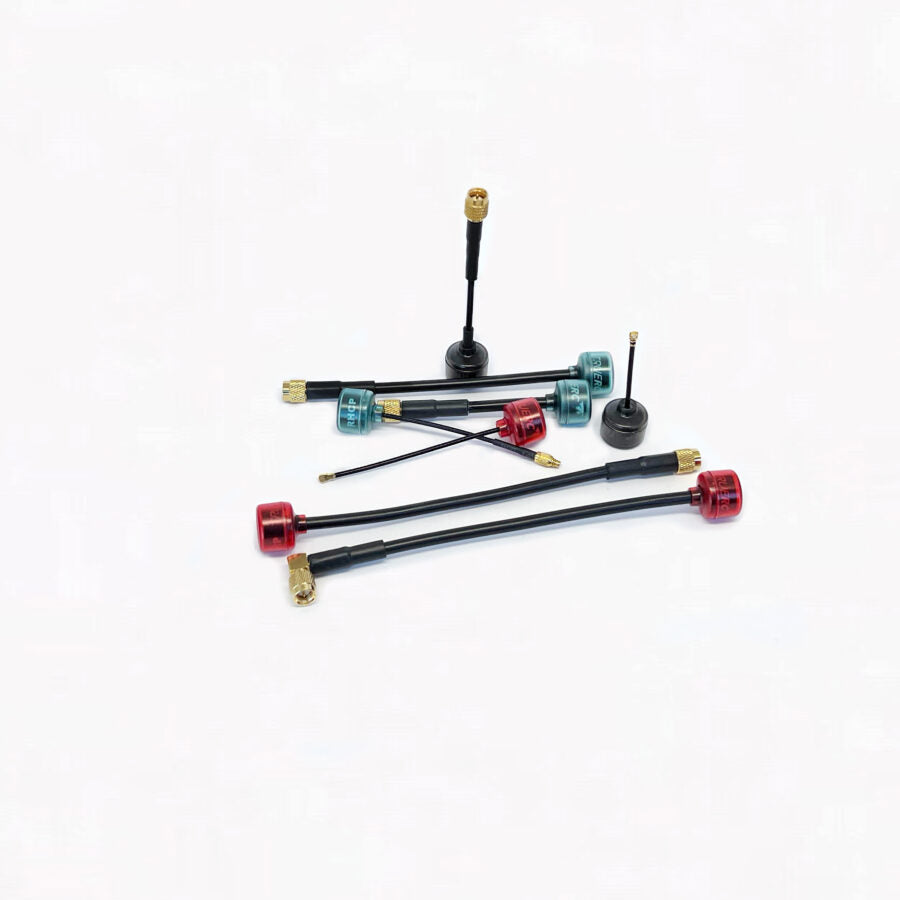

CORE RP-SMA 160 mm (LHCP, GRAY)

The CORE 5.8 is an omnidirectional antenna that starts with a refined RF design that provides excellent consistency across units and different cable configurations. The CORE 5.8 has a very durable outer shell that protects the antenna from the inevitable falls. It is available in three different colors, with different polarizations, connectors and cables.

Function:
- Durable polycarbonate, injection molded, ultrasonically welded housing
- Clear indication of polarization direction
- Smooth radiation pattern with equal gain in all directions
- Excellent axial ratio and efficiency
- Option of a flexible coaxial cable to absorb shocks
- Exclusive serrated True-SMA for easy tightening

Specifications:
Model: CORE 5.8
Color: Grey
Connector and cable: RP-SMA 160 mm
Gain: 1.9dBic
Polarization: LHCP
Cross-Polar Rejection: -10 to -20dB
Bandwidth: 5.5GHz-6.1GHz
Radiation efficiency: 98%
SWR: <=1.2:1
Weight: Varies by connector/cable option
Dimensions (head): diameter 16.9 mm x height 13.1 mm.
