Code: SKU:0608597255522

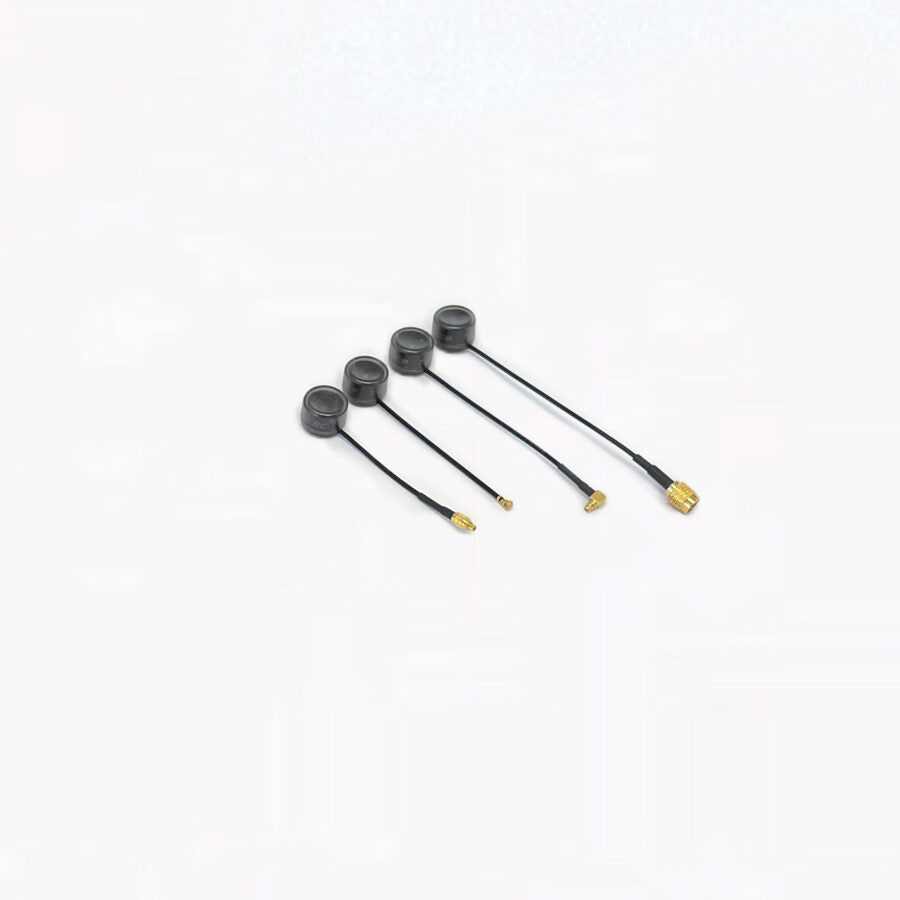

Antenna TrueRC CORE MMCX (LHCP, side feed)
Antenna TrueRC CORE MMCX (LHCP, side feed)
Brand: TrueRC
Regular price
€15,77
Regular price
€15,77
Sale price
€15,77
Unit price
/
per
Upon request
We need to check the product availability with our supplier. Please contact us for details.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion
CORE MMCX (LHCP, side feed) This is a special version of the CORE 5.8 omnidirectional antenna with a side exit cable, which is great for burying in an aircraft wing or fuselage. Function: - Durable polycarbonate, injection molded, ultrasonically welded housing - Clear indication of polarization direction - Smooth radiation pattern with equal gain in all directions - Excellent axial ratio and efficiency - Side output cable for new mounting options - Exclusive serrated True-SMA for easy tightening Specifications: Model: CORE 5.8 SIDE FEED Gain: 1.9dBic Connector and cable length: MMCX 85 mm Polarization: LHCP Cross-Polar Rejection: -10 to -20 dB, (3.2%) Bandwidth: 5.5GHz-6.1GHz Radiation efficiency: 98% SWR: <=1.2:1 Weight: Varies by connector/cable option Dimensions (head): diameter 16.9 mm x height 13.1 mm. Cable: TrueRC RG178 coax
