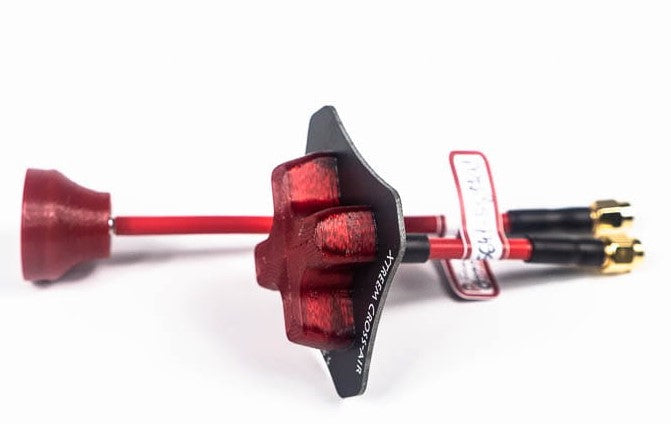

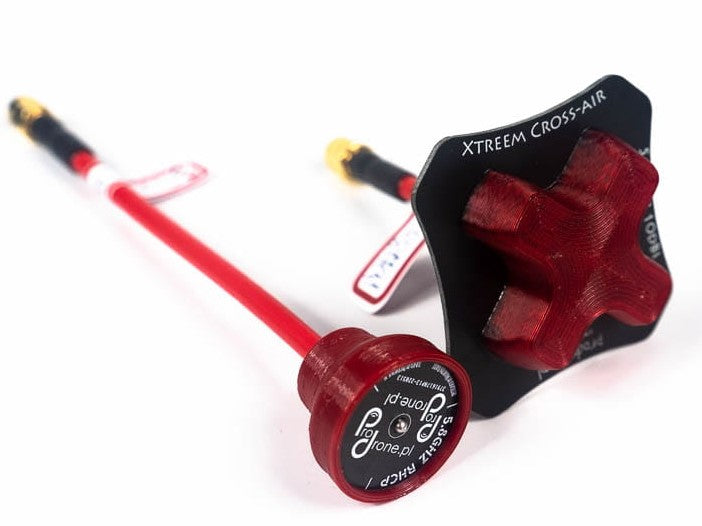

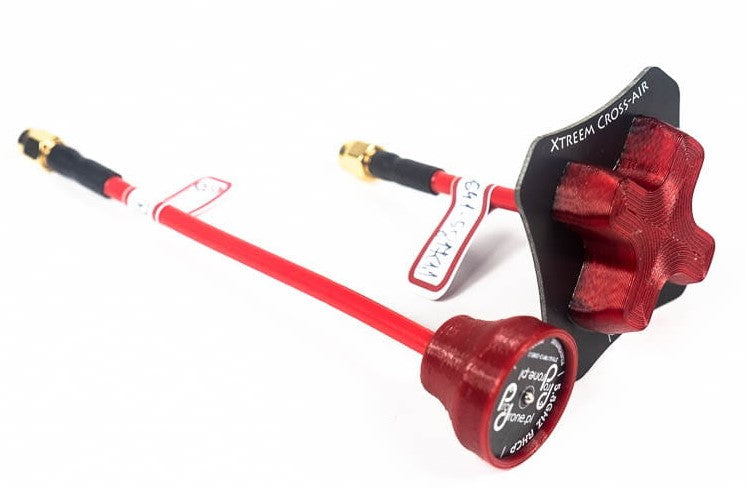

Antenna Prodrone Xtreem Cross Goggles SET SMA RHCP The Xtreeme Cross-air Goggles SET is a great choice for both digital and analog systems. It features a V3 Xtreeme Cross-air antenna and a Pagoda Long antenna that provide excellent performance for FPV and drone flying. These antennas are expertly tuned to ensure optimal performance and a seamless user experience. The Xtreeme Cross-air V3 antenna is a circularly polarized directional antenna with a gain of 10 dbi and a beam width of up to 120 degrees for shorter distances. Its VSWR is less than 1:1.3 over almost the entire Raceband range, making it a great choice for long-distance flying. The antenna is also equipped with a high-quality semi-rigid cable, which allows it to be pointed in almost any direction and kept in this position. The Xtreeme Crosshair antenna is available in both RHCP and LHCP polarization variants and can be equipped with SMA or RP-SMA connectors. The Prodrone Pagoda 2.1 antenna is an omnidirectional antenna that provides excellent performance with a gain of 1.1 dBi and a vSWR of less than 1.3. It has a maximum power of 50 W and is available in both RHCP and LHCP polarization variants with SMA or RP-SMA connectors. The antenna is approximately 14 cm long and is a great choice for both beginners and advanced users. Specifications of the Xtreem Cross-air antenna: Band: (VSWR <1.3). Antenna type: Directional VSWR: <1.3 Gain: 10dbi Beam width: 70 degrees (up to 120 degrees at shorter distances) Polarization: RHCP Connector type: SMA Cable length: ~40 mm Total antenna length: ~65 mm Prodrone Pagoda Antenna Specifications: Omnidirectional antenna Operating frequency: 5.8 GHz Gain: 3 dBi Antenna length: ~14 cm vSWR: less than 1.3 Maximum power: 50W Connector: SMA Polarization: RHCP The package contains: 1 x V3 Xtreeme Cross-air antenna 1 x Prodrone Pagoda 2.1 antenna
