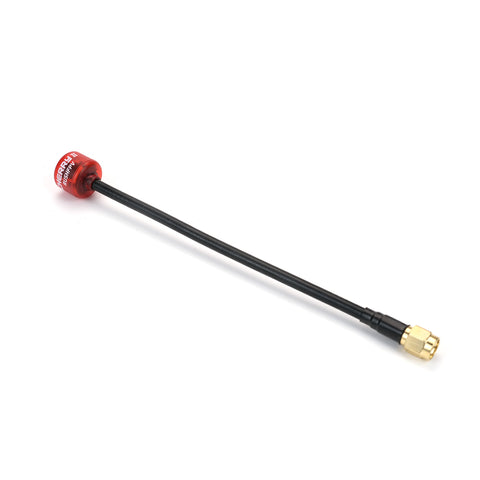

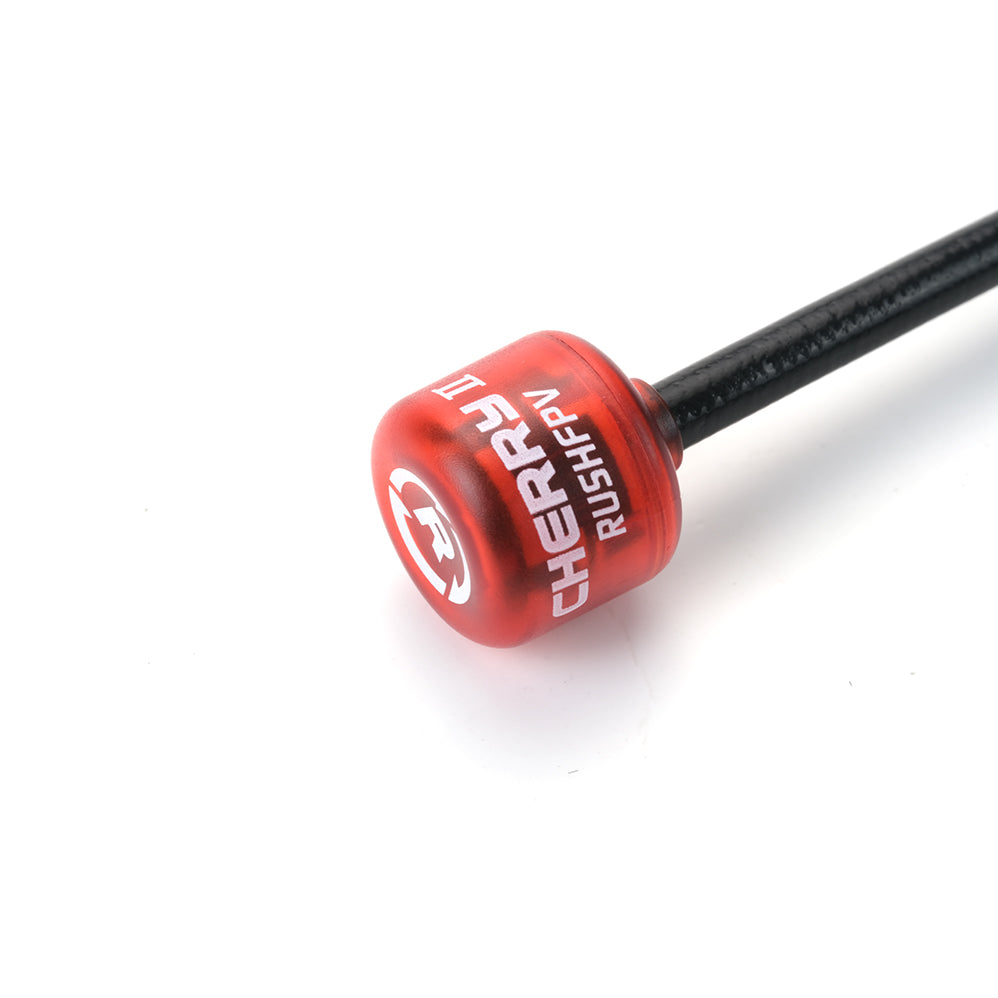

Cherry SMA RHCP Transparent Red
Function:
- Optimized for FPV racing drones
- Maximum signal coverage. The 5.6-6 GHz bandwidth covers the entire racing band and all channels have almost equal transmission power.
- Perfect ratio of circular polarization axes. Effectively suppress screen flicker caused by multipath interference.
- Small and robust. Optimized design obtained through massive crash tests. The flexible tube withstands angular bends and impacts to prevent damage to the cable.
- Thin cable. Double shielded Teflon RG-137 coaxial cable with silver plated core. This wire is soft and flexible and has low signal loss.
- Between 5650 and 5950 MHz, the VSWR is below 1.2, which means the transmission efficiency is up to 98% This can also help reduce VTX heat.
- Quick installation. Antenna clips are designed to be the same size as standard SMA flange sockets. The length of the antenna tube can be shortened according to your needs.
- Quality assurance. Cherry antennas are tuned for performance at the Rush FPV Professional Microwave Laboratory and each antenna is qualified by a network analyzer before leaving the factory.
Specifications:
Gain: 1.2dBi
S11 SWR: 1.4 max - 1.1 min
Bandwidth: 5600-6000-MHz
Axial ratio: approximately 1.0
Polarization: LHCP or RHCP
Connector: SMA
Material: PC + ABS

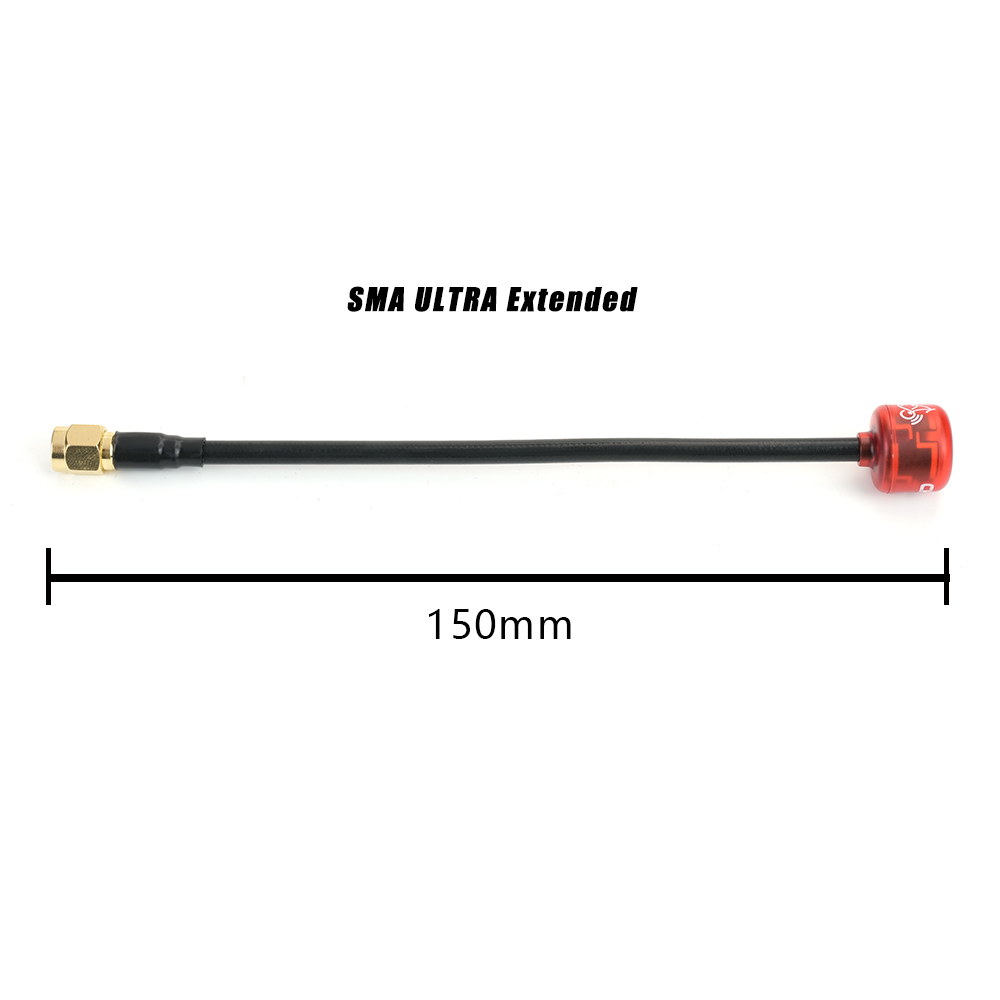

Length: 150 mm
The package includes:
1x Rush Cherry SMA RHCP Transparent Red
