Code: SKU:DC5R-2
Antenna RUSH Cherry UFL Extended Edition 5.8G
Antenna RUSH Cherry UFL Extended Edition 5.8G
Brand: RushFVP
Regular price
€6,50
Regular price
€6,50
Sale price
€6,50
Unit price
/
per
Upon request
We need to check the product availability with our supplier. Please contact us for details.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion

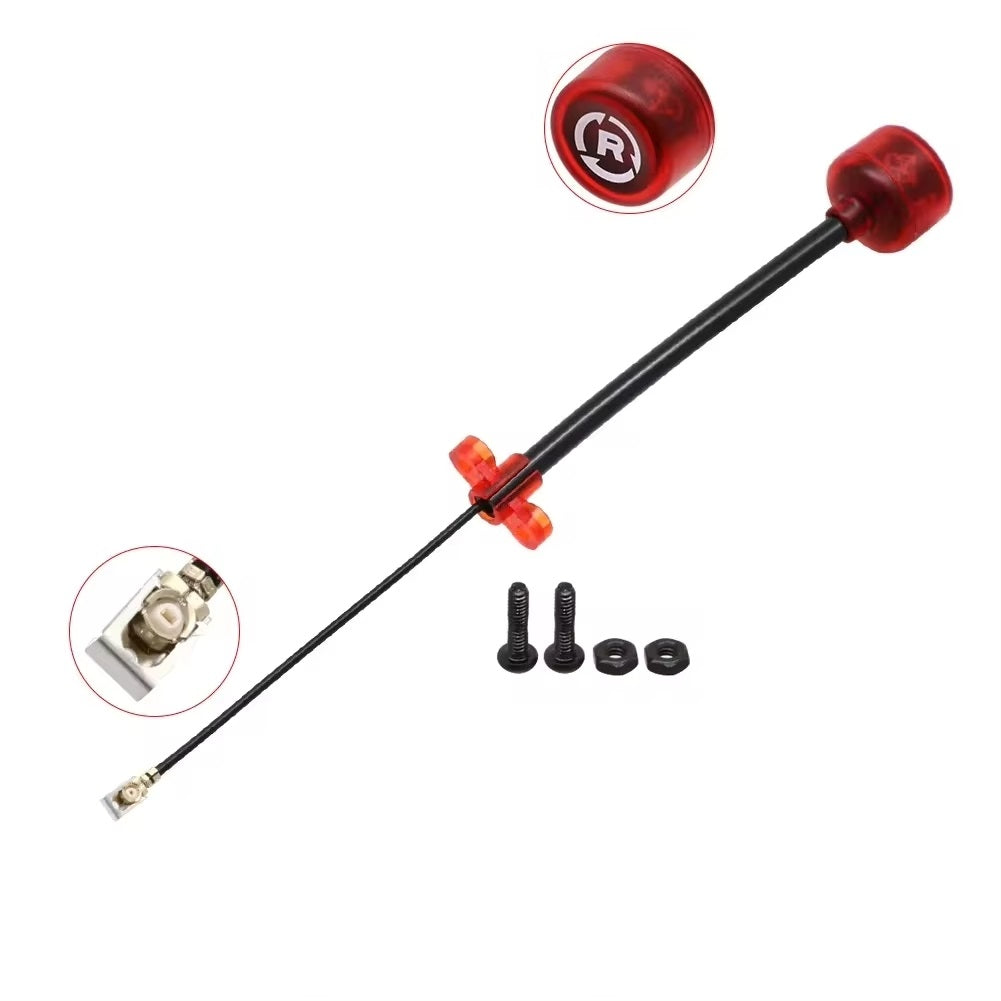

Antenna RUSH Cherry UFL Extended Edition 5.8G The Rush Cherry 5.8G antenna is characterized by high-quality components and a well-thought-out design. A durable one-piece plastic housing protects the antenna from damage. The cable of the MMCX and UFL versions is half protected by a plastic tube, on which you can install the included plastic frame holder (fixing nuts and screws are also included). Function: - Maximum signal coverage. The frequency range of 5.6 - 6 GHz covers the entire frequency band and all channels have almost the same transmission power. - Durable one-piece plastic case. Optimized design obtained through crash testing. - Cables are protected from damage and bending at any angle. - Contains a bracket for mounting the antenna on the frame. - The radiation field is distributed evenly and there is no dead zone when maneuvering the signal at a large angle. - Ideal relation to the axis of circular polarization. Effectively suppress screen flicker caused by multipath interference. - Almost ideal SWR ratio, with high radiation efficiency up to 98%, which can also effectively reduce the heating of the video transmitter. Specifications: Frequency: 5600-6000 MHz Gain: 1.2dBi Axle ratio: about 1.0 S11 SWR: max 1.4 - min 1.1 Polarization: RHCP Connector: UFL Length: 160 mm The package includes: 1x RUSH Cherry UFL antenna
