Code: SKU:11250
Antenna Prodrone PRO Helical 18 TURN 5.8 GHz SMA RHCP
Antenna Prodrone PRO Helical 18 TURN 5.8 GHz SMA RHCP
Brand: Prodrone
Regular price
€38,50
Regular price
€38,50
Sale price
€38,50
Unit price
/
per
Upon request
We need to check the product availability with our supplier. Please contact us for details.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion

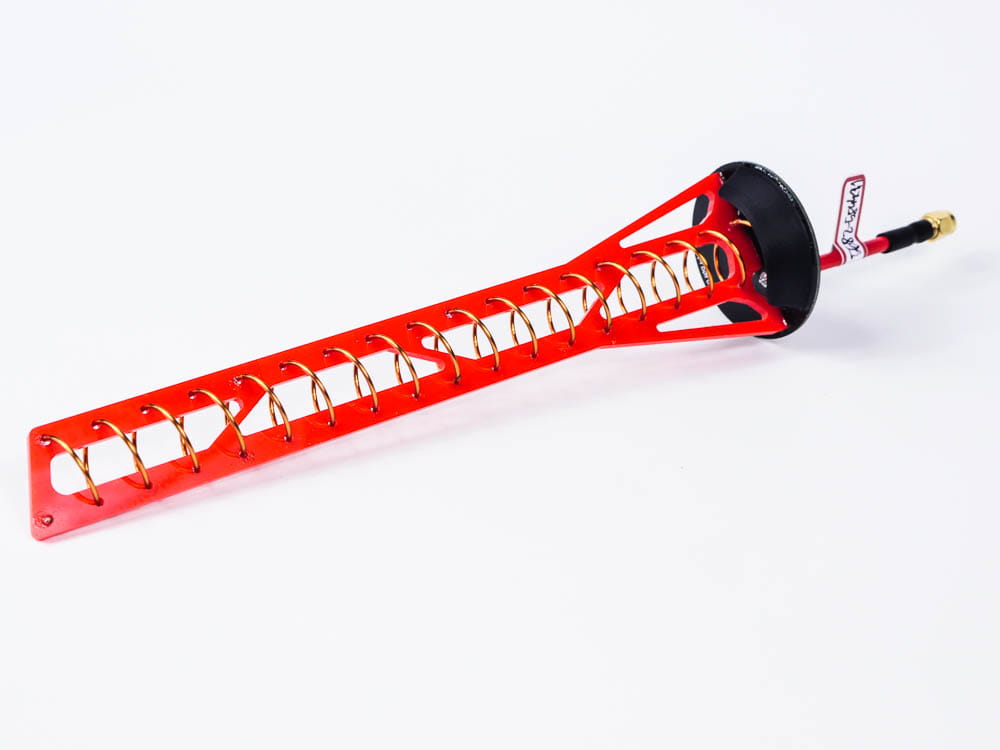

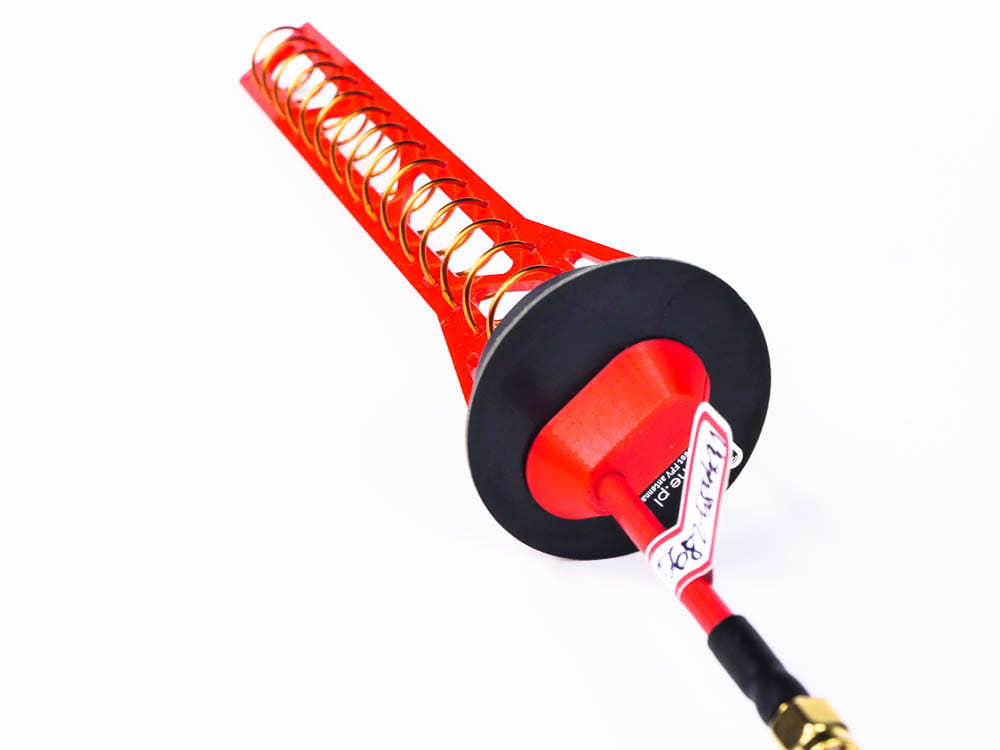

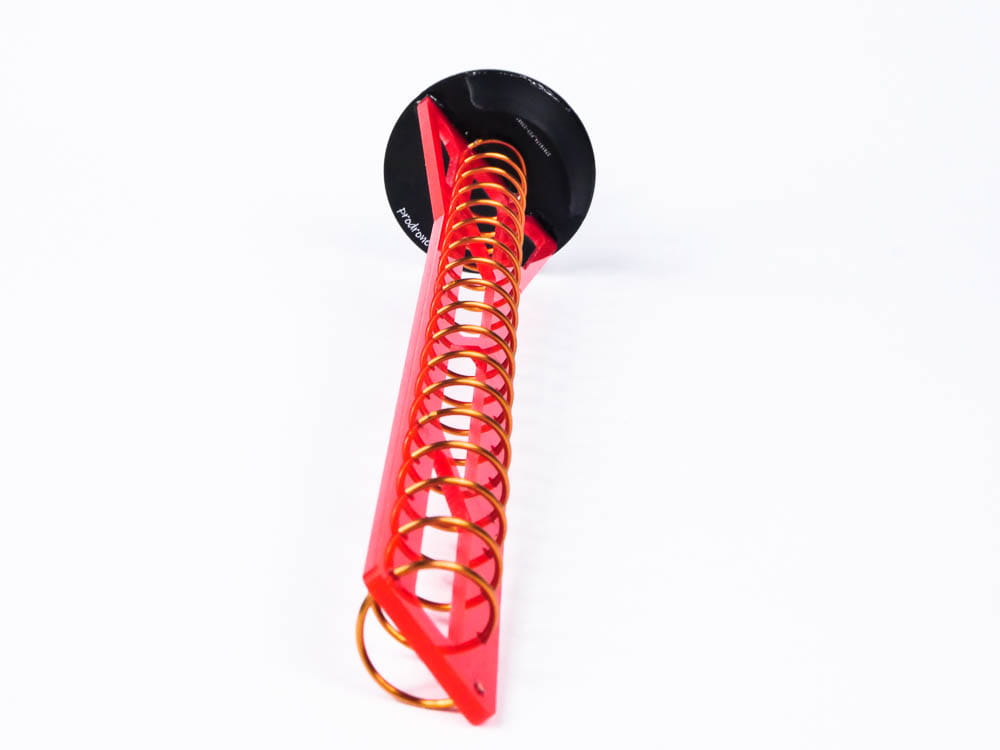

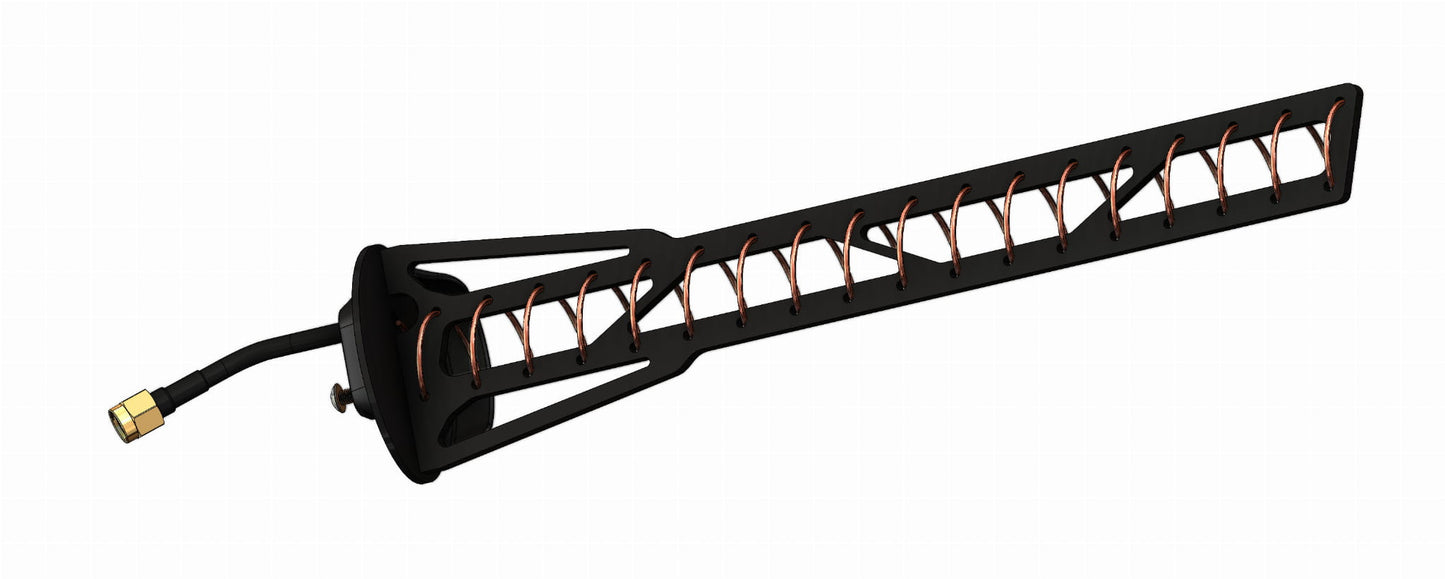

Antenna Prodrone PRO Helical 18 TURN 5.8 GHz SMA RHCP The Prodrone PRO Helical 18 TURN 5.8GHz SMA RHCP Antenna is a high gain directional antenna designed for FPV pilots who demand maximum performance, range and reliability. Designed with an 18-turn helical construction, it provides exceptional signal penetration and 16dBi gain, ensuring excellent reception even in challenging environments. This antenna is 100% compatible with all digital FPV systems while also working seamlessly with analog setups, making it a universal choice for any pilot. Built with precision engineering, it delivers superior signal quality, pushes the boundaries of technology, and offers unmatched long-range performance for the serious FPV enthusiast. Specifications: Frequency band: 5640-5945 MHz Gain: 16 dBi VSWR: <1.2 Beam width: 25 degrees (up to 50 at shorter distances) Reflector diameter: 45 mm Cable length: ~6 cm Wire: 1.2mm pure enamelled copper wire Number of threads: 18 Weight: ~36 g Connector: SMA Polarization: RHCP Maximum power: 50W The package contains: 1 x Prodrone PRO Helical 18 TURN 5.8GHz SMA RHCP Antenna
