  • Antenna Prodrone PRO Helical 12 Turn 5.8Ghz
    • 13740 antenna prodrone pro helical 12 turn 5 8ghz
    • 13740 1 antenna prodrone pro helical 12 turn 5 8ghz
    1 2

    Code: 85_20200427134117

    Antenna Prodrone PRO Helical 12 Turn 5.8Ghz

    Antenna Prodrone PRO Helical 12 Turn 5.8Ghz

    Brand: Prodrone

    €24,30
    €24,30 €24,30
    -0% View Product
    Upon request
    We need to check the product availability with our supplier. Please contact us for details.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion

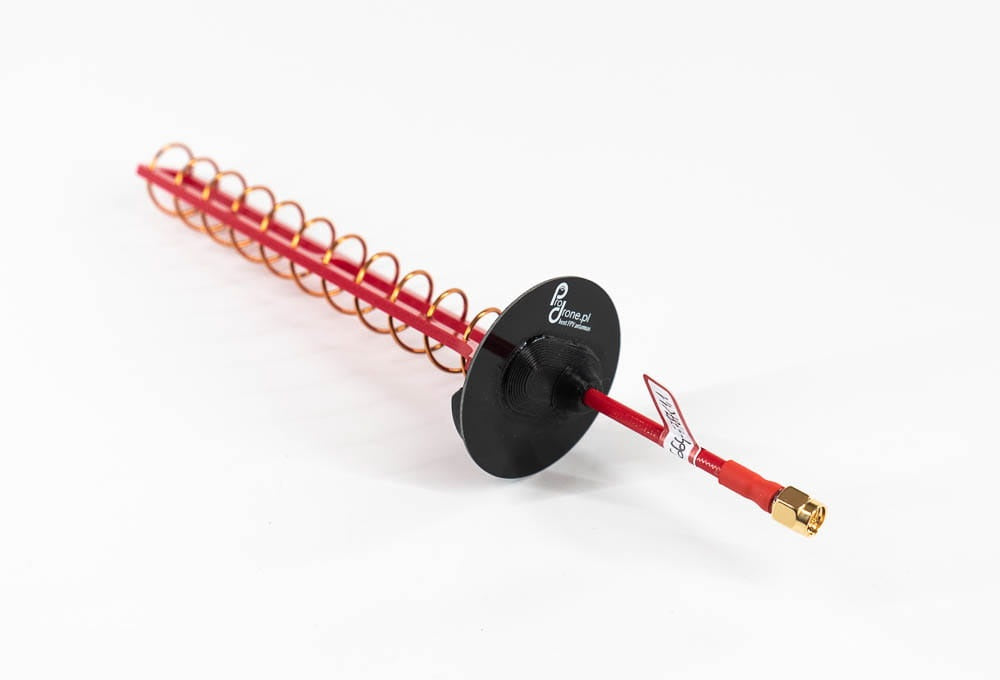

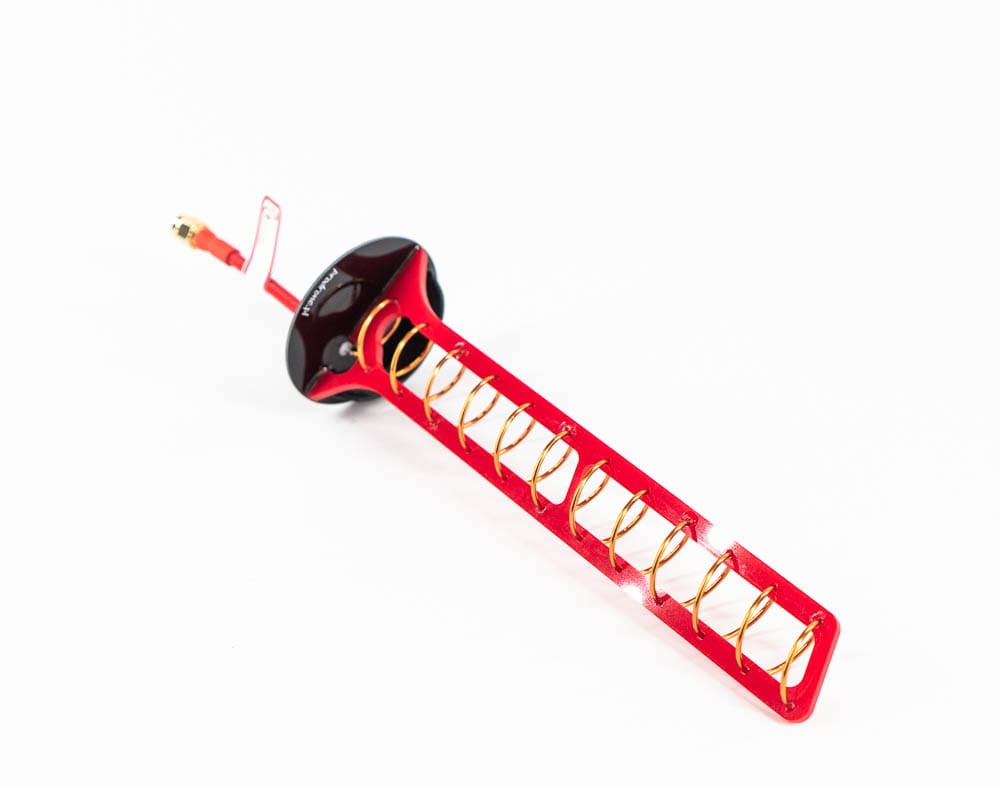

    PRO Helical Antenna 12 Turn 5.8 GHz

The PRO 12T helical antenna offers approximately 14dBi gain, providing significant gain, making it an excellent choice for extended range FPV applications. The Prodrone PRO 12 Turn Helical boasts a beam width of approximately 30 degrees at highest gain, ensuring a focused transmission. At shorter distances, the beam width can be extended to more than 50-60 degrees, offering versatility of use. The PRO Helical antenna comes with a semi-rigid cable that maintains its shape when bent, allowing convenient use on glasses without the need for adapters.

Specifications:

Bandwidth: 5640-5945 MHz
Beamwidth: 30 degrees at peak gain, 50-60 at close range
Gain: 14 dBi
Reflector diameter: 45mm
Cable length: 6 cm
Antenna wire: 1.2mm pure enamelled copper wire
Turns: 12
Polarization: RHCP
vSWR: less than 1.2
Maximum power: 50W
Connector: SMA
Antenna weight: 27g
