Code: SKU:4236

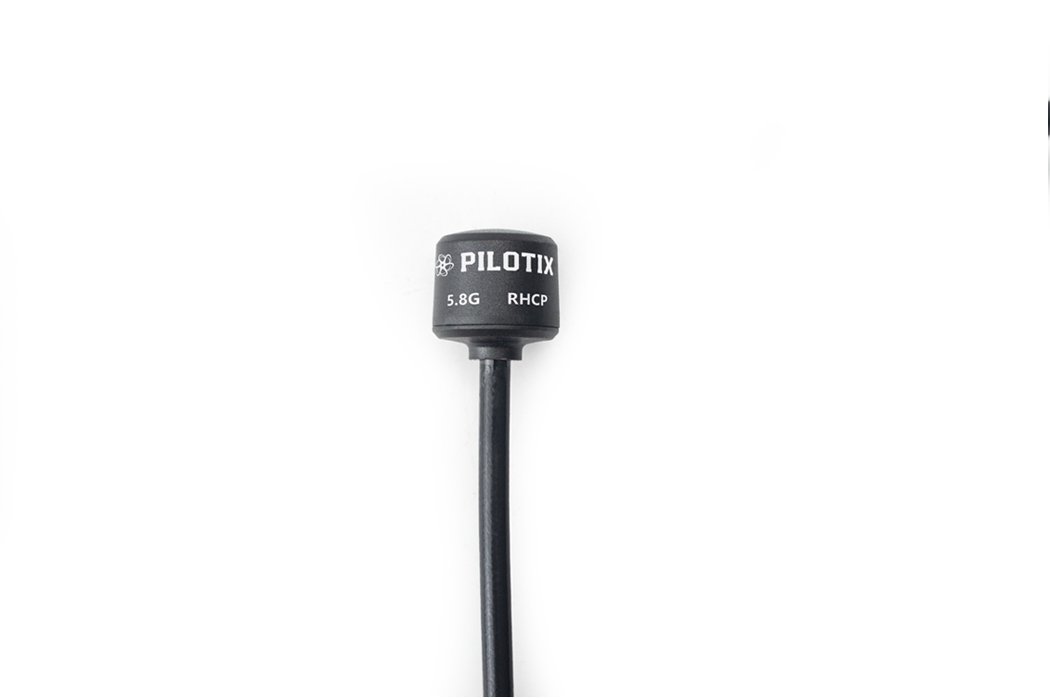

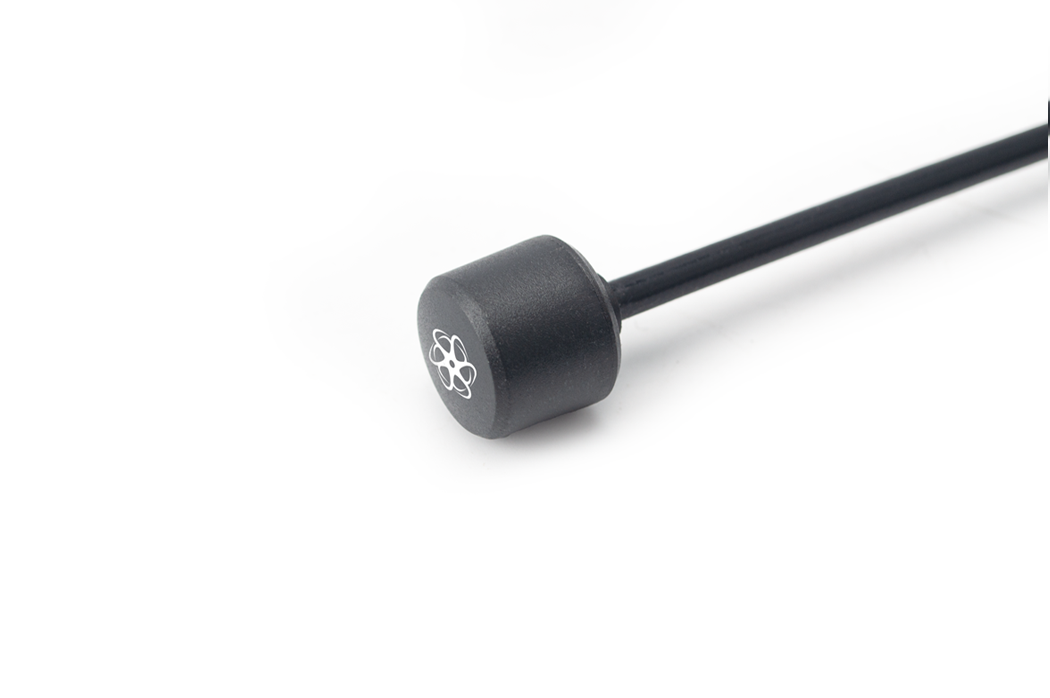

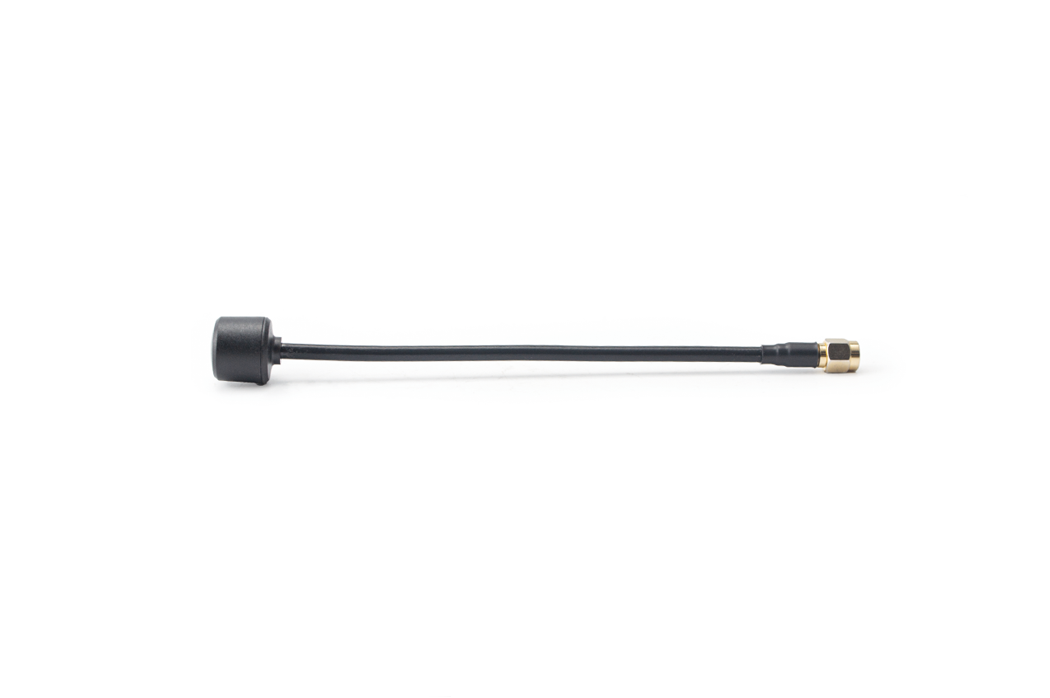

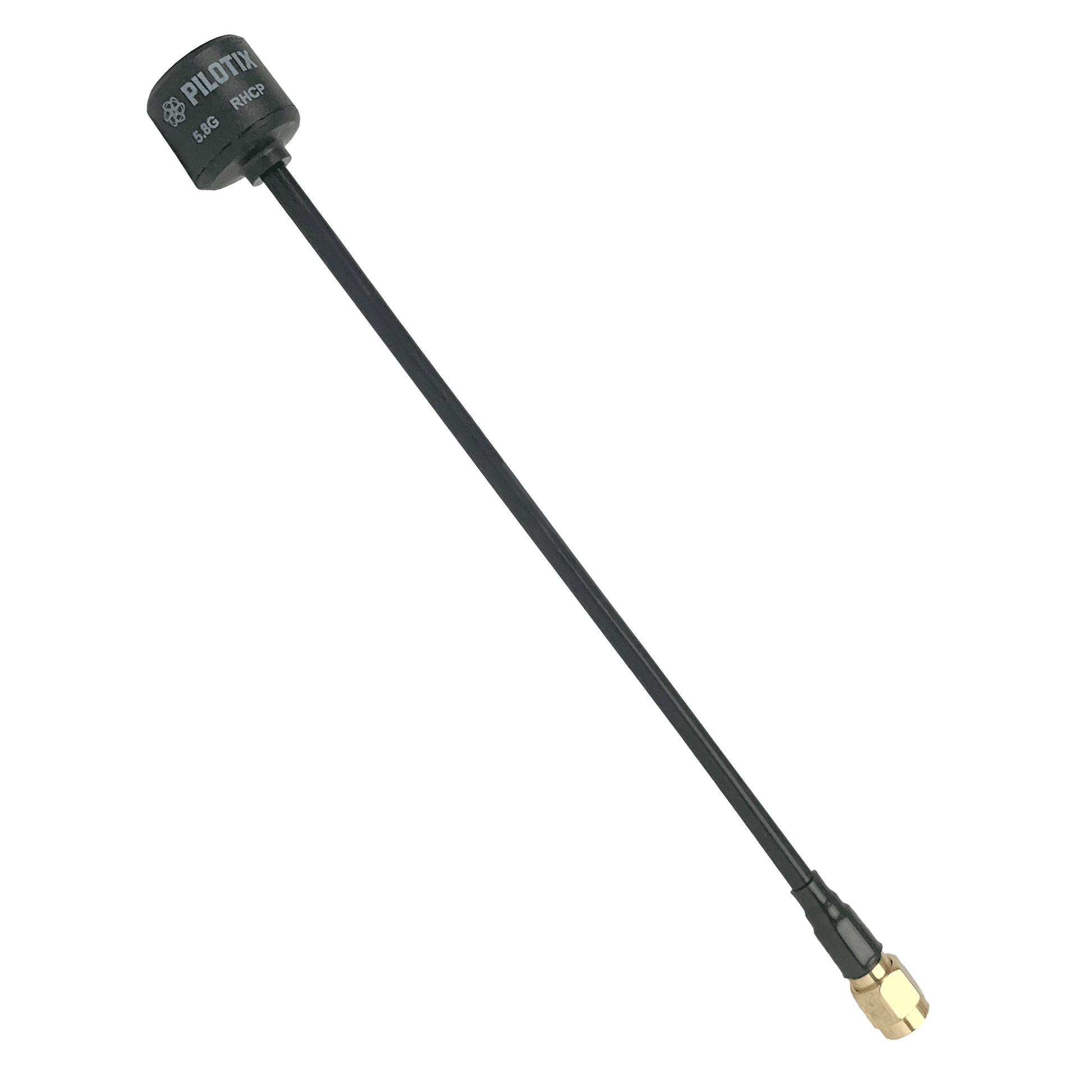

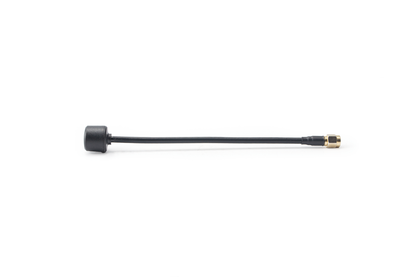

Antenna Pilotix Lollipop 5.8G SMA RHCP 160mm
Antenna Pilotix Lollipop 5.8G SMA RHCP 160mm
Brand: Pilotix
Regular price
€7,00
Regular price
€7,00
Sale price
€7,00
Unit price
/
per
In stock
We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion

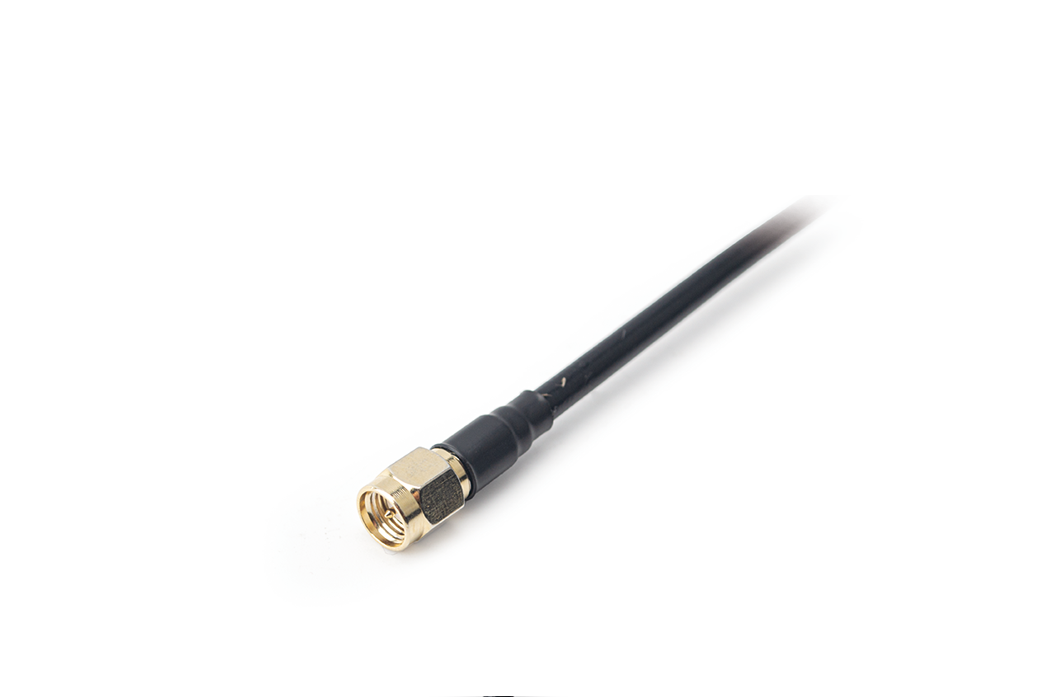

Pilotix Lollipop 5.8G SMA RHCP 160mm Antenna Function - Optimized for FPV racing drones. - Maximum signal coverage. The 5.6-6 GHz bandwidth covers the entire racing band and all channels have almost equal transmission power. - Perfect ratio of circular polarization axes. Effectively suppress screen flicker caused by multipath interference. - Small and robust. Optimized design obtained by massive impact tests. The flexible tube withstands angular bends and impacts to prevent damage to the cable. - Between 5650 and 5950 MHz, the VSWR is below 1.2, which means the transmission efficiency is up to 98% This can also help reduce VTX heat. - Quick installation. Antenna clips are designed to be the same size as standard SMA flange sockets. The length of the antenna tube can be shortened according to your needs. - Quality assurance. Pilotix antennas are tuned for performance in a professional microwave laboratory and each antenna is qualified by a network analyzer before leaving the factory. Specifications: Center frequency: 5.8 GHz Gain: 1.99 dBi (AVE) Bandwidth: 5600MHz-6000MHz Polarization: RHCP Connector: SMA Length: 160 mm The package includes: 1x Antenna Pilotix Lollipop 5.8G SMA RHCP 160mm
