Code: SKU:7130
Antenna Maple Wireless UHF Log-Periodic SMA MALE (370–1400MHz)
Antenna Maple Wireless UHF Log-Periodic SMA MALE (370–1400MHz)
Brand: Maple Wireless
Regular price
€90,00
Regular price
€90,00
Sale price
€90,00
Unit price
/
per
In stock
We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion

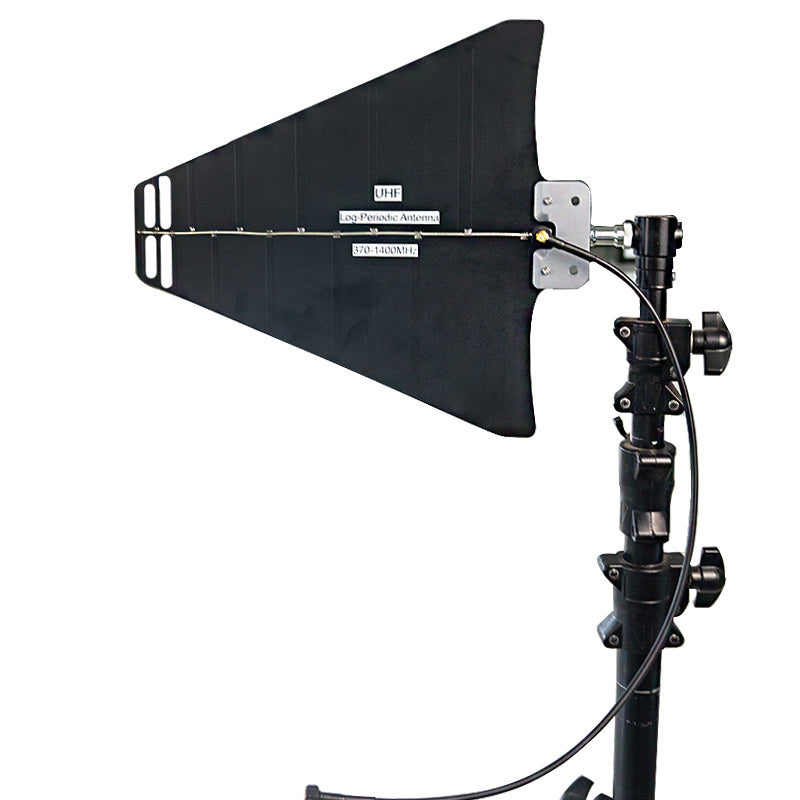

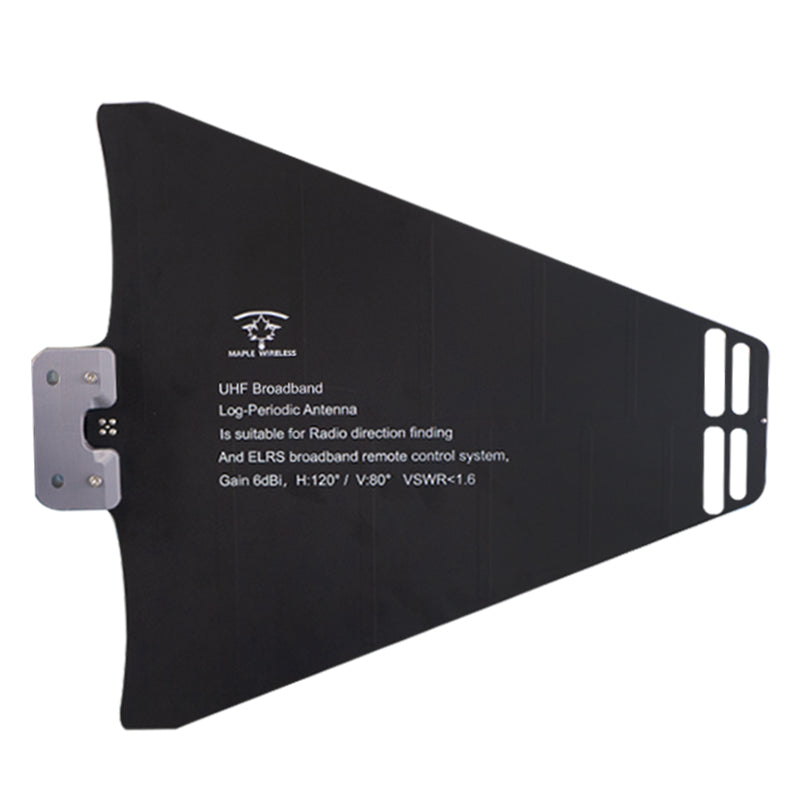

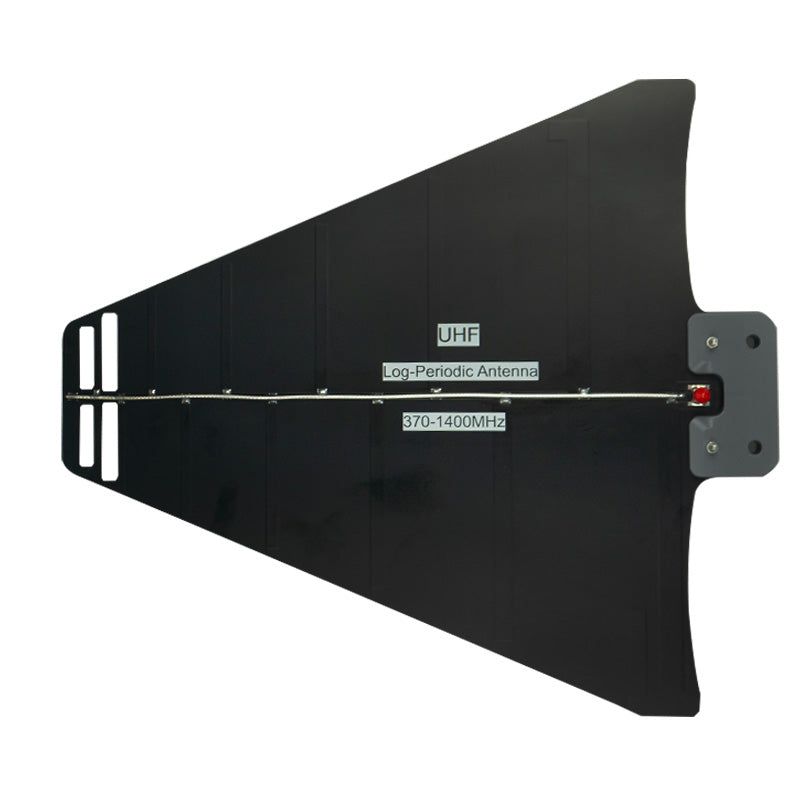

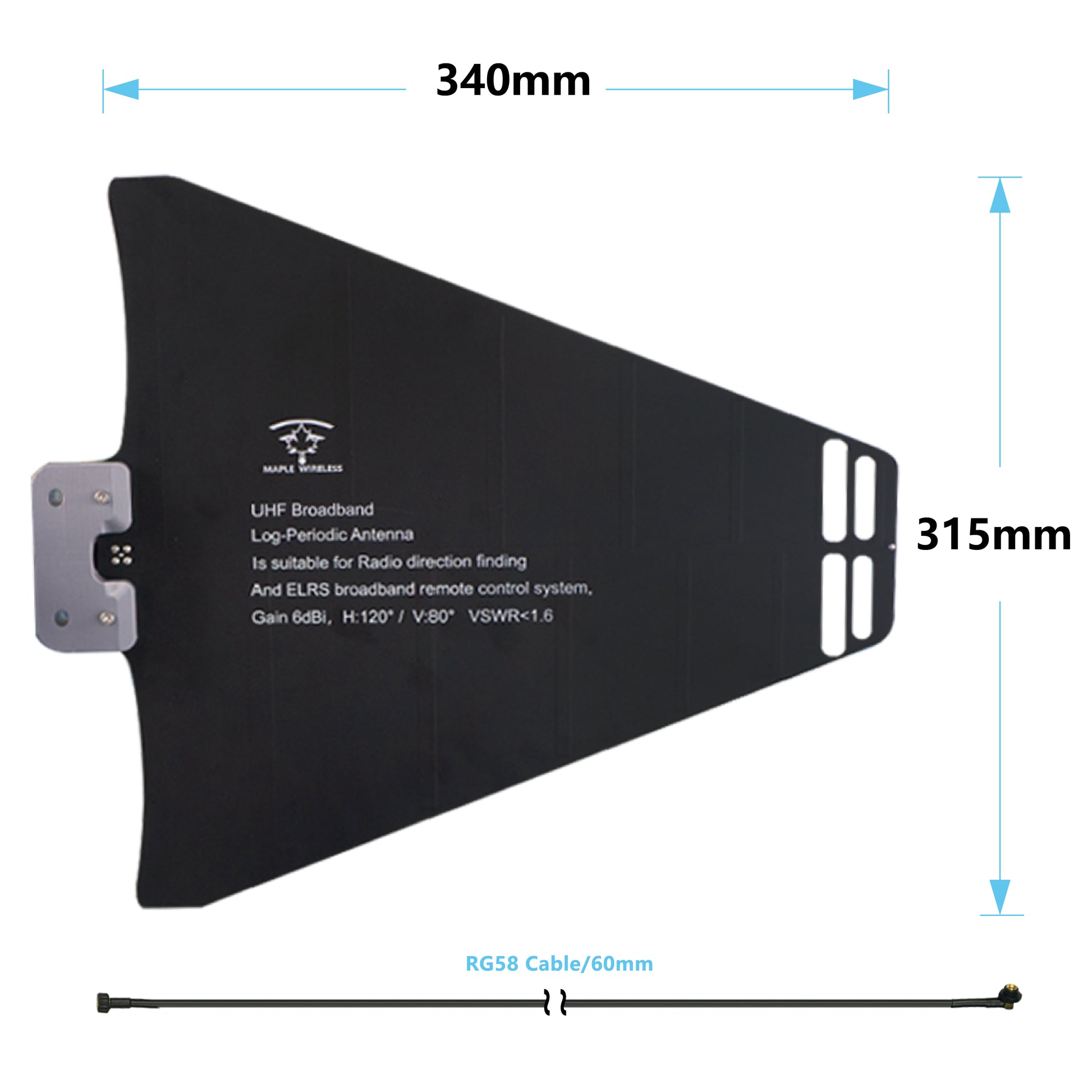

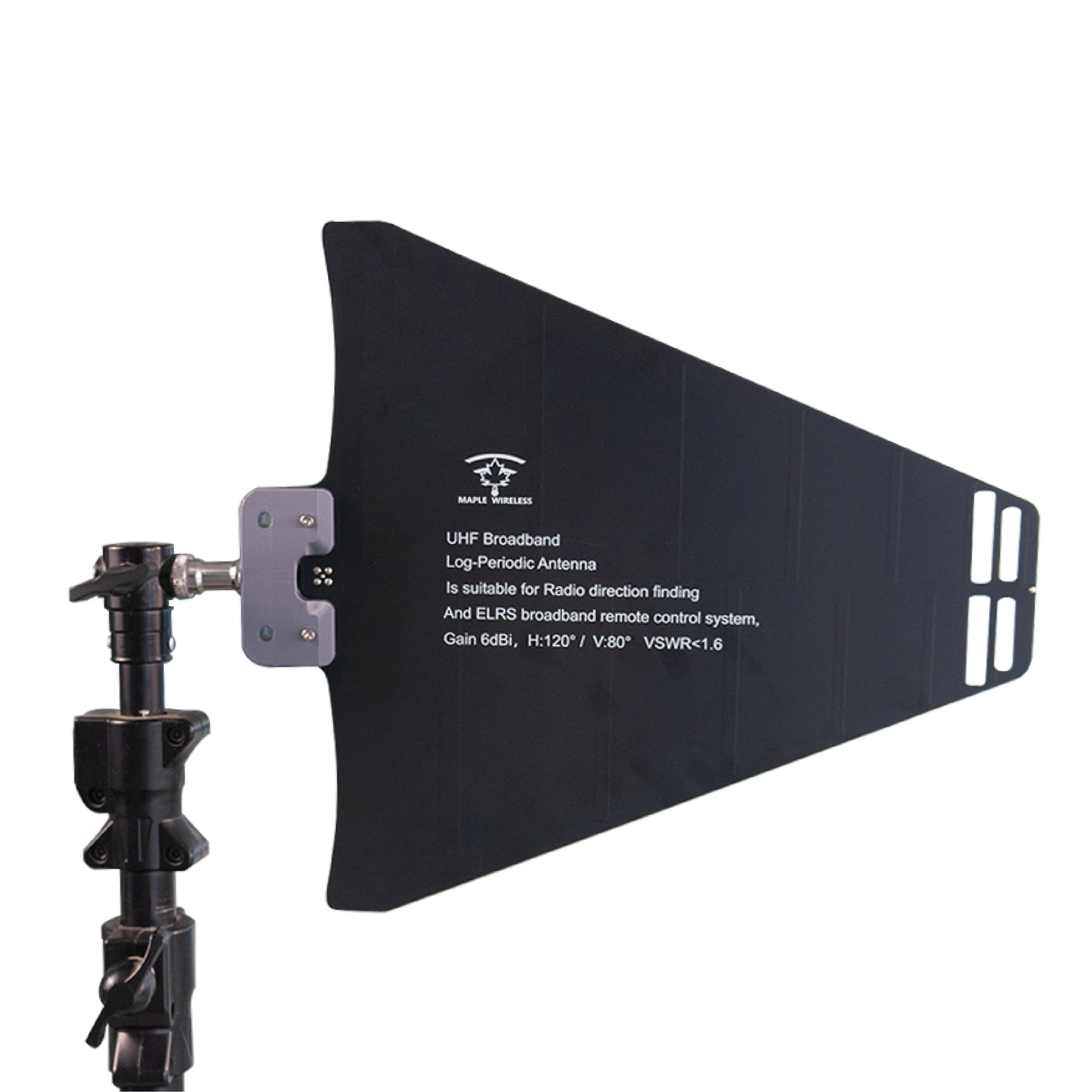

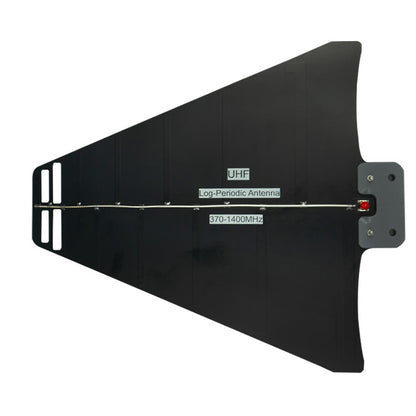

Antenna Maple Wireless UHF Log-Periodic SMA MALE (370–1400MHz) The Maple Wireless UHF Log-Periodic Antenna is a broadband, high-gain solution for direction-finding and long-range ELRS remote control systems. Covering 370–1400 MHz, it delivers a consistent 6 dBi of gain with a wide 120° H-plane and 80° E-plane beamwidth for reliable omnidirectional coverage. Its robust log-periodic design ensures low VSWR (<1.6) across the entire band, while a front-to-back ratio >15 dB minimizes unwanted reflections. Constructed on a 340×315 mm, 3 mm-thick composite panel and terminated in a right-angle SMA male connector, it’s ideal for portable and fixed installations where precise signal acquisition matters. Specifications: Frequency Range: 370–1400 MHz Impedance: 50 Ω VSWR: < 1.6 Gain: 6 dBi Beamwidth: 120° (H-plane) / 80° (E-plane) Front-to-Back Ratio: > 15 dB Max. Power: 10 W Polarization: Vertical Connector: SMA male, right-angle Antenna Dimensions: 340 mm × 315 mm × 3 mm Cable: 60 mm RG-58 pigtail Net Weight: 219 g Package Includes: 1 × Antenna Maple Wireless UHF Log-Periodic SMA MALE (370–1400MHz)
