Code: SKU:P002-RP-SMA
Antenna Maple Wireless RP-SMA 11dB circular polarization
Antenna Maple Wireless RP-SMA 11dB circular polarization
Brand: Maple Wireless
Regular price
€21,00
Regular price
€21,00
Sale price
€21,00
Unit price
/
per
Upon request
We need to check the product availability with our supplier. Please contact us for details.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion

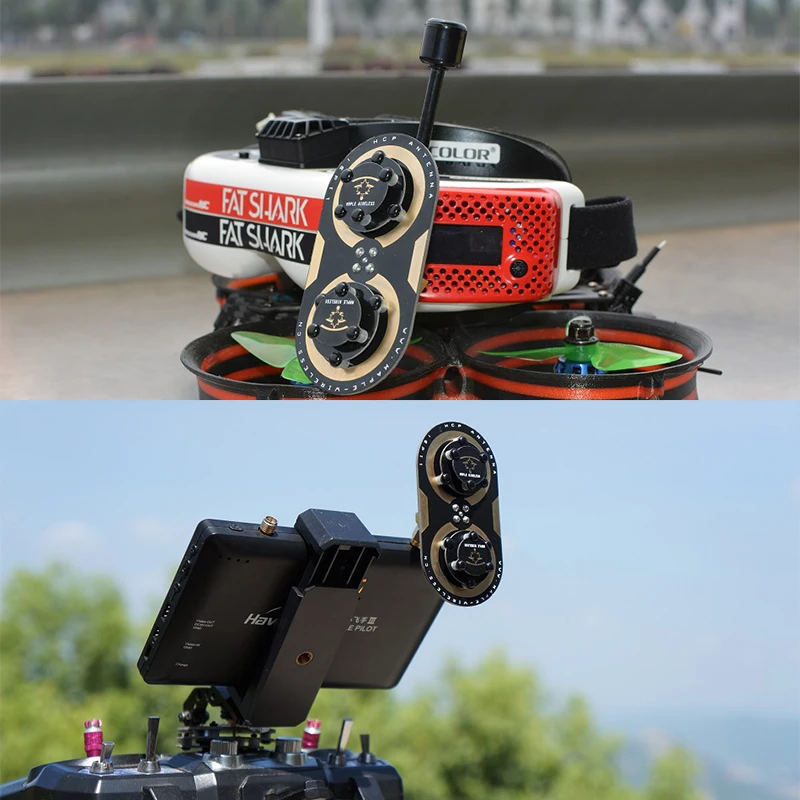

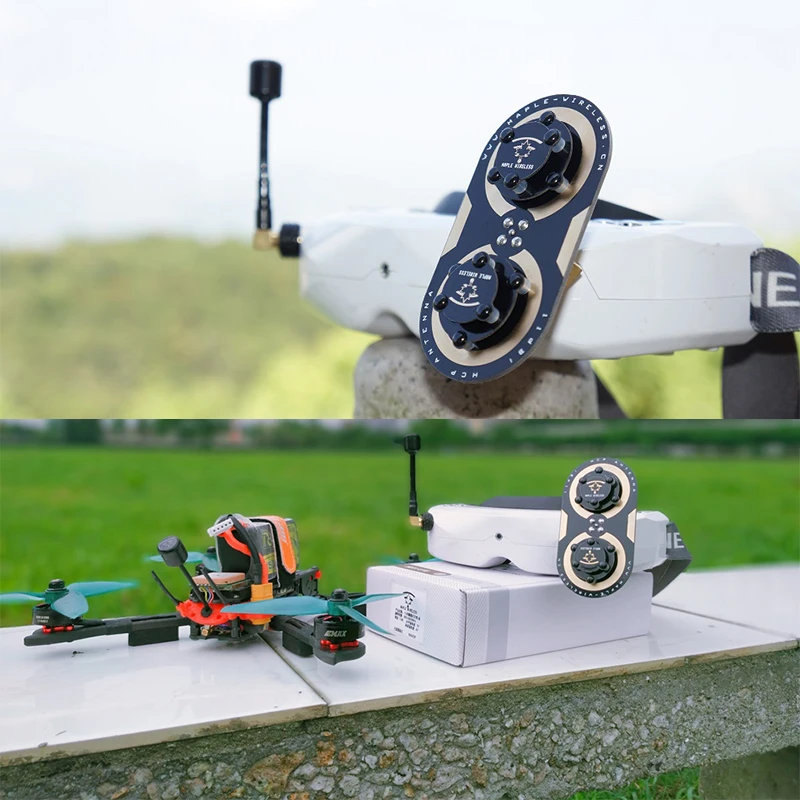

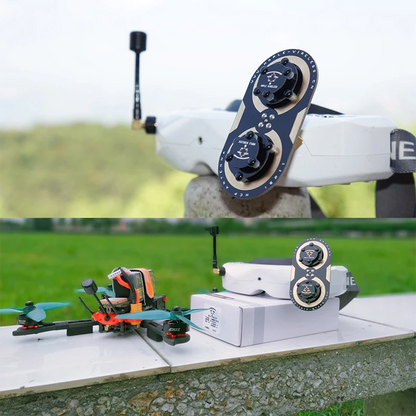

RP-SMA 11dB circular polarization antenna Maple Leaf's 11dBi circularly polarized FPV antenna offers superior signal reception and transmission for longer range, ideal for drone racing and aerial photography. Its compact and lightweight design ensures easy installation, while its durability ensures reliable performance even in demanding environments. This antenna is compatible with a wide range of FPV drones and equipment, including popular models from DJI, Fat Shark and others. It can be used with FPV goggles, receivers and transmitters that support RP-SMA connectors. Specifications: Frequency range (MHz): 5500-5800 Input resistance (Q): 50 Standing wave ratio coefficient: <1.5 Gain (dBi): 11 Half beam power: 75° H-plane -- 40° E-plane Front to rear ratio (dB): >10 Power consumption (W): 10 Polarization method: right-hand circular polarization Connector: RP-SMA Ambient temperature (C): -40 ~ +60 Antenna size (mm): 82*42*24 Net weight (g): 19 The package includes: 1x 11dBi circularly polarized FPV antenna RP-SMA with maple leaf
