Antenna TrueRC X-AIR 5.8 MK II pair for Walksnail X - LHCP, Combo Stubby
The X-AIR MK II is a compact, high efficiency FPV antenna designed for seamless integration with the Walksnail Avatar HD Goggles X, using special RP-SMA angled connectors for quick and accurate installation. With a gain of 10dBic and a wide beam of 120°, this antenna offers excellent range and signal clarity in an unobtrusive design that is easy to carry. For full performance, pair the X-AIR MK II with Singularity Stubby antennas on the remaining ports to create the optimal setup for immersive FPV flights.
This kit is designed for Walksnail Avatar glasses and offers excellent signal quality and comfort. This combination is ideal for long distance FPV flying and provides a strong signal in a compact and durable design.
Features:
- Circular Polarization: Ensures better signal penetration and stability.
- Direct Mount Design: Special RP-SMA connectors ensure precise fit without adapters, ideal forward orientation and slight upward tilt.
- Compact, low-profile design: Easy to store, transport and handle.
- 10dBic Gain: Provides impressive range and signal penetration in a sleek package.
- Wide bandwidth and axial ratio: Operates in the 5.1 GHz to 6.7 GHz band, suitable for a wide range of applications.
- Wide beam coverage: 120° beam width for extensive horizontal coverage.
Specifications:

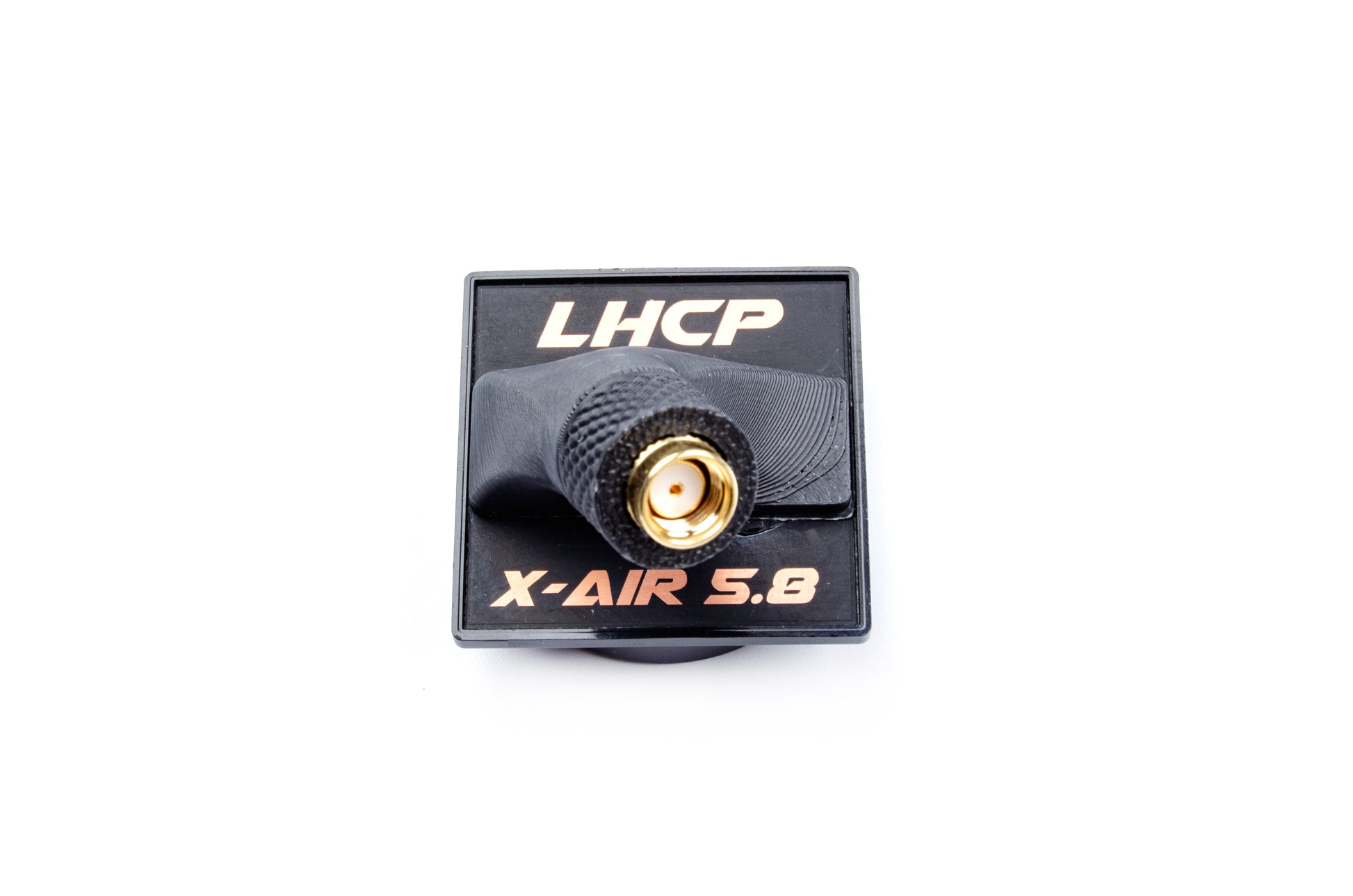

Name: X-AIR 5.8 MK II
Bandwidth: 5.1GHz-6.7GHz
Gain: 9.5-10.5dBic
Polarization: LHCP
Beam Width: 120°
-3dB Coverage: 68°
Connector: RP-SMA Male
Dimensions: 34mm x 34mm x 34 mm

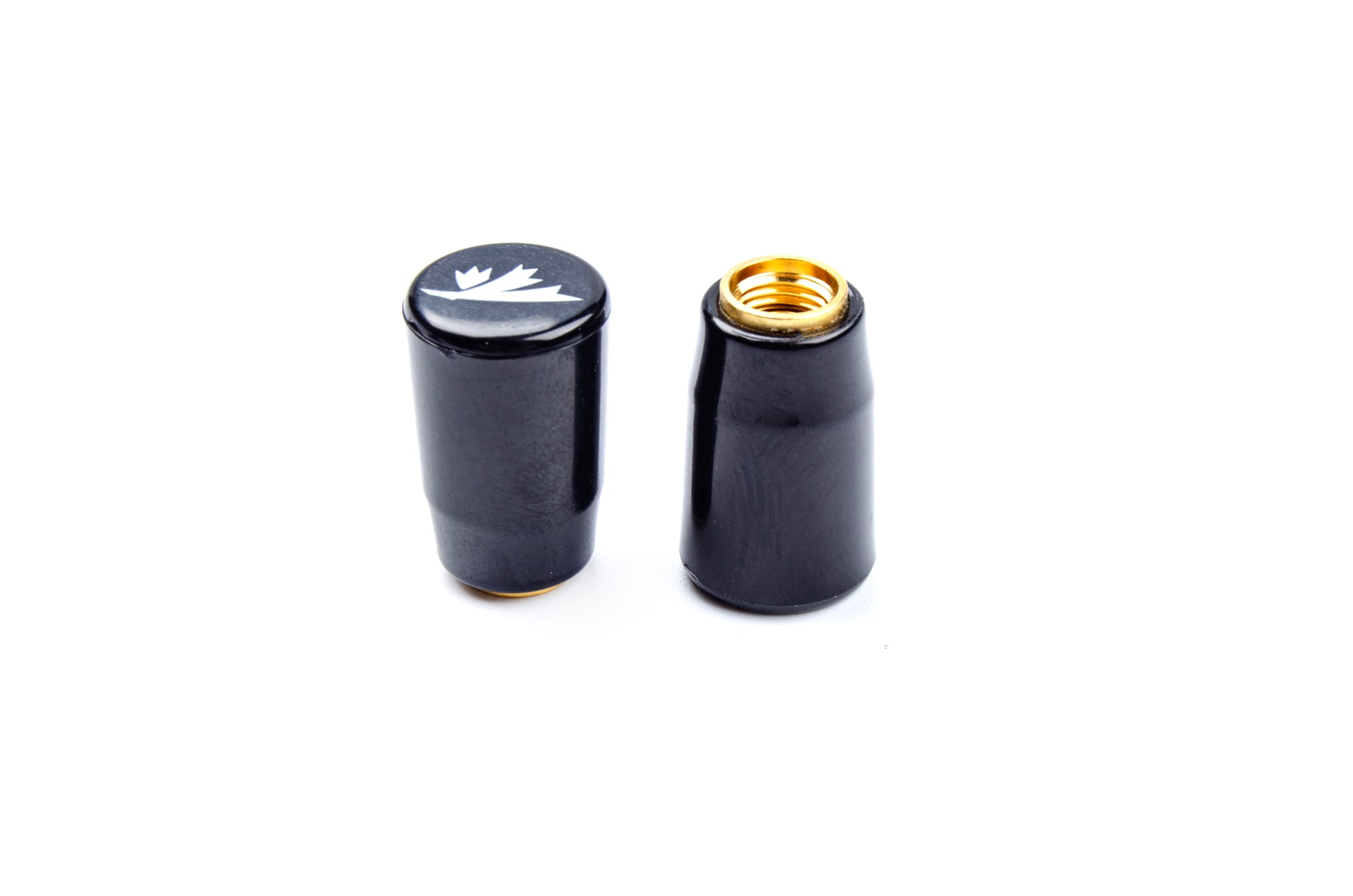

Name: Stubby Singularity
Gain: 1.9dbic
Cross Polarization Rejection: -15 to -30dB (1.9%)
Bandwidth: 5.6GHz-6.0GHz
Radiation Efficiency: 99%
SWR: <=1.5:1
Connector: RP-SMA
Dimensions: 12.7 mm x 20 mm
Weight: 3.7 g

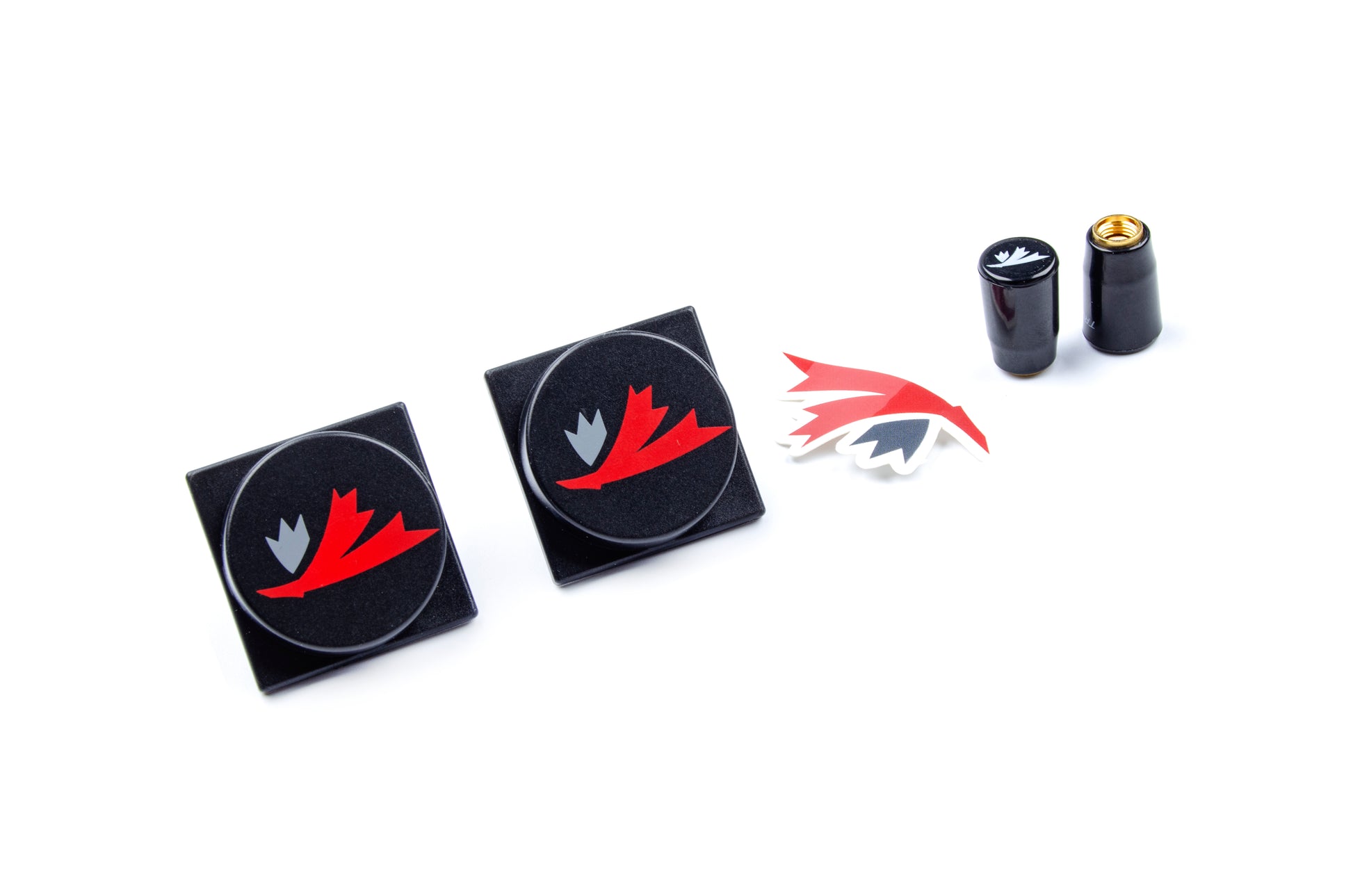

The package contains:
2x X-AIR MK II antennas
2x Singularity Stubby antennas
