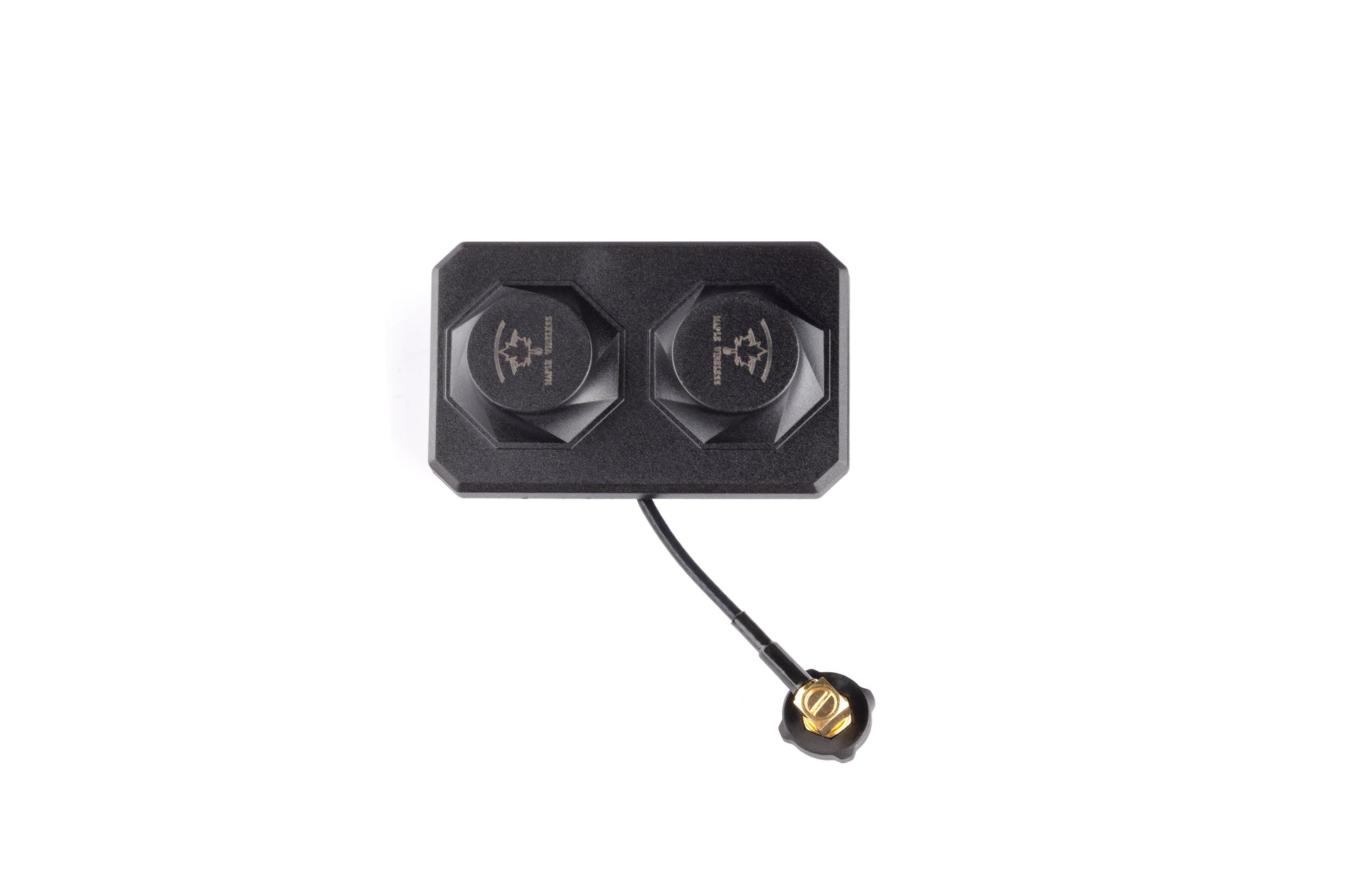

Maple Wireless RACING S1 HDZERO RHCP SMA antenna set
The Maple Wireless RACING S1 HDZERO RHCP antenna is a high-performance directional antenna designed for HD video transmission systems, optimized especially for HDZERO sets. With precise RHCP polarization and a robust SMA connector, this antenna ensures excellent signal clarity, increased range and consistent performance even in challenging environments. Its directional design and high gain make it ideal for FPV racing and long distance flights.
Features:
- Optimized for HDZERO systems. Designed to provide excellent signal quality for HD video transmission.
- Directional design. Focuses the signal for better range and reduced interference.
- High performance. Ensures better reception even in demanding environments.
- Durable construction. Built to withstand harsh flight conditions and impacts.
- SMA connector. Easy installation and secure connection for reliable performance.
- Durable construction. Built to withstand extreme temperatures and harsh conditions.
Specifications:
Frequency range: 5645 - 5925 MHz
Impedance: 50 Ω
VSWR: < 1.5
Gain: 10.5 dBi
Half beam power: 75° H plane, 40° E plane
Front to back ratio: > 15 dB
Maximum power: 10 W
Polarization: 10 W: RHCP
Connector type: SMA
Operating temperature: -40°C to +60°C
Antenna size: 70x45x12mm
Weight: 28 g
The package contains:

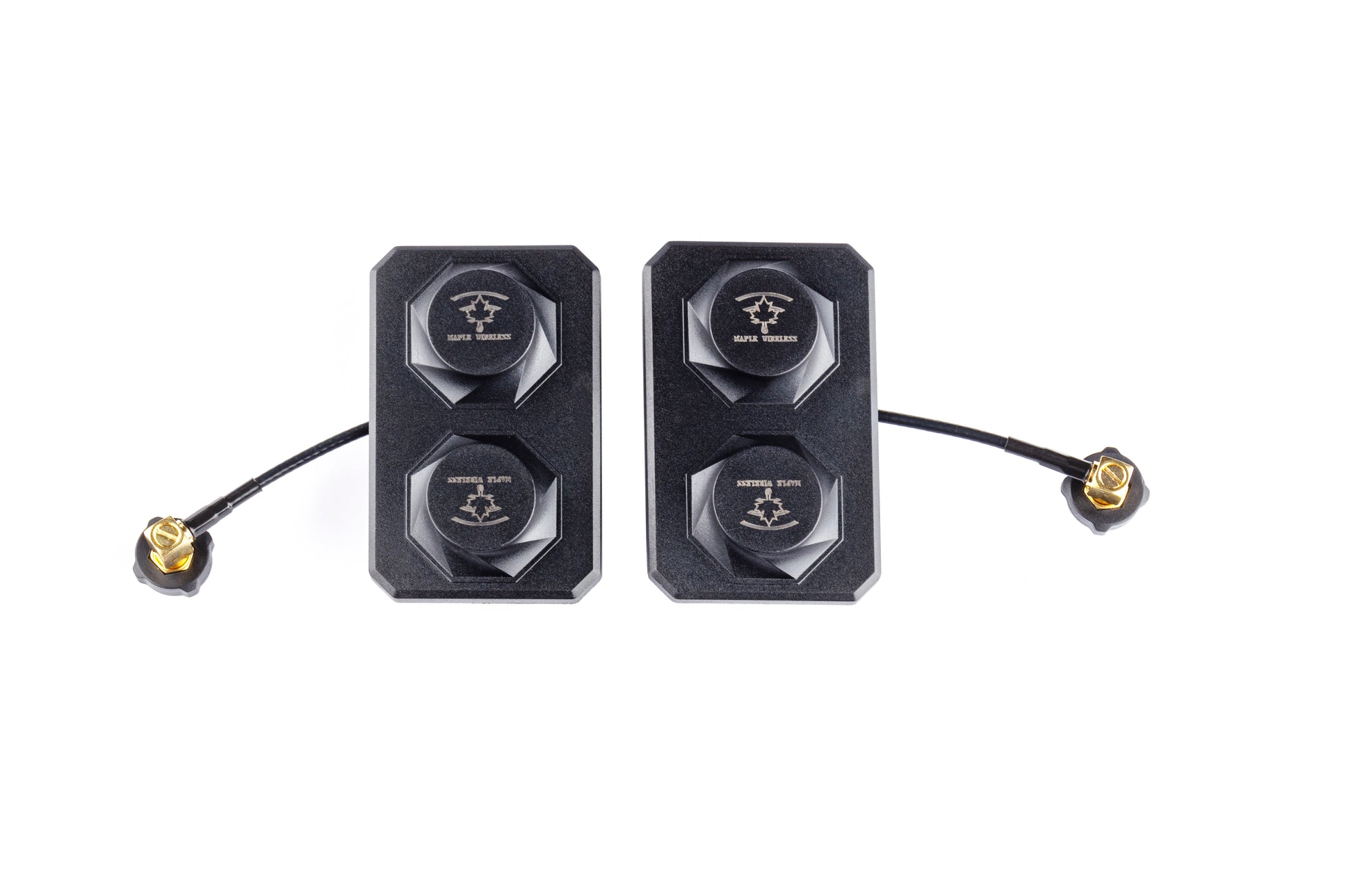

2 x Maple Wireless RACING S1 HDZERO RHCP SMA antennas
