Antenna iFlight Crystal HD Patch + Crystal Short Stubby Combo
Antenna iFlight Crystal HD Patch + Crystal Short Stubby Combo
Brand: iFlight
Regular price
€56,34
Regular price
€56,34
Sale price
€56,34
Unit price
/
per
In stock
We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion

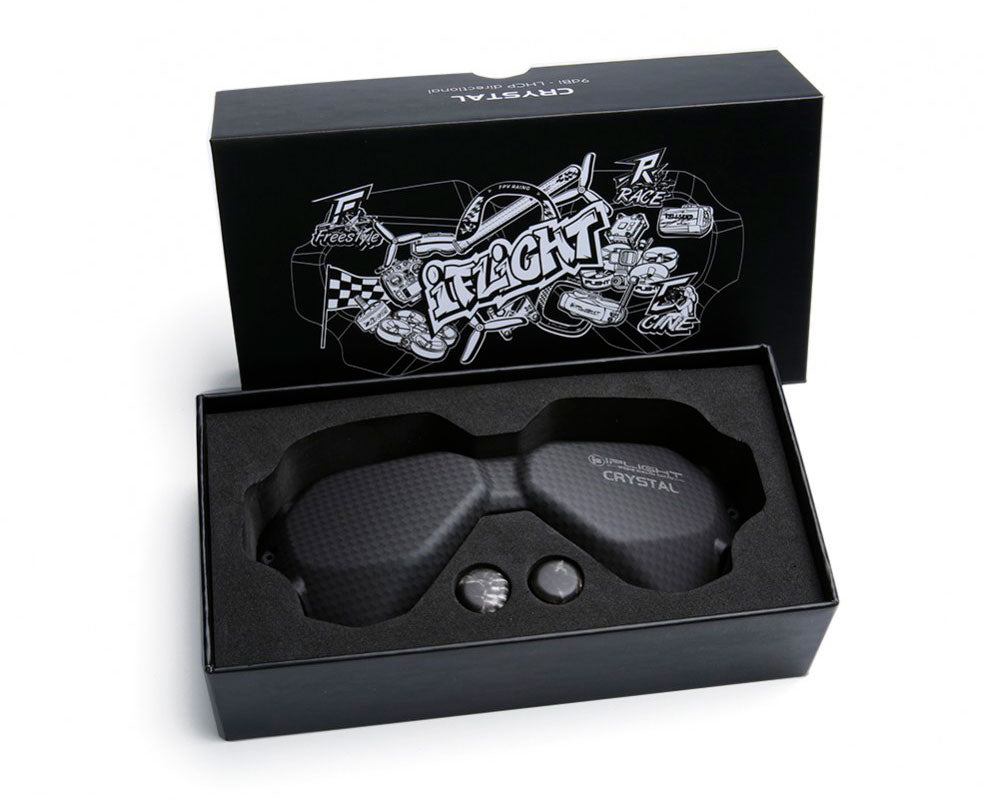

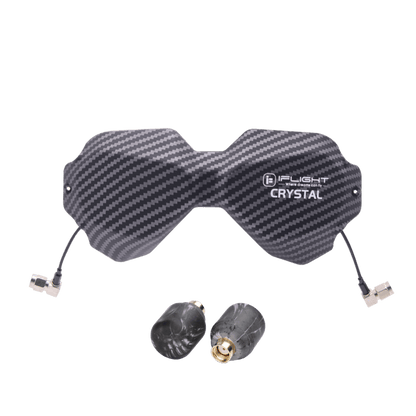

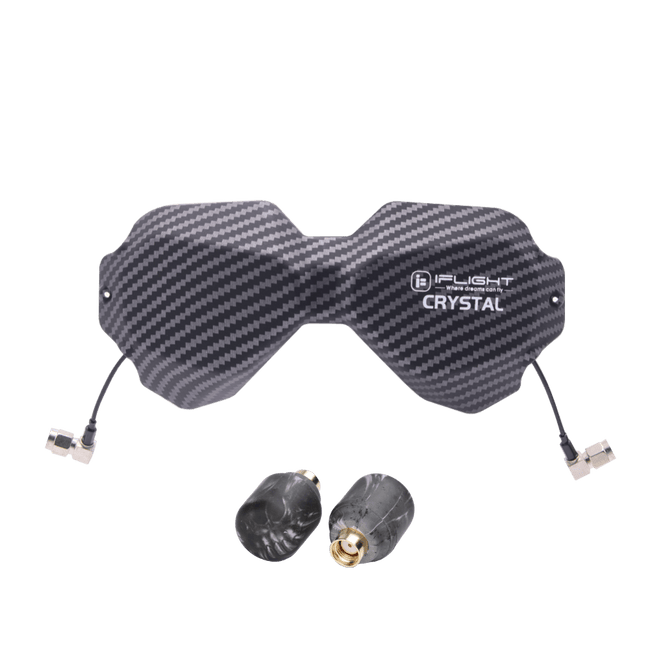

Antenna iFlight Crystal HD Patch + Crystal Short Stubby (Combo) The new iFlight Crystal HD 5.8GHz directional antenna is specially designed for DJI Digital FPV Goggles to replace the basic front plate. Two highly sensitive, high-gain LHCP directional antennas give you better long-range reception as well as better penetration through trees, belts or other difficult terrain. Low profile design to keep package size to a minimum and high quality RG178 cables for best durability. Super wide antenna beam width with 30 degree offset angle between two antennas. 105 degree horizontal beam and 75 degree vertical beam with 9dBi gain, slowly decreasing the further you get to the side! Low loss with 93% antenna efficiency and axial ratio ≤1.6 across the band. This kit includes a Crystal HD LHCP antenna and two Crystal Short Stubbys. Function: -LHCP high gain directional antenna -Lower profile and better reception than standard antennas -Super wide beam width, horizontal 105 degrees @9dBi, vertical 75 degrees @9dBi -Can be mounted on top or bottom pair of Goggle RP-SMA Specifications: Frequency: 5.8 GHz Bandwidth: 5600~5900 Mhz Gain: 9 dBi Axle ratio: ≤1.6 Impedance: 50Ω Radiation efficiency: 93% Beam width: 105° V. 75° V. Polarization: (LHCP) Left hand circular polarized Cable: RG178 Connector: RP-SMA (Adjusts directly to DJI Goggles, cannot be used on standard SMA) Weight: 52.1g The package includes: 1x Crystal HD Patch 5.8GHz directional antenna array 2x short stubbies (all antennas)
