    Code: GP101527

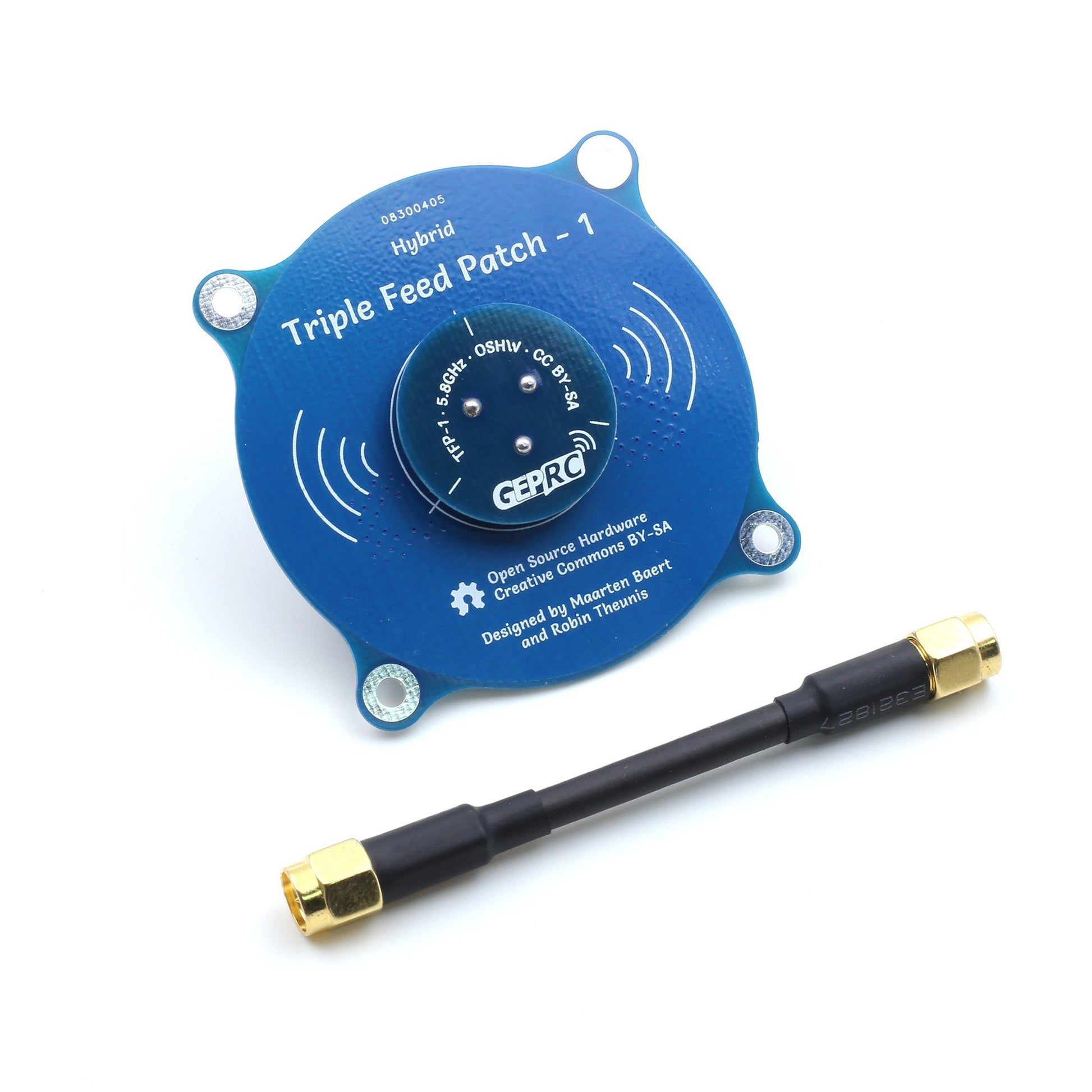

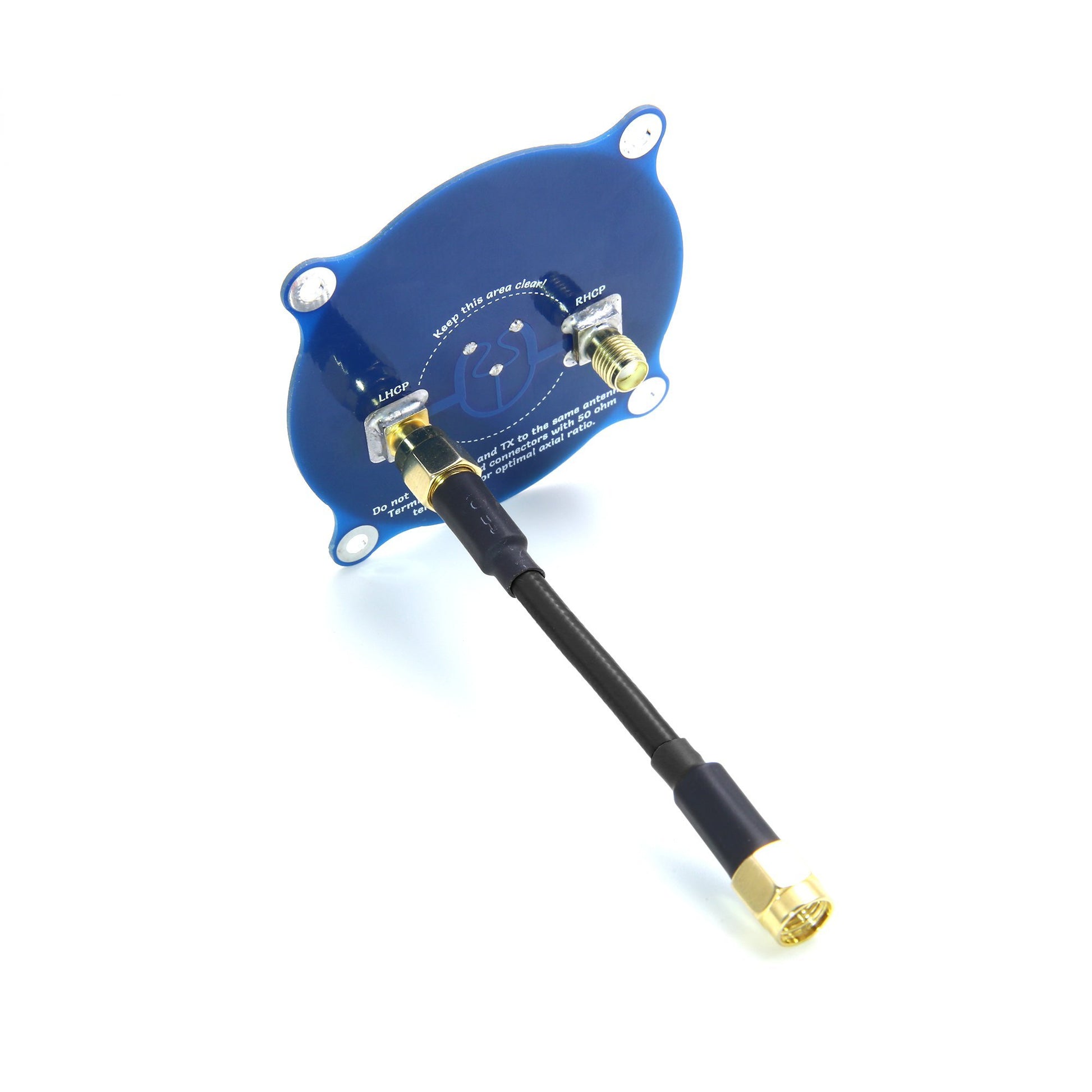

    Antenna GEPRC Triple Feed Patch-1 SMA

    Antenna GEPRC Triple Feed Patch-1 SMA

    Brand: GEPRC

    €11,95
    €11,95 €11,95
    -0% View Product
    Upon request
    We need to check the product availability with our supplier. Please contact us for details.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion
    Triple feed fix-1

Center frequency: 5.8 GHz
Bandwidth: 660 MHz (5.47-6.13 GHz)
Compliance: S11 < -20 dB, VSWR < 1.22 (at mid frequency)
Axle ratio: < 1.3
Antenna gain DBi: 9.4
Half power beam width: 55° (horizontal and vertical)
Radiation efficiency: 83.5%

These values ​​are based on simulation and actual measurements are as follows (they are very similar).
Due to the change in the dielectric constant of FR4, the intermediate frequency can be transferred between doses.
And not all brands of FR4 have the same dielectric constant.
Frequency conversion to 100 MHz is normal.
