Antenna GEPRC Momoda2 5.8G DUAL
Antenna GEPRC Momoda2 5.8G DUAL
Brand: GEPRC
Regular price
€11,50
Regular price
€11,50
Sale price
€11,50
Unit price
/
per
Upon request
We need to check the product availability with our supplier. Please contact us for details.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion

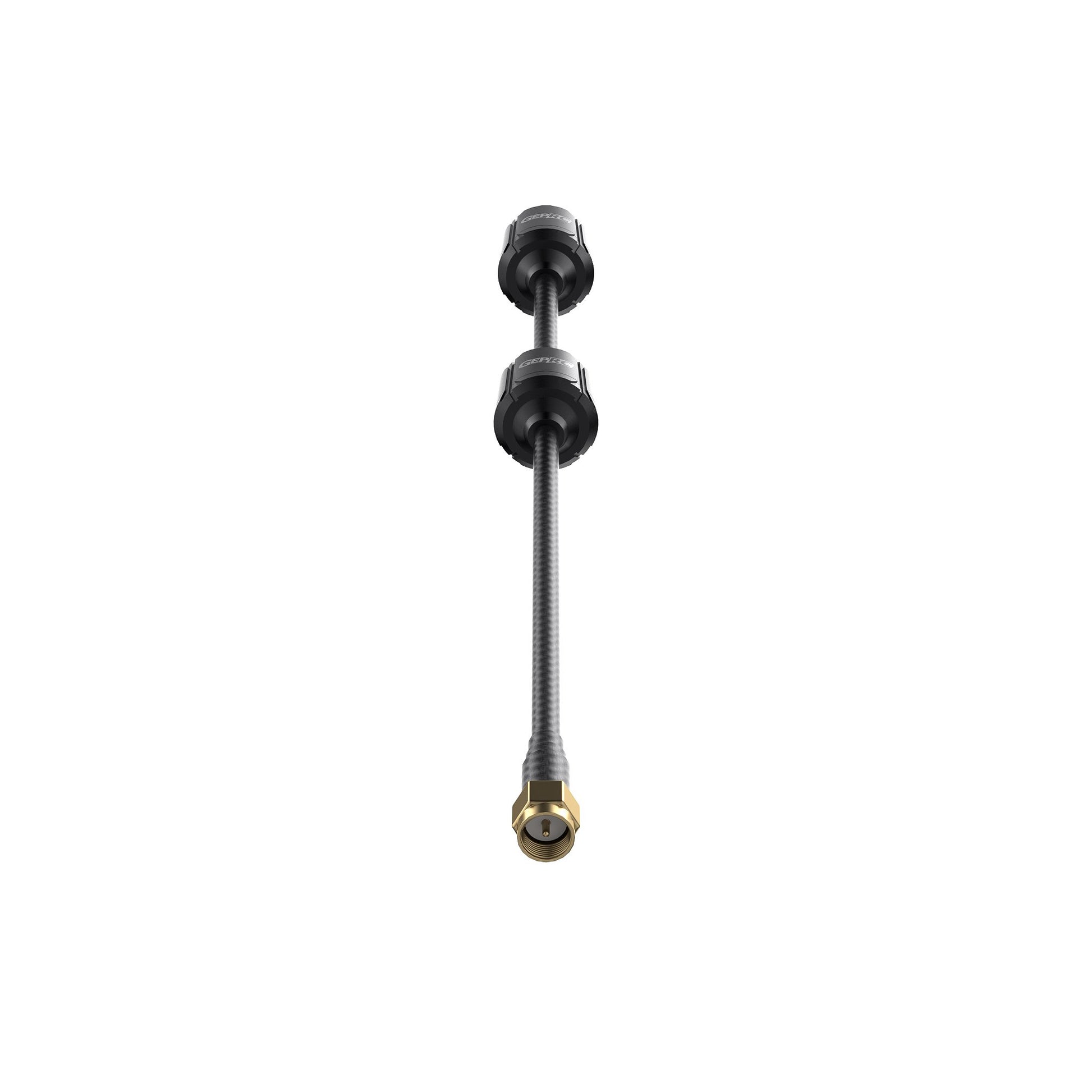

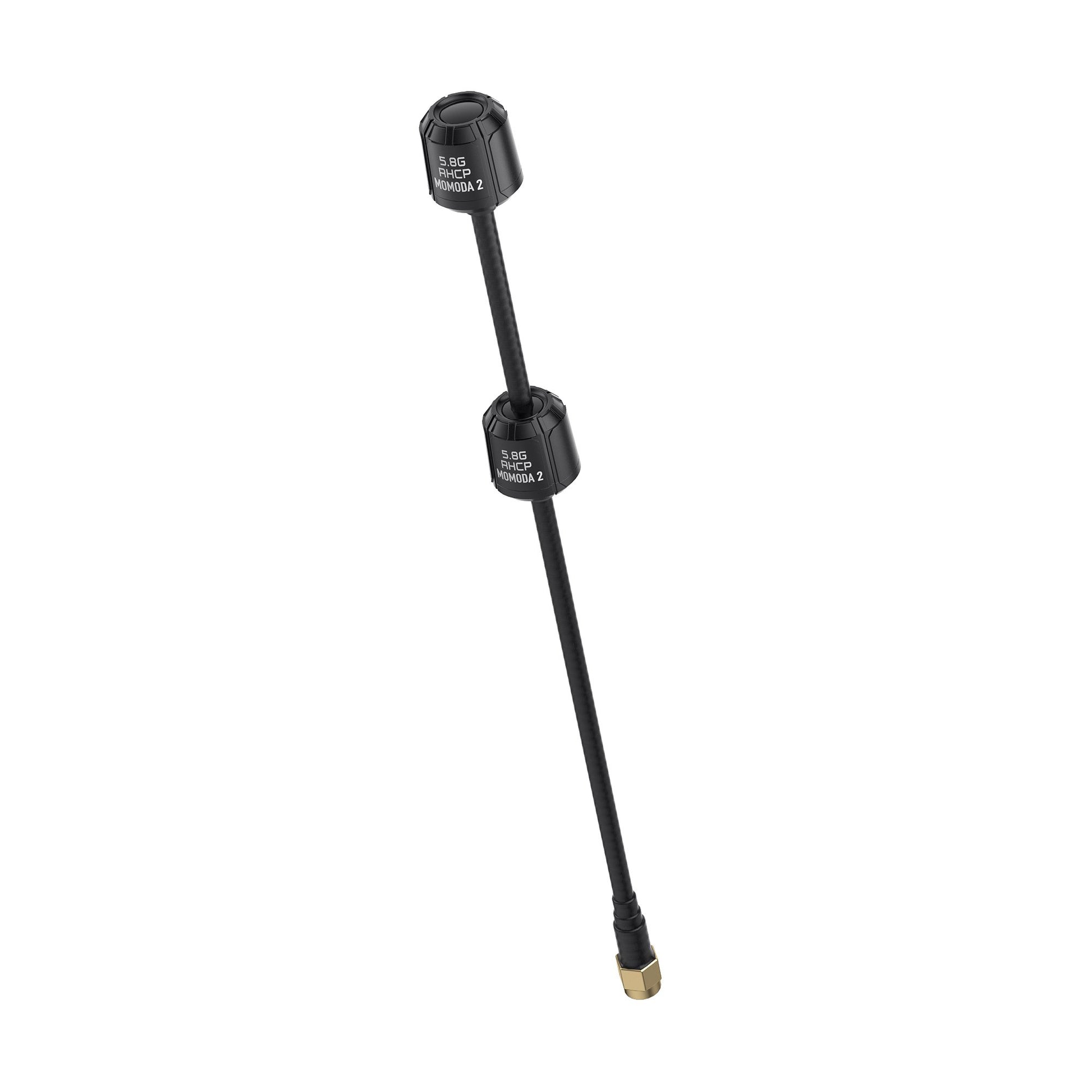

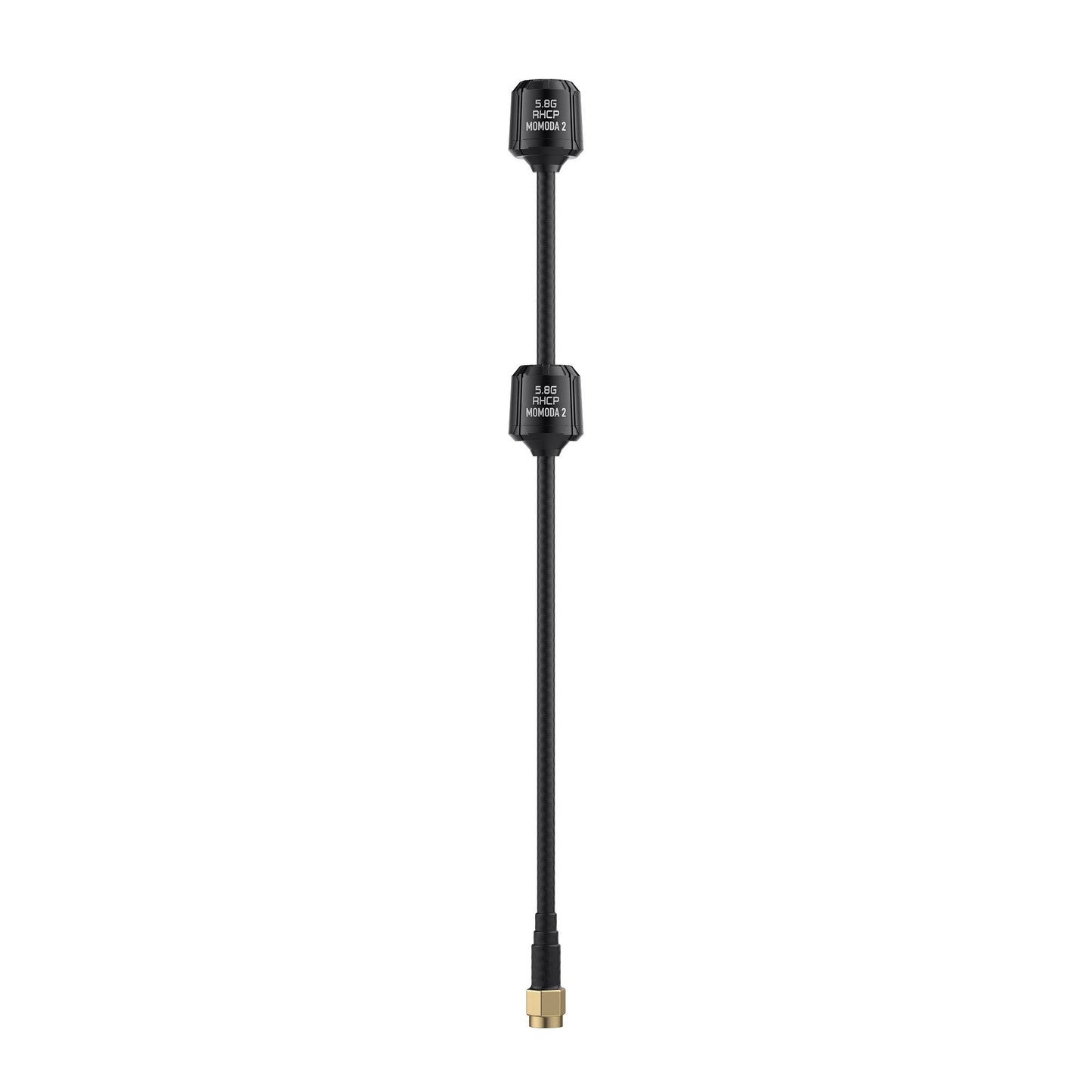

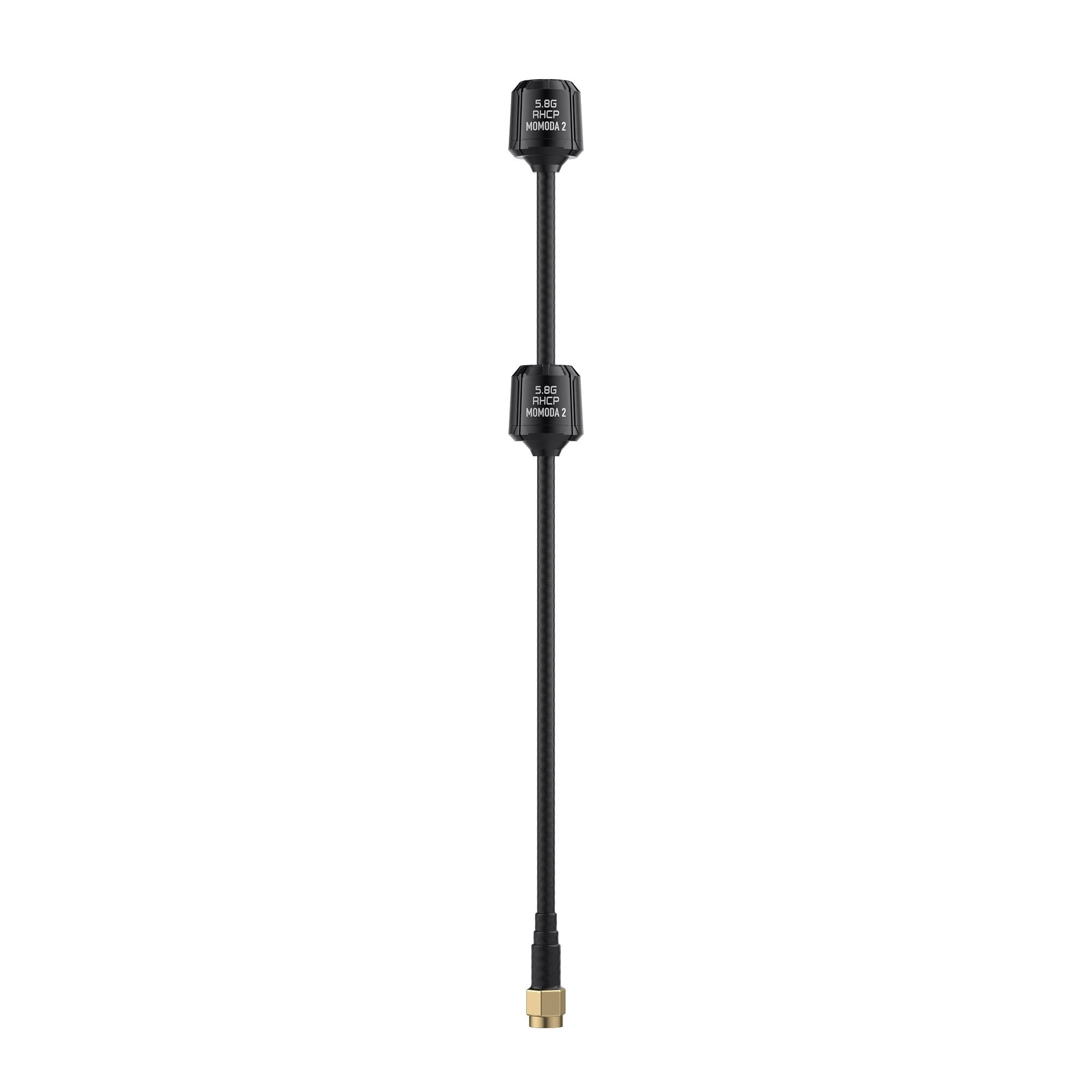

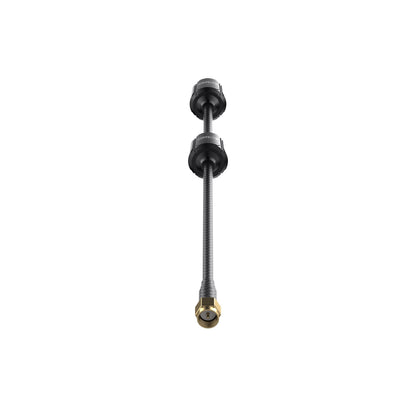

GEPRC Momoda2 5.8G DUAL Antenna Overview:
The GEPRC Momoda2 5.8G DUAL antenna uses a dual-core RF solution to increase gain and extend coverage. Extensive practical testing has shown a significant improvement in directional compatibility, making this antenna a reliable choice for stable image transmission during long-distance flight.
Key features:
- Increased gain: Uses dual-core RF technology for superior performance.
- Ultra-low VSWR: Ensures better transmission efficiency.
- Premium antenna connector: Guarantees a quality connection.
- Secure assembly: Equipped with ultrasonic welding for a strong and durable connection.
- Strict Testing: Each antenna is carefully tested using a spectrum analyzer to ensure compliance with industry VSWR standards.
Specifications:
- Model: GEPRC Momoda2 5.8G DUAL Antenna
- Central frequency: 5.65GHz
- Bandwidth: 5.3GHz – 6GHz
- Polarization: LHCP/RHCP (left-handed/right-handed circular polarization)
- Gain: 3.8 dBi
- Axial Ratio: ≤3
- VSWR: ≤1.43
- Radiation efficiency: 85%
- Cross polarization suppression: -25 dB
- Length: 170 mm + 57 mm
- Design composition: FPC + PCB
- Weight: 16.6 g
- Cover material: ABS
- Type of connector: SMA
The package contains:
- 1 x GEPRC Momoda2 5.8G DUAL Antenna
This antenna is designed to provide reliable image transmission, extended range and excellent performance for FPV enthusiasts.
