    Code: PA1508

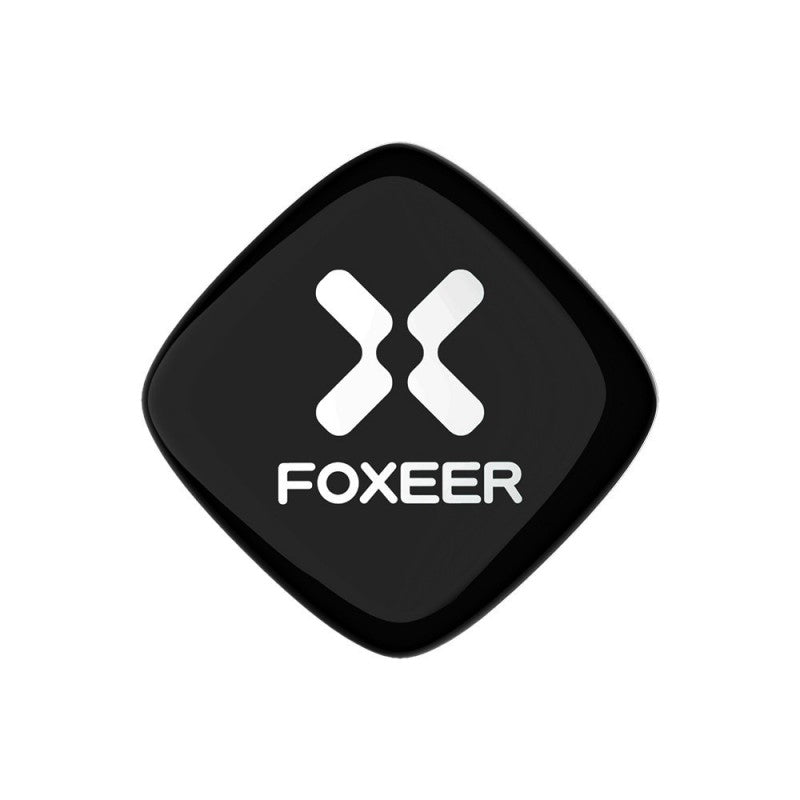

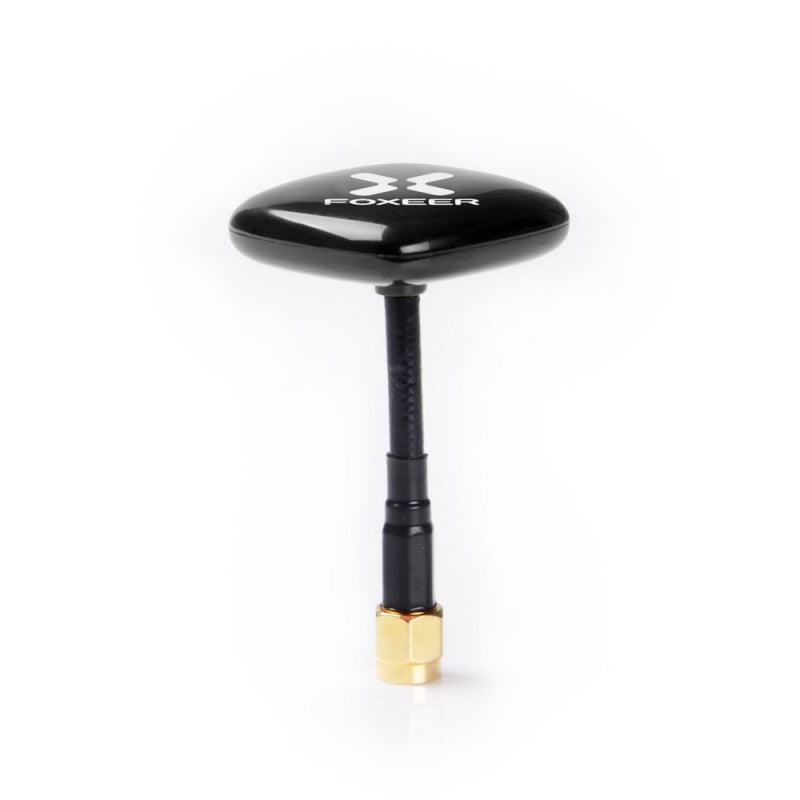

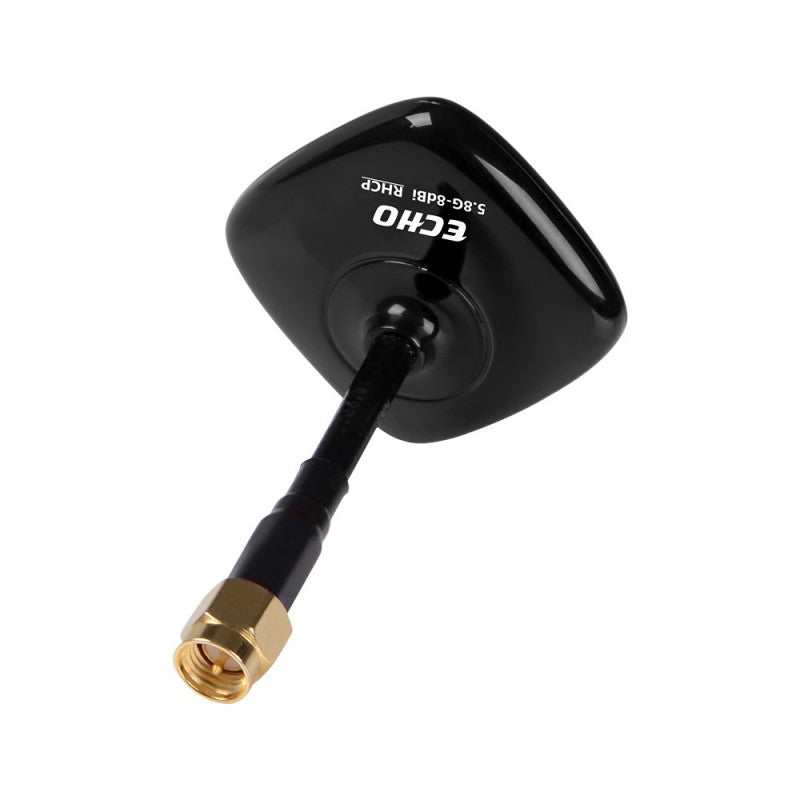

    Antenna Foxeer Echo 2 5.8G 9dBi Patch Feeder RHCP Black

    Antenna Foxeer Echo 2 5.8G 9dBi Patch Feeder RHCP Black

    Brand: Foxeer

    €26,49
    €24,36 €26,49
    --9% View Product
    Taxes included.
    In stock
    Limited stock available. Order soon!
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion
    Echo 2 5.8G 9dBi Patch Feeder RHCP Black

Foxeer Echo 2 is a new FPV 5.8G patch feeder antenna 9dBi long range FPV antenna.

Specifications:
Foxeer ECHO2 cable version
Shell material: PCB+ABS
Center frequency: 5.8 GHz
Gain: 9dbi
Axle ratio: Close to 1
Bandwidth: 5.5G - 6GHz
Beam angle: 84.7 degrees
SWR: <1.25 at mid frequency
Impedance: 50Ω
Polarization: RHCP
Connector: SMA
Black color
Dimensions: 34 x 34 x 61 mm
Weight: 10.4g

The package includes:
1x Echo 2 5.8G 9dBi Patch Feeder RHCP Black
