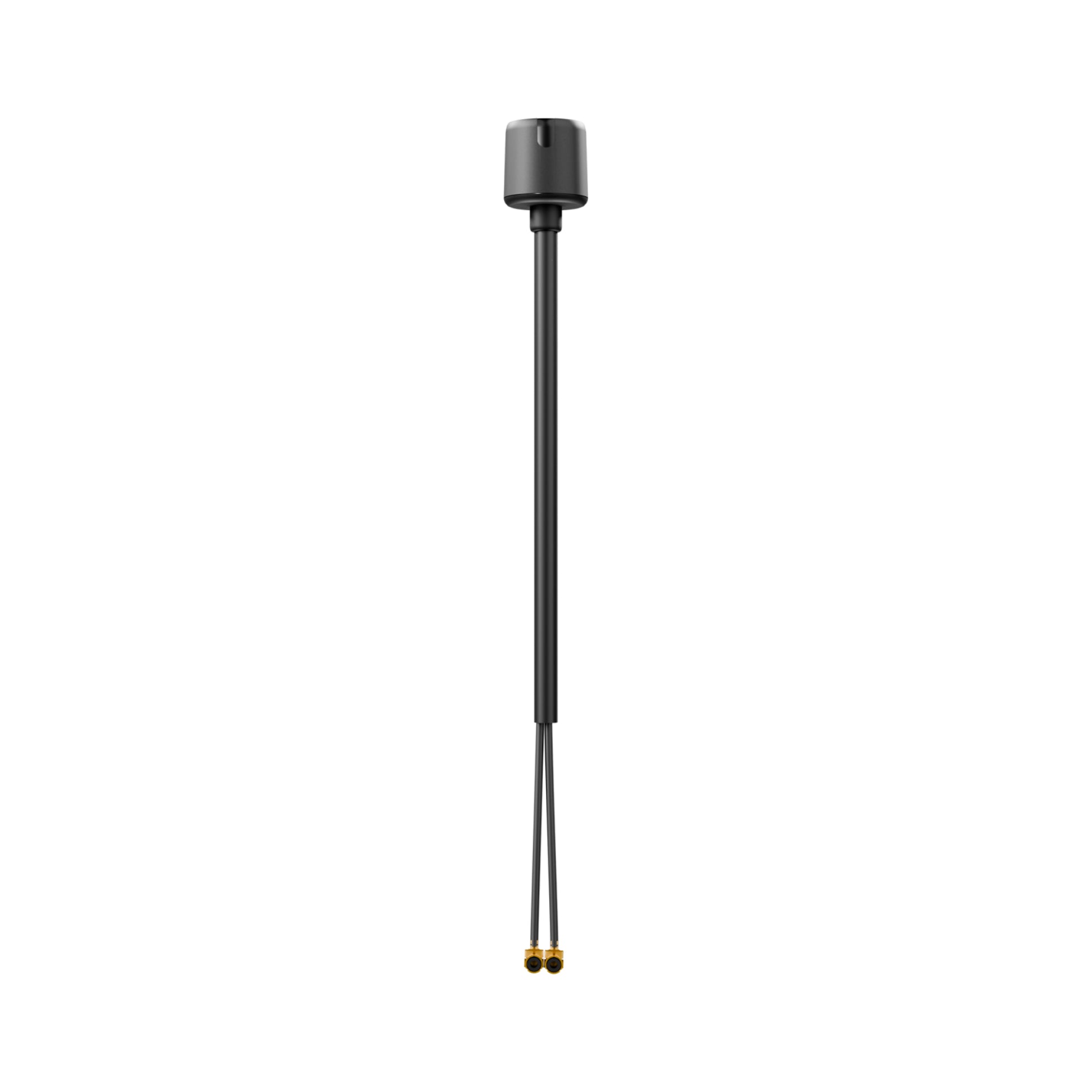

FLYWOO Bipolar Dual-Band 5.8GHz UFL 150mm Antenna for DJI O3/O4 PRO The FLYWOO Bipolar Dual 5.8GHz U.FL antenna is a specialized, high-efficiency antenna designed for the DJI O3 and O4 PRO aerial units. Designed to improve transmission strength and stability, this 150mm version weighs just 2.9g, making it ideal for racing and freestyle drones. With true dual 5.8GHz function, linear polarization and excellent VSWR performance, it provides strong signal coverage and excellent immunity to interference. Rugged RF1.13 cable and U.FL connectors ensure easy integration and maximum performance. Whether you're flying long distances or in densely populated areas, this antenna will keep your FPV connection strong and stable. Specifications: Frequency range: 5700-5900 MHz (dual 5.8GHz) Gain: Dual 2.8 dBi VSWR: ≤1.6 Polarization: Linear Impedance: 50Ω Connector: 2 x U.FL (IPEX1) Cable type: RF1.13 Weight: 2.9 g Dimensions: Φ14 × 14 mm Cable length: 150 mm Compatibility: DJI O3 / O4 PRO air units The package contains: 1 × FLYWOO Bipolar Dual-Band 5.8GHz UFL 150mm Antenna for DJI O3/O4 PRO
