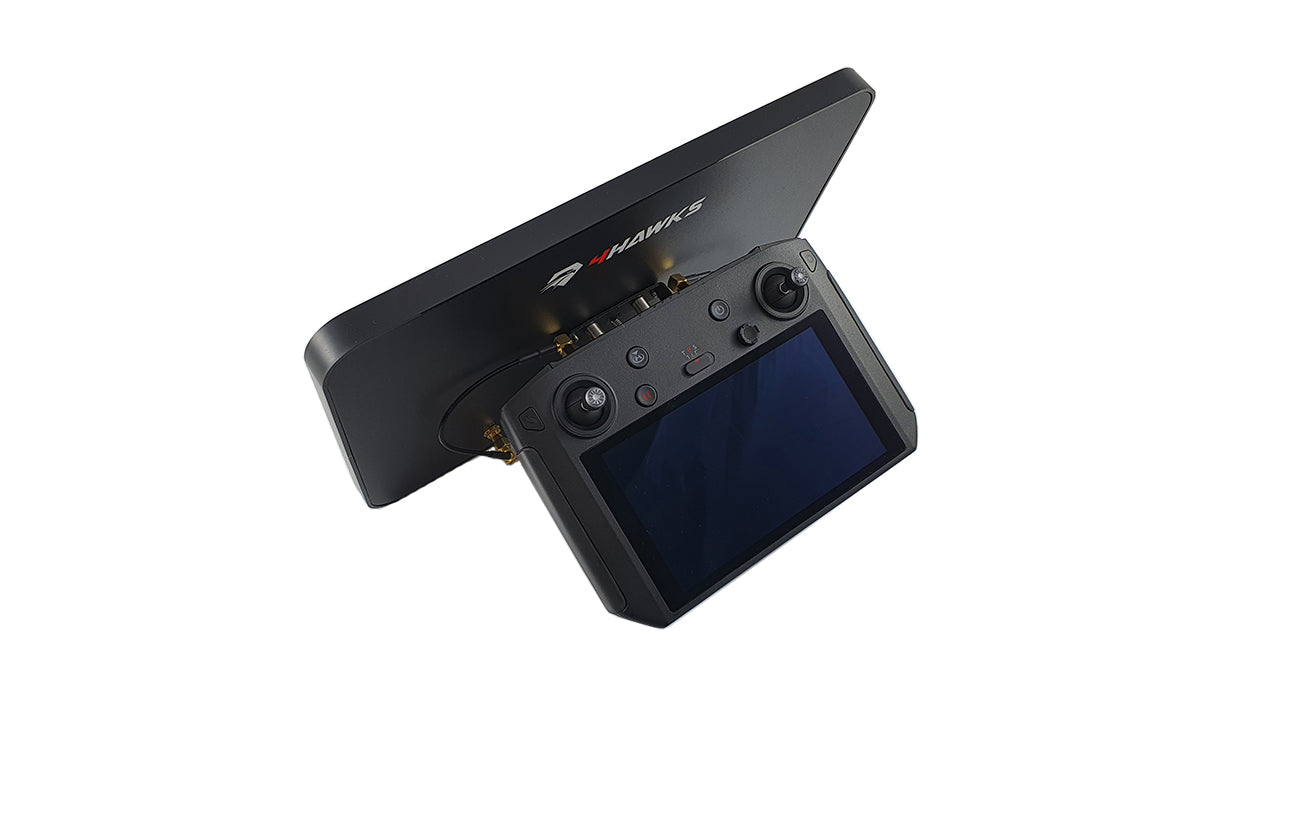

Raptor XR for DJI Smart Controller

The 4Hawks antenna for DJI Smart Controller is highly advanced and works in both 2.4 GHz and 5 GHz frequencies. The entire structure is 100% protected against UV radiation to ensure a long life of the device. The holder is made of stainless steel for solid stability. Changing the direction of the antenna does not cause any difficulties, as the system has been designed to allow a quick change of position with a single click. So you can be sure that you won't lose connection with your drone.

Function:

- Simultaneous dual-band 2.4 and 5 GHz
- Long range extension without external amplifiers
- Complete solution
- Driver NOT included
- Compatible with Mavic 3 series, Mavic 2 series, Mavic Air 2S, Mavic Air 2, Mini 2, Phantom 4 Pro v2.0, Matrix series (300)

Specifications:

Frequency
Port 1: 2.40-2.50 GHz and 5.00-5.80 GHz
Port 2: 2.40-2.50 GHz and 5.00-5.80 GHz
Gain
Port 1: 11 dBi (+/- 1 dBi) & 14 dBi (+/- 1 dBi)
Port 2: 11 dBi (+/- 1 dBi) & 14 dBi (+/- 1 dBi)
VSWR
Port 1: < 1.50 (max < 2.00)
Port 2: < 1.50 (max. < 2.00)
Beam width
Port 1: 70°/40° & 40°/25°
Port 2: 70°/40° & 40°/25°
Polarization
Port 1: Vertical
Port 2: Vertical
Impedance
Port 1: 50 Ω
Port 2: 50 Ω

Mechanical parameters:
Material Antenna: Samsung ABS, polyurethane, aluminum, stainless steel, nylon, PTFE PCB
Material Assembly: Stainless steel + paint
Weight: 520g (450g Antenna + 70g Mounting)
Dimensions: 29.2 x 18.2 x 2.1 cm
Connection: RP-SMA female
Tilt adjustment: 5 tilt positions, OnClick system
Mounting type: For SMA connectors (Permanent)
