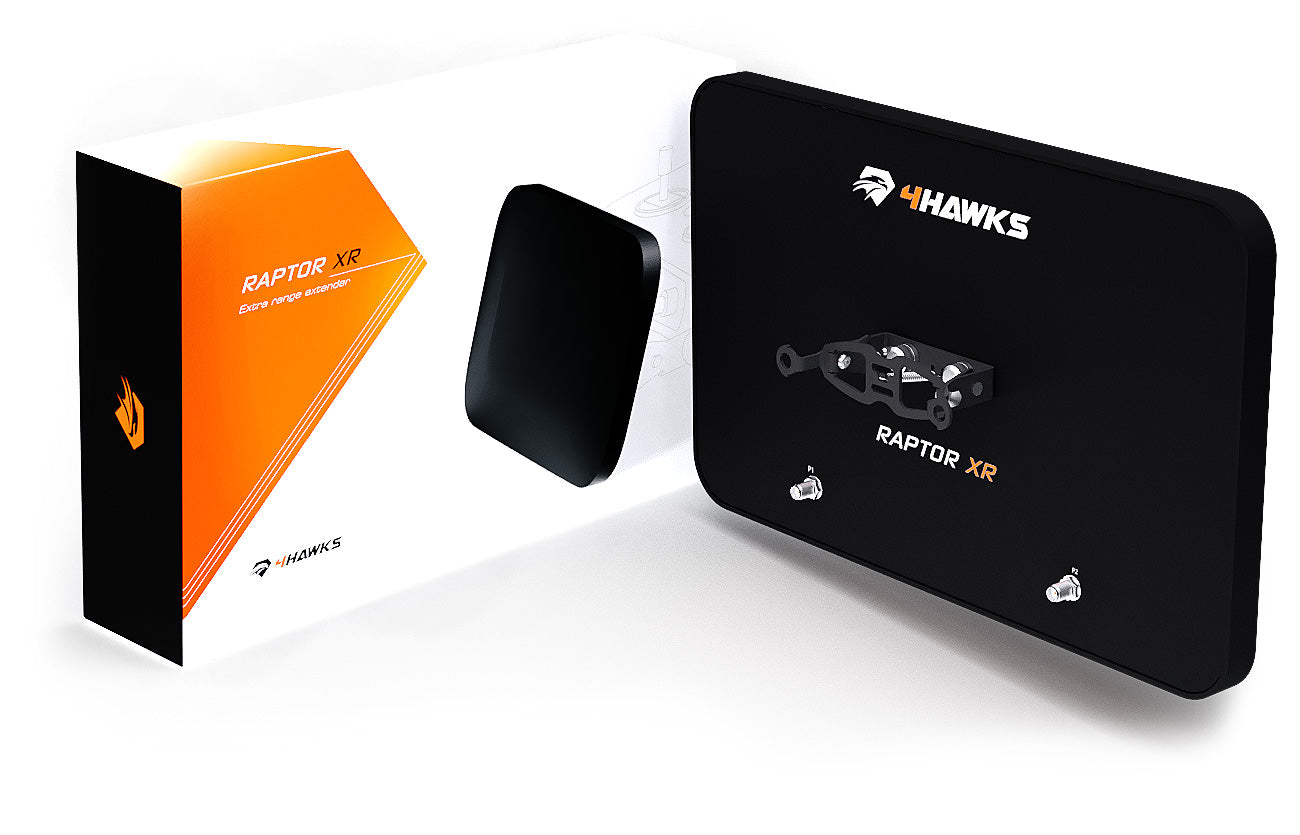

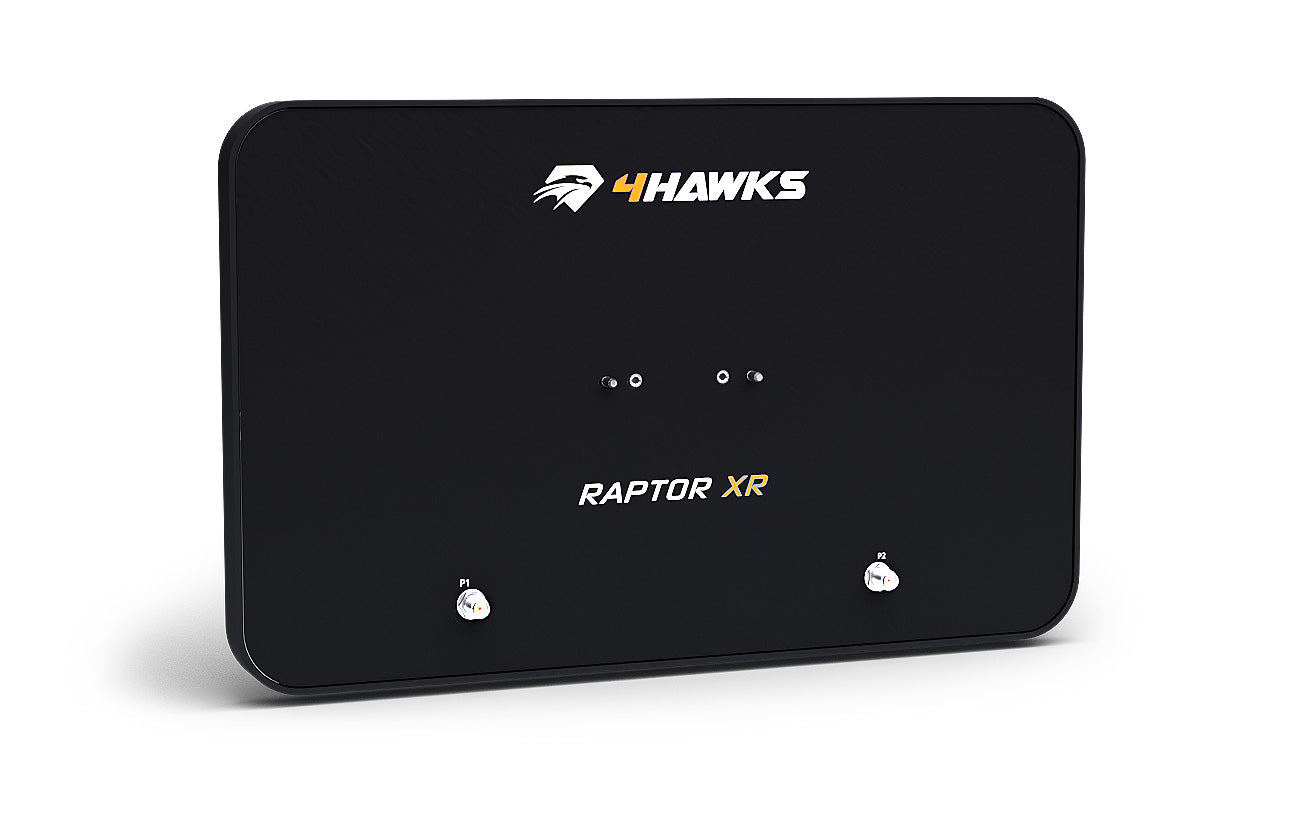

Raptor XR for DJI Mavic Mini

The 4Hawks antenna for the DJI Mavic Mini model is highly advanced, it works in both 2.4 GHz and 5 GHz frequencies. The entire structure is 100% protected against UV radiation to ensure a long life of the device. The holder is made of stainless steel for solid stability. The whole set is light and uniform (without loose pieces of equipment). Changing the direction of the antenna should not cause any problems, as the system has been designed to allow a quick change of position with a single click. So you can be sure that you won't lose connection with your drone.

Function:

- Maximize performance
- Simultaneous dual-band 2.4 and 5 GHz
- No modifications to the drone itself
- Long range extension without external amplifiers
- The design does not contain any removable parts
- Complete solution
- Driver NOT included

Specifications:

Frequency
Port 1: 2.40-2.50 GHz and 5.00-5.80 GHz
Port 2: 240-2.50 GHz and 5.00-5.80 GHz
Gain
Port 1: 11 dBi (+/- 1 dBi) & 14 dBi (+/- 1 dBi)
Port 2: 11 dBi (+/- 1 dBi) & 14 dBi (+/- 1 dBi)
VSWR
Port 1: < 1.50 (max < 2.00)
Port 2: < 1.50 (max. < 2.00)
Beam width
Port 1: 70°/40° & 40°/25°
Port 1: 70°/40° & 40°/25°
Polarization
Port 1: Vertical
Port 2: Vertical
Impedance
Port 1: 50 Ω
Port 2: 50 Ω

Mechanical parameters:
Material Antenna: Samsung ABS, polyurethane, aluminum, stainless steel, nylon, PTFE PCB
Material Assembly: Stainless steel + paint
Weight: 520g (450g Antenna + 70g Mounting)
Dimensions: 29.2 x 18.2 x 2.1 cm
Connection: RP-SMA female

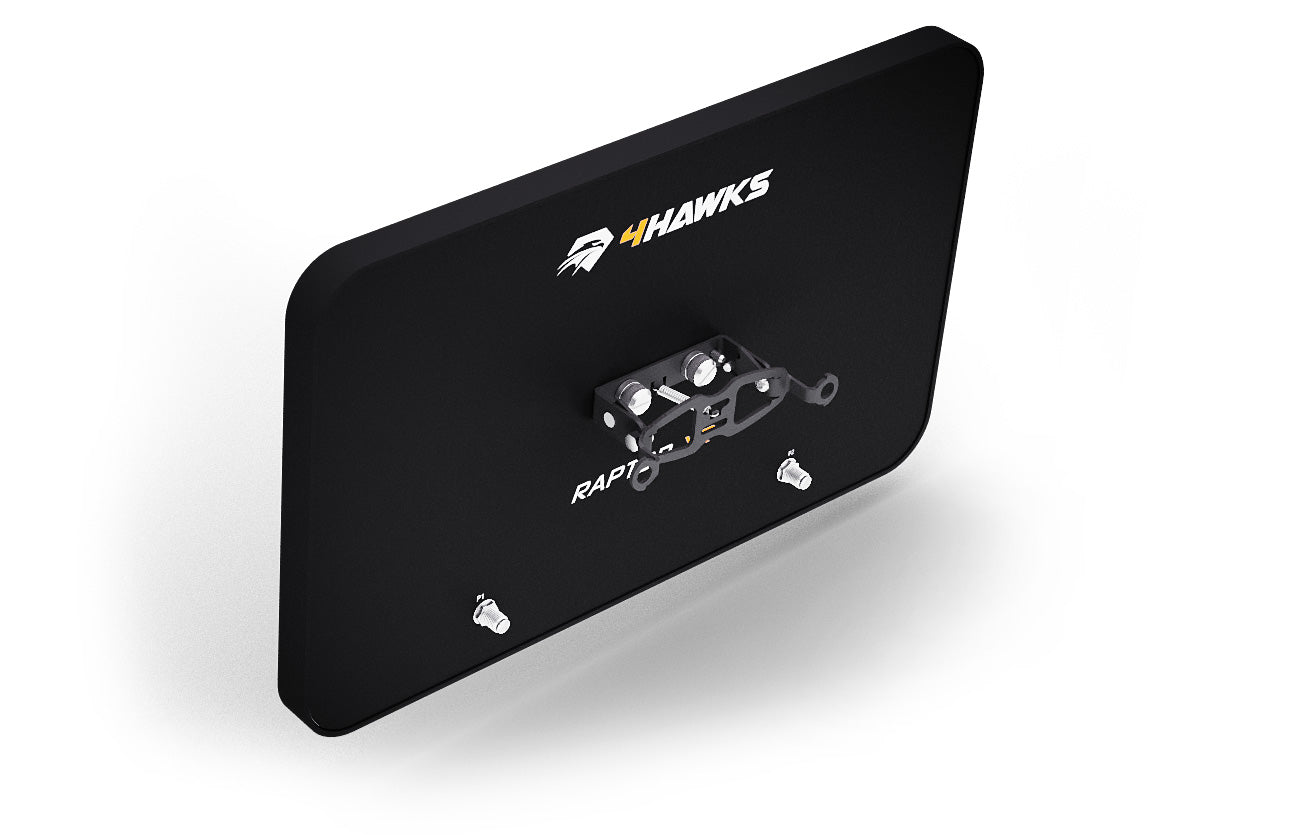

Tilt adjustment: 3 tilt positions, OnClick system
Mounting type: For SMA connectors (Permanent)

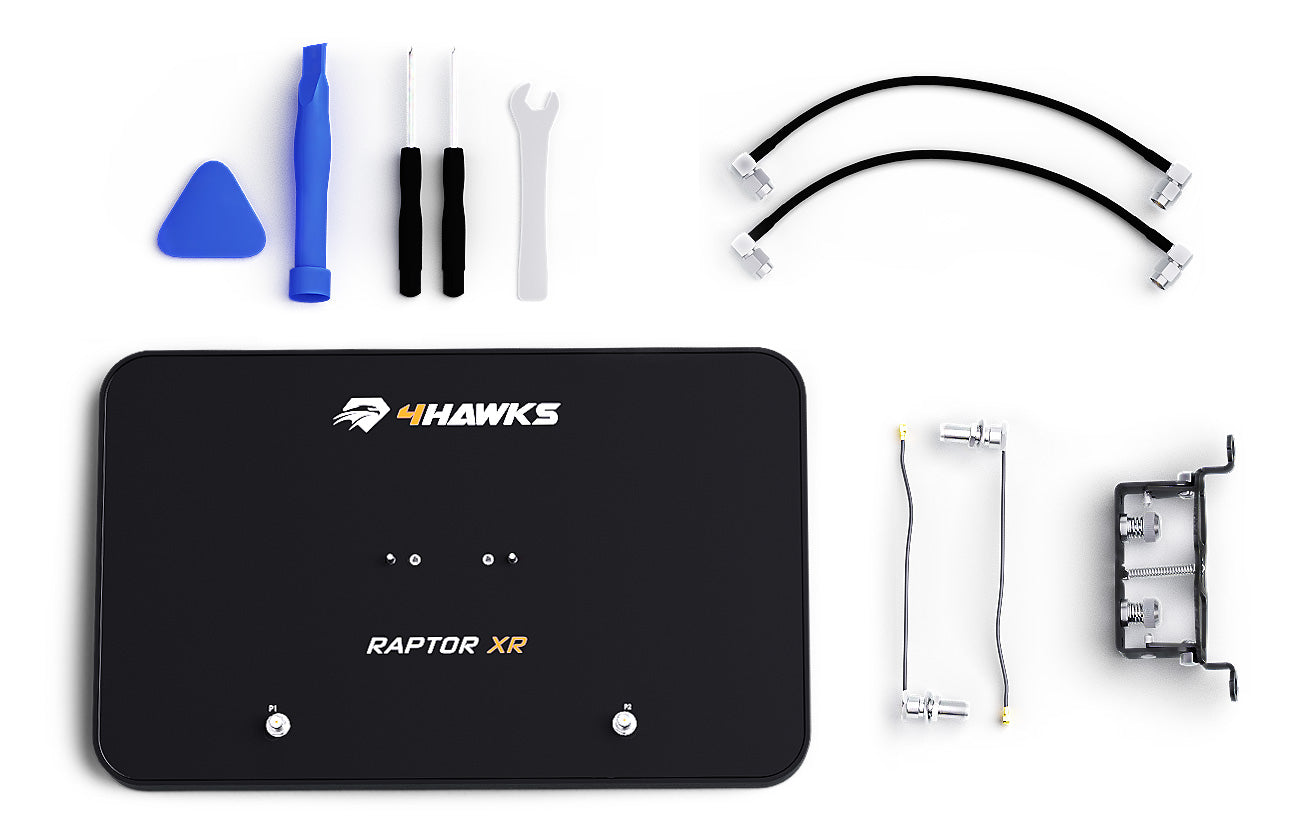

The package includes:
1x antenna for extending the range
1x stainless steel mounting kit
2x RP-SMA male RG316 black pigtails
2x Designed for Mavic U.FL pigtails
2x screwdriver (Torx T6 & Philips) + 8mm wrench
1x additional Mavic tools
