Code: SKU:A113X

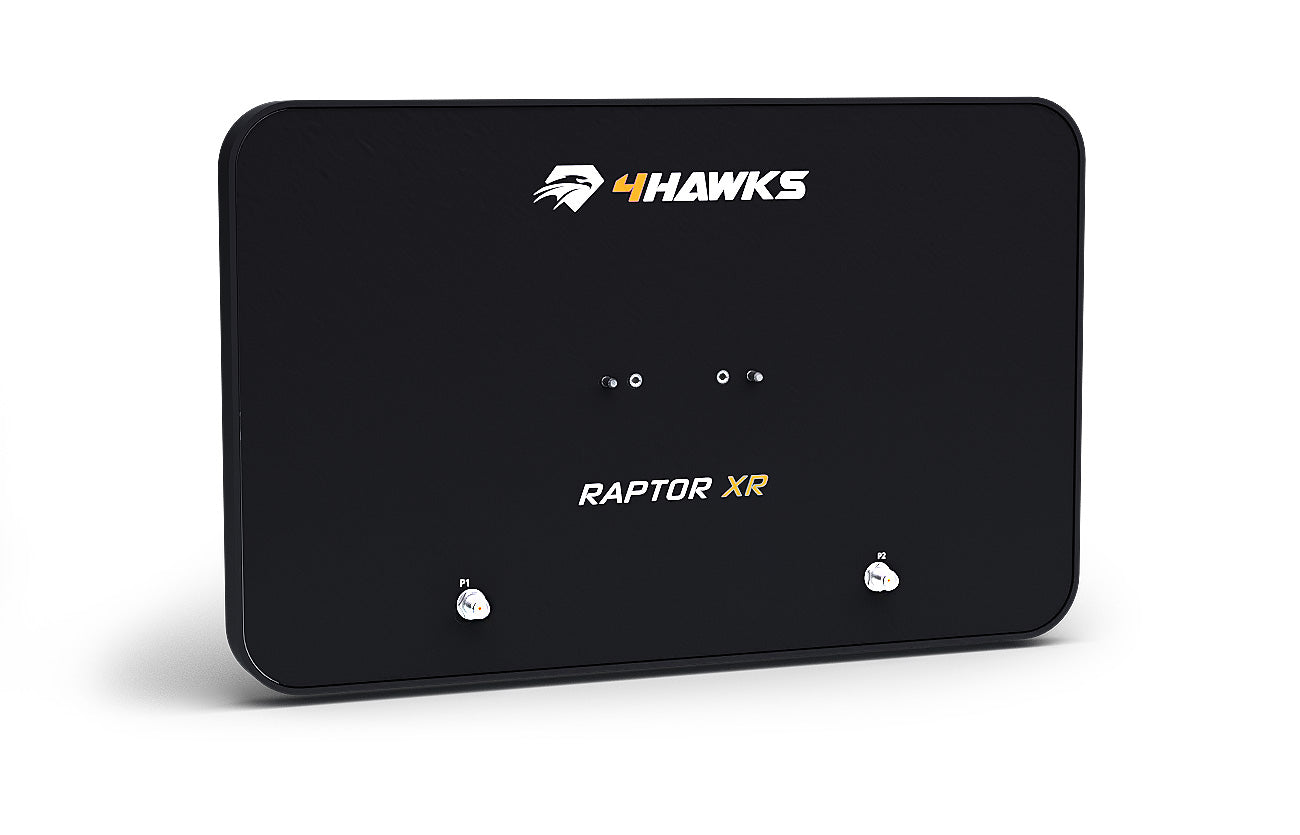

Antenna 4Hawks Raptor XR for Matrice
Antenna 4Hawks Raptor XR for Matrice
Brand: 4Hawks
Regular price
€166,47
Regular price
€166,47
Sale price
€166,47
Unit price
/
per
In stock
Limited stock available. Order soon!
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion

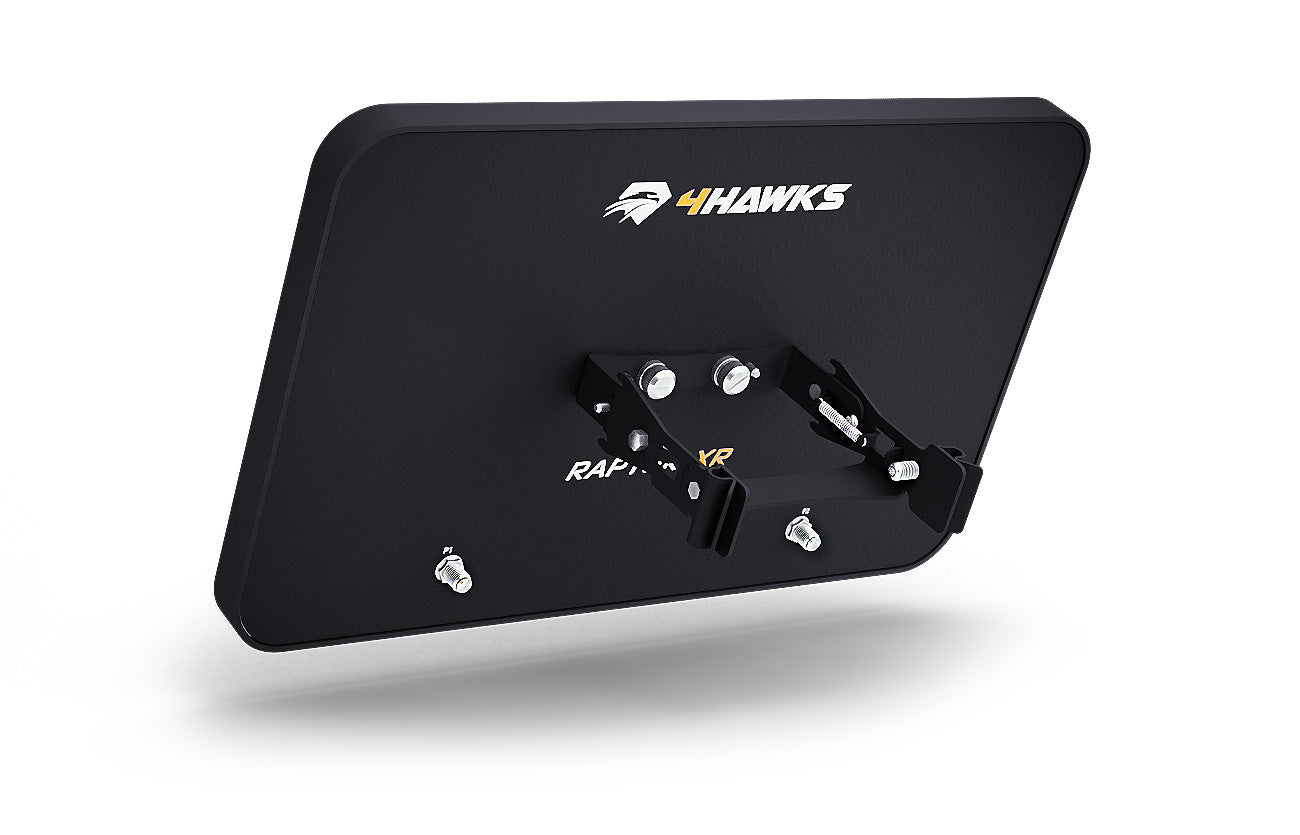

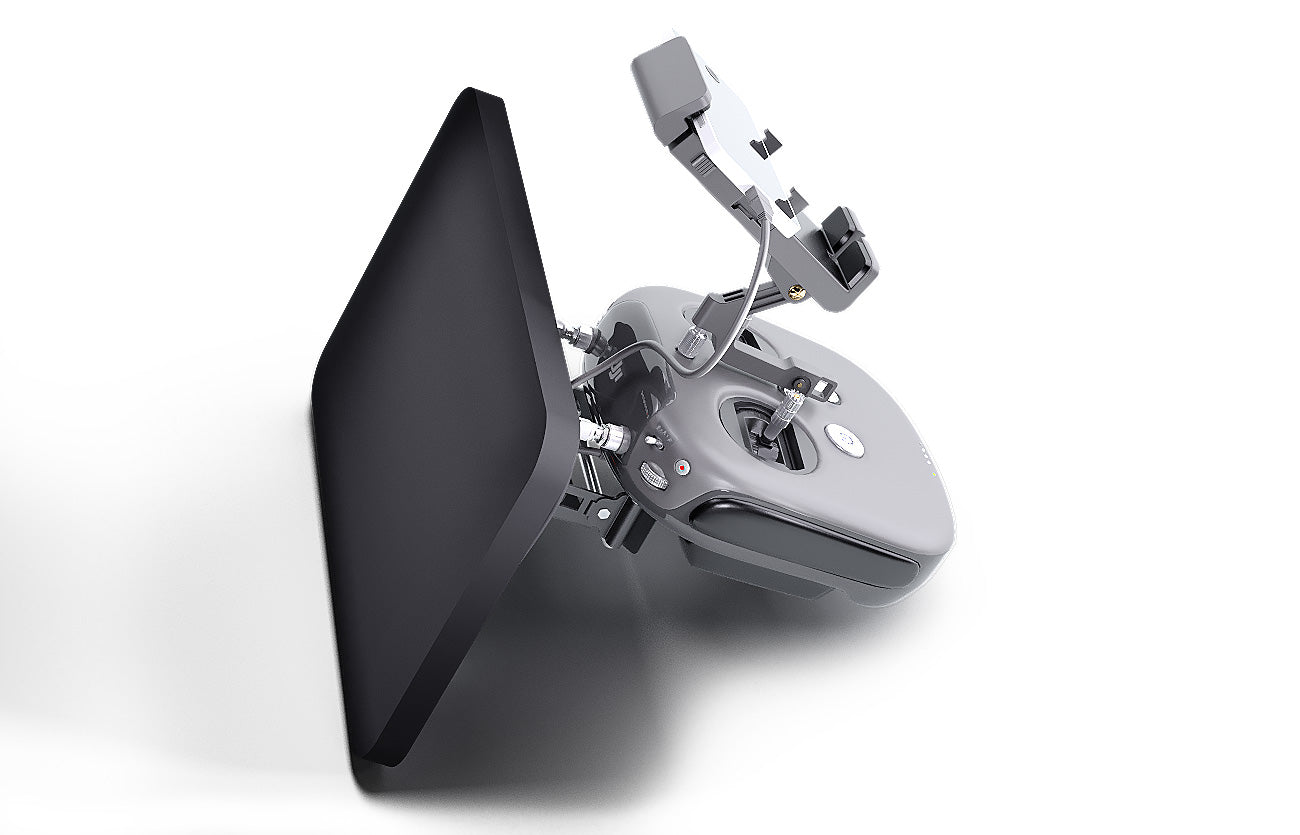

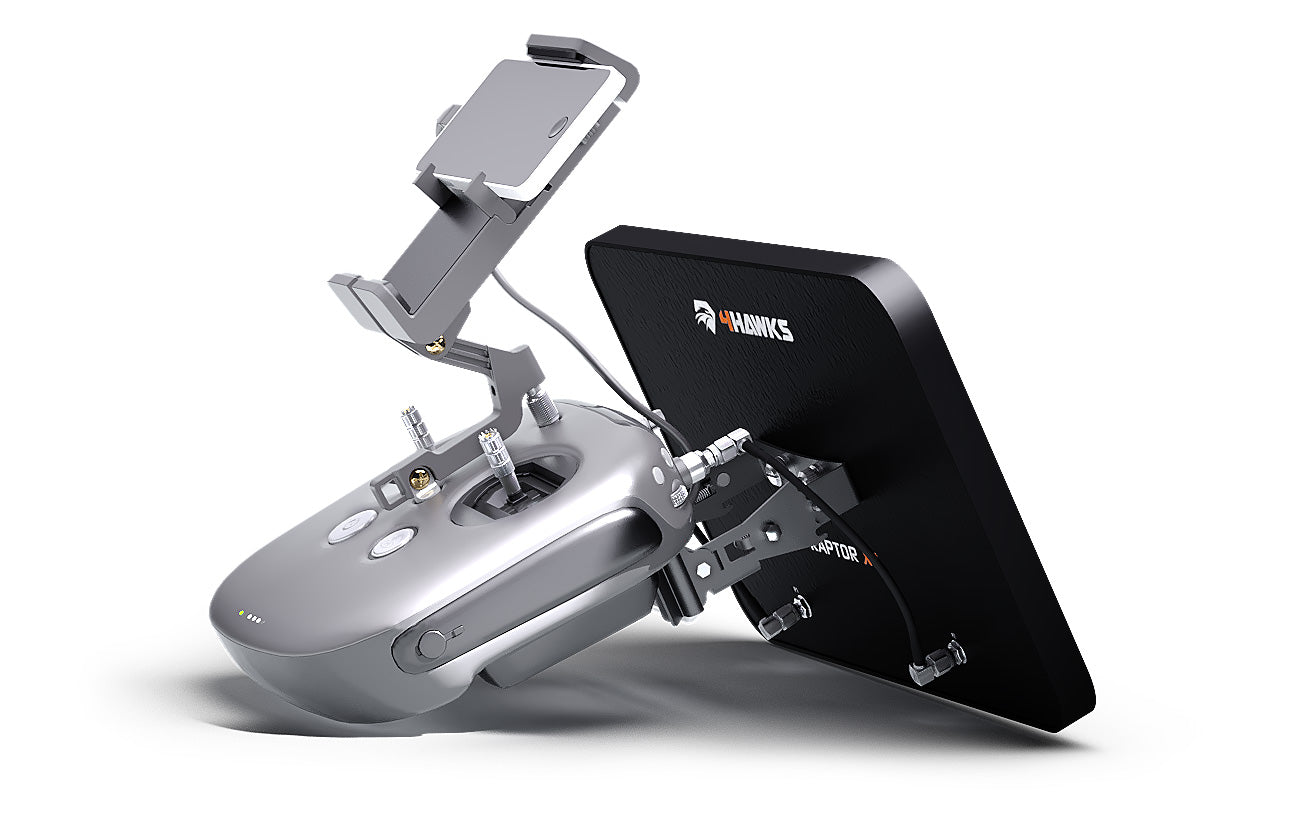

Raptor XR for DJI Matrix (+Raptor Link) The 4Hawks antenna for Dji Matrice model works in 2.4GHz band with 14dBi gain & 5.8GHz with 14dBi gain with an additional antenna installed inside the controller working at 5GHz frequency which allows the drone to be operated with 2 controllers. The entire structure is 100% UV protected to ensure the long life of the device. In addition, part of the structure is made of aluminum to make the entire structure as light as possible. The holder is made of stainless steel for solid stability. Specifications: Frequency Port 1: 2.40-2.50 GHz and 5.00-5.80 GHz Port 2: 2.40-2.50 GHz and 5.00-5.80 GHz Gain Port 1: 11 dBi (+/- 1 dBi) & 14 dBi (+/- 1 dBi) Port 2: 11 dBi (+/- 1 dBi) & 14 dBi (+/- 1 dBi) VSWR Port 1: < 1.20 (max. < 1.40) Port 2: < 1.20 (max. < 1.40) Beam width Port 1: 70°/40° & 40°/25° Port 1: 70°/40° & 40°/25° Polarization Port 1: Vertical Port 2: Vertical Impedance Port 1: 50 Ω Port 2: 50 Ω Mechanical parameters: Material Antenna: Samsung ABS, polyurethane, aluminum, stainless steel, nylon, PTFE PCB Material Assembly: Stainless steel + paint Weight: 540g (450g Antenna + 90g Mounting) Dimensions: 29.2 x 18.2 x 2.1 cm Connection: RP-SMA female Tilt adjustment: 5 tilt positions, OnClick system Fastening type: QuickAttach The package includes: 1x antenna for extending the range 1x stainless steel mounting kit 2x RP-SMA male RG316 black pigtails 2x Designed for Matrix MMCX pigtails 1x screwdriver (Philips) + 8mm key + 1.5mm Allen key
