Code: SKU:A139X

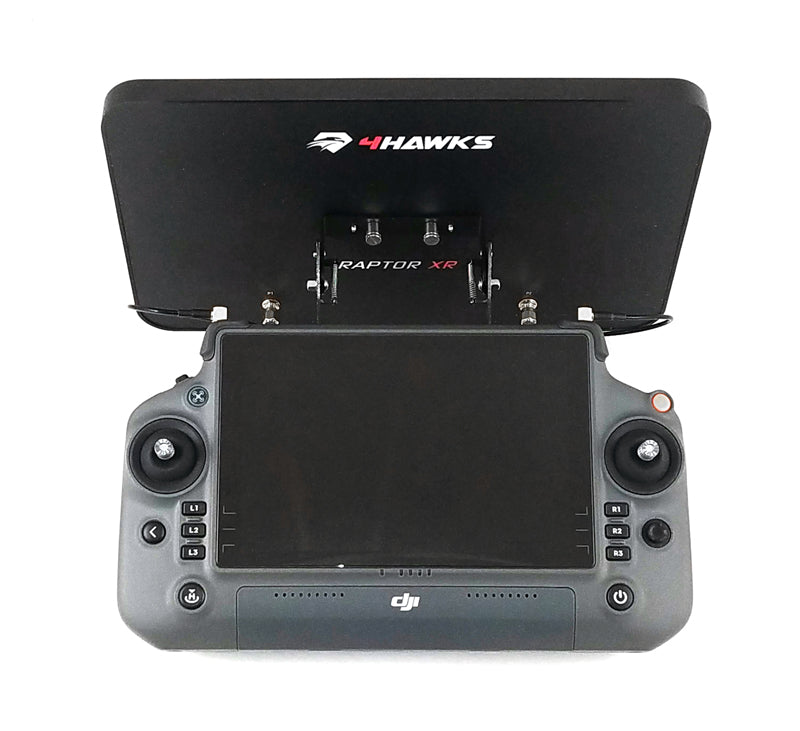

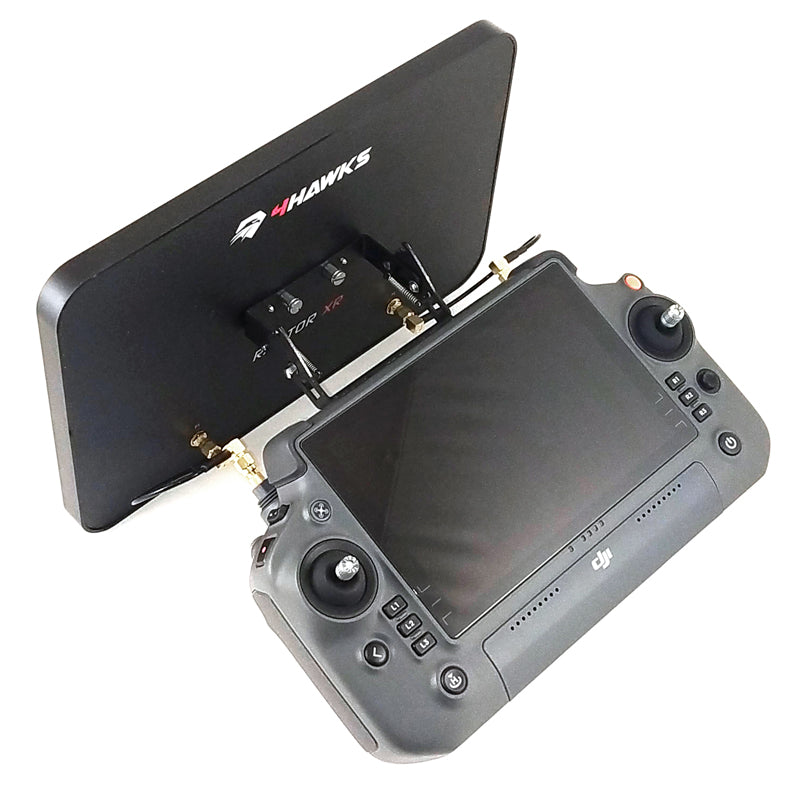

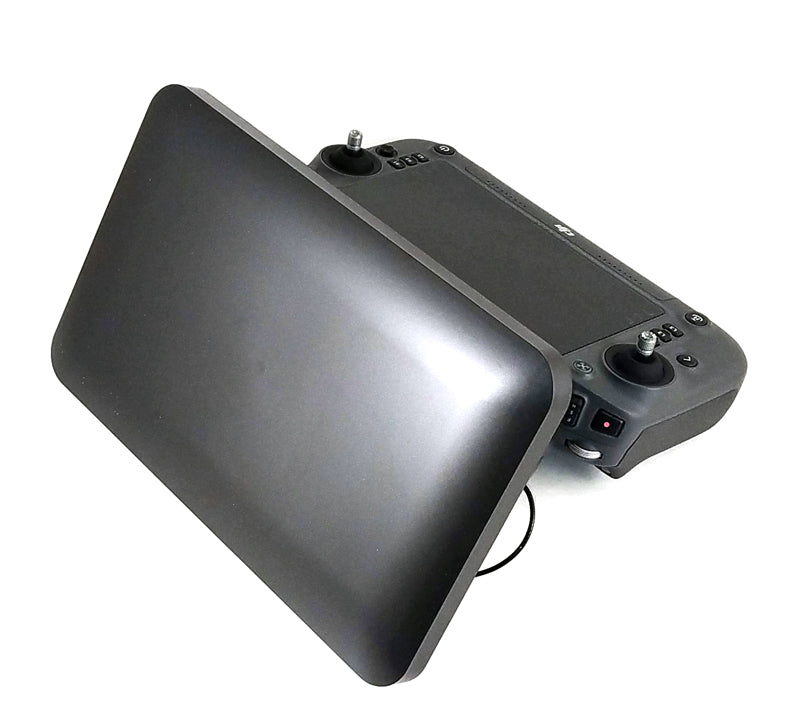

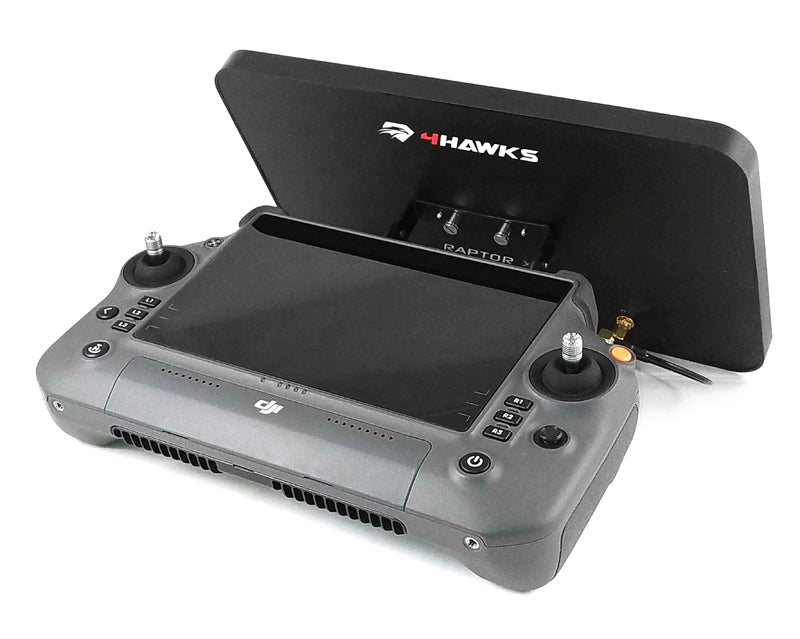

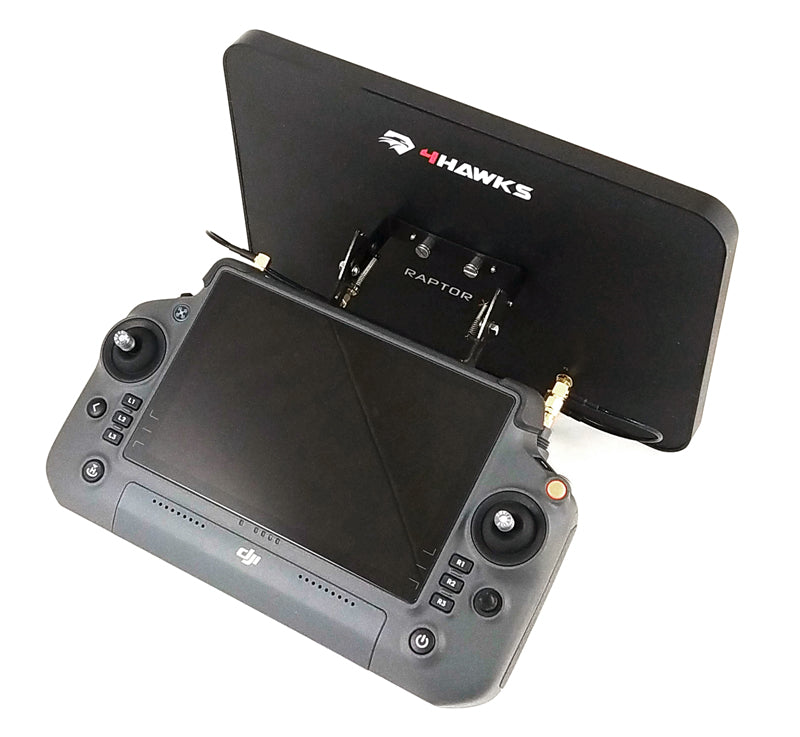

Antenna 4Hawks Raptor XR for DJI RC Plus Controller (M30T)
Antenna 4Hawks Raptor XR for DJI RC Plus Controller (M30T)
Brand: 4Hawks
Regular price
€175,77
Regular price
€175,77
Sale price
€175,77
Unit price
/
per
Upon request
We need to check the product availability with our supplier. Please contact us for details.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion
Raptor XR for DJI RC Plus Controller (M30T) Function: - Maximize performance - Simultaneous dual-band 2.4 and 5 GHz - No modifications to the drone itself - Long range extension without external amplifiers - The design does not contain any removable parts - Complete solution - Driver NOT included Specifications: Frequency Port 1: 2.40-2.50 GHz and 5.00-5.80 GHz Port 2: 2.40-2.50 GHz and 5.00-5.80 GHz Gain Port 1: 11 dBi (+/- 1 dBi) & 14 dBi (+/- 1 dBi) Port 2: 11 dBi (+/- 1 dBi) & 14 dBi (+/- 1 dBi) VSWR Port 1: < 1.50 (max < 2.00) Port 2: < 1.50 (max. < 2.00) Beam width Port 1: 70°/40° & 40°/25° Port 2: 70°/40° & 40°/25° Polarization Port 1: Vertical Port 2: Vertical Impedance Port 1: 50 Ω Port 2: 50 Ω Mechanical parameters: Material Antenna: Samsung ABS, polyurethane, aluminum, stainless steel, nylon, PTFE PCB Material Assembly: Stainless steel + paint Weight: 520g (450g Antenna + 70g Mounting) Dimensions: 29.2 x 18.2 x 2.1 cm Connection: RP-SMA female Tilt adjustment: 5 tilt positions, OnClick system The package includes: 1x antenna for extending the range 1x stainless steel mounting kit 2x RP-SMA male RG316 black pigtails 2x MCX-SMA adapter 1x 8mm key, 1.5 allen, 2.5 allen 1x Mounting screws with internal hexagon
