Antenna 4Hawks Raptor XR Dual band 2.4G/5.8G for DJI Mavic 3 (10m cables)

Name: Antenna 4Hawks Raptor XR Dual band 2.4G/5.8G for DJI Mavic 3 (10m cables)
Brand: Baltic Drones
SKU: A133X-10M
Price: 371.35 EUR
Availability: InStock

Antenna 4Hawks Raptor XR Dual band 2.4G/5.8G for DJI Mavic 3 (10m cables)

Brand: 4Hawks

€371,35

~~€371,35~~ €371,35

-0% View Product

Taxes included.

In stock

Quantity

Detailed information

View full details

Description
Related Files
Discussion

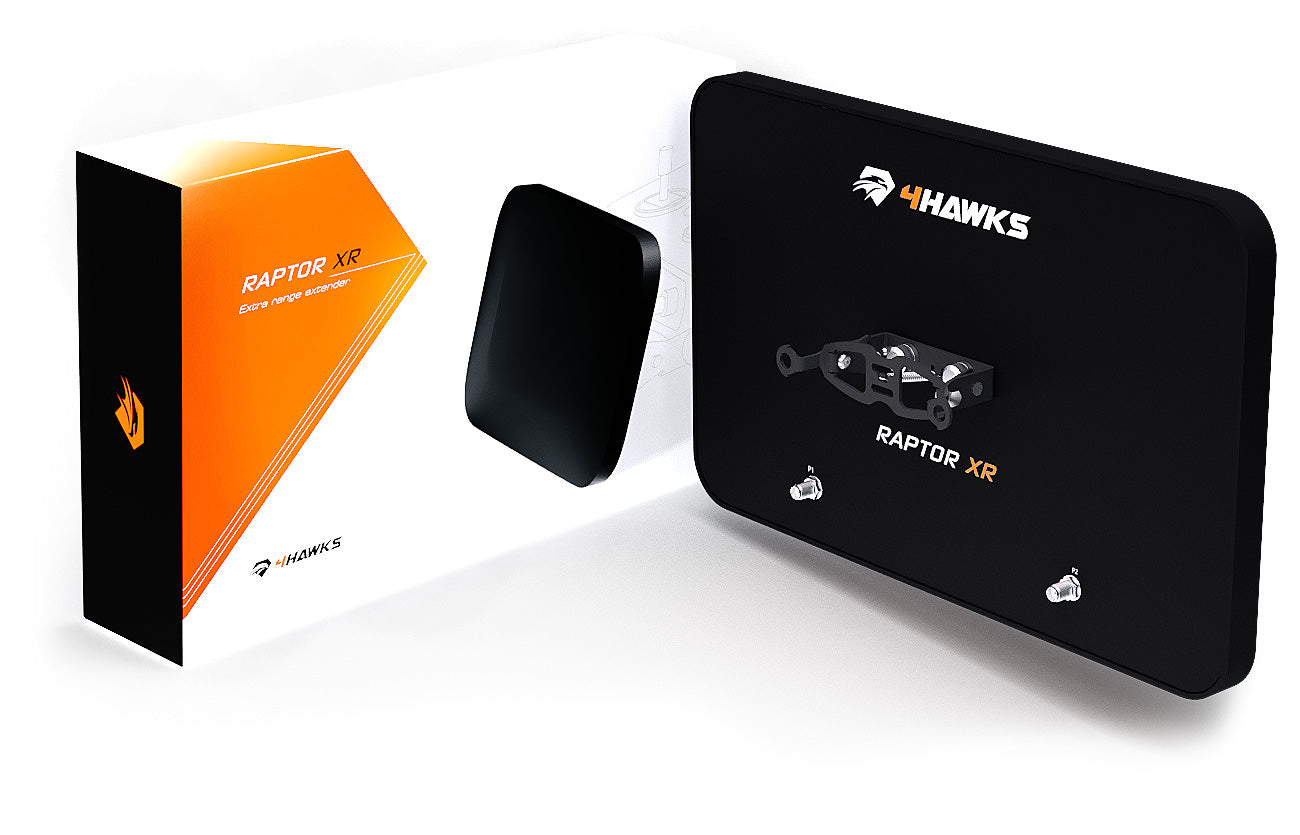

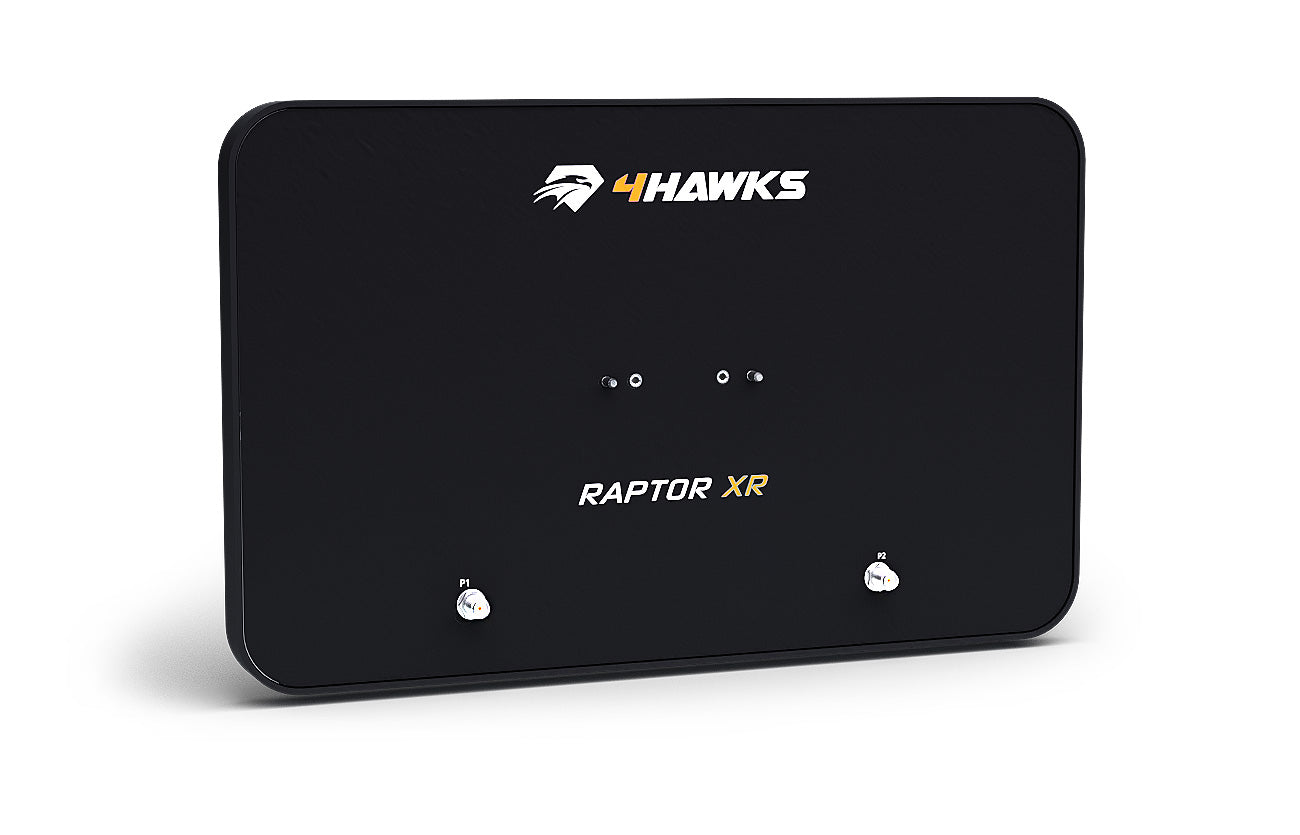

4Hawks Raptor XR Dual band 2.4G/5.8G antenna for DJI Mavic 3 (10m cables)

The 4Hawks Raptor XR antenna for DJI Mavic boasts advanced features that work seamlessly on both 2.4GHz and 5GHz frequencies. Its construction is fully UV protected, ensuring a long life for your equipment. The antenna features aluminum components and is designed to be lightweight without compromising durability. With a design that allows you to quickly adjust the direction of the antenna with a single "click", you can maintain a continuous connection with your drone.

Function:

- Extreme range extender, dual-band 2.4 + 5.8 GHz
- No modifications to the drone itself
- Long range extension without external amplifiers
- The design does not contain any removable parts
- Complete solution
- Designed for DJI Mavic 3 series
- Driver NOT included

Specifications:

Frequency
Port 1: 2.40-2.50 GHz and 5.00-5.80 GHz
Port 2: 2.40-2.50 GHz and 5.00-5.80 GHz

Gain
Port 1: 11 dBi (+/- 1 dBi) & 14 dBi (+/- 1 dBi)
Port 2: 11 dBi (+/- 1 dBi) & 14 dBi (+/- 1 dBi)

VSWR
Port 1: < 1.50 (max < 2.00)
Port 2: < 1.50 (max. < 2.00)

Beam width
Port 1: 70°/40° & 40°/25°
Port 1: 70°/40° & 40°/25°

Polarization
Port 1: Vertical
Port 2: Vertical

Impedance
Port 1: 50 Ω
Port 2: 50 Ω

Material Antenna: Samsung ABS, polyurethane, aluminum, stainless steel, nylon, PTFE PCB
Assembly: Stainless steel + paint
Weight: 520g (450g Antenna + 70g Mounting)
Dimensions: 29.2 x 18.2 x 2.1 cm
Connection: RP-SMA female

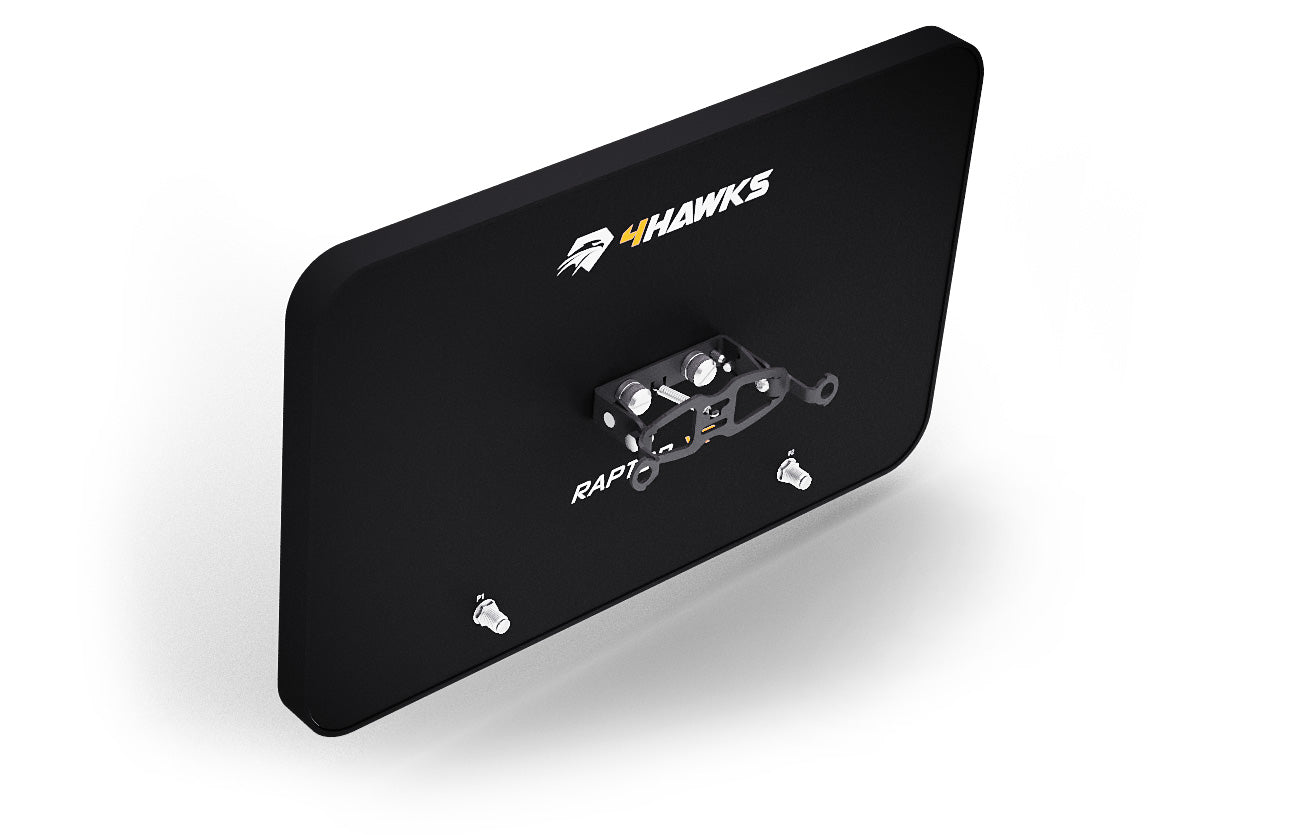

Tilt adjustment: 3 tilt positions, OnClick system
Mounting type: For SMA connectors (Permanent)

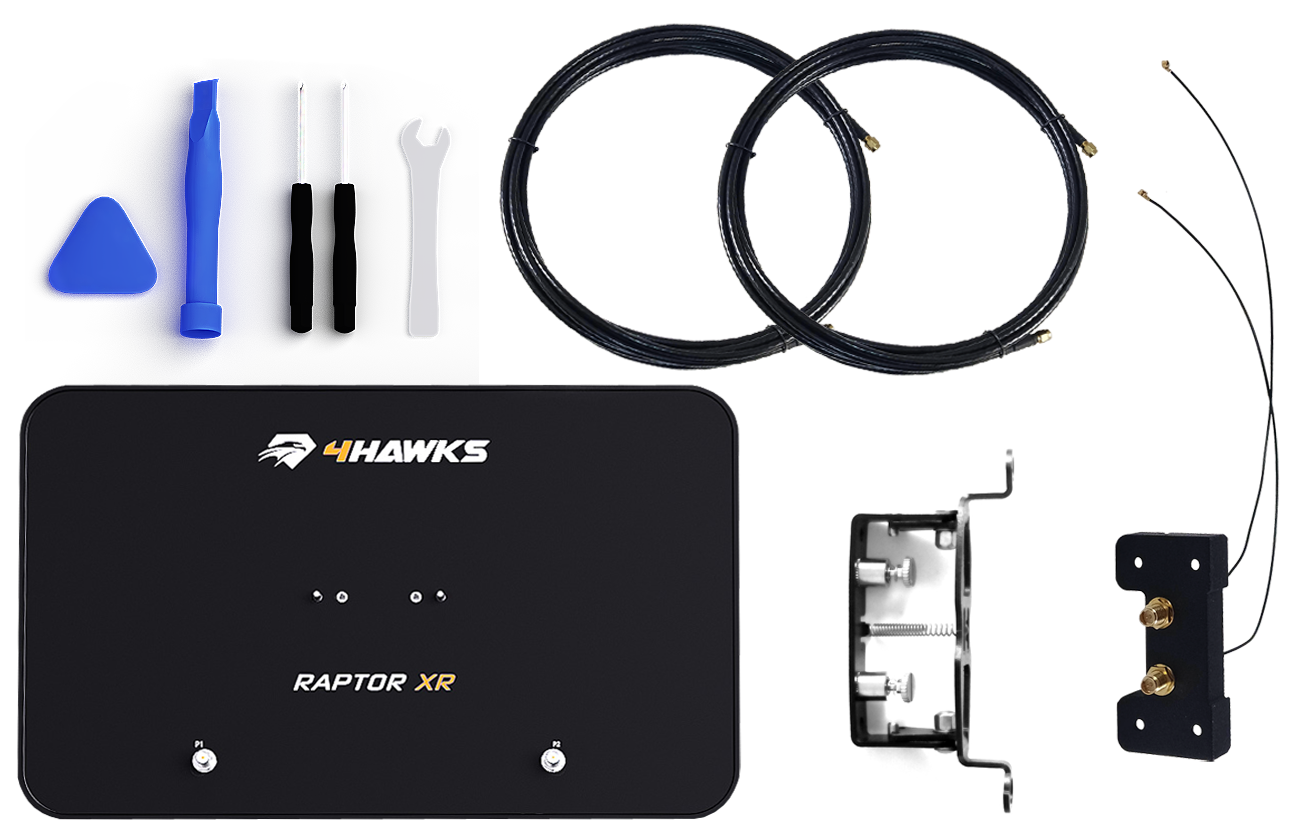

The package includes:
1x antenna with extended range
1x stainless steel mounting kit
2x 10 meter extension cables with low reflection
1x 3D printed antenna module top panel with SMA expansion ports
2x screwdriver (Torx T6 & Philips) + 8mm wrench
1x additional Mavic tools
