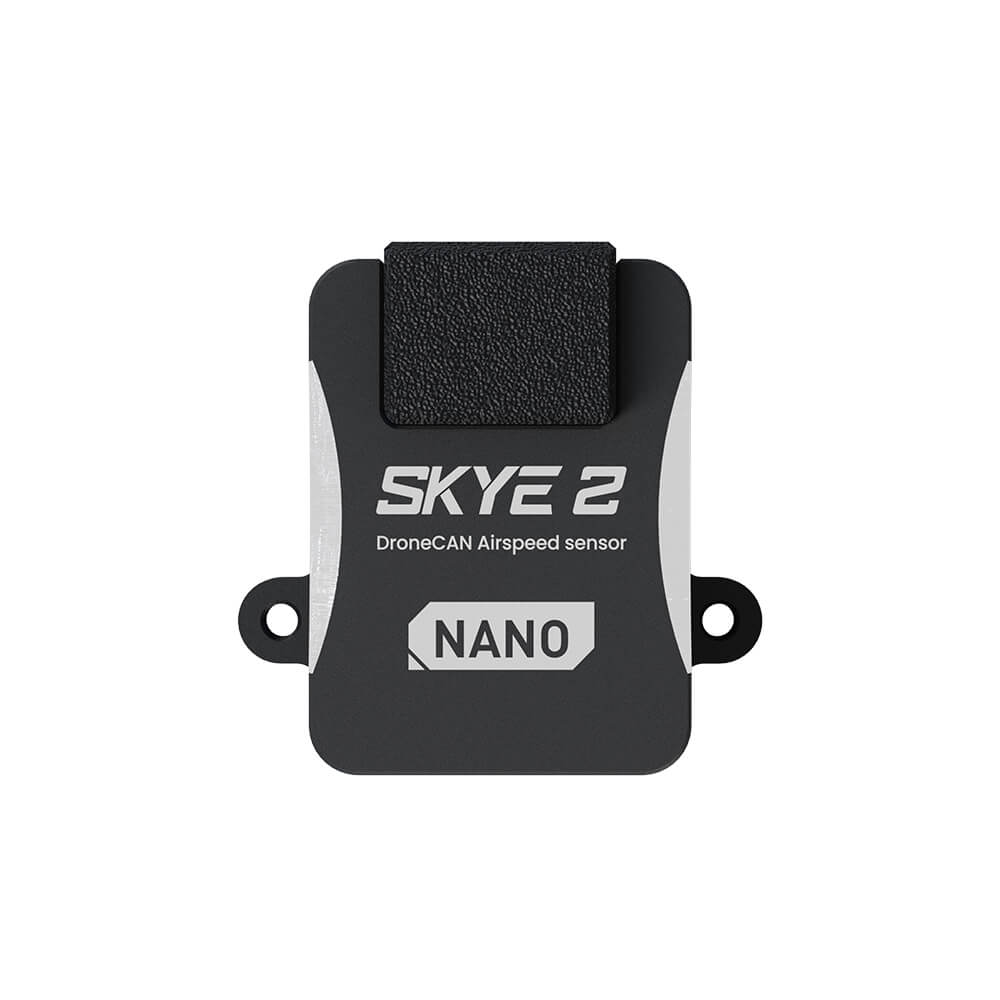

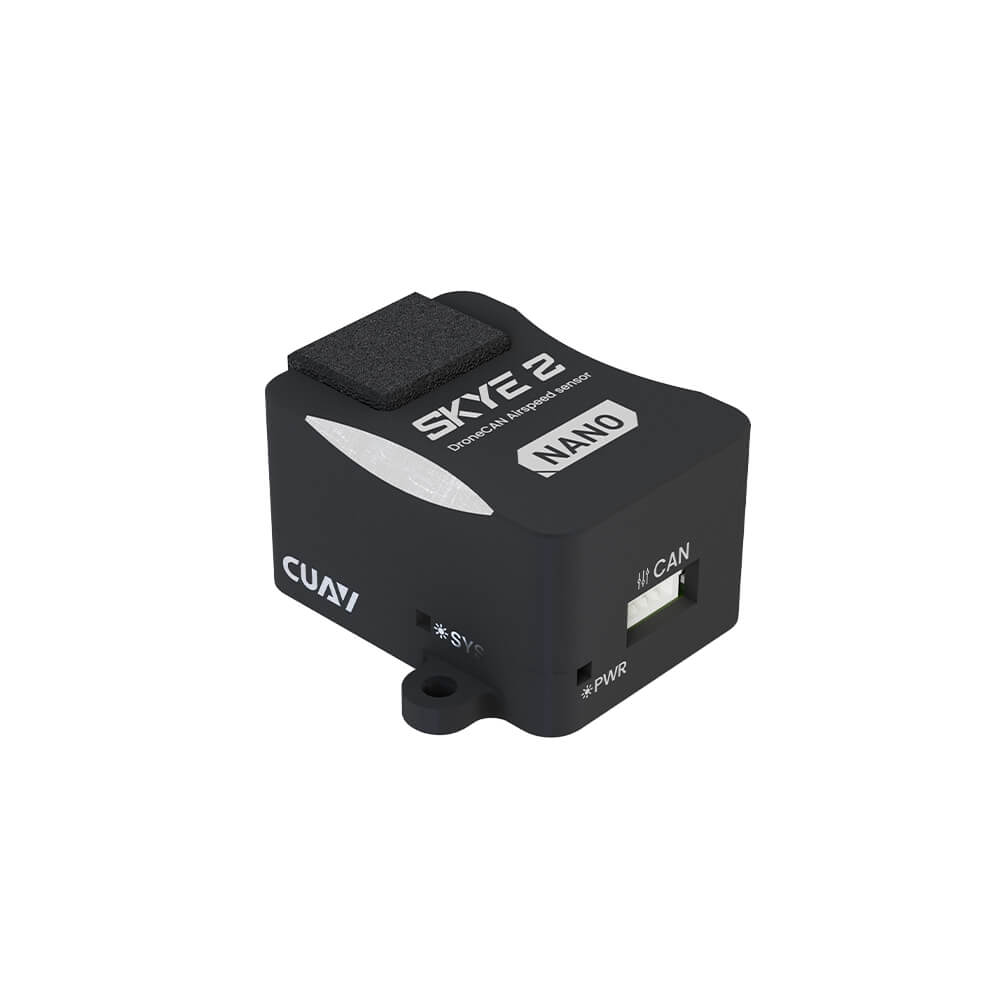

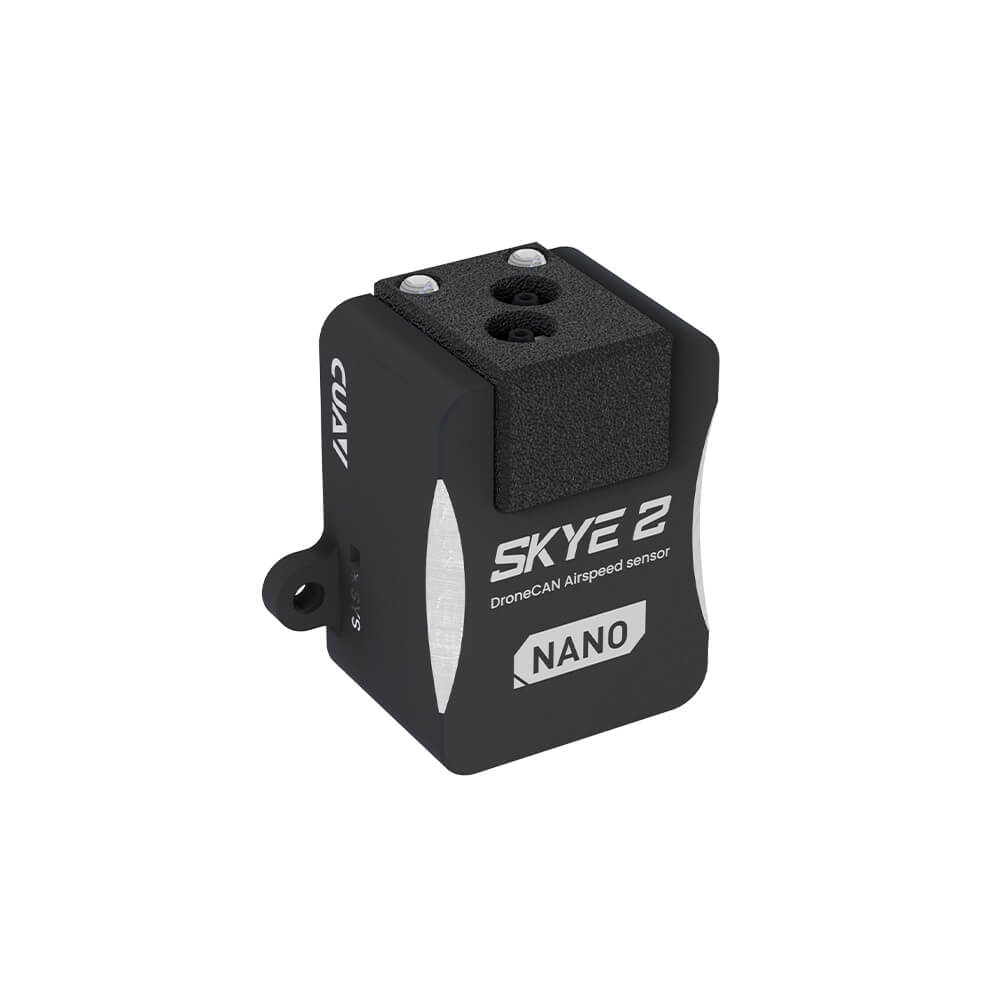

Airspeed Sensor CUAV SKYE 2 NANO The CUAV Skye 2 Nano Airspeed Sensor delivers precise airspeed readings for fixed-wing and VTOL UAVs via a rugged DroneCAN interface. Featuring the high-performance DLVR_L10D differential pressure sensor, it measures speeds from 0 to 226.8 km/h with ±1 % accuracy. Encased in a lightweight aluminum alloy housing (32.0 × 33.4 × 18.5 mm), the Nano module integrates seamlessly with PX4 and ArduPilot (CUAV/Pixhawk) systems. Operating on 4.75–5.3 V and in –20 °C to +85 °C environments, it’s ideal for demanding flight conditions. At just 15 g, it adds minimal weight while enhancing your autopilot’s aerodynamic control and flight efficiency. Specifications: Sensor Element: DLVR_L10D differential pressure transducer Airspeed Range: 0 – 226.8 km/h Accuracy: ±1 % Interface: DroneCAN (FD capable) Power Input: 4.75 – 5.3 V Current Draw: ≤20 mA (typical) Operating Temperature: –20 °C – +85 °C Housing Material: Aluminum alloy Dimensions: 32.0 × 33.4 × 18.5 mm Weight: 15 g Compatibility: PX4, ArduPilot, CUAV and Pixhawk flight controllers Package Includes: 1 × Airspeed Sensor CUAV SKYE 2 NANO
