Code: SKU:C0104
Airspeed Sensor CUAV MS4525
Airspeed Sensor CUAV MS4525
Brand: CUAV
Regular price
€80,00
Regular price
€80,00
Sale price
€80,00
Unit price
/
per
In stock
We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion

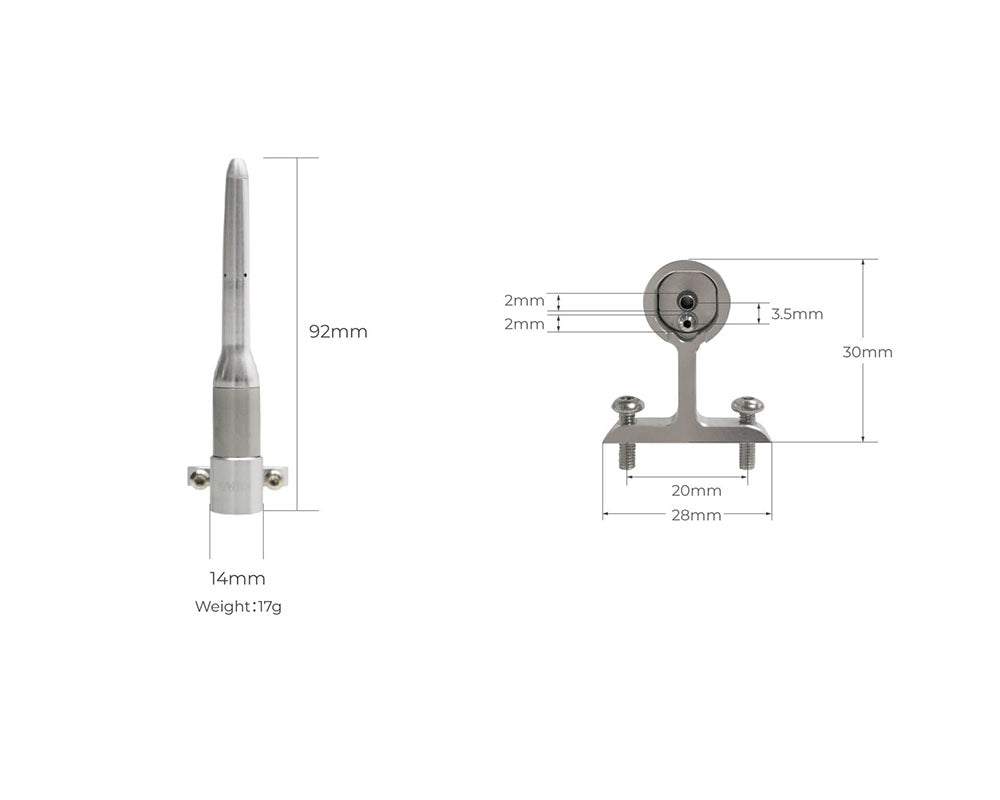

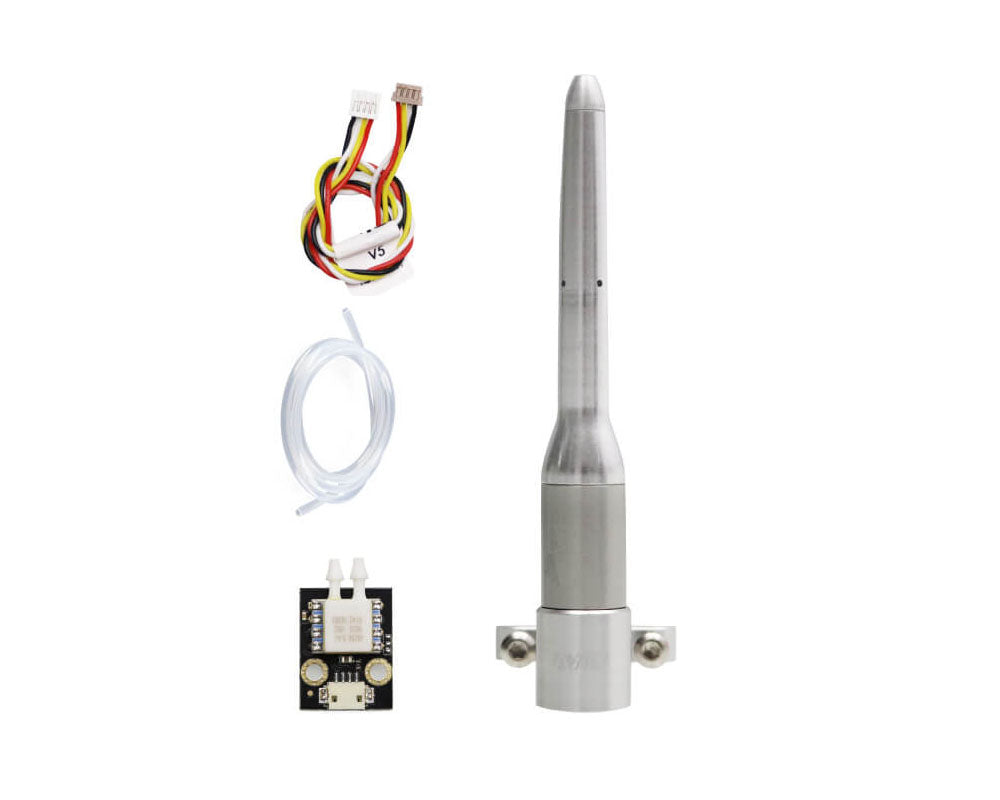

Flight controller CUAV V5+ The CUAV MS4525 Airspeed Sensor combines a precision MS4525 differential pressure sensor with a lightweight pitot tube to deliver accurate airspeed data for fixed-wing and VTOL UAVs. Its stainless steel pitot tube (14 × 92 mm) and high-sensitivity silicon pressure transducer offer rapid response and stable readings across a broad flight envelope. Designed for seamless integration with Pixhawk, CUAV V5+, and X7 flight controllers, the sensor supports real-time airspeed compensation, improving autopilot performance and flight safety. At just 17 g, it adds minimal weight while providing essential aerodynamic insights for optimized flight control and energy efficiency. Specifications: Sensor Element: TE MS4525DO differential pressure transducer Pitot Tube Dimensions: 14 mm Ø × 92 mm length Weight: 17 g (tube + sensor) Compatibility: Pixhawk, CUAV V5+, CUAV X7, and other I²C-capable flight controllers Package Includes: 1 × Stainless steel pitot tube (14 × 92 mm) 1 × MS4525 differential pressure sensor board 1 × Silicone pressure hose 1 × I²C flight controller cable
