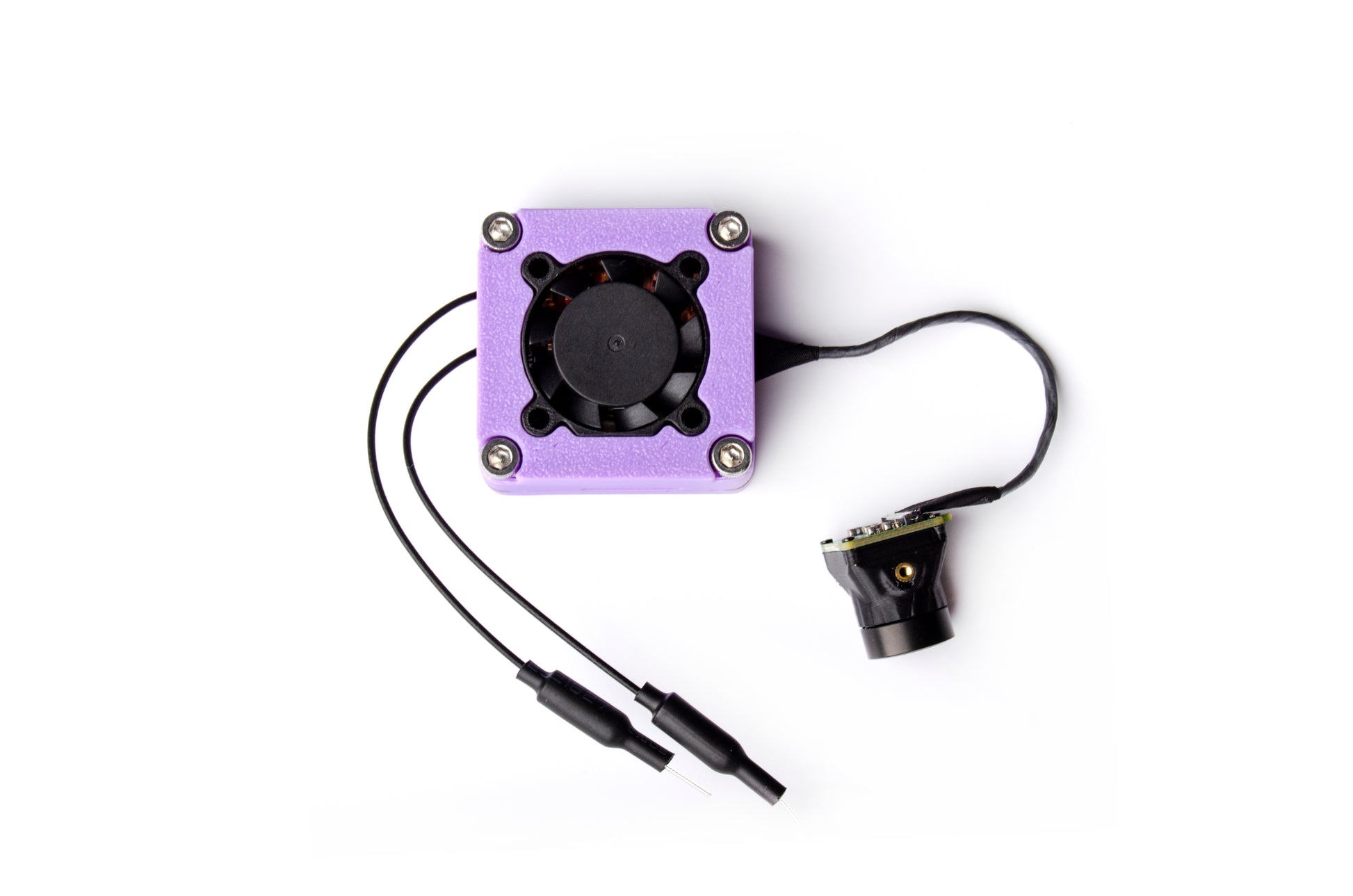

AIO Pilotix with camera
The AIO Pilotix Digital Video Kit with Camera is an innovative solution based on the universal Open IPC protocol. This all-in-one digital system includes everything you need for seamless, high-quality video transmission during drone flights.
Key features:
- Complete digital setup. It includes a high-performance Sony IMX camera, a reliable VTX (Air Unit) and two antennas for robust and uninterrupted video transmission.
- Exceptional video quality. Equipped with a Sony IMX CMOS sensor that provides sharp and clear images with an ultra-wide 147° field of view, ideal for precision flying and capturing every detail.
- Powerful VTX. The aircraft unit provides high stability and a maximum output power of 2 W, works in a wide frequency range (5.18-5.845 GHz) for interference-free communication.
- Construction ready for use. Designed for easy integration, just plug it into your drone assembly and you can experience results immediately.
- Open IPC protocol. This kit is built to harness the power of open source protocols, ensuring compatibility and scalability for advanced FPV pilots and developers alike.
Specifications:
Camera:
CMOS sensor: Sony IMX 415 / Sony IMX 335 (optional)
Sensor size: 1/2.8
Lens: f/2.8 aperture, viewing angle: 147°
Weight: 5.4g (with coaxial cable)
Dimensions: 14mm (L) x 14mm (W) x 18.5mm (H)
Sky module:
Weight: 6.1g (bare)
Total weight: 22g (with cable, antenna, camera and heatsink)
Dimensions: 1.5 x 2.5 x 3.5mm:
Without heatsink: 32mm x 32mm x 17.1mm.
With heatsink and fan: 36.5mm x 3.5mm 36.5mm x 15mm
Fixing hole spacing: 30.5mm x 30.5mm
Cables:
Cable: Cable: 10cm
Antenna: 10cm
Coaxial cable: Cable: 8cm
Power and consumption:
Voltage: Voltage range: 7.4V - 25.2V
Power consumption:
20MHz Mcs1 (4Mb): 10-12W
20MHz Mcs2 (4Mb): 9.5-11W
Communication:
Frequency: 5.18 - 5.845 GHz
Transmit power: 5.5 GHz MAX 33dBm / 2W
Default channel: 60

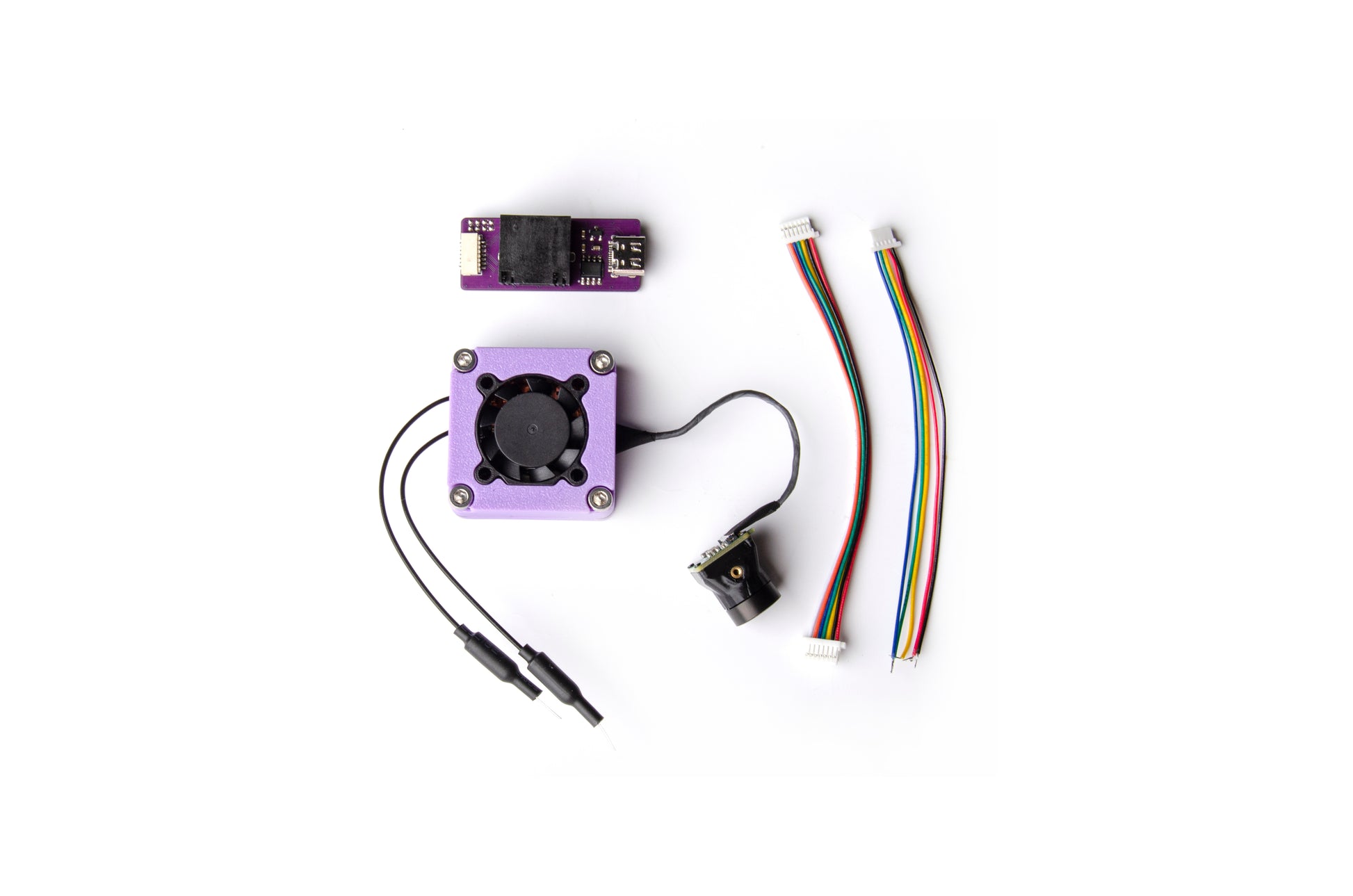

Kit Includes:
1x Sky-End Module
1x Camera
2x M1.6 Hex Screws
2x Antenna
1x Coaxial Cable
1x 5 Pin Cable
1x 7 Pin Cable

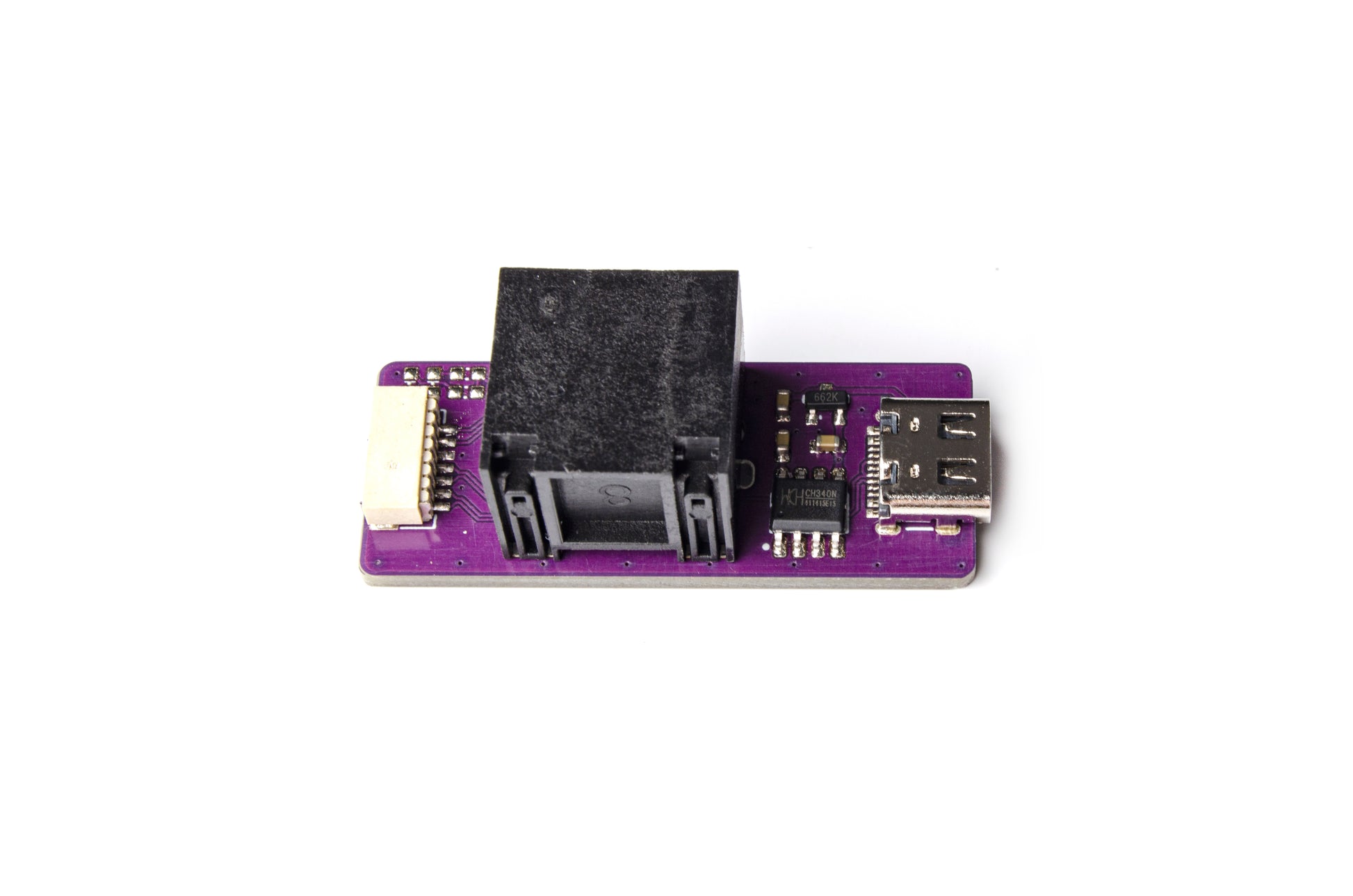

1x Debug Serial Port Adapter Module, Network Port
