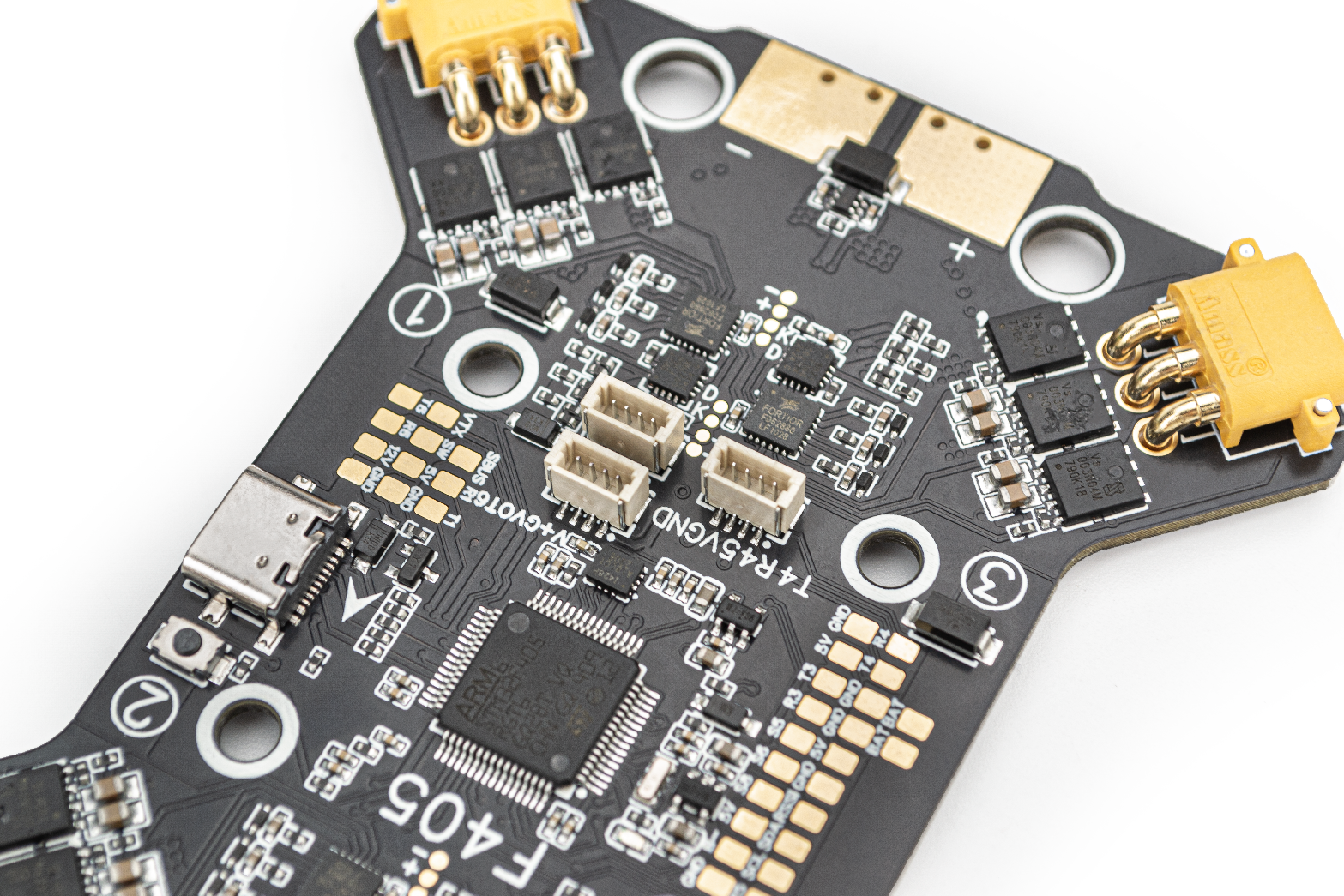

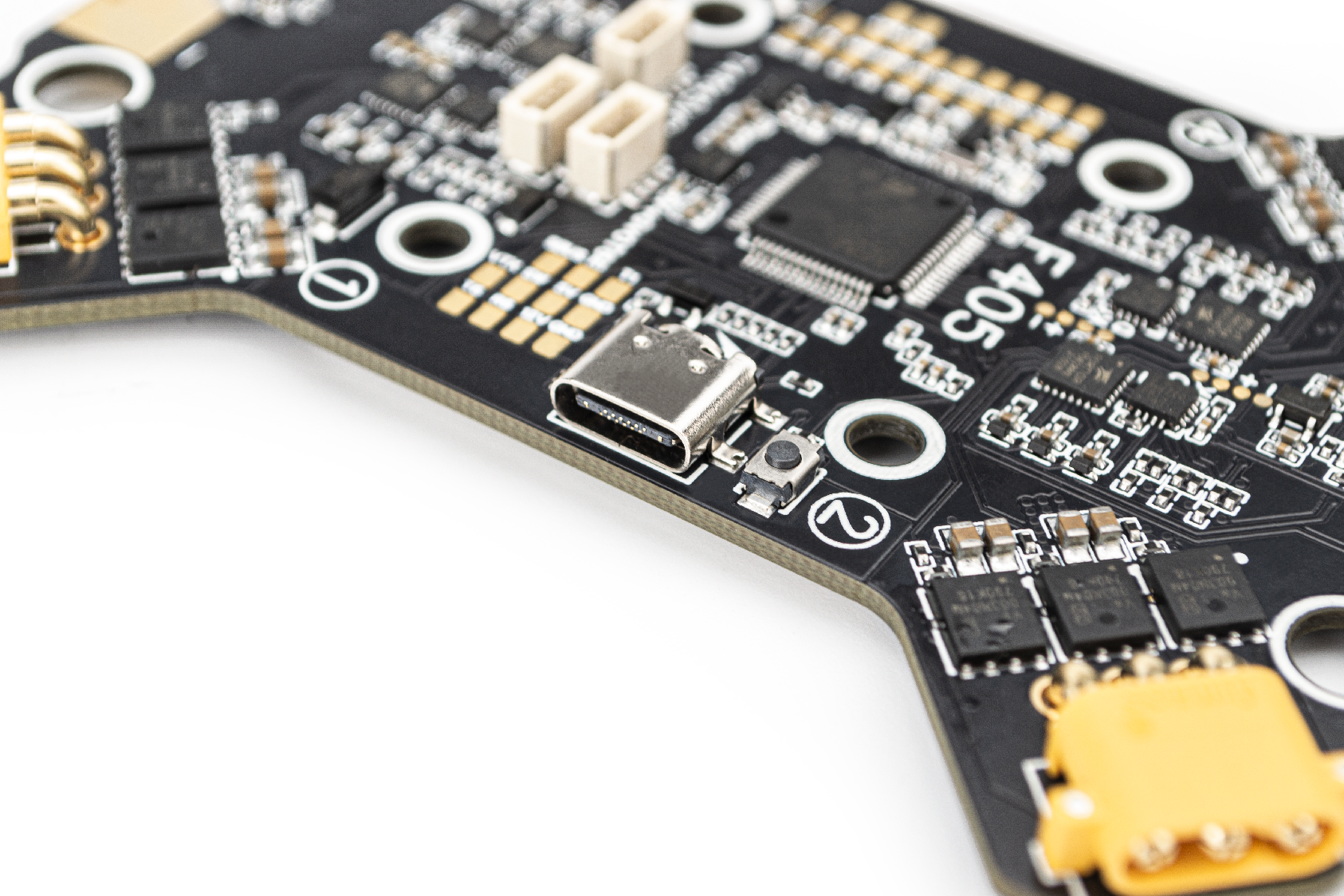

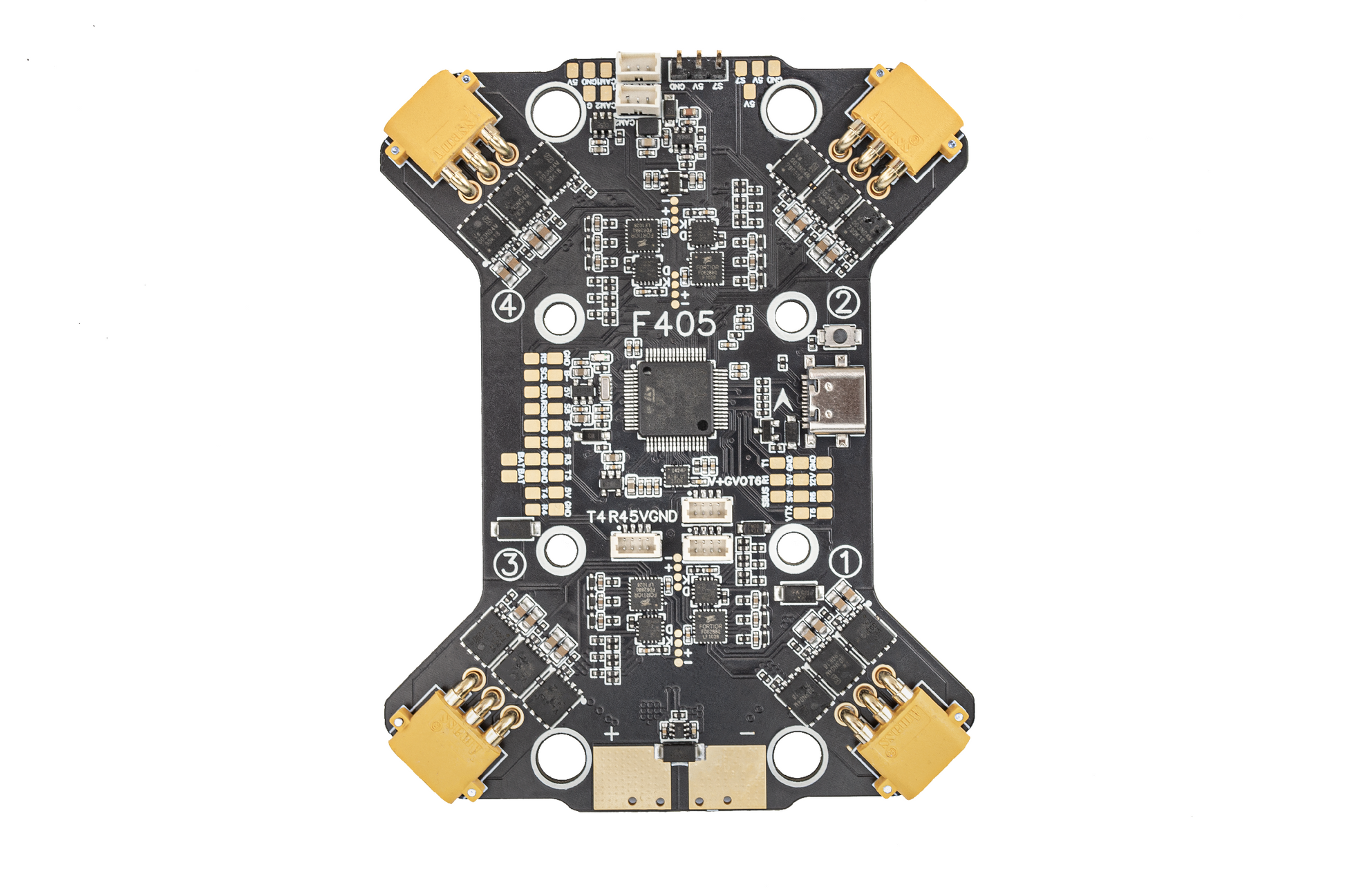

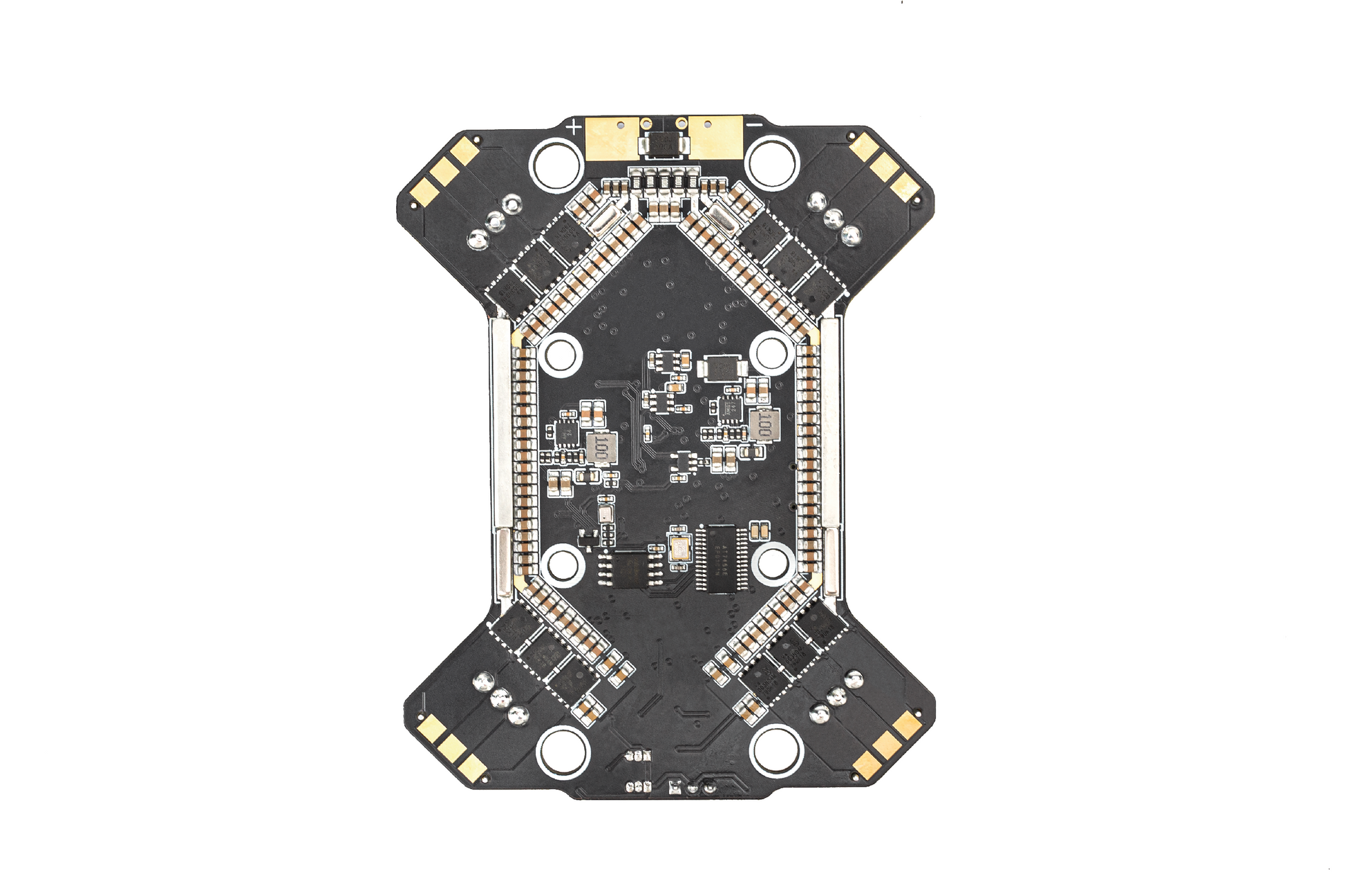

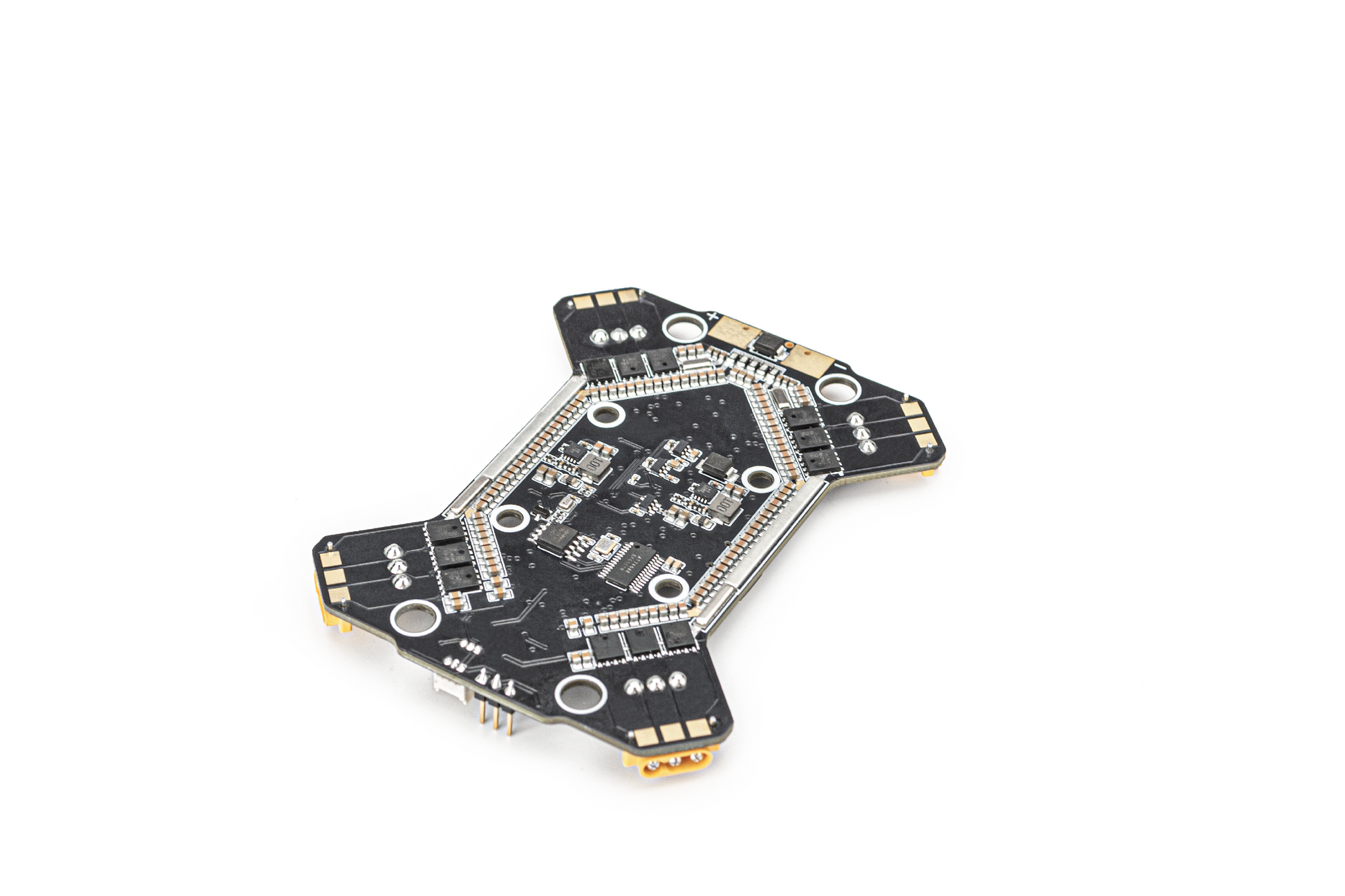

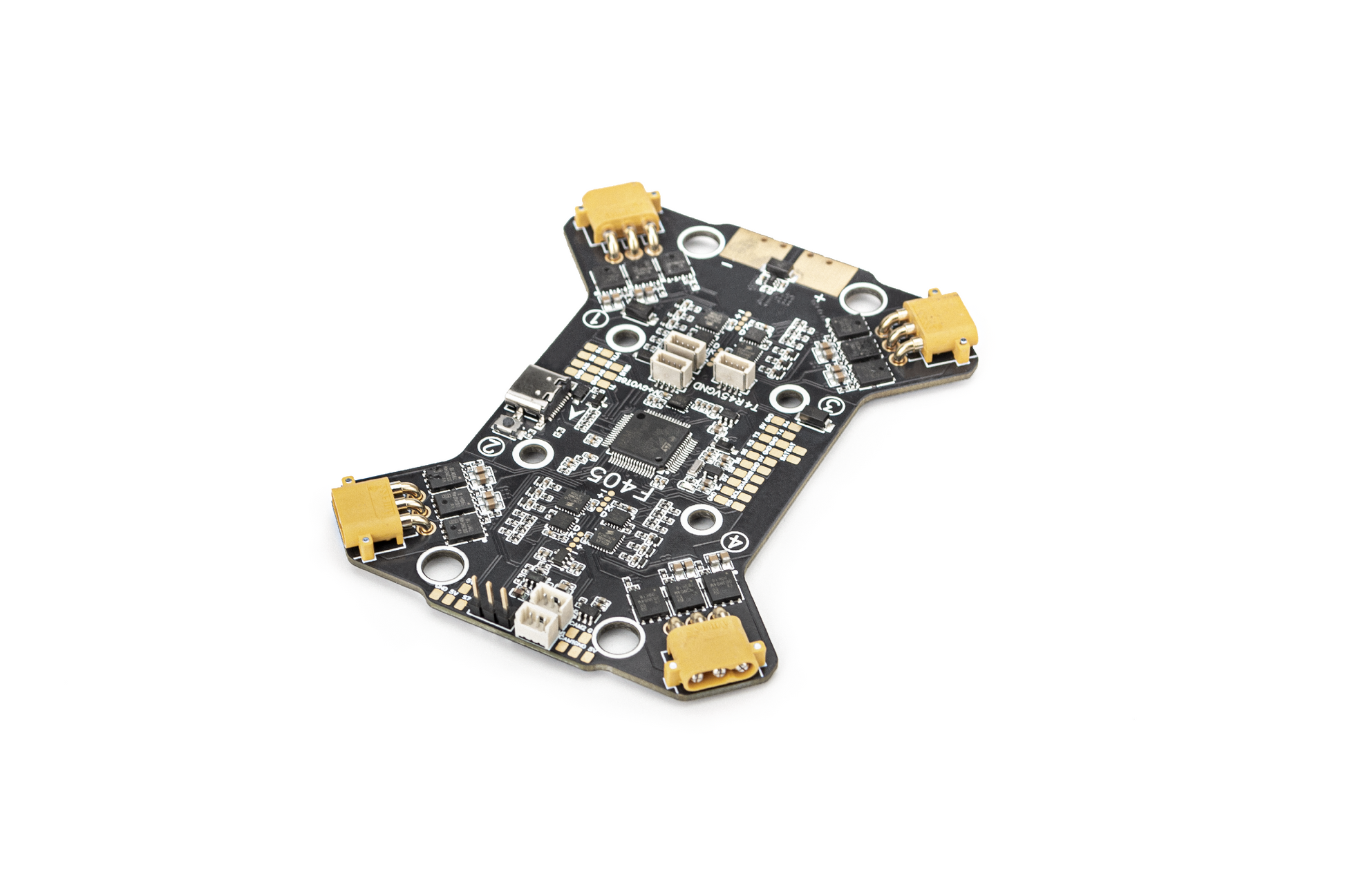

PILOTIX AIO F405 65A V1 is a unique flagship product developed in Europe that combines flight controller (FC) and electronic speed controller (ESC) in one board.
Key features:
- Integrated design: This 2-in-1 flight controller combines FC and ESC and effectively controls heat dissipation, reducing the risk of overheating and preventing malfunctions caused by overheated components.

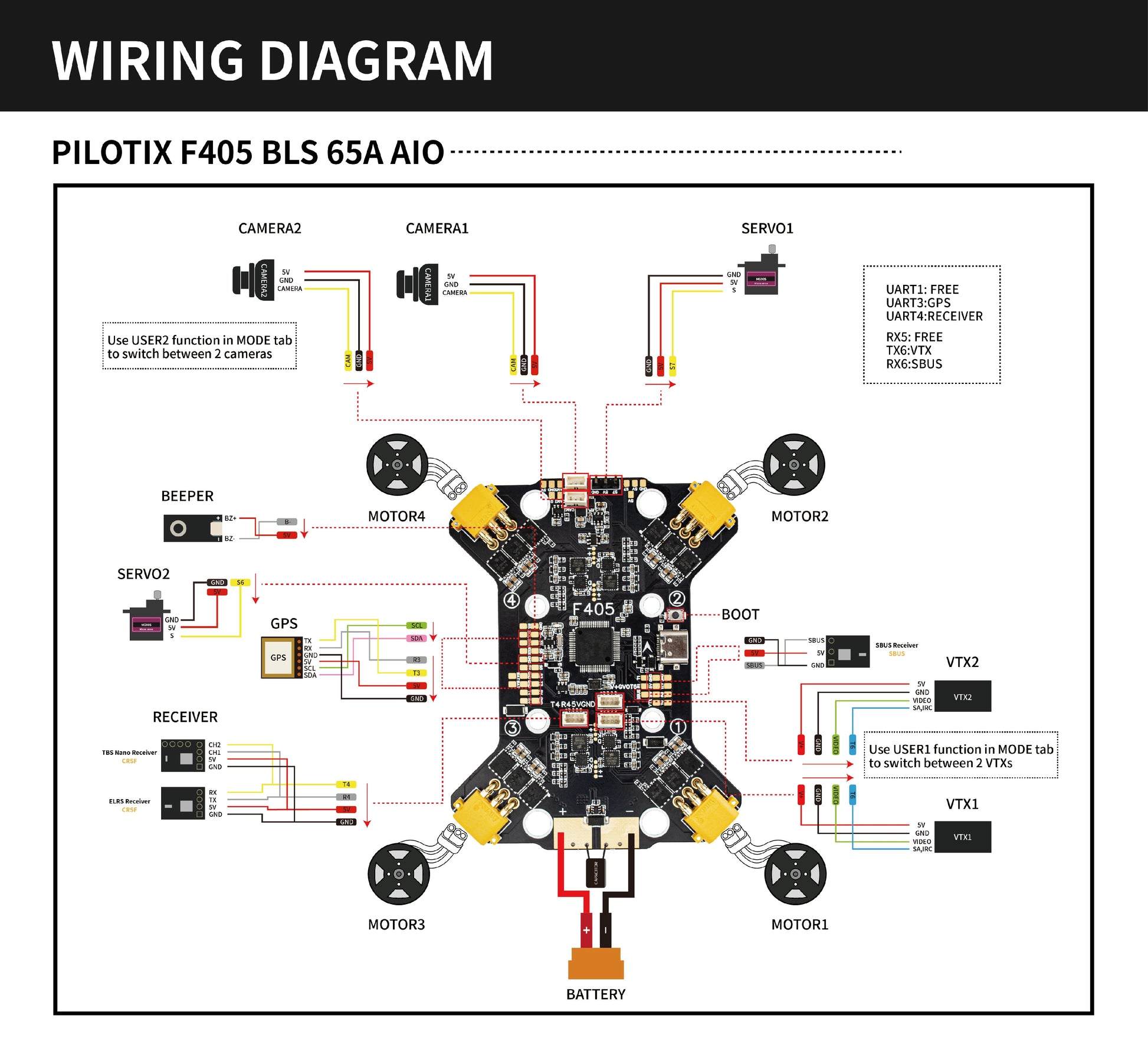

- Dual VTX with switching: Supports the simultaneous connection of two video transmitters (VTX) and allows users to easily switch between them. This allows optimal use of different channels or transmission modes depending on the situation.
- Dual Camera Connection: You can install two FPV cameras at the same time, such as a day and night (thermal) camera, to ensure excellent visibility 24/7. Thanks to this combination, the drone remains effective in all conditions and provides reliable visual control in every situation.
- True diversity support: True Diversity RX Adapter Pilotix allows two receivers to be connected for better signal reception, which significantly increases the reliability of the control system.
- Easy installation: The solution is ideal for quick DIY installation thanks to the pre-soldered connection. This reduces the likelihood of installation errors and allows quick connection of motors and other components.
- Peripheral Device Connection: Provides enough UART ports to connect other devices such as GPS, telemetry and other sensors, expanding the functionality of the flight system.
- 65A Power: This AIO supports up to 65A, which provides enough power for large drones from 7 to 13 inches in size.
NOTICE: AIO PILOTIX F405 65A V1 is ONLY compatible with PILOTIX PT V3 series frames!
Specifications:
MCU: STM32F405
GYROSCOPE: ICM42688P
OSD: AT7456E
Barometer: SPL06
Black box: Memory: 16M
UARTs: UART: 5 sets
ESC signal: 8 sets
BEC 5V: 2.2A
BEC 12V: 2.2A
TVS Protection: Yes
Software: Betaflight
CURR: Yes
Current: 65A
Peak Current: 75A
Input: 3-6S (3-8S version also available)
ESC Firmware: BLHeli_S/Bluejay
Protocol: PWM/Oneshot/DShot 150/300/600/MultiShot
Mounting: 30.5x30.5mm/M3
Size: 79x100mm
Package includes:
1x PILOTIX AIO F405 65A V1
4x screws
8x nuts
4x shock absorbers
