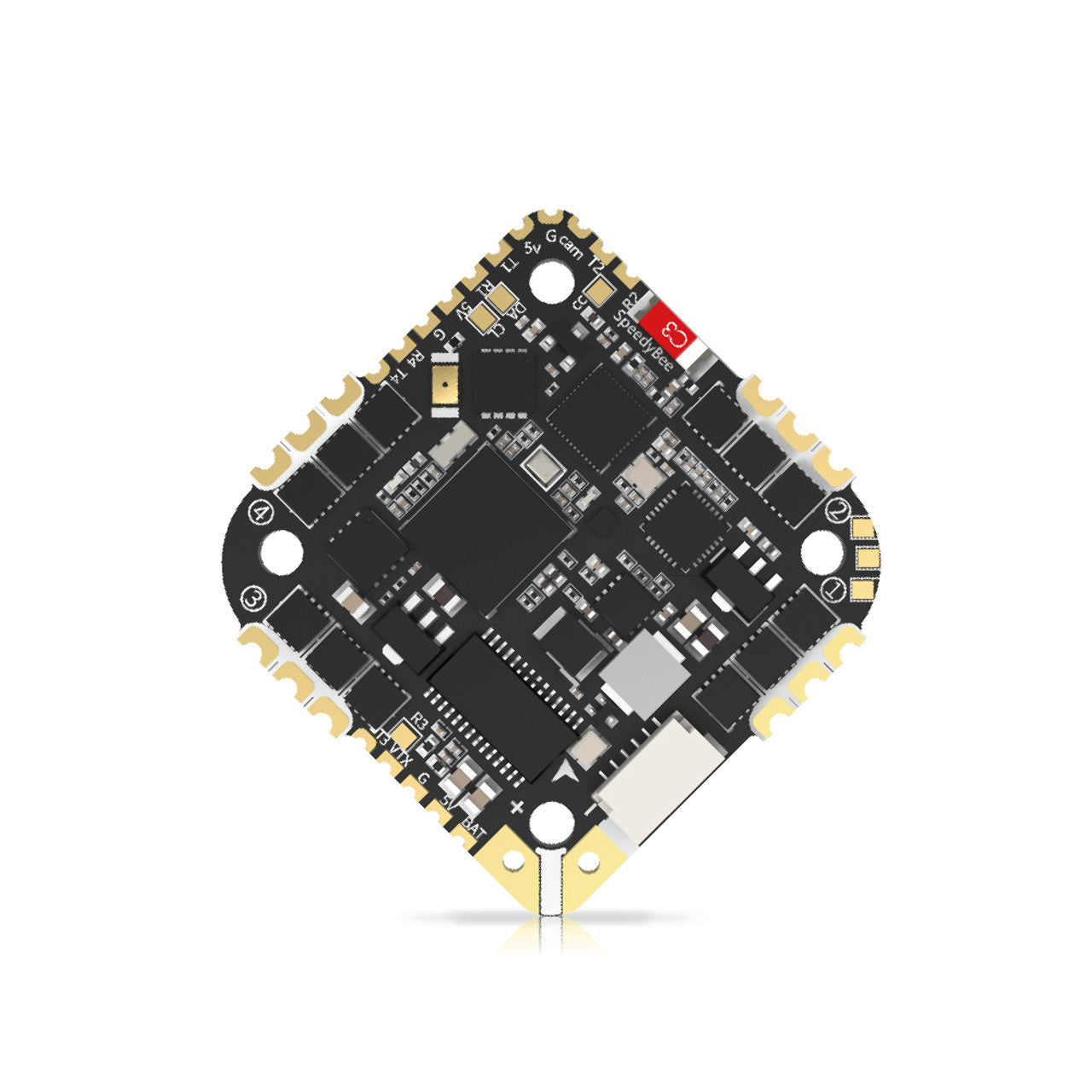

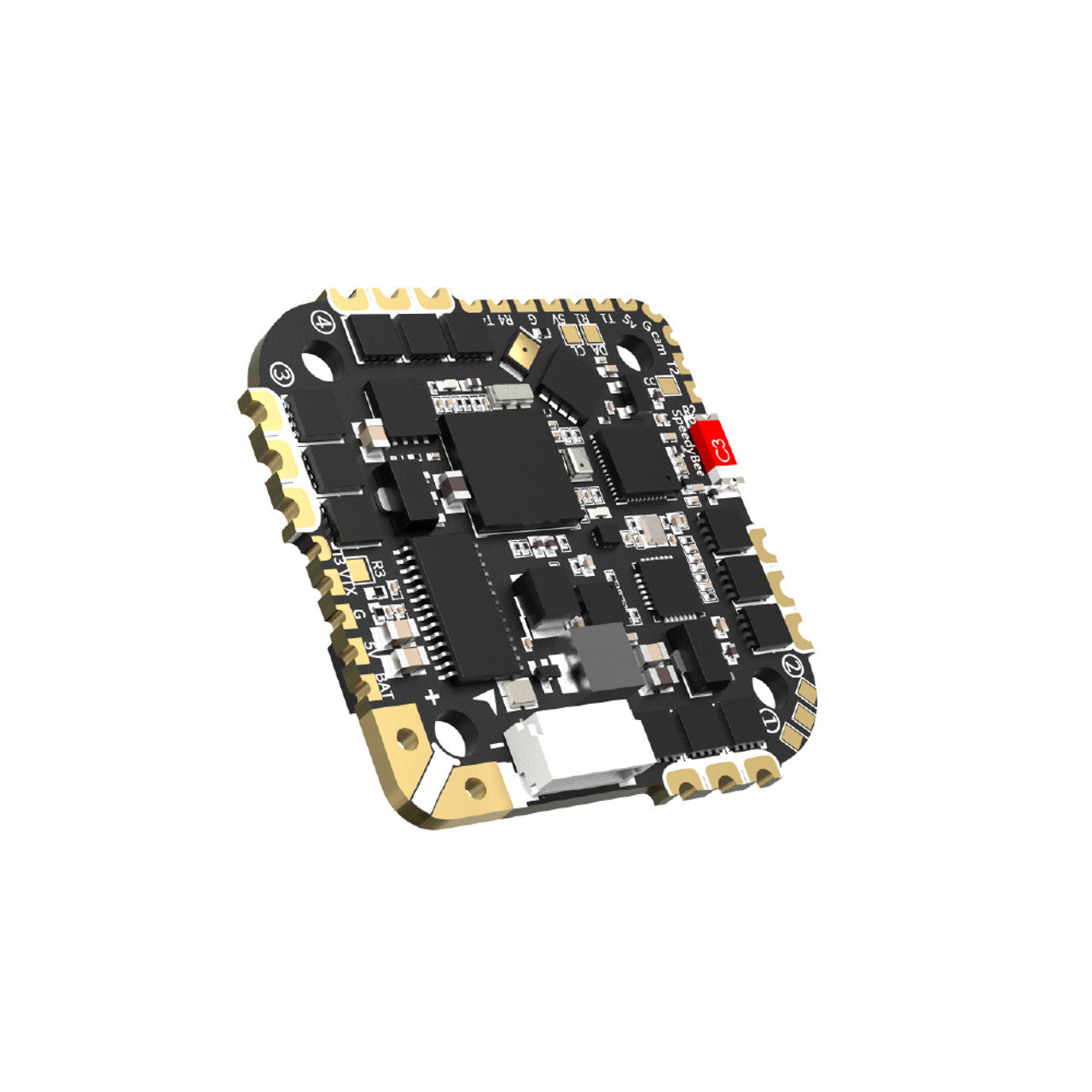

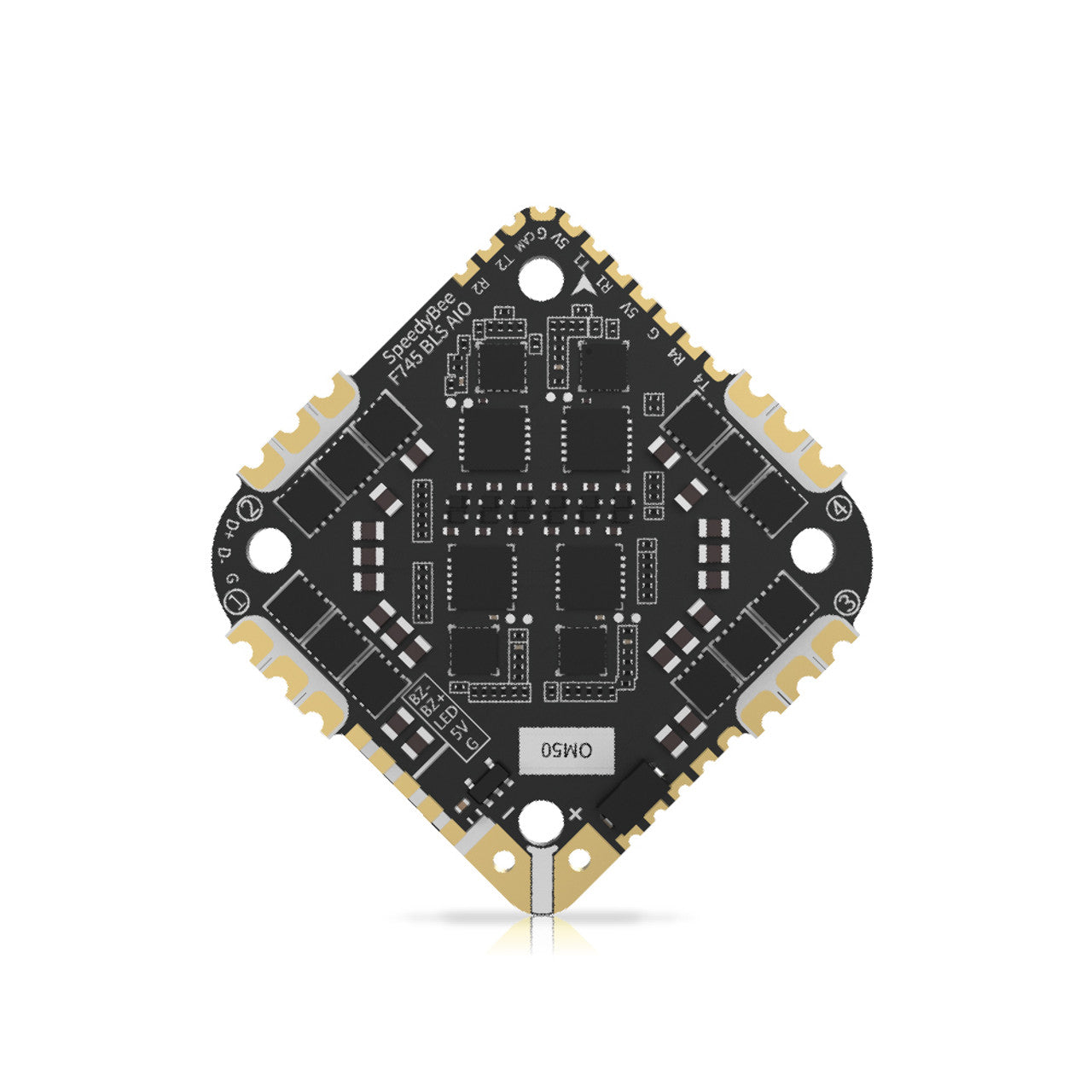

SpeedyBee F745 35A BLS 25.5x25.5 AIO Flight Controller

The F745 35A BLHeli_S AIO Flight Controller Speedy Bee is another option for 3.5" to 5" cinewhoops/long range. This AIO features a powerful F745 MCU for smoother flights, durable 35A 6S Toshiba MOSFETs, a BMP280 barometer, 8MB blackbox flash, and wireless support for both flight controller and ESC via the Speedy Bee app. Complete configuration of Betaflight and BLHeli_S in the field using your phone.

Specifications:

MCU: STM32F722
IMU (gyroscope): BMI270
USB Port: DM DP External USB
Barometer: BMP280
OSD: Supported
BLE Bluetooth: Supported
Firmware Flash FC wireless: Supported
Download/Analyze Blackbox: Supported
DJI Air Unit Solder Pads: Supported
Flash memory: 8 MB
Current Sensor: Supported, Scale=2900
Betaflight Camera Control: Yes (CC Pad)
Power: 3S - 6S LiPo
5V output: 4 groups of 5V output. The total current load is 2.5A
9V output: None
3.3V output: Supported - current load up to 500 mA
ESC signal pads: M1 - M4
UARTs: 4 full UARTs
ESC Telemetry UART: None
I2C: Supported
LED Pad: WS2812 LED Supported
Buzzer: 5V pads for buzzer
Boot Button: For DFU mode
SmartPort: Use and TX pad UART for SmartPort function
Firmware: Betaflight, EMUFlight, iNav
Target: SPEEDYBEE F745AIO
Mounting: 25.5 x 25.5 mm, hole diameter 3 mm
Dimensions: 36.5 x 36.5 x 7 mm
Weight: 10.1g
